Edelbrock 85492 Edelbrock E-Series Cylinder Head Bolt Kit #85492 for Pontiac w/Edelbrock heads
by Edelbrock
SKU ds_BDVJ_85492
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$227.18
-
Original price
$227.18
Original price
$227.18
$227.18
$227.18
-
$227.18
Current price
$227.18
Availability:
Only 4 left!
Description

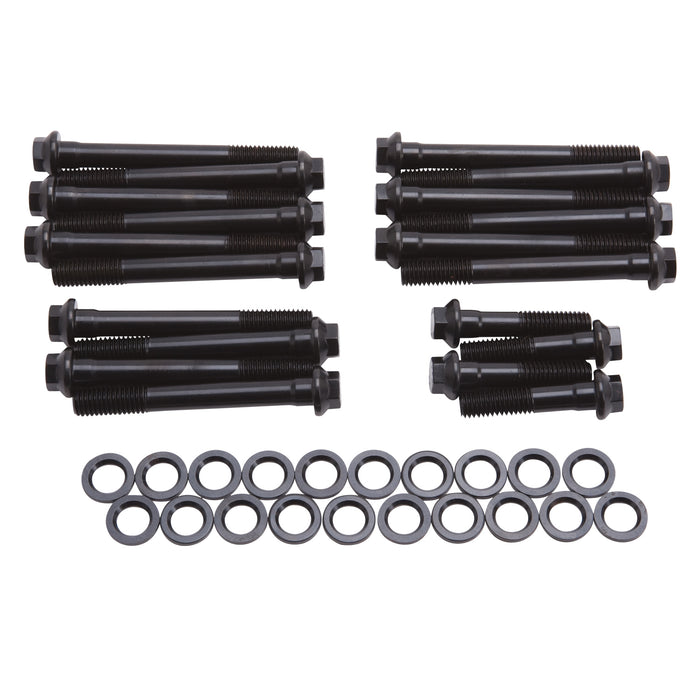

Edelbrock E-Series Cylinder Head Bolt Kit #85492 is designed for use on Pontiac 326-455 engines with Edelbrock Performer and Performer RPM Cylinder Heads #60569-#60599 and #60509 manufactured after 3/12/02. Note that Edelbrock Cylinder Heads for the Pontiac 389-455 engine require a special head bolt. The head bolt boss heights have been changed in the Pontiac cylinder head to eliminate problems with cracking at the upper head bolt boss end for high-output applications. The new head bolt boss height also simplifies the head bolt kit by requiring only three different lengths instead of six different lengths in the previous head bolt kit. E-Series bolts have a yield tensile strength of 190,000 PSI for strong and reliable loading. Bolt threads are rolled after heat-treating for superior form and strength, while a small hex head provides extra space for socket clearance in tight situations. E-Series Cylinder Head Bolts have a durable black oxide finish with sealer and come with the distinctive Edelbrock “E” stamped into the head.
Specifications
| Description_ABR | HeadBoltKit |
| Description_ASM | Pontiac:-:326 (5.3L)-455 (7.5L) |
| Description_DEF | Engine Cylinder Head Bolt Set |
| Description_DES | Edelbrock E-Series Cylinder Head Bolt Kit #85492 for Pontiac w/Edelbrock heads |
| Description_EXT | E-Series #85492 is a Head Bolt Kit for Pontiac 326-455 engines with Edelbrock #60569-#60599 and #60509 cylinder heads manufactured after 3/15/02. Not for stock heads. |
| Description_FAB | black-oxide finish with sealer |
| Description_FAB | For Edelbrock Pontiac Performer/Performer RPM heads manufactured after 3/12/02 |
| Description_FAB | Heat treating with rolled threads for superior strength |
| Description_FAB | Not for stock heads. |
| Description_FAB | Yield tensile strength of 190,000 PSI |
| Description_INV | E-Series Pontiac Head Bolt Kit #85492 |
| Description_LAB | Edelbrock E-Series Cylinder Head Bolt Kit #85492 for Pontiac w/Edelbrock heads |
| Description_MKT | Edelbrock E-Series Cylinder Head Bolt Kit #85492 is designed for use on Pontiac 326-455 engines with Edelbrock Performer and Performer RPM Cylinder Heads #60569-#60599 and #60509 manufactured after 3/12/02. Note that Edelbrock Cylinder Heads for the Pontiac 389-455 engine require a special head bolt. The head bolt boss heights have been changed in the Pontiac cylinder head to eliminate problems with cracking at the upper head bolt boss end for high-output applications. The new head bolt boss height also simplifies the head bolt kit by requiring only three different lengths instead of six different lengths in the previous head bolt kit. E-Series bolts have a yield tensile strength of 190,000 PSI for strong and reliable loading. Bolt threads are rolled after heat-treating for superior form and strength, while a small hex head provides extra space for socket clearance in tight situations. E-Series Cylinder Head Bolts have a durable black oxide finish with sealer and come with the distinctive Edelbrock “E” stamped into the head. |
| Description_SHP | None |
| Description_TRA | For 389-455 engines, use Edelbrock #7381, Fel-Pro #1016 or equivalent head gaskets. NOTE: Edelbrock Cylinder Head Gasket Set #7382 may also be used. - This gasket set includes all necessary gaskets for cylinder head installation, including cylinder head, intake, exhaust, water neck and valve cover gaskets. - Be sure that the surface of the block and the surface of the head are thoroughly cleaned to remove any oily film before installation.- Use alcohol or lacquer thinner on a lint-free rag to clean. Coat threads, washers, and underside of bolt heads with motor oil for accurate torque readings. - Torque upper row of bolts to 105 ft. /lbs., torque lower row of bolts to 95 ft./lbs. in three even increments. Start in center and work out towards ends. A re-torque is recommended after initial start-up and cool-down (allow 2-3 hours for adequate cooling). |
| Description_TRA | Installation is the same as for original equipment cylinder heads. Consult service manual for specific procedures, if necessary. |
| Description_TRA | The Edelbrock #85492 is made specifically for Pontiac V8. |
| finish | Black Oxide |
| Grade Type | Performance |
| height | 3.0 |
| length | (4) 2.25 in, (4) 4.00 in, (12) 4.25 |
| length | 7.0 |
| LTL | N |
| Quantity | Kit |
| RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| weight | 4.1 |
| width | 5.0 |
