Description

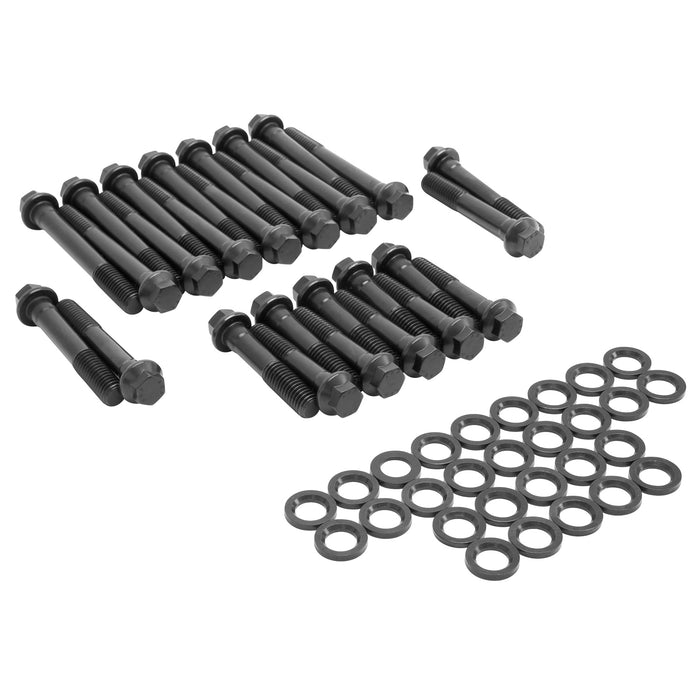

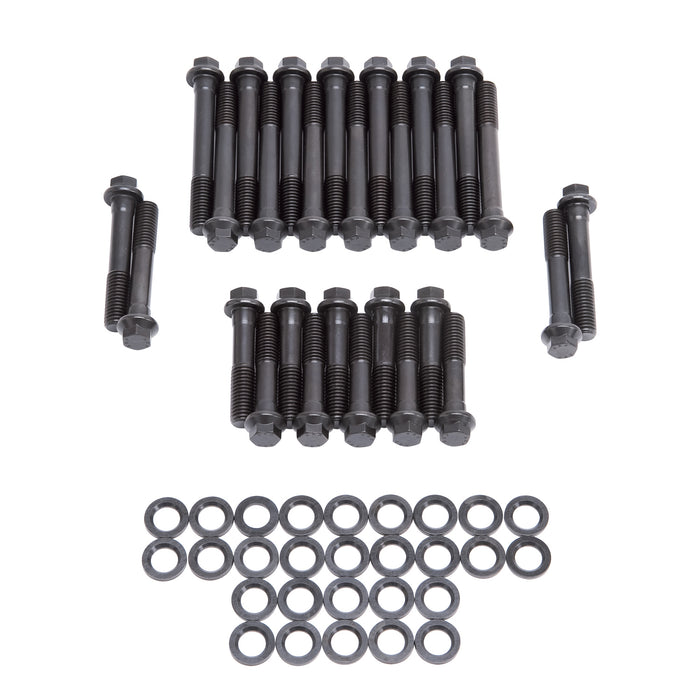

The Edelbrock #8532 bolt kit contain a complete set of the highest quality head bolts and hardened washers available. Cold-formed to ensure molecular integrity and heat treated prior to thread rolling and machining. Reduced diameter bolt heads eliminate the need for valve train removal to facilitate cylinder head re-torqueing. Hardened and parallel-ground washers are included. Rated at 170,000 p.s.i.
Specifications
| Description_ABR | HeadBlotKit |
| Description_ASM | AMC:-:304 (5.0L)/360 (5.9L)/401 (6.6L) |
| Description_DEF | Engine Cylinder Head Bolt Set |
| Description_DES | HEAD BOLT KIT |
| Description_EXT | Edelbrock #8532 Head Bolt Kit is for 1970-91 AMC 290-401 Engines with Edelbrock #60129, 60139, 60109, & 60119 Performer & Performer RPM Cylinder Heads. Kit Includes Complete Set of 1/2" Diameter Bolts and Washers. |
| Description_EXT | Edelbrock #8532 Head Bolt Kit is for 1970-91 AMC 290-401 Engines with Edelbrock #60129; 60139; 60109; 60119 Performer Performer RPM Cylinder Heads. Kit Includes Complete Set of 1/2in. Diameter Bolts and Washers. |
| Description_FAB | Cold-Formed; Heat Treated |
| Description_FAB | Ensures Molecular Integrity |
| Description_FAB | Hardened/Parallel-Ground Washers Included |
| Description_FAB | Highest Quality Head Bolts |
| Description_FAB | Manufactured By ARP |
| Description_FAB | Rated At 170000 psi |
| Description_FAB | Reduced Diameter Bolt Heads |
| Description_INV | 1970 - Later AMC Head Bolt Kit |
| Description_INV | 1970-Later AMC Head Bolt Kit |
| Description_KEY | Edelbrock; AMC; V8; Head Bolt; 1970 and later |
| Description_LAB | 1970 - Later AMC Head Bolt Kit |
| Description_LAB | 1970-Later AMC Head Bolt Kit |
| Description_MKT | The Edelbrock #8532 bolt kit contain a complete set of the highest quality head bolts and hardened washers available. Cold-formed to ensure molecular integrity and heat treated prior to thread rolling and machining. Reduced diameter bolt heads eliminate the need for valve train removal to facilitate cylinder head re-torqueing. Hardened and parallel-ground washers are included. Rated at 170,000 p.s.i. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 0in.} |
| Description_TRA | Be sure that the surface of the block and the surface of the head are thoroughly cleaned to remove any oily film before installation. |
| Description_TRA | Consult service manual for specific procedures, if necessary. |
| Description_TRA | Installation is the same as for original equipment cylinder heads. |
| Description_TRA | The Edelbrock #8532 is made specifically for 1970- Later AMC |
| Description_TRA | The Edelbrock #8532 is made specifically for 1970-Later AMC • Installation is the same as for original equipment cylinder heads. • Consult service manual for specific procedures; if necessary. •Be sure that the surface of the block and the surface of the head are thoroughly cleaned to remove any oily film before installation. •Use alcohol or lacquer thinner on a lint-free rag to clean. Apply oil or suitable thread lubricant to head bolt threads and the underside of bolt heads and washers. •Torque cylinder head bolts in three steps following the factory tightening sequence |
| Description_TRA | Torque cylinder head bolts in three steps following the factory tightening sequence |
| Description_TRA | Use alcohol or lacquer thinner on a lint-free rag to clean. Apply oil or suitable thread lubricant to head bolt threads and the underside of bolt heads and washers. |
| finish | Black Oxide |
| Grade Type | Performance |
| Head Drive Type | Hex |
| height | 2.25 |
| length | (10) 2.50 in, (4) 3.06 in, (14) 3.78 |
| length | 9.0 |
| Material | Chromoly |
| Minimum Length | 2.50 |
| Quantity | Kit |
| RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Thread Diameter | 0.50 |
| Thread Type | Coarse |
| Washers Included | Yes |
| weight | 6.05 |
| width | 4.5 |
