Description

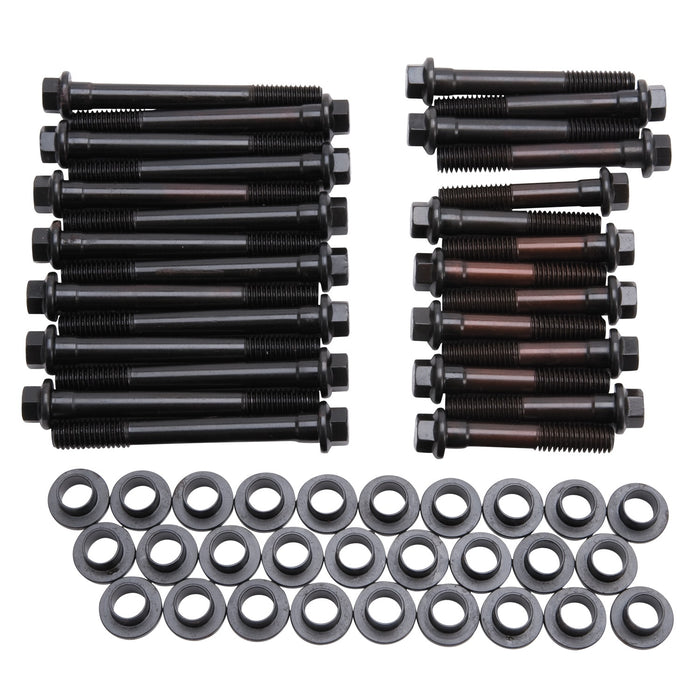

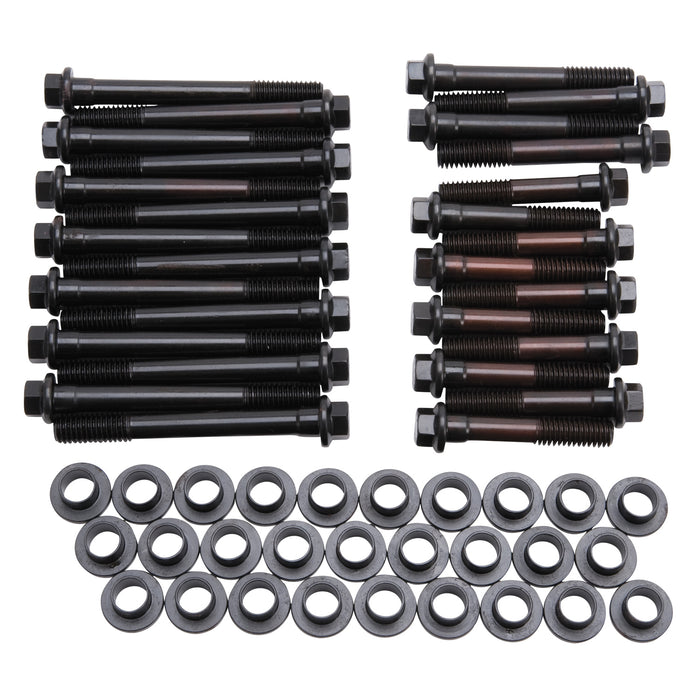

The Edelbrock #8531 bolt kit contain a complete set of the highest quality head bolts and hardened washers available. Cold-formed to ensure molecular integrity and heat treated prior to thread rolling and machining. Reduced diameter bolt heads eliminate the need for valve train removal to facilitate cylinder head re-torqueing. Hardened and parallel-ground washers are included. Rated at 170,000 p.s.i.
Specifications
| Description_ABR | HeadBlotKit |
| Description_ASM | AMC:-:290 (4.8L)-390 (6.4L) |
| Description_DEF | Engine Cylinder Head Bolt Set |
| Description_DES | HEAD BOLT KIT |
| Description_EXT | Edelbrock #8531 Head Bolt Kit is for 1967-69 AMC 290-390 Engines with Edelbrock #60129, 60139, 60109, & 60119 Performer & Performer RPM Cylinder Heads. Kit Includes Complete Set of 7/16" Diameter Bolts and #9693 Bushing Washers. |
| Description_EXT | Edelbrock #8531 Head Bolt Kit is for 1967-69 AMC 290-390 Engines with Edelbrock #60129; 60139; 60109; 60119 Performer Performer RPM Cylinder Heads. Kit Includes Complete Set of 7/16in. Diameter Bolts and #9693 Bushing Washers. |
| Description_FAB | Cold-Formed; Heat Treated |
| Description_FAB | Ensures Molecular Integrity |
| Description_FAB | Hardened/Parallel-Ground Washers Included |
| Description_FAB | Highest Quality Head Bolts |
| Description_FAB | Manufactured By ARP |
| Description_FAB | Rated At 170000 psi |
| Description_FAB | Reduced Diameter Bolt Heads |
| Description_INV | Pre 1970 AMC Head Bolt Kit |
| Description_KEY | Edelbrock; AMC; V8; Head Bolt; Pre-1970 |
| Description_LAB | Pre 1970 AMC Head Bolt Kit |
| Description_MKT | The Edelbrock #8531 bolt kit contain a complete set of the highest quality head bolts and hardened washers available. Cold-formed to ensure molecular integrity and heat treated prior to thread rolling and machining. Reduced diameter bolt heads eliminate the need for valve train removal to facilitate cylinder head re-torqueing. Hardened and parallel-ground washers are included. Rated at 170,000 p.s.i. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 0in.} |
| Description_TRA | #60109 and #60119 heads will have to apply a thin bead of silicone around the oil drain back provisions. This will prevent any leaks that may occur. CAUTION: The silicon bead on OEM type head gaskets will overlap these provisions. The addition of the silicone bead will help provide a better seal. |
| Description_TRA | Apply oil or suitable thread lubricant to head bolt threads and the underside of bolt heads and washers. |
| Description_TRA | Be sure that the surface of the block and the surface of the head are thoroughly cleaned to remove any oily film before installation. |
| Description_TRA | or 30, 60, 90, 100-110). |
| Description_TRA | The Edelbrock #8531 is made specifically for Pre-1970 AMC V8 |
| Description_TRA | The Edelbrock #8531 is made specifically for Pre-1970 AMC V8 •Be sure that the surface of the block and the surface of the head are thoroughly cleaned to remove any oily film before installation. • Use alcohol or lacquer thinner on a lint-free rag to clean. •#60109 and #60119 heads will have to apply a thin bead of silicone around the oil drain back provisions. This will prevent any leaks that may occur. CAUTION: The silicon bead on OEM type head gaskets will overlap these provisions. The addition of the silicone bead will help provide a better seal.•Apply oil or suitable thread lubricant to head bolt threads and the underside of bolt heads and washers.•Using the torque sequence (See Figure 1); torque all 7/16in. bolts to 65-70 ft./lbs and all 1/2in. bolts to 100-110 ft./lbs in four steps (30; 40; 50; 60-75; or 30; 60; 90; 100-110). |
| Description_TRA | Use alcohol or lacquer thinner on a lint-free rag to clean. |
| Description_TRA | Using the torque sequence (See Figure 1), torque all 7/16" bolts to 65-70 ft./lbs and all 1/2" bolts to 100-110 ft./lbs in four steps (30, 40, 50, 60-75 |
| height | 2.25 |
| length | 9.0 |
| weight | 4.85 |
| width | 4.5 |
