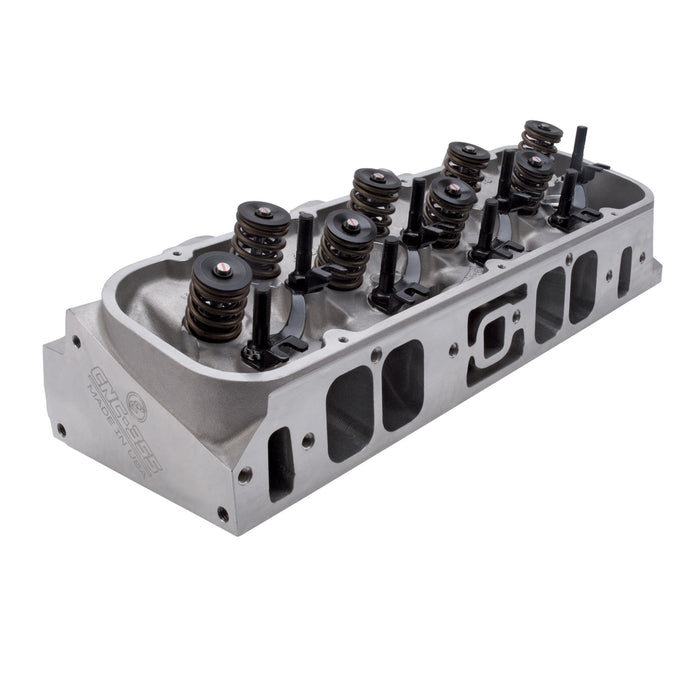

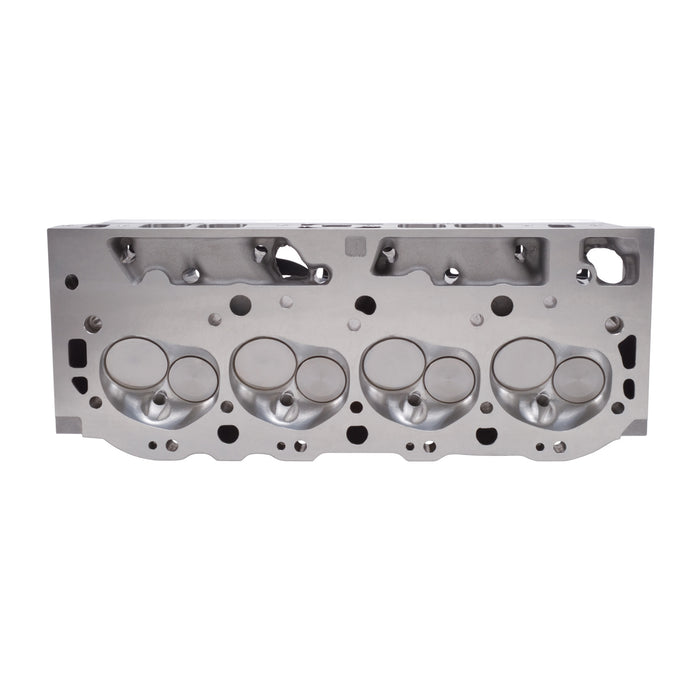

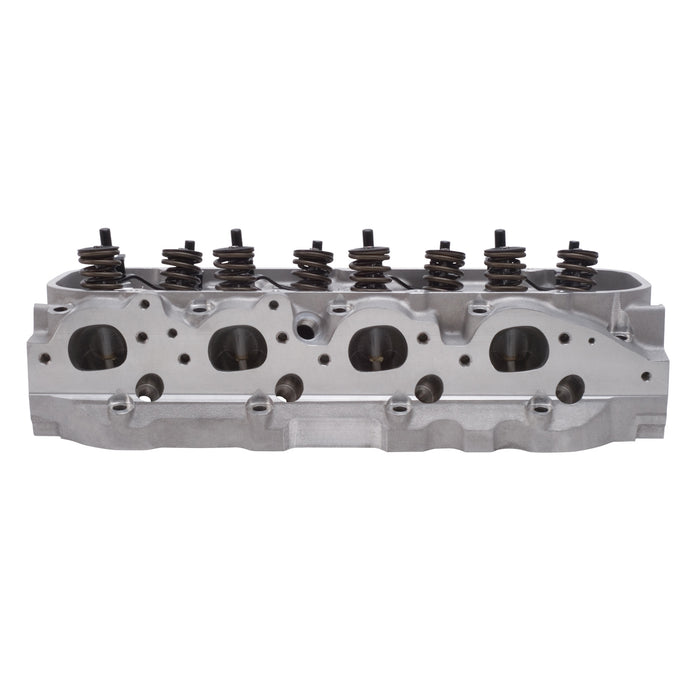

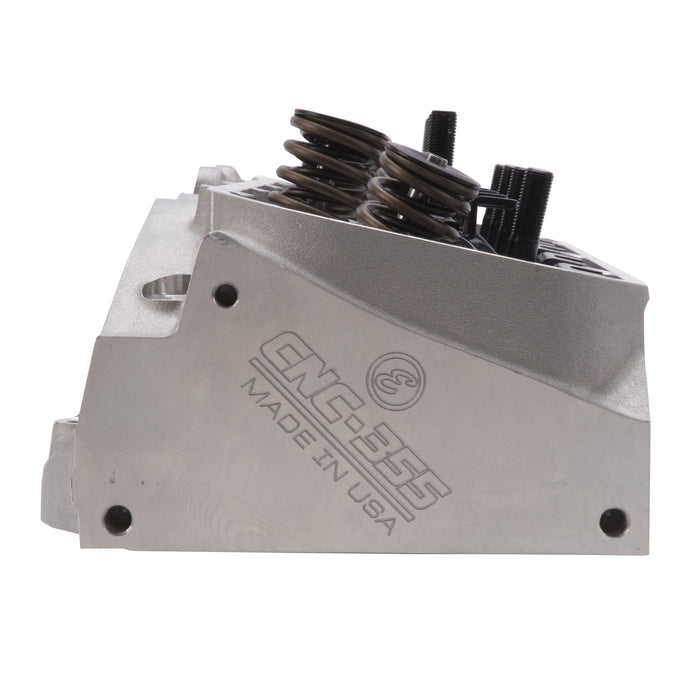

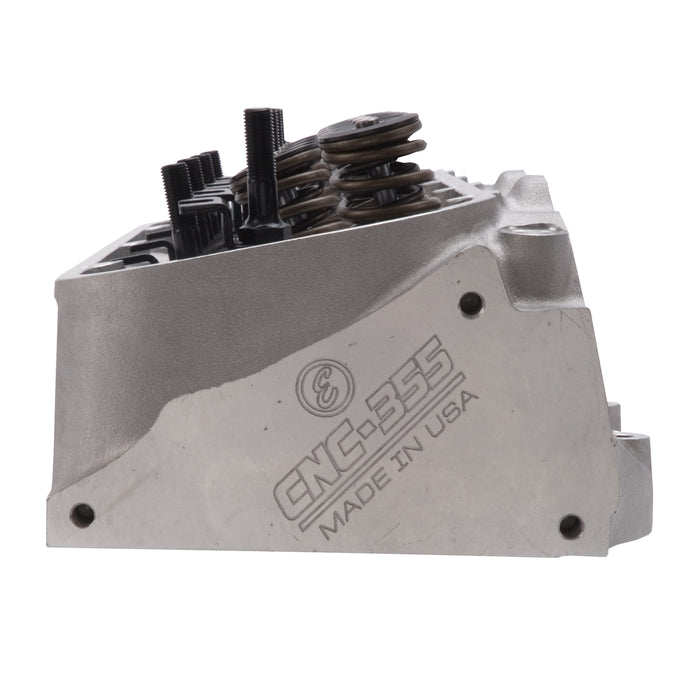

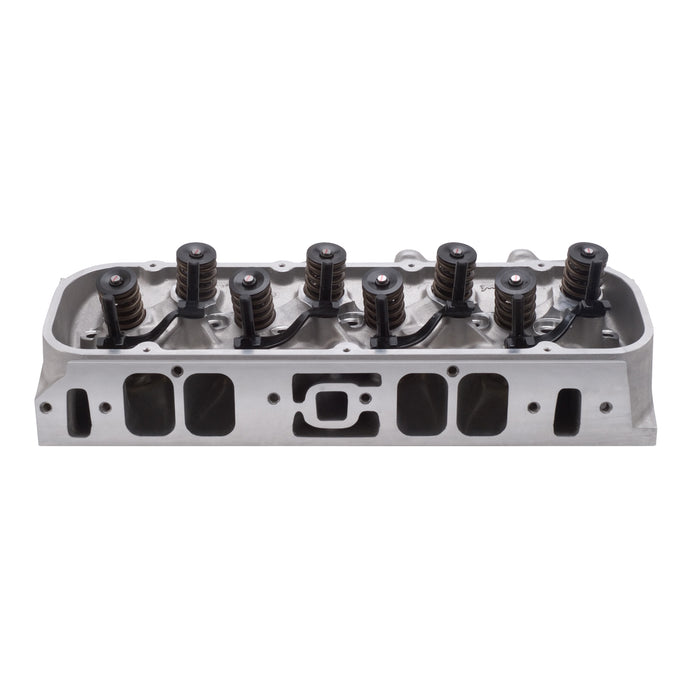

Edelbrock 79559 Engine Cylinder Head
by Edelbrock
SKU ds_BDVJ_79559
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$1,325.50
-
Original price
$1,325.50
Original price
$1,325.50
$1,325.50
-
$1,325.50
Current price
$1,325.50
Availability:
Out of stock
Description
improving air-flow & overall performance potential - These heads have a 24.5 Deg x 4.4 Deg intake valve angle, 15.5 Deg x 4.2 Deg exhaust valve angle and exhaust ports that have been raised 0.125" but are still in the stock location - Spark plug angles have been modified to produce a smooth flame front for increased fuel efficiency & maximum power - combustion chamber size of 118cc - Equipped with valve springs for use in hydraulic flat tappet applications
Specifications
| CNC Ported | Yes |
| Combustion Chamber Volume | 118.0 |
| Deck Thickness | 0.562 |
| Description_ABR | Cyl. Head |
| Description_ASM | Chevrolet:Big-Block Mark IV:396 (6.5L)-502 (8.2L) |
| Description_DEF | Engine Cylinder Head |
| Description_EXT | Edelbrock part #79559 Big Block Chevy E-CNC 355 cylinder head is the ultimate in performance. The cylinder heads are fully CNC ported for maximum horsepower and torque, making them ideal for high-performance's street and light duty racing |
| Description_INV | Edelbrock BBC Cylinder Head |
| Description_LAB | E-CNC Big-Block Chevy Rectangle Port Cylinder Head Hydraulic Flat |
| Description_MKT | improving air-flow & overall performance potential - These heads have a 24.5 Deg x 4.4 Deg intake valve angle, 15.5 Deg x 4.2 Deg exhaust valve angle and exhaust ports that have been raised 0.125" but are still in the stock location - Spark plug angles have been modified to produce a smooth flame front for increased fuel efficiency & maximum power - combustion chamber size of 118cc - Equipped with valve springs for use in hydraulic flat tappet applications |
| Description_MKT | The Edelbrock part #79559 Big Block Chevy E-CNC 355 cylinder head is the ultimate in performance. These cylinder heads are fully CNC ported for maximum horsepower and torque, making them ideal for high-performance's street and light duty racing applications. They also feature high-quality lightweight valve springs and heavy duty hardware for maximum lift and maintain the stock exhaust port location. E-CNC 355 FOR B/B CHEVY (RECTANGLE PORT) FEATURES: - These cylinder heads deliver maximum horsepower and torque in high Performance's street and light duty racing applications - Full CNC porting of the combustion chambers, intake & exhaust runners |
| Description_TRA | Match with Edelbrock head gasket sets . Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. |
| Exhaust Valve Diameter | 1.880 |
| Grade Type | Performance |
| Guide Plate Material | Hardened Steel |
| Guide Plates Included | Yes |
| Head Casting Number | 31-5145 |
| height | 8.5 |
| Intake Runner Volume | 334.0 |
| Intake Valve Diameter | 2.300 |
| length | 24.75 |
| Material | Aluminum |
| Push Rod Diameter | 0.375 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Valve Spring Diameter | 1.500 |
| Valve Spring Maximum Lift | 0.700 |
| Valve Stem Diameter | 0.341 |
| weight | 44.0 |
| width | 11.0 |
