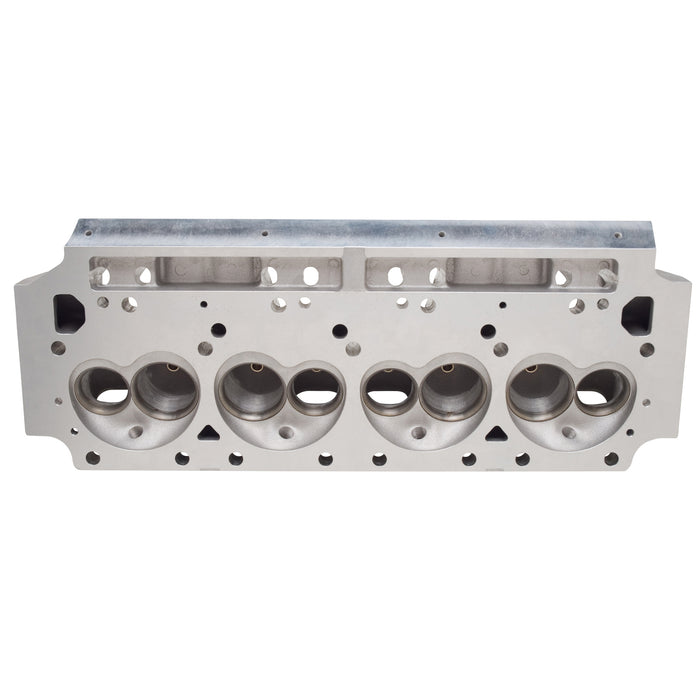

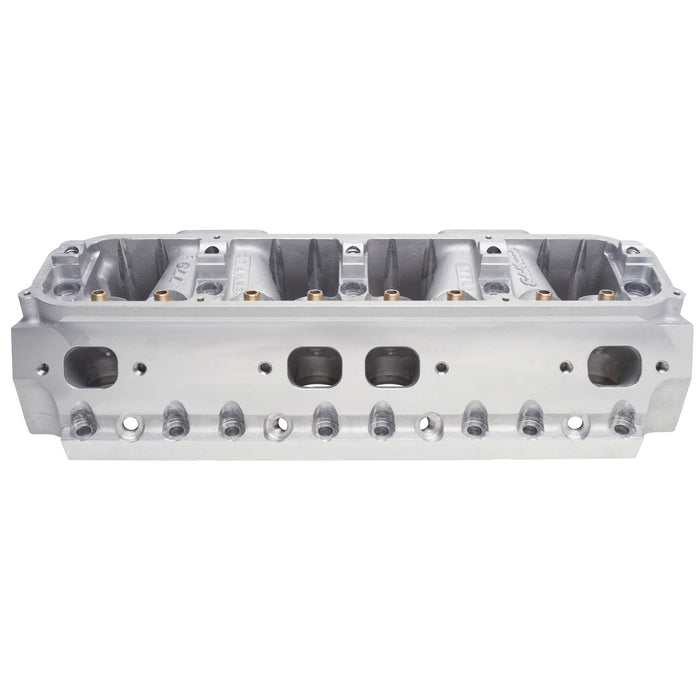

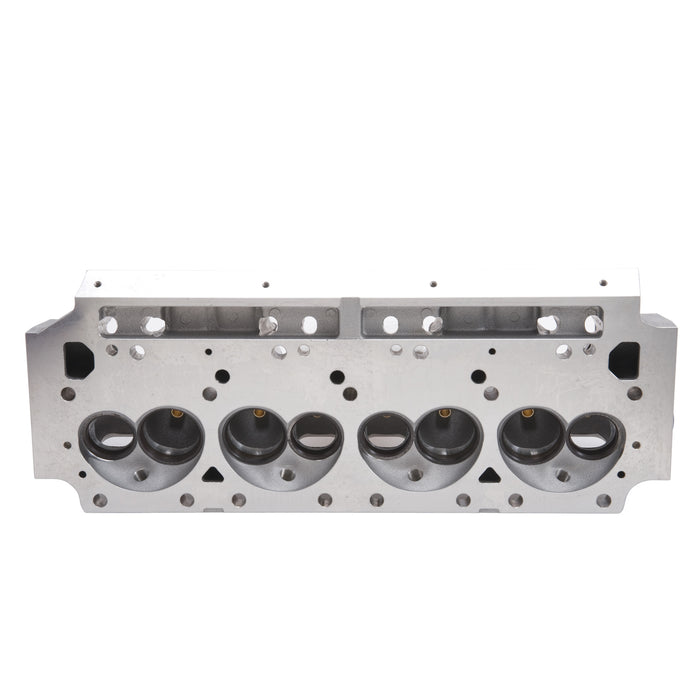

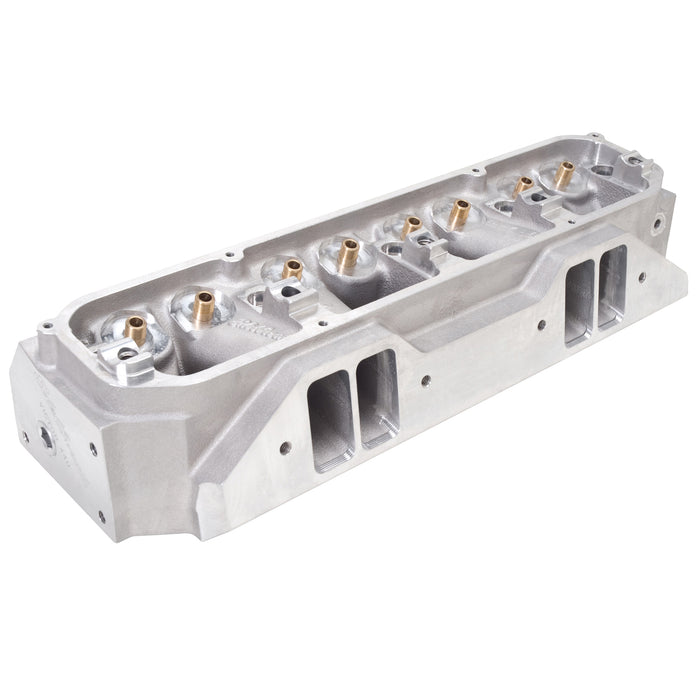

Edelbrock 77939 Engine Cylinder Head
by Edelbrock
SKU ds_BDVJ_77939
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$658.95
-
Original price
$658.95
Original price
$658.95
$658.95
-
$658.95
Current price
$658.95
Availability:
Out of stock
Description
use recommended springs to match your camshaft - Exhaust flange is extended .300" from stock (same as Mopar Stage 6) featuring dry exhaust bolt holes with Heli-Coil thread inserts - Max Wedge intake ports are machined to match intake manifolds for B and RB competition big-block Chryslers - 72cc combustion chamber volume - Cylinder head part #77939 comes bare only
Specifications
| CNC Ported | No |
| Combustion Chamber Volume | 72.0 |
| Deck Thickness | 0.625 |
| Description_ABR | Cyl. Head |
| Description_ASM | Chrysler:Big-Block B-Series:383 (6.3L)/400 (6.6L) |
| Description_ASM | Chrysler:Big-Block RB-Series:413 (6.8L)/426 (7.0L)/440 (7.2L) |
| Description_DEF | Engine Cylinder Head |
| Description_EXT | Edelbrock part #77939 Victor Max Wedge is a bare cylinder head designed for Big Block Chrysler 383-440 V8 engines. The Victor features the best standard port location for competition big-block Chryslers. |
| Description_INV | Edelbrock BB Chrysler Cylinder Head |
| Description_LAB | Victor RB/ B Big-Block Chrysler Max Wedge Cylinder Head Bare |
| Description_MKT | The Edelbrock part #77939 Big Block Chrysler Max Wedge Victor Series cylinder heads are used by many of the best racers in the country and are the best choice for all-out competition. Edelbrock engineers work with leading racers like Billy Glidden, John Urist and Pat Musi to produce the ultimate components for racing. The end results is competition ready cylinder heads that feature cylinder heads are compatible with OE valve train and pistons for bolt-on convenience while Victor cylinder heads feature raised runners, revised chambers and relocated valves for all-out competition. VICTOR B/B CHRYSLER MAX WEDGE FEATURES: - The best standard port location cylinder head available for competition big-block Chryslers - Intake ports are raised .650", exhaust ports are raised .250" for improved flow - The intake flange is extended .950" to eliminate the need for intake spacer plates - Cylinder heads will fit Edelbrock Victor manifolds for both high and low deck engines - Sold without springs or retainers |
| Description_MKT | use recommended springs to match your camshaft - Exhaust flange is extended .300" from stock (same as Mopar Stage 6) featuring dry exhaust bolt holes with Heli-Coil thread inserts - Max Wedge intake ports are machined to match intake manifolds for B and RB competition big-block Chryslers - 72cc combustion chamber volume - Cylinder head part #77939 comes bare only |
| Description_TRA | For headers, contact TTI (951) 371-4878. Offset intake rockers required, exhaust side accepts standard-spec rockers. May require additional pushrod hole clearance for some combinations. Bare heads will have valve guides & seats installed, but will require final sizing and a valve job to match the valves you will be using. These heads require the use of a 14mm x 3/4" reach, flat gasket spark plug with a heat range appropriate to your application. Deck thickness: 5/8", pushrod diameter: 3/8". |
| Grade Type | Performance |
| Guide Plate Material | Hardened Steel |
| Guide Plates Included | No |
| Head Casting Number | 31-7791 |
| height | 8.5 |
| Intake Runner Volume | 280.0 |
| length | 26.25 |
| Material | Aluminum |
| Push Rod Diameter | 0.375 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Valve Angle | 15 |
| weight | 35.7 |
| width | 11.0 |
