Edelbrock 77668 Victor CNC LS7 307CC CI PM Seat 2.250/1.615- Bare
by Edelbrock
SKU ds_BDVJ_77668
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$2,564.40
-
Original price
$2,564.40
Original price
$2,564.40
$2,564.40
$2,564.40
-
$2,564.40
Current price
$2,564.40
Availability:
Out of stock
Description

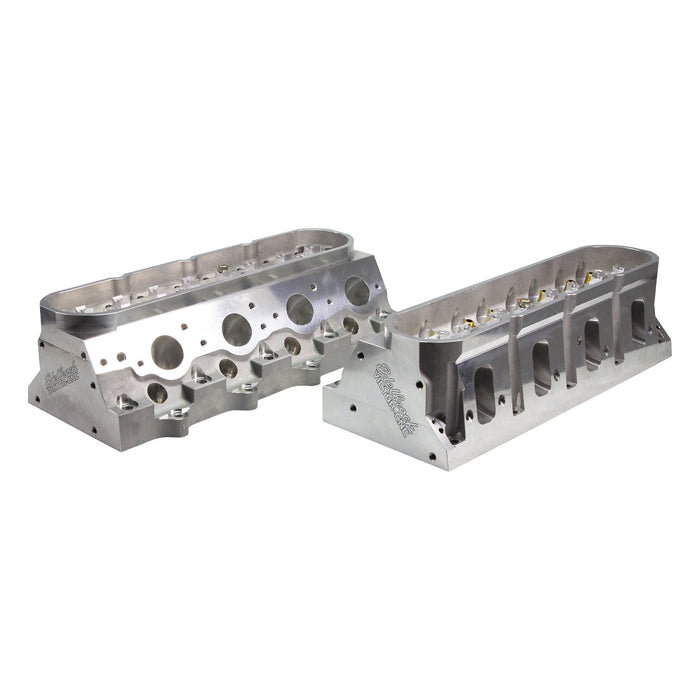

The Edelbrock Victor CNC 12° 6-Bolt Head for GM LS7 291cc/69cc Individual #77668 is designed for maximum effort naturally aspirated and boosted applications. It features .220” raised intake runners and .100” raised exhaust ports that provide a better line of sight into the cylinders and allow for an improved short turn. The raised intake runner design fits both stock and aftermarket LS7 intake manifolds and can be used with stock or aftermarket valve trains. The head utilizes the GM LS 6-bolt design, making it compatible with the GM LSX block and all aftermarket iron or aluminum 6-bolt per cylinder LS race blocks. The 6-bolt design offers increased clamping capacity over the standard factory 4-bolt configuration and improves head gasket sealing – ideal for high compression naturally aspirated engines and high boost applications. Features include a 12-degree valve angle and fully CNC-machined ports for maximum airflow. CNC-machined runners and chambers, as well as the .220” raised intake ports and 12-degree valve angle, increase overall flow capability, while a revised water jacket design enhances thermal conductivity and tunability. The manganese bronze valve guides withstand long wear with emphasis placed on holding precision tolerances on valve seat concentricity, allowing the valves to seal securely, which eliminates leak down and increases cylinder pressure during engine operation. Finally, the .700” thick deck and .400” raised valve cover rail make this head ideal for maximum horsepower and high valve lift applications. All Edelbrock Victor CNC heads feature patented Clean Cast Technology™, a process that eliminates casting flaws and promotes a smoother internal surface finish for greater air and coolant flow. These benefits provide more power and increased cooling ability. Part #77668 is a bare head that features: 307cc runners, 69cc chambers, 2.250 intake/1.615 exhaust valves, CI PM valve seats and no down nozzles.
Specifications
| Combustion Chamber Volume | 69 |
| Construction Type | Bare |
| Deck Thickness | .750" |
| Description_ABR | Cyl. Head |
| Description_ASM | GM: LS7: Small-Block: 427 (7.0L) |
| Description_DEF | Engine Cylinder Head |
| Description_DES | Victor CNC LS7 307CC CI PM Seat 2.250/1.615- Bare |
| Description_EXT | The Edelbrock Victor CNC 12° 6-Bolt Head for GM LS7 291cc/69cc Individual #77668 is specifically designed for maximum effort naturally aspirated and boosted applications. |
| Description_FAB | Premium 110 BHN aluminum alloy, .220" raised intake port, .100" raised exhaust port, Copper valve seats, 307cc or 291cc intake port volume, 2.250" or 2.200" x 1.615" valve job |
| Description_INV | Victor CNC LS7 Head Copper Valve seats |
| Description_LAB | Victor CNC LS7 307CC CI PM Seat 2.250/1.615- Bare |
| Description_MKT | The Edelbrock Victor CNC 12° 6-Bolt Head for GM LS7 291cc/69cc Individual #77668 is designed for maximum effort naturally aspirated and boosted applications. It features .220” raised intake runners and .100” raised exhaust ports that provide a better line of sight into the cylinders and allow for an improved short turn. The raised intake runner design fits both stock and aftermarket LS7 intake manifolds and can be used with stock or aftermarket valve trains. The head utilizes the GM LS 6-bolt design, making it compatible with the GM LSX block and all aftermarket iron or aluminum 6-bolt per cylinder LS race blocks. The 6-bolt design offers increased clamping capacity over the standard factory 4-bolt configuration and improves head gasket sealing – ideal for high compression naturally aspirated engines and high boost applications. Features include a 12-degree valve angle and fully CNC-machined ports for maximum airflow. CNC-machined runners and chambers, as well as the .220” raised intake ports and 12-degree valve angle, increase overall flow capability, while a revised water jacket design enhances thermal conductivity and tunability. The manganese bronze valve guides withstand long wear with emphasis placed on holding precision tolerances on valve seat concentricity, allowing the valves to seal securely, which eliminates leak down and increases cylinder pressure during engine operation. Finally, the .700” thick deck and .400” raised valve cover rail make this head ideal for maximum horsepower and high valve lift applications. All Edelbrock Victor CNC heads feature patented Clean Cast Technology™, a process that eliminates casting flaws and promotes a smoother internal surface finish for greater air and coolant flow. These benefits provide more power and increased cooling ability. Part #77668 is a bare head that features: 307cc runners, 69cc chambers, 2.250 intake/1.615 exhaust valves, CI PM valve seats and no down nozzles. |
| Description_SHP | None |
| Exhaust Port Location | Raised .100" |
| Family | Victor CNC |
| Grade Type | Race |
| height | 7.5 |
| Intake Runner Volume | 307 |
| length | 25.25 |
| LTL | N |
| Quantity | Sold Individually |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Seat Material | Copper infiltrated powder metal |
| Series | Victor CNC |
| weight | 22.5 |
| width | 10.25 |
