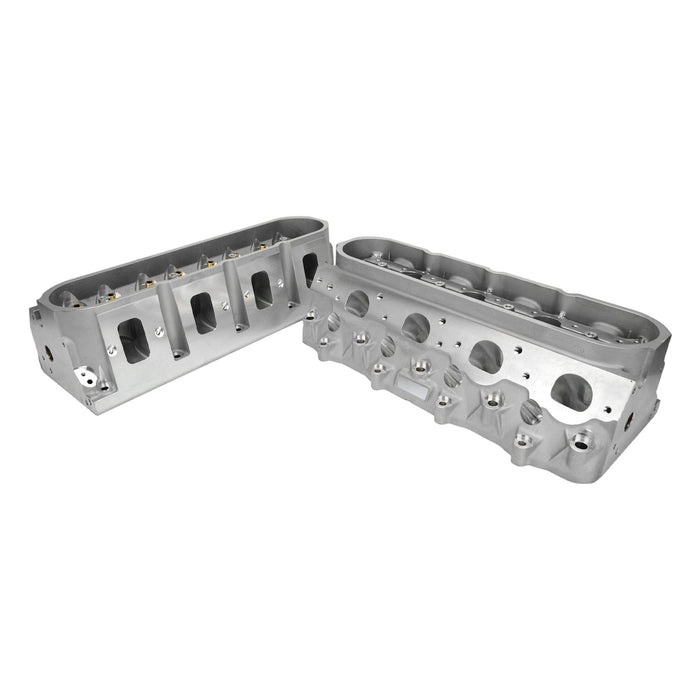

Edelbrock 77661 Victor CNC LS3 263CC 2.165/ 1.600 - SS/Inc Valves .700 Solid Roller
by Edelbrock
SKU ds_BDVJ_77661
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$4,481.64
-
Original price
$4,481.64
Original price
$4,481.64
$4,481.64
$4,481.64
-
$4,481.64
Current price
$4,481.64
Availability:
Out of stock
Description
The Edelbrock Victor CNC 11° 6-Bolt Cylinder Heads for GM LS3 68cc Individual #77661 is specifically designed for high horsepower, naturally aspirated and boosted applications. Edelbrock Victor CNC 11° 6-Bolt Cylinder Heads for GM LS3 engines utilize the popular LS 6-bolt design, making them compatible with the GM LSX block and all aftermarket iron or aluminum 6-bolt per cylinder LS race blocks. The 6-bolt design offers increased clamping capacity over the standard factory 4-bolt configuration and greatly improves head gasket sealing, making them ideal for high compression naturally aspirated engines and high boost applications. These heads are manufactured with premium materials and machined to the industry’s tightest tolerances. Features include an 11° valve angle, copper infiltrated powder metal valve seats and fully CNC-machined ports for maximum airflow. The CNC-machined runners and chambers, as well as the rolled 11° valve angle, increase overall flow capability, while the revised water jacket design enhances thermal conductivity and tunability. The premium manganese bronze valve guides withstand long wear with emphasis placed on holding precision tolerances on valve seat concentricity, allowing the valves to seal securely, which eliminates leak down and increases cylinder pressure during engine operation. Finally, the .700” thick deck and reinforced rocker rails make these cylinder heads ideal for high horsepower applications. Edelbrock #77661 is assembled with premium COMP Cams® valve train components, including .700” lift dual springs, tool steel retainers, stainless steel intake/Inconel exhaust valves and premium valve seals – all inspected and assembled by qualified Edelbrock technicians.
Specifications
| Camshaft Type | Solid Roller |
| Combustion Chamber Volume | 68 |
| Construction Type | Complete |
| Description_ABR | Cyl. Head |
| Description_ASC | Includes our 943 Valve Springs, 1731 Tool Steel Retainers, 632 Valve Locks, 511 Valve Seals, 4785 Spring Seats, 6081 Steel Intake Valves and 6084 Inconel Exhaust Valves. |
| Description_ASM | GM:LS3:Small-Block:376 (6.2L) |
| Description_DEF | Engine Cylinder Head |
| Description_DES | Victor CNC LS3 263CC 2.165/ 1.600 - SS/Inc Valves .700 Solid Roller |
| Description_EXT | The Edelbrock Victor CNC 11° 6-Bolt Cylinder Heads for GM LS3 68cc Individual #77661 is specifically designed for high horsepower, naturally aspirated and boosted applications. |
| Description_INV | Victor CNC LS3 Head .700" Lift SS Intake |
| Description_LAB | Victor CNC LS3 263CC 2.165/ 1.600 - SS/Inc Valves .700 Solid Roller |
| Description_MKT | The Edelbrock Victor CNC 11° 6-Bolt Cylinder Heads for GM LS3 68cc Individual #77661 is specifically designed for high horsepower, naturally aspirated and boosted applications. Edelbrock Victor CNC 11° 6-Bolt Cylinder Heads for GM LS3 engines utilize the popular LS 6-bolt design, making them compatible with the GM LSX block and all aftermarket iron or aluminum 6-bolt per cylinder LS race blocks. The 6-bolt design offers increased clamping capacity over the standard factory 4-bolt configuration and greatly improves head gasket sealing, making them ideal for high compression naturally aspirated engines and high boost applications. These heads are manufactured with premium materials and machined to the industry’s tightest tolerances. Features include an 11° valve angle, copper infiltrated powder metal valve seats and fully CNC-machined ports for maximum airflow. The CNC-machined runners and chambers, as well as the rolled 11° valve angle, increase overall flow capability, while the revised water jacket design enhances thermal conductivity and tunability. The premium manganese bronze valve guides withstand long wear with emphasis placed on holding precision tolerances on valve seat concentricity, allowing the valves to seal securely, which eliminates leak down and increases cylinder pressure during engine operation. Finally, the .700” thick deck and reinforced rocker rails make these cylinder heads ideal for high horsepower applications. Edelbrock #77661 is assembled with premium COMP Cams® valve train components, including .700” lift dual springs, tool steel retainers, stainless steel intake/Inconel exhaust valves and premium valve seals – all inspected and assembled by qualified Edelbrock technicians. |
| Description_SHP | None |
| Exhaust Runner Volume | 103_x000D_ |
| Family | Victor CNC |
| Grade Type | Performance |
| Guide Material | Manganese Bronze |
| height | 7.0 |
| Intake Runner Volume | 263 |
| length | 22.5 |
| LTL | N |
| Quantity | Sold Individually |
| Retainer Included | Yes |
| Retainer Material | Tool Steel |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Victor CNC |
| Valve Included | Yes |
| Valve Spring Diameter | 0.804/1.565 |
| weight | 32.45 |
| width | 9.0 |
