Description

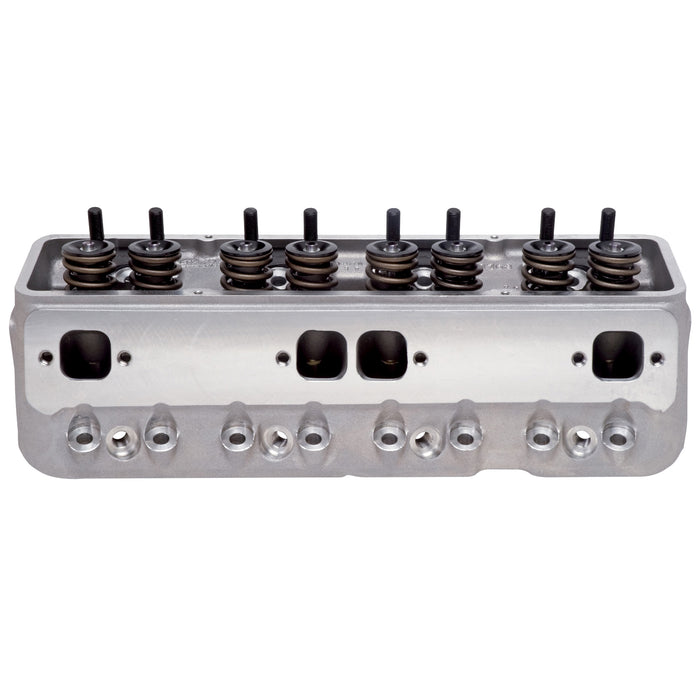

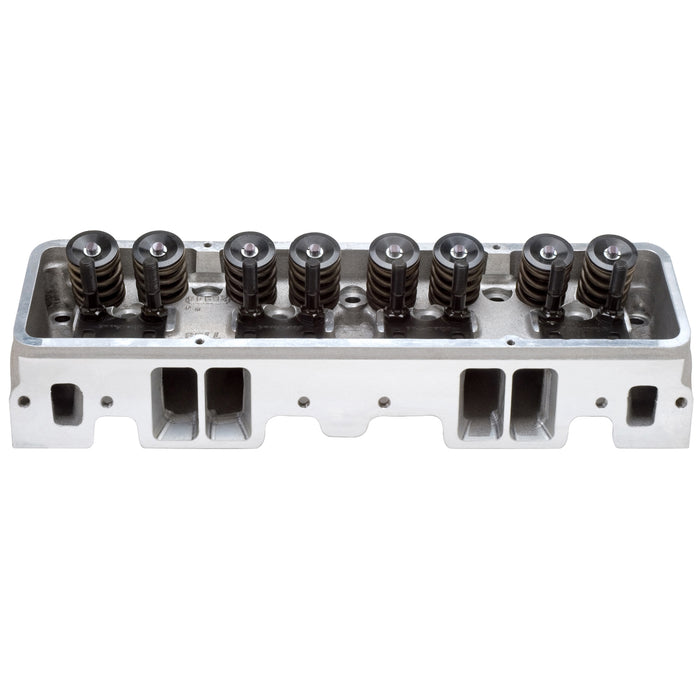

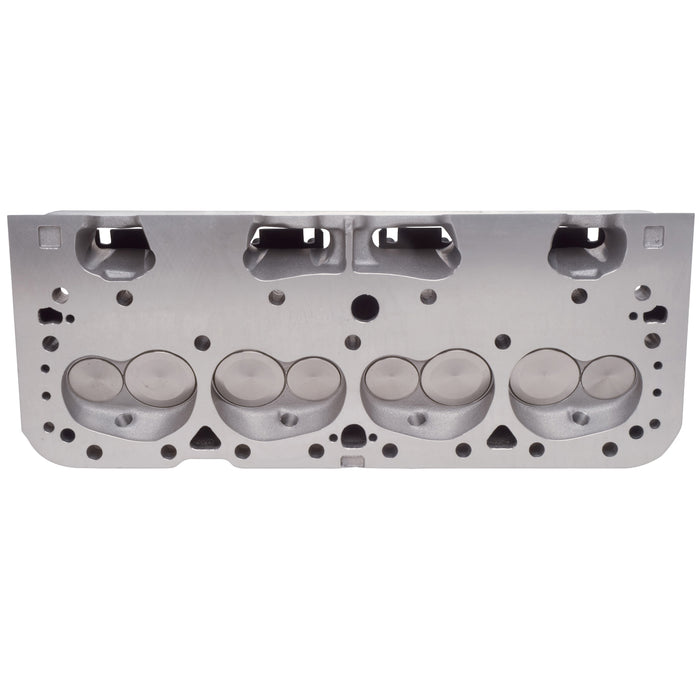

The Edelbrock part #77619 Small Block Chevy Victor Jr. 215cc cylinder head is an affordable version that will still allow for maximum power when used in competition and ultra high-performance's street applications. This cylinder head has the potential of 530-580 hp out-of-the-box, for a cost effective, race-winning set-up. These cylinder heads feature angled spark plug holes and accept standard 23 Deg valvetrain hardware. The 77619 cylinder heads have a 70cc combustion chamber and come with springs for hydraulic roller camshafts.
Specifications
| Description_ABR | Cyl. Head |
| Description_ASM | Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
| Description_DEF | Engine Cylinder Head |
| Description_EXT | Edelbrock part #77619 Victor Jr. 23 Degree is a complete cylinder head for Small Block Chevy 262-400 V8 engines using a hydraulic roller cam. This cylinder head offers max power for competition and high-performance's street applications |
| Description_INV | Edelbrock SBC Cylinder Head |
| Description_LAB | Victor Jr Small-Block Chevy Cylinder Head, 70cc, Hydraulic Roller Springs |
| Description_MKT | The Edelbrock part #77619 Small Block Chevy Victor Jr. 215cc cylinder head is an affordable version that will still allow for maximum power when used in competition and ultra high-performance's street applications. This cylinder head has the potential of 530-580 hp out-of-the-box, for a cost effective, race-winning set-up. These cylinder heads feature angled spark plug holes and accept standard 23 Deg valvetrain hardware. The 77619 cylinder heads have a 70cc combustion chamber and come with springs for hydraulic roller camshafts. |
| Description_TRA | Check cam manufacturer's specs for compatibility with valve springs for spring rates. Match with Edelbrock head gasket sets. Use Head Bolt Kits for easy installation. These heads require the use of a 14mm x 3/4" reach, flat gasket spark plug with a heat range appropriate to your application. Deck thickness: 9/16", rocker stud diameter: 3/8", pushrod diameter: 7/16" (width of slot in guide plate). |
| height | 7.188 |
| length | 22.188 |
| weight | 33.55 |
| width | 10.125 |
