Description

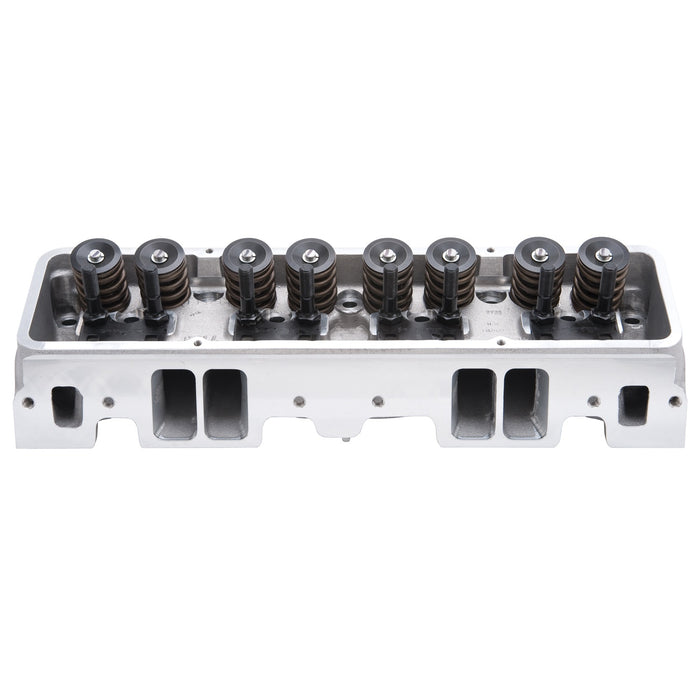

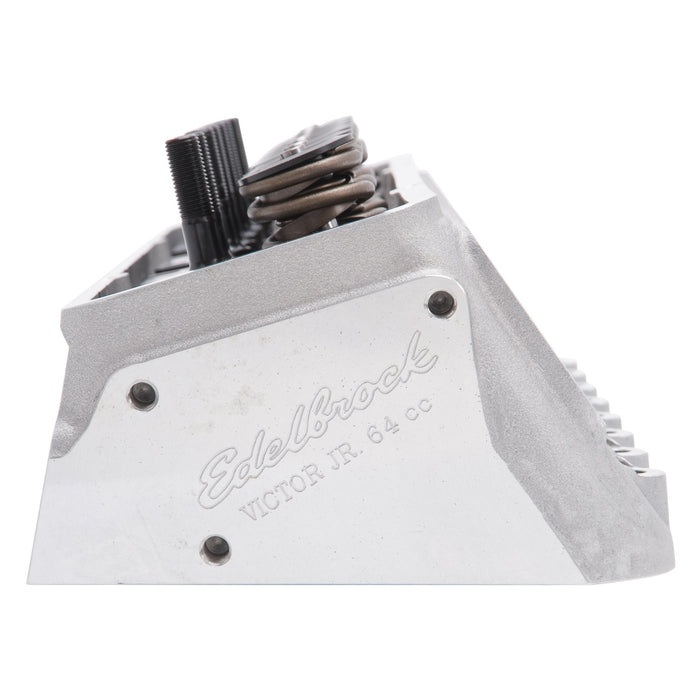

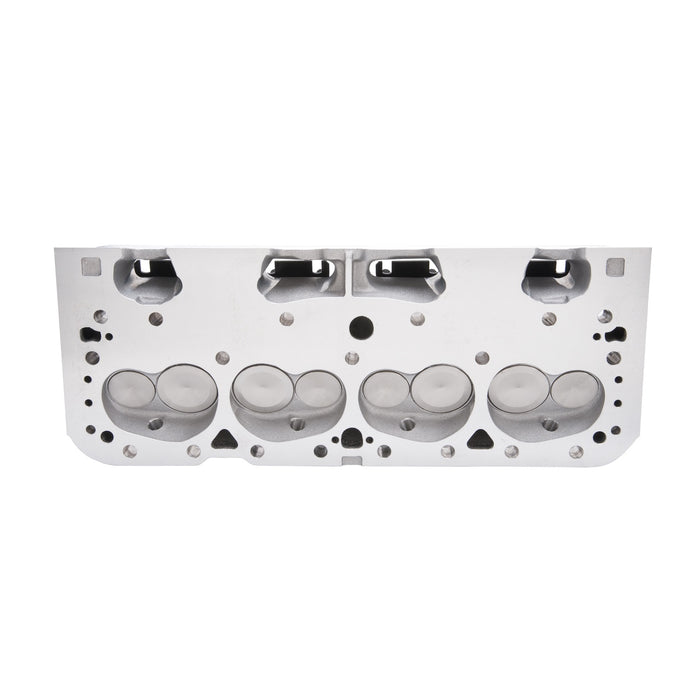

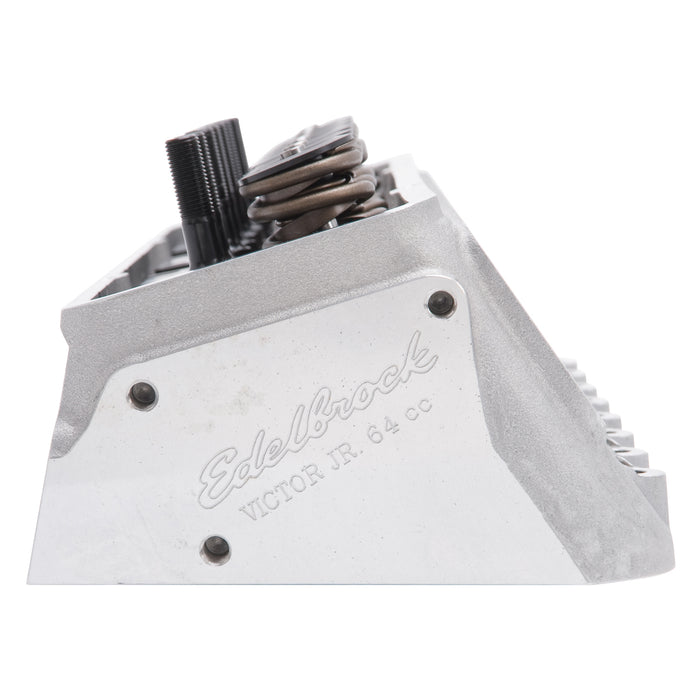

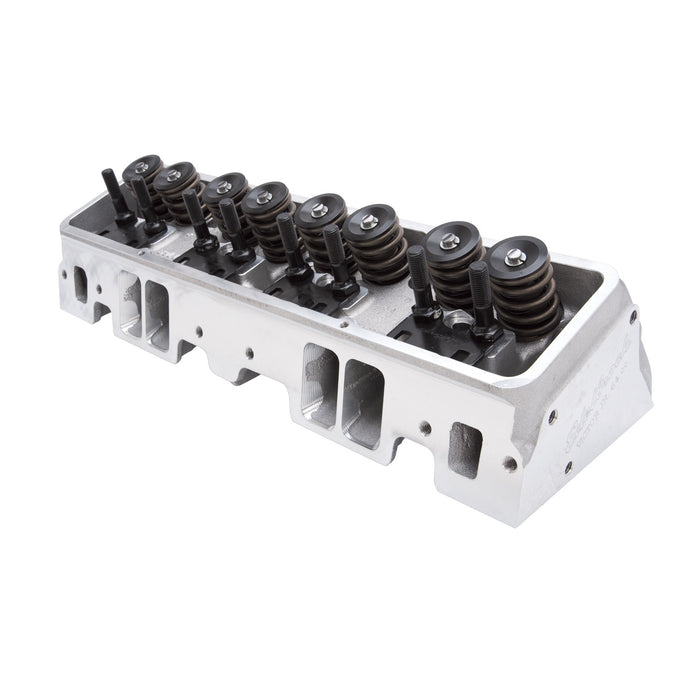

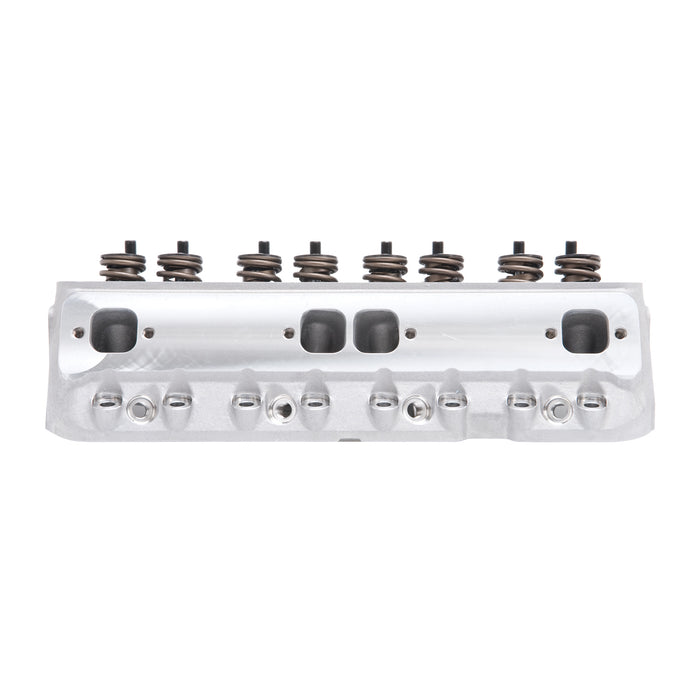

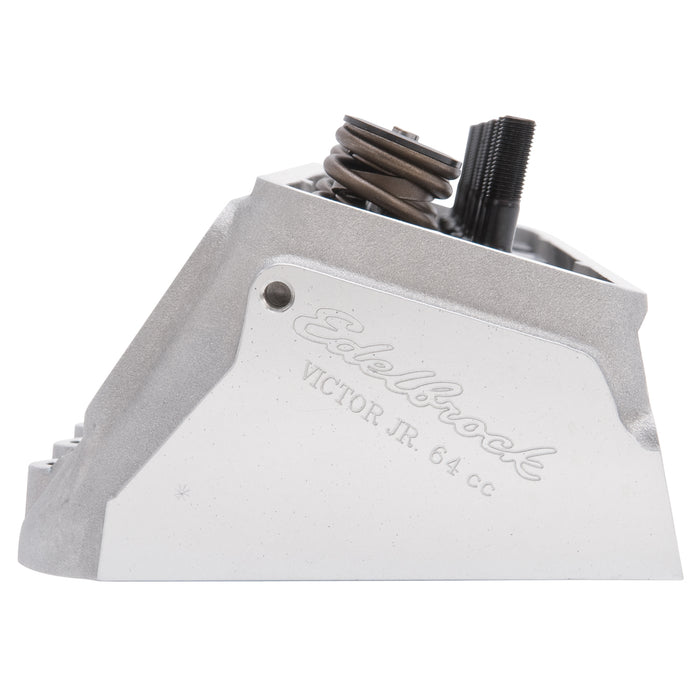

The Edelbrock part #77589 Small Block Chevy Victor Jr. 215cc cylinder head is an affordable version that will still allow for maximum power when used in competition and ultra high-performance's street applications. This cylinder head has the potential of 530-580 hp out-of-the-box, for a cost effective, race-winning set-up. These cylinder head features angled spark plug holes and accept standard 23deg valvetrain hardware. The 77589 cylinder head has a 64cc combustion chamber and come with springs for hydraulic roller camshafts. The 64cc chambers yield about 12.5:1 compression with a 12cc domed piston in a 350 V8.
Specifications
| Camshaft Type | Hydraulic Roller |
| CNC Ported | No |
| Combustion Chamber Volume | 64 |
| Construction Type | Complete |
| Deck Thickness | 0.5625 |
| Description_ABR | Cyl. Head |
| Description_ASM | Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
| Description_DEF | Engine Cylinder Head |
| Description_DES | CYLINDER HEAD |
| Description_EXT | Edelbrock part #77589 Victor Jr. is a complete cylinder head for Small Block Chevy 262-400 V8 engines using a hydraulic roller cam. This cylinder head offers affordable max power for competition and high-performance s street applications |
| Description_EXT | Edelbrock part #77589 Victor Jr. is a complete cylinder head for Small Block Chevy 262-400 V8 engines using a hydraulic roller cam. This cylinder head offers affordable max power for competition and high-performance's street applications |
| Description_FAB | 64cc Chamber Ideal for Entry Race/Hi-End Street |
| Description_FAB | Accepts Standard 23 Deg. Valvetrain Hardware |
| Description_FAB | Affordable; Top Quality |
| Description_FAB | Out-of-the-Box Bolt-On Performance |
| Description_FAB | Race-Winning Set-Up |
| Description_INV | Edelbrock SBC Cylinder Head |
| Description_KEY | Edelbrock; SBC; Head; 64cc; Hydraulic Flat Tappet Camshaft; Made In The USA; T-6; V8; Cylinder Heads; 77589 |
| Description_LAB | Victor Jr #77589 Small-Block Chevy 64cc Hydraulic Roller Camshaft |
| Description_LAB | Victor Jr Small-Block Chevy 64cc Hydraulic Flat Tappet Camshaft |
| Description_MKT | The Edelbrock part #77589 Small Block Chevy Victor Jr. 215cc cylinder head is an affordable version that will still allow for maximum power when used in competition and ultra high-performance's street applications. This cylinder head has the potential of 530-580 hp out-of-the-box, for a cost effective, race-winning set-up. These cylinder head features angled spark plug holes and accept standard 23deg valvetrain hardware. The 77589 cylinder head has a 64cc combustion chamber and come with springs for hydraulic roller camshafts. The 64cc chambers yield about 12.5:1 compression with a 12cc domed piston in a 350 V8. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 2in.} |
| Description_TRA | Check cam manufacturer s specs for compatibility with valve springs for spring rates. Match with Edelbrock head gasket sets. Use Head Bolt Kits for easy installation. These heads require the use of a 14mm x 3/4in. reach; flat gasket spark plug with a heat range appropriate to your application. Deck thickness: 9/16in.; rocker stud diameter: 3/8in.; pushrod diameter: 7/16in. (width of slot in guide plate). |
| Description_TRA | Check cam manufacturer's specs for compatibility with valve springs for spring rates. Match with Edelbrock head gasket sets. Use Head Bolt Kits for easy installation. These heads require the use of a 14mm x 3/4" reach, flat gasket spark plug with a heat range appropriate to your application. Deck thickness: 9/16", rocker stud diameter: 3/8", pushrod diameter: 7/16" (width of slot in guide plate). |
| EGR Port | No |
| Exhaust Port Location | +.125 |
| Exhaust Runner Volume | 85 |
| Exhaust Valve Diameter | 1.60 |
| Family | Victor Jr. |
| Grade Type | Performance |
| Guide Material | Manganese Bronze |
| Guide Plate Material | Hardened Steel |
| Guide Plates Included | Yes |
| Head Casting Number | N/A |
| height | 8.25 |
| Horsepower | 450-550 |
| Intake Runner Volume | 215 |
| Intake Valve Diameter | 2.08 |
| length | 24.75 |
| Material | Aluminum |
| Push Rod Diameter | (Suggested) 0.5625 |
| Quantity | Sold Individually |
| Retainer Included | Yes |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Rotor Center Bore Inside Diameter | angled |
| Seat Angle | Exhaust 45 deg/Intake 45 |
| Seat Material | Ductile Iron |
| Series | Victor Jr. |
| Valve Angle | 23 |
| Valve Included | Yes |
| Valve Spring Diameter | 1.55 |
| Valve Spring Maximum Lift | 0.650 |
| Valve Springs Included | Yes |
| Valve Stem Diameter | 0.3438 |
| weight | 32.75 |
| width | 10.44 |
