Description

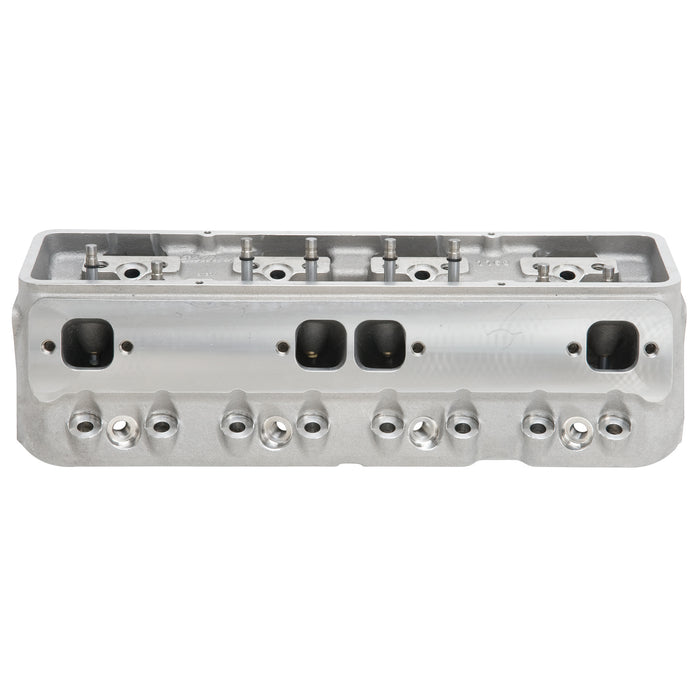

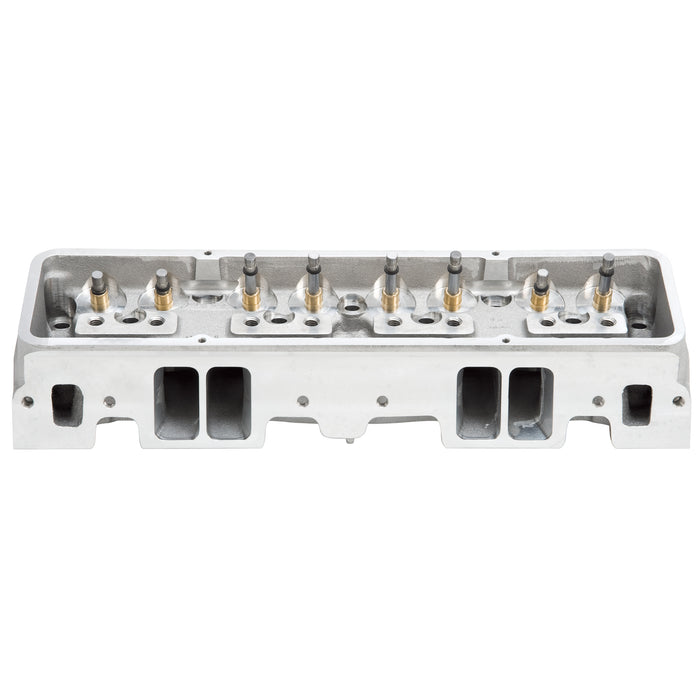

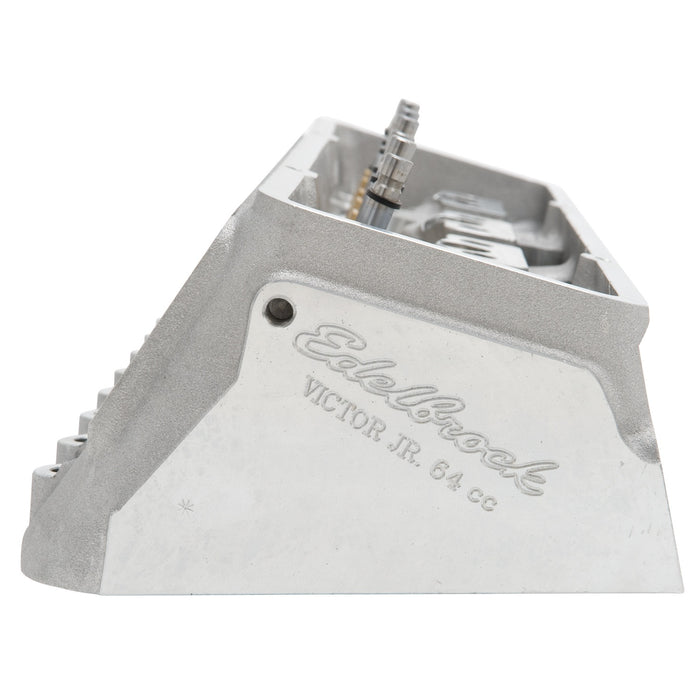

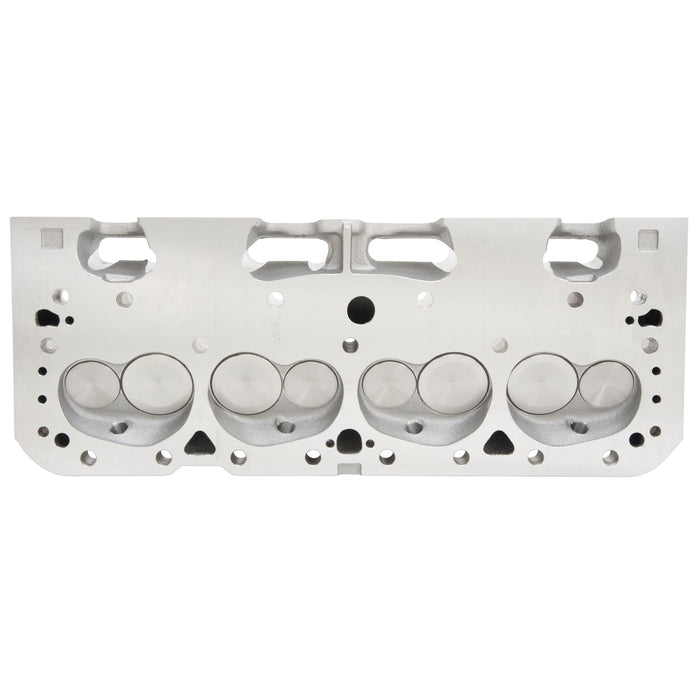

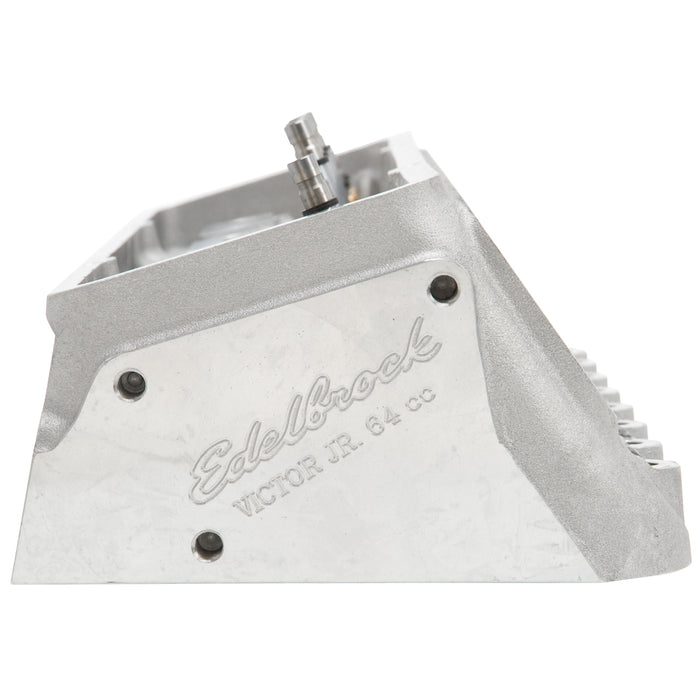

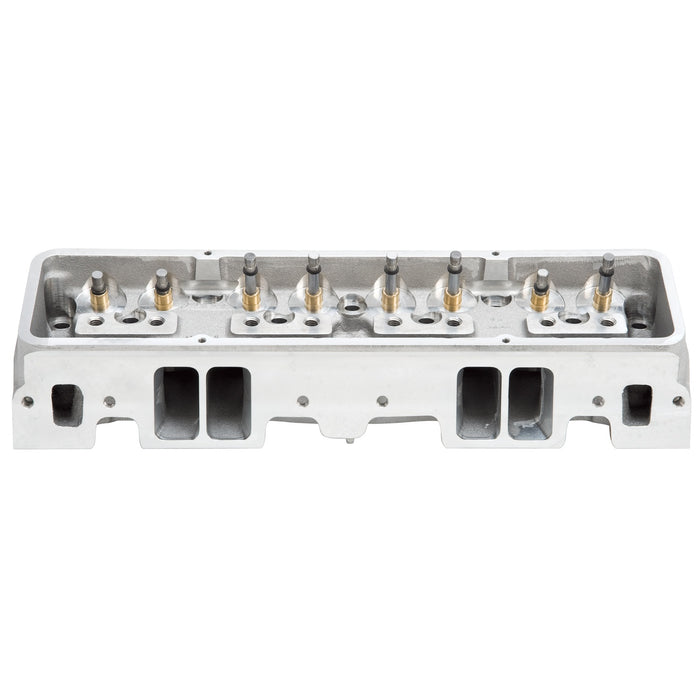

The Edelbrock part #77579 Small Block Chevy Victor Jr. 215cc cylinder head is an affordable version that will still allow for maximum power when used in competition and ultra high-performance's street applications. This cylinder head has the potential of 530-580 hp out-of-the-box, for a cost effective, race-winning set-up. These cylinder head features angled spark plug holes and accept standard 23deg valvetrain hardware. The 77579 cylinder head has a 64cc combustion chamber and come with valves only so you can add your own springs. The 64cc chambers yield about 12.5:1 compression with a 12cc domed piston in a 350 V8.
Specifications
| Description_ABR | Cyl. Head |
| Description_ASM | Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
| Description_DEF | Engine Cylinder Head |
| Description_DES | CYLINDER HEAD |
| Description_EXT | Edelbrock part #77579 Victor Jr. 23 Degree is a cylinder head with Valves only designed for Small Block Chevy 262-400 V8 engines. This cylinder head offers affordable max power for competition and ultra high-performance s street application |
| Description_EXT | Edelbrock part #77579 Victor Jr. 23 Degree is a cylinder head with Valves only designed for Small Block Chevy 262-400 V8 engines. This cylinder head offers affordable max power for competition and ultra high-performance's street application |
| Description_FAB | 64cc Chamber Ideal for Entry Race/Hi-End Street |
| Description_FAB | Accepts Standard 23 Deg. Valvetrain Hardware |
| Description_FAB | Affordable; Top Quality |
| Description_FAB | Out-of-the-Box Bolt-On Performance |
| Description_FAB | Race-Winning Set-Up |
| Description_INV | Edelbrock SBC Cylinder Head |
| Description_KEY | Edelbrock; SBC; Head; 64cc; With Valves; Made In The USA; T-6; V8; Cylinder Heads; 77579 |
| Description_LAB | Victor Jr Small-Block Chevy 64cc With Valves |
| Description_MKT | The Edelbrock part #77579 Small Block Chevy Victor Jr. 215cc cylinder head is an affordable version that will still allow for maximum power when used in competition and ultra high-performance's street applications. This cylinder head has the potential of 530-580 hp out-of-the-box, for a cost effective, race-winning set-up. These cylinder head features angled spark plug holes and accept standard 23deg valvetrain hardware. The 77579 cylinder head has a 64cc combustion chamber and come with valves only so you can add your own springs. The 64cc chambers yield about 12.5:1 compression with a 12cc domed piston in a 350 V8. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 2in.} |
| Description_TRA | Check cam manufacturer s specs for compatibility with valve springs for spring rates. Match with Edelbrock head gasket sets. Use Head Bolt Kits for easy installation. These heads require the use of a 14mm x 3/4in. reach; flat gasket spark plug with a heat range appropriate to your application. Deck thickness: 9/16in.; rocker stud diameter: 3/8in.; pushrod diameter: 7/16in. (width of slot in guide plate). |
| Description_TRA | Check cam manufacturer's specs for compatibility with valve springs for spring rates. Match with Edelbrock head gasket sets. Use Head Bolt Kits for easy installation. These heads require the use of a 14mm x 3/4" reach, flat gasket spark plug with a heat range appropriate to your application. Deck thickness: 9/16", rocker stud diameter: 3/8", pushrod diameter: 7/16" (width of slot in guide plate). |
| height | 7.19 |
| length | 22.19 |
| weight | 27.55 |
| width | 10.12 |
