Edelbrock 77485 { Sellable : Yes }
by Edelbrock
SKU ds_BDVJ_77485
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$2,079.27
-
Original price
$2,079.27
Original price
$2,079.27
$2,079.27
$2,079.27
-
$2,079.27
Current price
$2,079.27
Availability:
Out of stock
Description

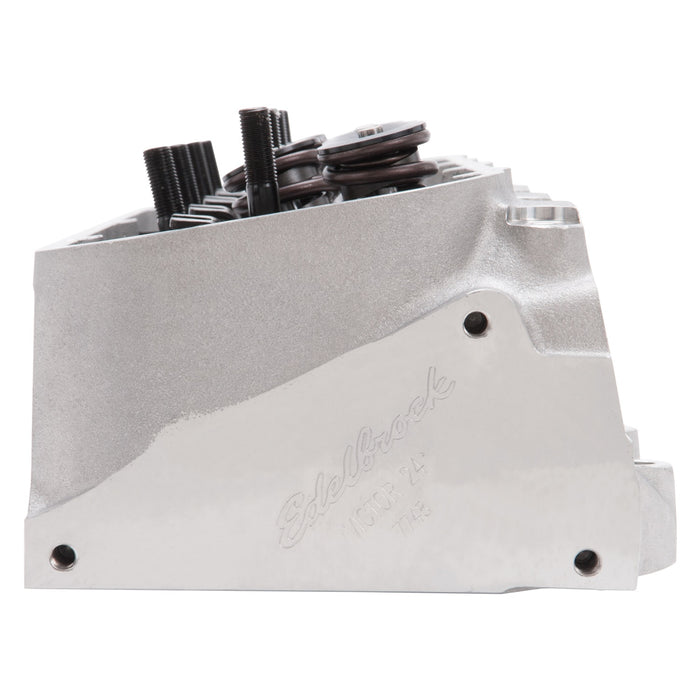

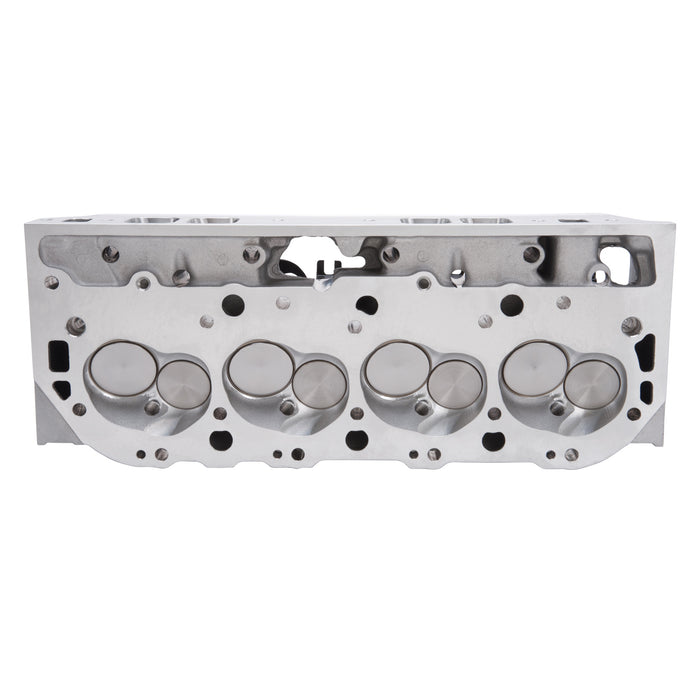

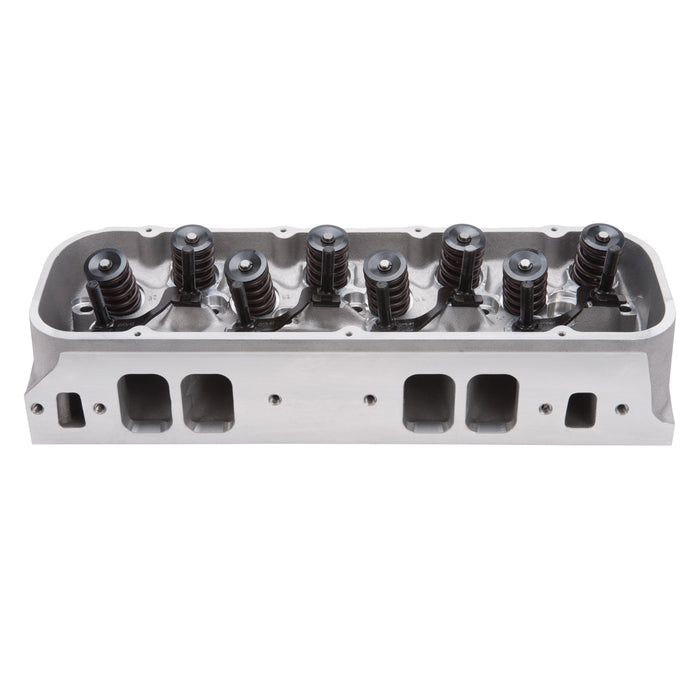

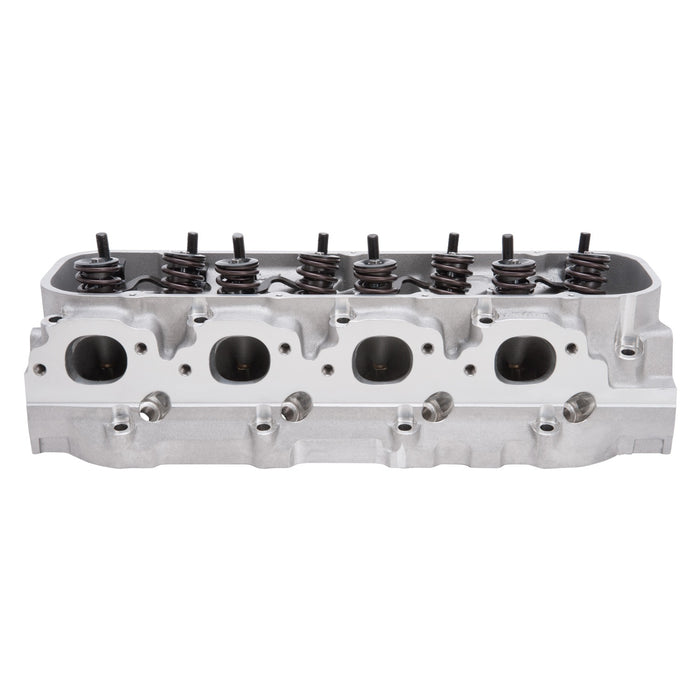

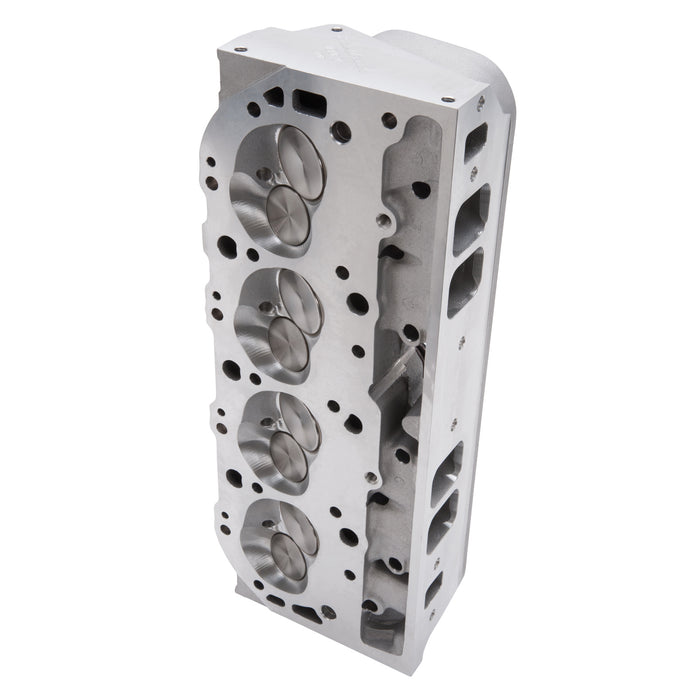

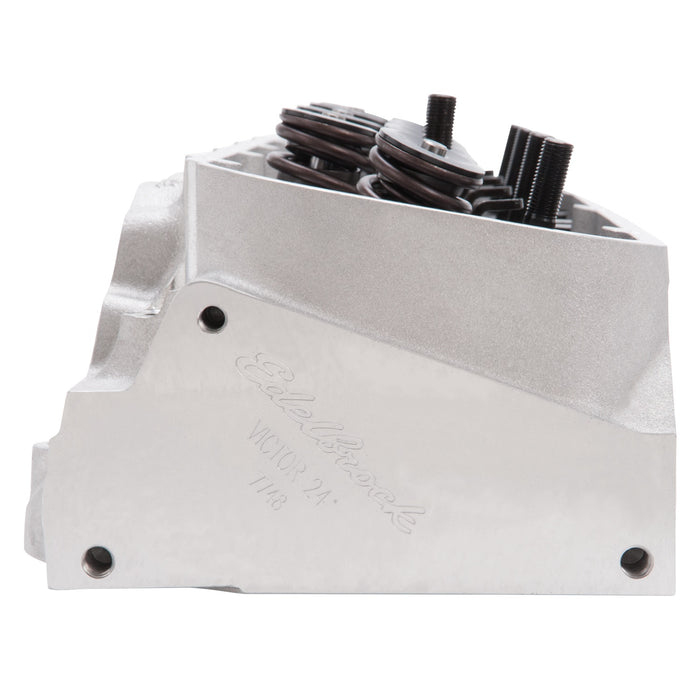

The Edelbrock part #77485 Big-Block Chevy Victor Jr. 24deg cylinder head features an extra thick deck and extra material in the spring pockets for a heavy-duty casting that can be used with high-lift cam and heavy spring combinations. Edelbrock equips the complete 774815 cylinder head with a spring packages to suit hydraulic roller cams. The 300cc rectangle ports produce impressive flow and great power on competition big-blocks up to 510 c.i.d. with 4.310" or larger bore. Exhaust port exits are raised .534" to greatly improve exhaust flow and power.
Specifications
| Description_ABR | Cyl. Head |
| Description_ASM | Chevrolet:Big-Block Mark IV:396 (6.5L)-502 (8.2L) |
| Description_DEF | Engine Cylinder Head |
| Description_DES | CYLINDER HEAD |
| Description_EXT | CYL HEAD BBC VICTOR JR 24 DEG CNC RECT PORT 300cc 106cc COMBUSTION CHAMBER FOR HYD ROLLER CAM COMPLETE |
| Description_EXT | Edelbrock part #77485 Victor Jr. 24 Degree is a complete cylinder head designed for Big Block Chevy 396-502 V8 engines. The 300cc rectangle ports produce impressive flow on competition big-blocks up to 510 c.i.d. with 4.310" or larger bore. |
| Description_FAB | 118cc Chamber For Engine Sizes Up To 510 cid |
| Description_FAB | 300cc Intake Ports For Racing Engines |
| Description_FAB | Engine Should Have Bores Larger Than 4.310 Inches |
| Description_FAB | For Complete Heads Use PN[77459] |
| Description_FAB | Ideal for Use in Super Class Racing |
| Description_FAB | Ideal for Use with Throttle Control Devices |
| Description_FAB | Seats and Guides are Not Installed |
| Description_FAB | Semi-Finished Head With Seats and Guides Supplied |
| Description_INV | Edelbrock BBC Cylinder Head |
| Description_KEY | Edelbrock; BBC; Head; 106cc; Hydraulic Roller Camshaft; Made In The USA; T-6; V8; Cylinder Heads; 77485 |
| Description_LAB | Victor Jr Big-Block Chevy 106cc Hydraulic Roller Camshaft |
| Description_MKT | The Edelbrock part #77485 Big-Block Chevy Victor Jr. 24deg cylinder head features an extra thick deck and extra material in the spring pockets for a heavy-duty casting that can be used with high-lift cam and heavy spring combinations. Edelbrock equips the complete 774815 cylinder head with a spring packages to suit hydraulic roller cams. The 300cc rectangle ports produce impressive flow and great power on competition big-blocks up to 510 c.i.d. with 4.310" or larger bore. Exhaust port exits are raised .534" to greatly improve exhaust flow and power. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 2in.} |
| Description_TRA | Matching stud girdle #7797 must be used with stud mounted rocker arms. Deck thickness: 9/16", rocker stud diameter: 7/16", pushrod diameter: 3/8" (width of slot in guide plate). |
| Description_TRA | Matching stud girdle #7797 must be used with stud mounted rocker arms. Deck thickness: 9/16in.; rocker stud diameter: 7/16in.; pushrod diameter: 3/8in. (width of slot in guide plate). |
| height | 8.5 |
| length | 26.25 |
| weight | 47.0 |
| width | 11.0 |
