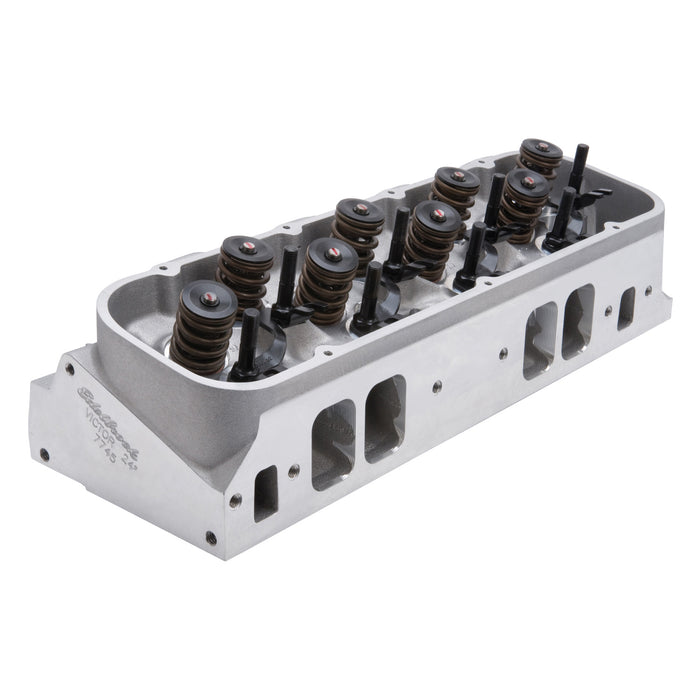

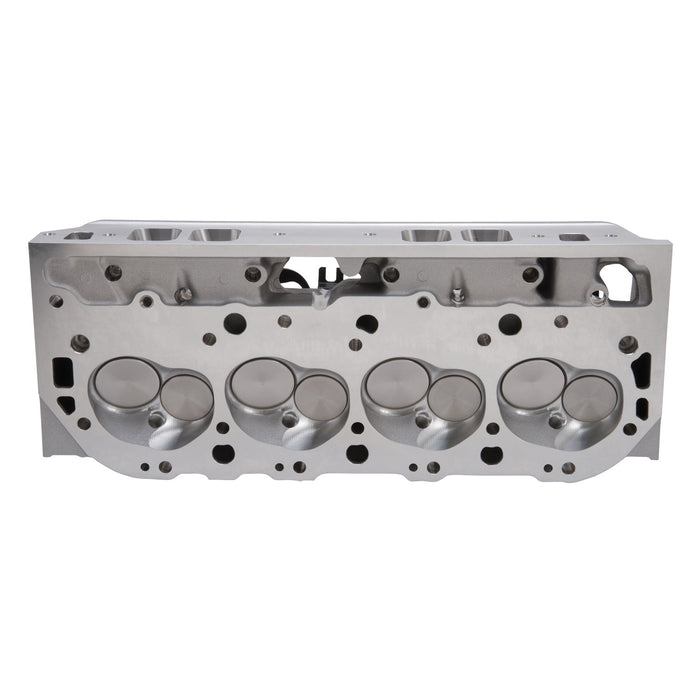

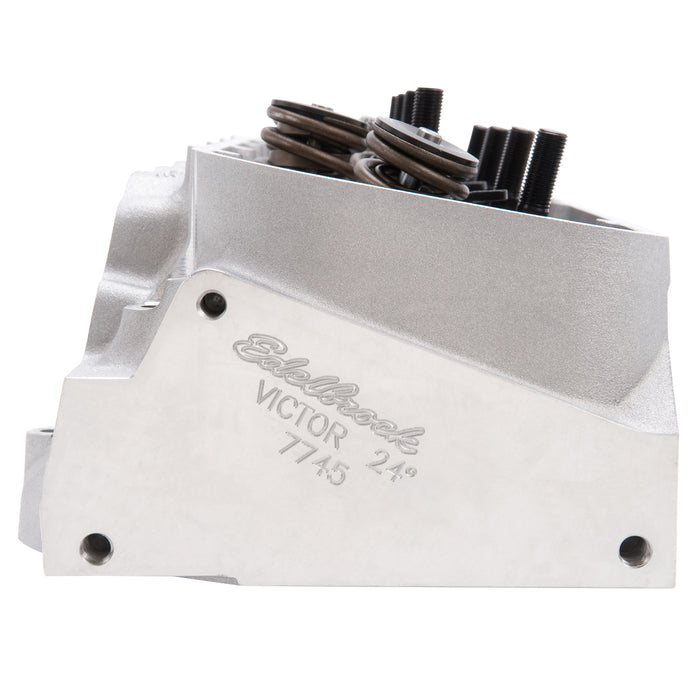

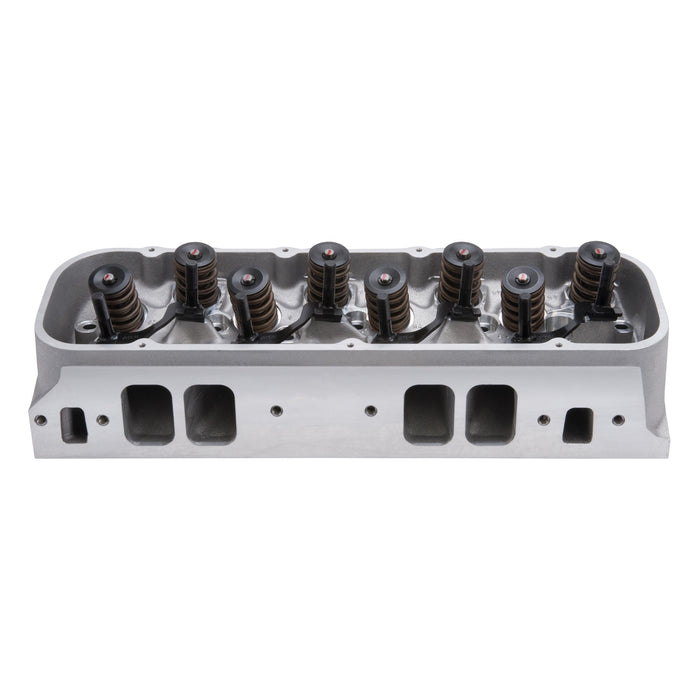

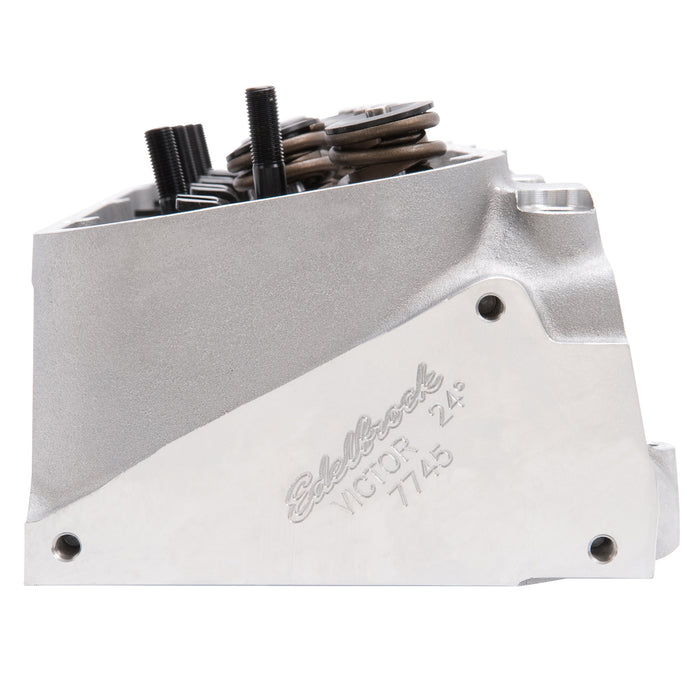

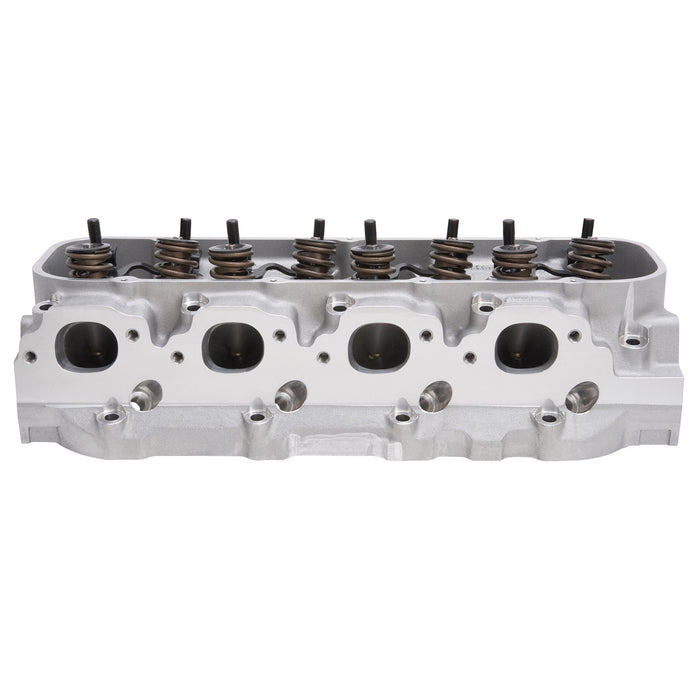

Edelbrock 77475 Engine Cylinder Head
by Edelbrock
SKU ds_BDVJ_77475
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$1,653.89
-
Original price
$1,653.89
Original price
$1,653.89
$1,653.89
$1,653.89
-
$1,653.89
Current price
$1,653.89
Availability:
Out of stock
Description
The Edelbrock part #77475 Big-Block Chevy Victor Jr. 24 Deg 300cc cylinder heads feature an extra thick deck and extra material in the spring pockets for a heavy-duty casting that can be used with high-lift cam and heavy spring combinations. Edelbrock offers the complete 77475 cylinder heads with a spring packages to suit hydraulic roller cams and 118cc combustion chambers. The 300cc rectangle ports produce impressive flow and great power on competition big-blocks up to 510 c.i.d. with 4.310" or larger bore. Exhaust port exits are raised .534" to greatly improve exhaust flow and power.
Specifications
| Description_ABR | Cyl. Head |
| Description_ASM | Chevrolet:Big-Block Mark IV:396 (6.5L)-502 (8.2L) |
| Description_DEF | Engine Cylinder Head |
| Description_EXT | Edelbrock part #77475 Victor Jr. 24 Degree is a complete cylinder head designed for Big Block Chevy 396-502 V8 engines. |
| Description_INV | Edelbrock BBC Cylinder Head |
| Description_LAB | Victor Jr Big-Block Chevy Hydraulic Roller Camshaft |
| Description_MKT | The Edelbrock part #77475 Big-Block Chevy Victor Jr. 24 Deg 300cc cylinder heads feature an extra thick deck and extra material in the spring pockets for a heavy-duty casting that can be used with high-lift cam and heavy spring combinations. Edelbrock offers the complete 77475 cylinder heads with a spring packages to suit hydraulic roller cams and 118cc combustion chambers. The 300cc rectangle ports produce impressive flow and great power on competition big-blocks up to 510 c.i.d. with 4.310" or larger bore. Exhaust port exits are raised .534" to greatly improve exhaust flow and power. |
| Description_TRA | Matching stud girdle #7797 must be used with stud mounted rocker arms. Deck thickness: 9/16", rocker stud diameter: 7/16", pushrod diameter: 3/8" (width of slot in guide plate). |
| height | 8.25 |
| length | 24.75 |
| weight | 47.0 |
| width | 10.5 |
