Edelbrock 77419 { Sellable : Yes }
by Edelbrock
SKU ds_BDVJ_77419
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$1,341.40
-
Original price
$1,341.40
Original price
$1,341.40
$1,341.40
$1,341.40
-
$1,341.40
Current price
$1,341.40
Availability:
Out of stock
Description

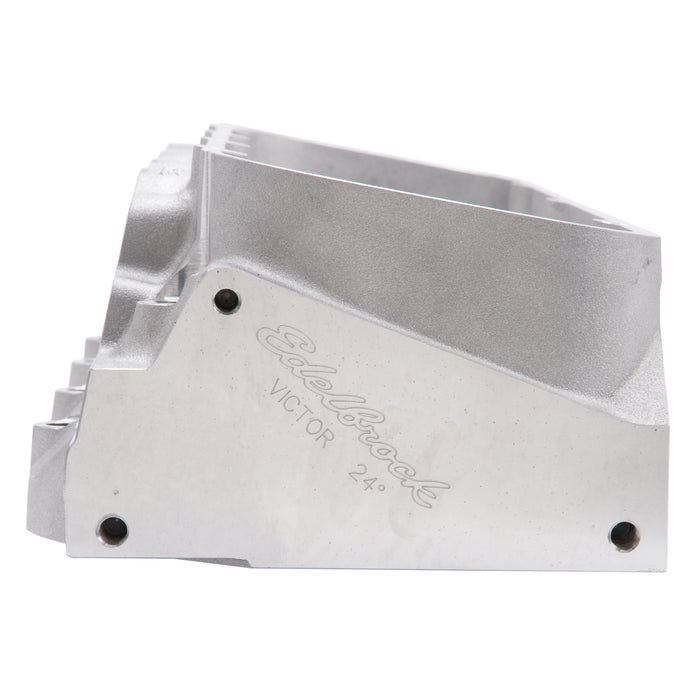

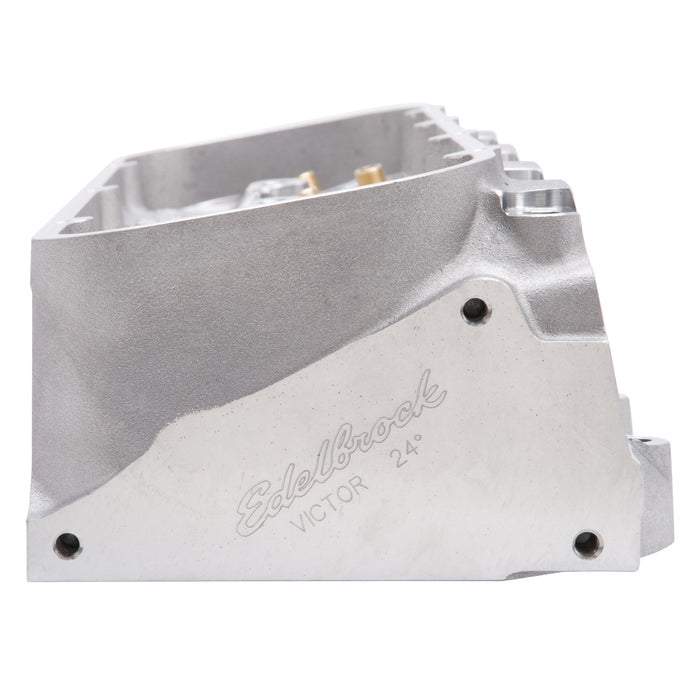

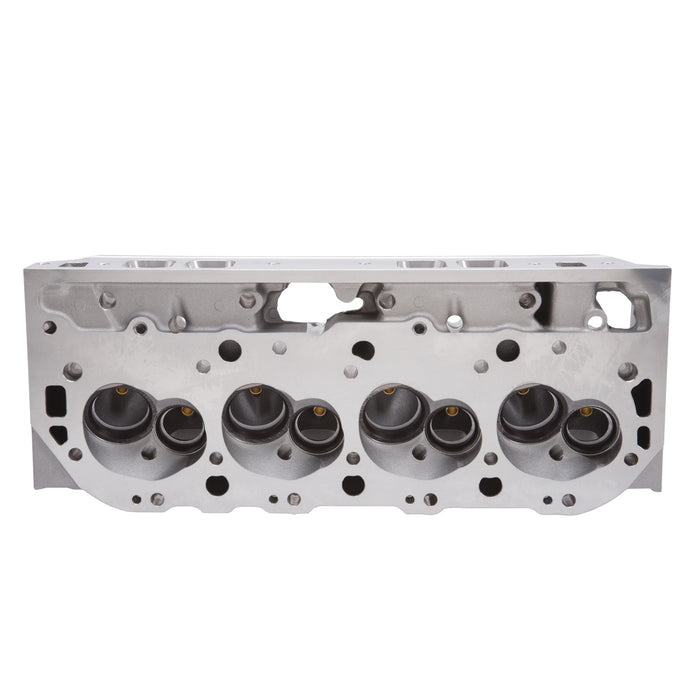

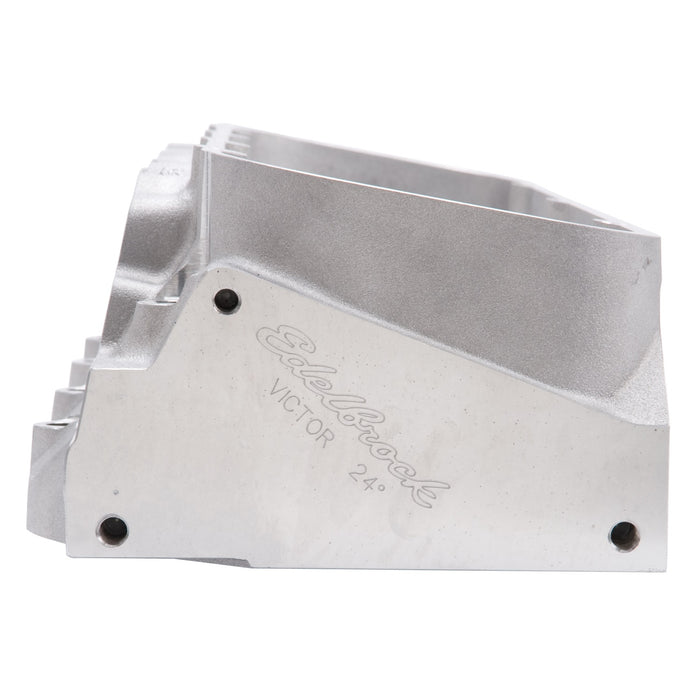

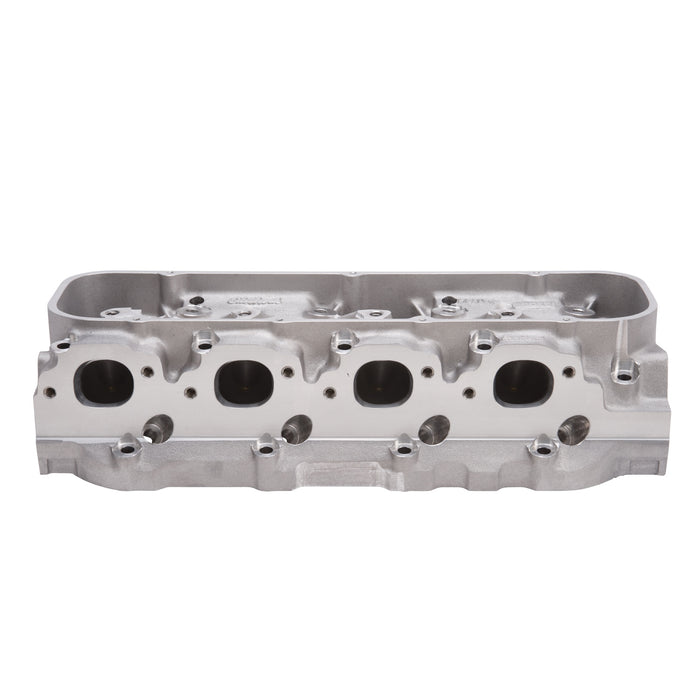

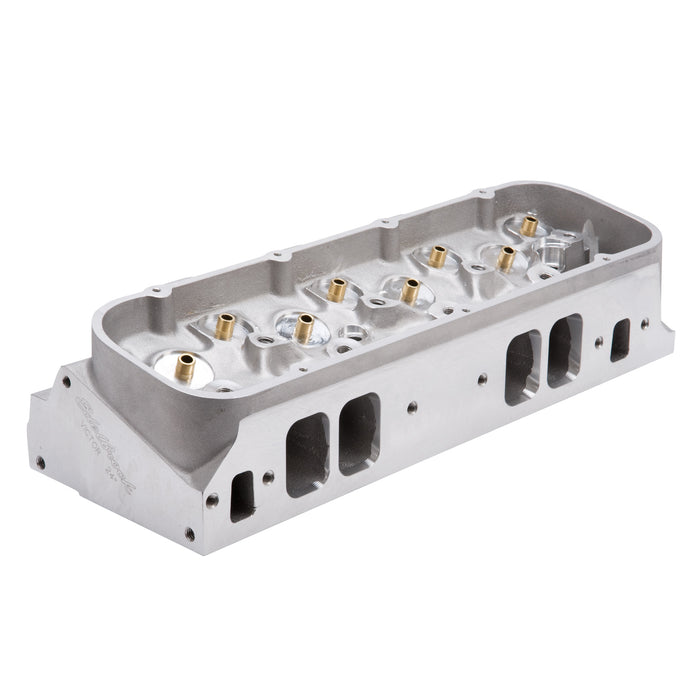

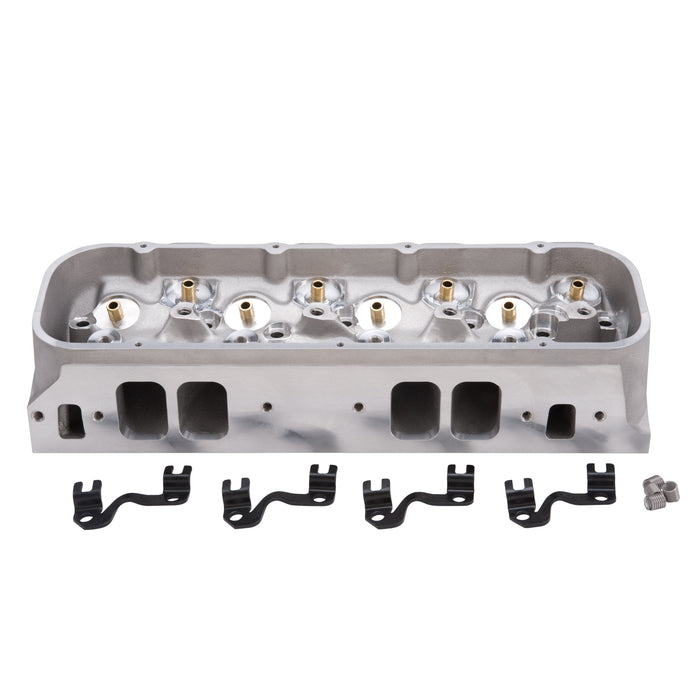

The Edelbrock part #77419 Victor 24 Deg 340cc cylinder head features a rolled over deck, altered valve locations and partially CNC'd 199cc chambers for cost effective performance. The Edelbrock 77419 cylinder head comes bare and will need a final valve job and guide sizing before use. The 340cc rectangle ports produce impressive flow and great power on competition big-blocks with 4.470" or larger bore. Exhaust port exits are raised .534".
Specifications
| Description_ABR | Cyl. Head |
| Description_ASM | Chevrolet:Big-Block Mark IV:396 (6.5L)-502 (8.2L) |
| Description_DEF | Engine Cylinder Head |
| Description_DES | CYLINDER HEAD |
| Description_EXT | Edelbrock #77419 Victor 24 Degree is a bare cylinder head designed for Big Block Chevy 396-502 V8 engines. The Victor 24 Deg features a rolled over deck, altered valve locations and partially CNC'd chambers for cost effective performance. |
| Description_EXT | Edelbrock #77419 Victor 24 Degree is a bare cylinder head designed for Big Block Chevy 396-502 V8 engines. The Victor 24 Deg features a rolled over deck; altered valve locations and partially CNC d chambers for cost effective performance. |
| Description_FAB | Best Standard Port Location Head Available |
| Description_FAB | Partially CNC Chambers And Exhaust Throats |
| Description_FAB | Rolled Over Deck; Altered Valve Locations |
| Description_INV | Edelbrock BBC Cylinder Head |
| Description_KEY | Edelbrock; BBC; Head; V8; Cylinder Heads; 77419; Big Block Chevy; 454; 402; 396 |
| Description_LAB | Victor Big-Block Chevy Cylinder Head Bare |
| Description_MKT | The Edelbrock part #77419 Victor 24 Deg 340cc cylinder head features a rolled over deck, altered valve locations and partially CNC'd 199cc chambers for cost effective performance. The Edelbrock 77419 cylinder head comes bare and will need a final valve job and guide sizing before use. The 340cc rectangle ports produce impressive flow and great power on competition big-blocks with 4.470" or larger bore. Exhaust port exits are raised .534". |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 2in.} |
| Description_TRA | Matching stud girdle #7796 must be used with stud mounted rocker arms. Deck thickness: 9/16", rocker stud diameter: 7/16", pushrod diameter: 3/8" (width of slot in guide plate). |
| Description_TRA | Matching stud girdle #7796 must be used with stud mounted rocker arms. Deck thickness: 9/16in.; rocker stud diameter: 7/16in.; pushrod diameter: 3/8in. (width of slot in guide plate). |
| height | 8.75 |
| length | 25.75 |
| LTL | N |
| weight | 39.15 |
| width | 11.0 |
