Edelbrock 77189 { Sellable : Yes }
by Edelbrock
SKU ds_BDVJ_77189
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$1,769.88
-
Original price
$1,769.88
Original price
$1,769.88
$1,769.88
$1,769.88
-
$1,769.88
Current price
$1,769.88
Availability:
4+ in stock
Description

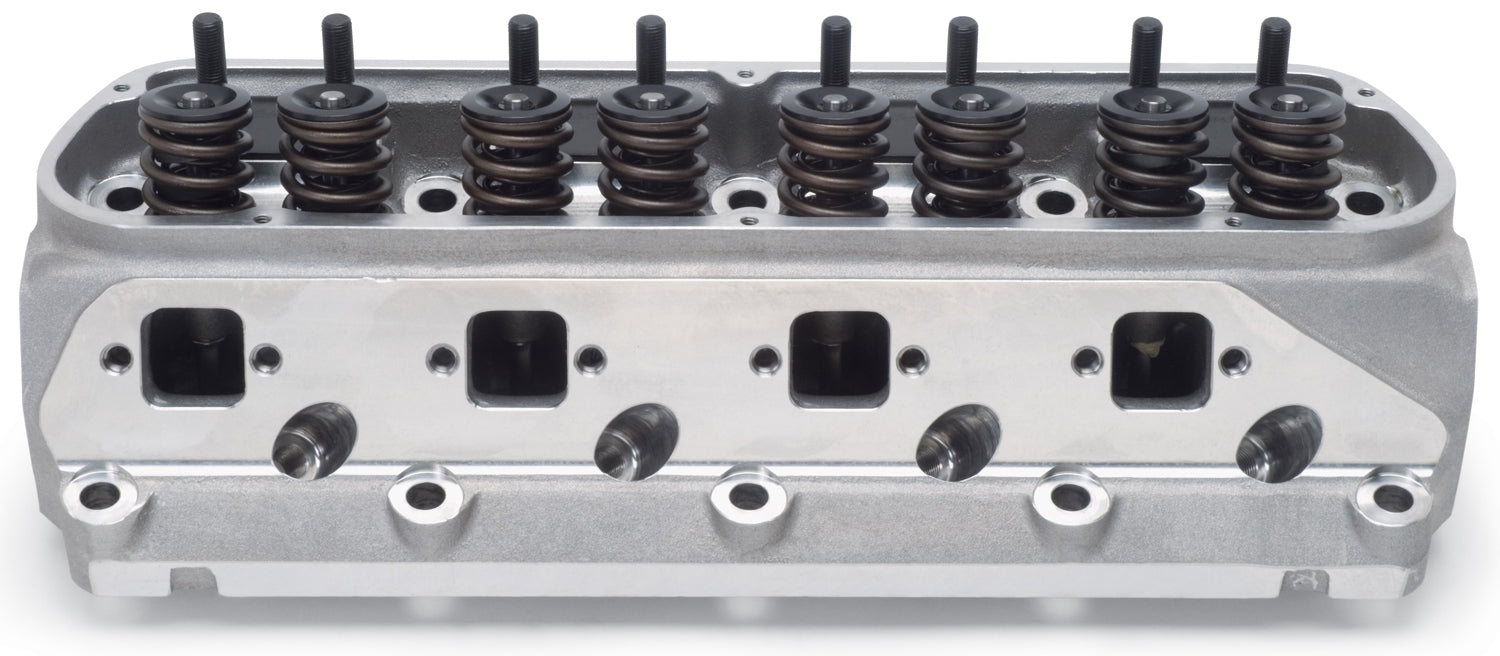

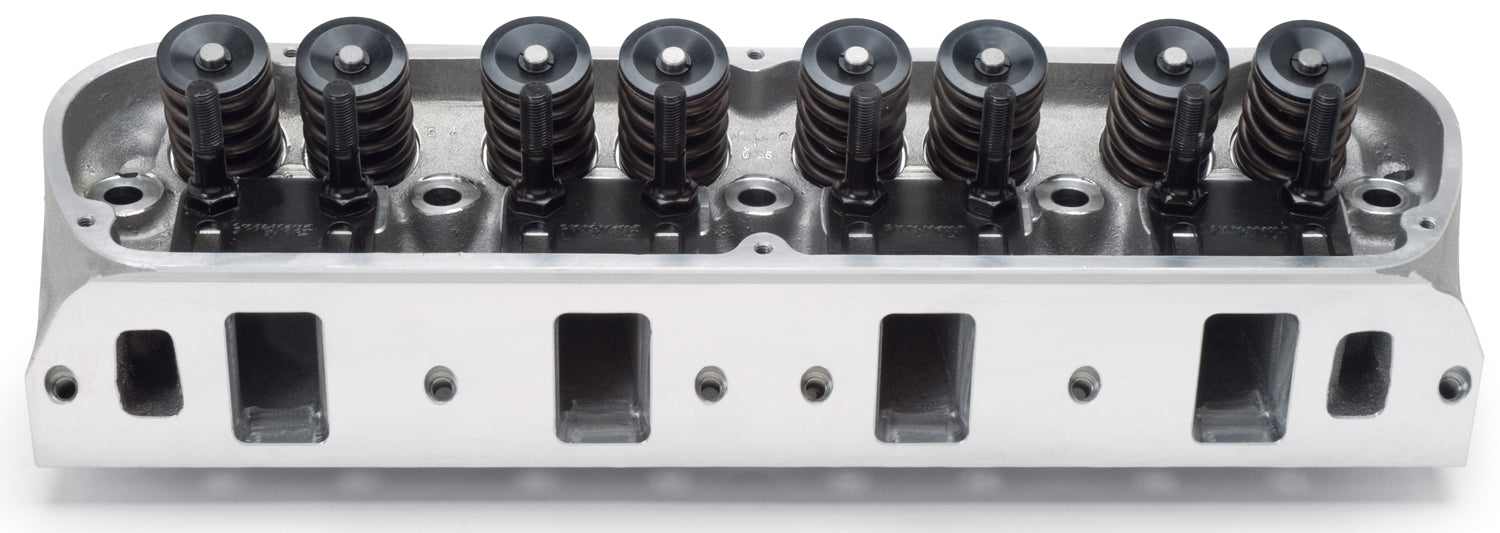

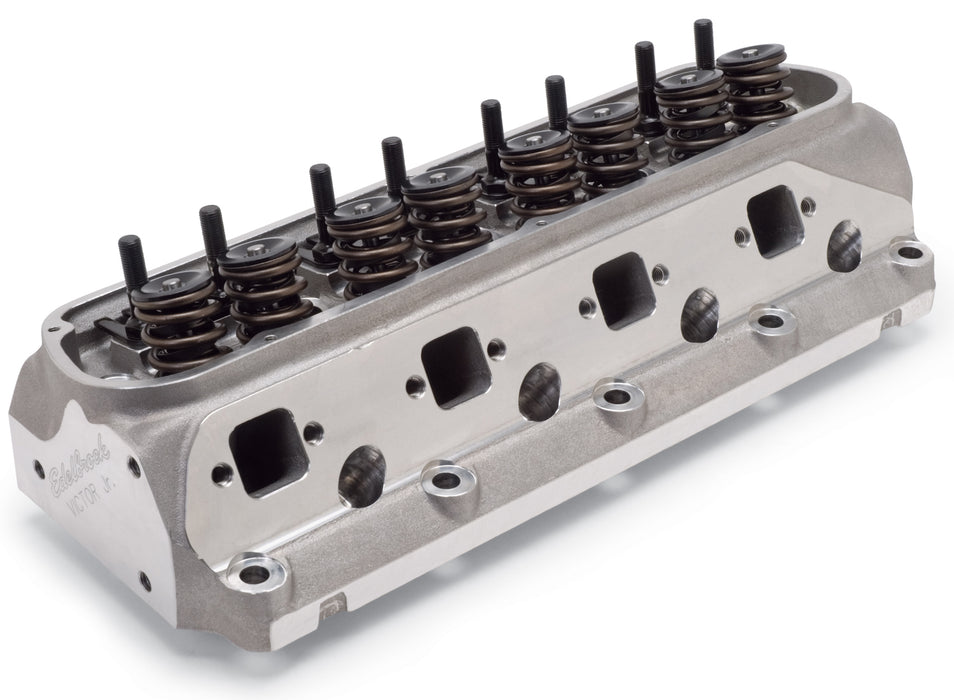

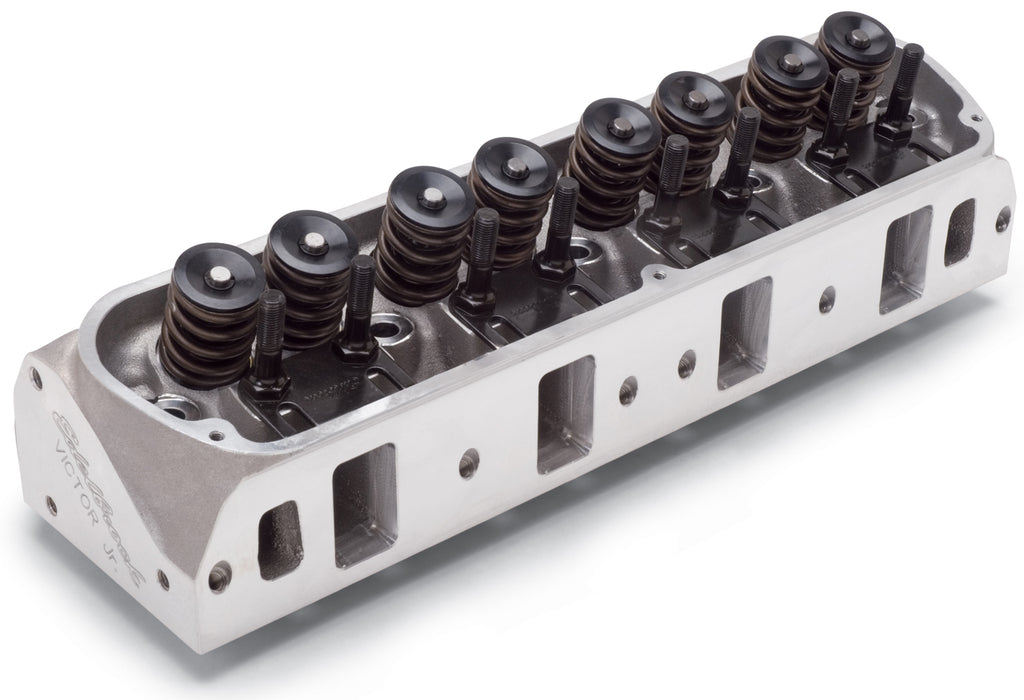

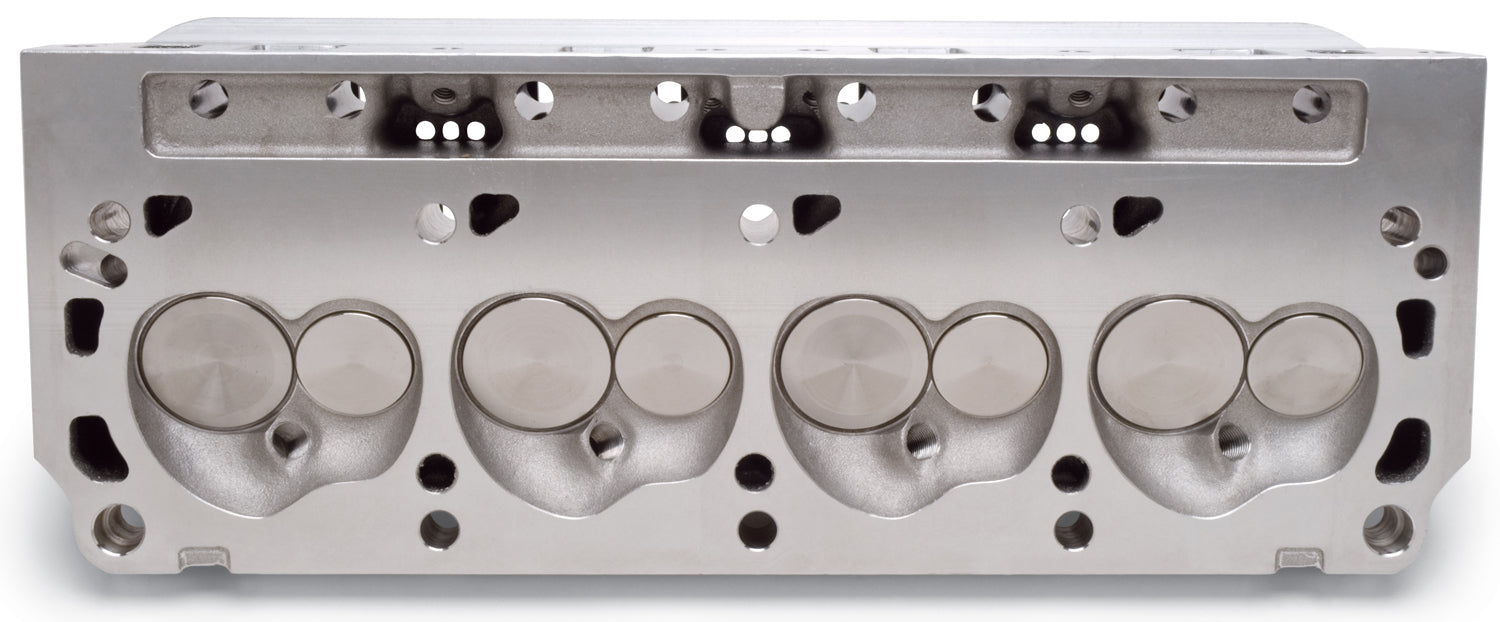

The Edelbrock 77189 Victor Jr. Small Block Ford cylinder head offers high horsepower potential on competition level engines and are compatible with OE valve train and pistons for bolt-on convenience.VICTOR JR. 20deg - 210cc FEATURES:500+ horsepower potential out-of-the-box using stock valve train geometryHigh-flowing 210cc intake ports and .130" raised 75cc exhaust portsAvailable with 60cc or 70cc combustion chambers70cc combustion chambers are ideal for turbocharged and supercharged applicationsCNC gasket-matched port entries/exits with blended valve bowlsSpark plug holes and valves are in the stock locationValve cover rail raised .150"A relief in the head allows most roller lifters to be changed without removing the head
Specifications
| Cylinder Head Type | Standard |
| Description_ABR | Cyl. Head |
| Description_ASM | Ford:Small-Block:289 (4.7L)-351W (5.8L) |
| Description_DEF | Engine Cylinder Head |
| Description_DES | CYLINDER HEAD |
| Description_EXT | Edelbrock part #77189 Victor Jr. 20 Degree is a complete cylinder head designed for S/B Ford 289-351W engines. This head has the potential of 500+ Horsepower out-of-the-box using a stock valve train geometry. |
| Description_EXT | Edelbrock part #77189 Victor Jr. 20 Degree is a complete cylinder head designed for S/B Ford 289-351W engines. This head has the potential of 500+Horsepower out-of-the-box using a stock valve train geometry. |
| Description_FAB | 500+ HP Potential |
| Description_FAB | Affordable; Top Quality |
| Description_FAB | CNC Gasket-Matched Part Entries/Exits |
| Description_FAB | High-Flow 210cc Intake Ports |
| Description_FAB | Out-of-the-Box Bolt-On Performance |
| Description_FAB | Spark Plugs/Valves In The Stock Location |
| Description_INV | Edelbrock SBF Cylinder Head |
| Description_KEY | Edelbrock; SBF; Head; V8; Cylinder Heads; 77189; Ford; Small Block Ford; 8.2; 9.2; 9.5 |
| Description_LAB | Victor Jr Small-Block Ford Cylinder Head Hydraulic Roller Springs |
| Description_MKT | The Edelbrock 77189 Victor Jr. Small Block Ford cylinder head offers high horsepower potential on competition level engines and are compatible with OE valve train and pistons for bolt-on convenience. VICTOR JR. 20deg - 210cc FEATURES: 500+ horsepower potential out-of-the-box using stock valve train geometry High-flowing 210cc intake ports and .130" raised 75cc exhaust ports Available with 60cc or 70cc combustion chambers 70cc combustion chambers are ideal for turbocharged and supercharged applications CNC gasket-matched port entries/exits with blended valve bowls Spark plug holes and valves are in the stock location Valve cover rail raised .150" A relief in the head allows most roller lifters to be changed without removing the head |
| Description_MKT | The Edelbrock 77189 Victor Jr. Small Block Ford cylinder head offers high horsepower potential on competition level engines and are compatible with OE valve train and pistons for bolt-on convenience.VICTOR JR. 20deg - 210cc FEATURES:500+ horsepower potential out-of-the-box using stock valve train geometryHigh-flowing 210cc intake ports and .130" raised 75cc exhaust portsAvailable with 60cc or 70cc combustion chambers70cc combustion chambers are ideal for turbocharged and supercharged applicationsCNC gasket-matched port entries/exits with blended valve bowlsSpark plug holes and valves are in the stock locationValve cover rail raised .150"A relief in the head allows most roller lifters to be changed without removing the head |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 2in.} |
| Description_TRA | Check cam manufacturer s specs for compatibility with valve springs. Recommended valve sizes listed. Match with Edelbrock head gasket sets. Use Head Bolt Kits for easy installation. These heads require the use of a 14mm x 3/4in. reach; flat gasket spark plug with a heat range appropriate to your application. Deck thickness: 5/8in.; rocker stud diameter: 7/16in.; pushrod diameter: 5/16in. (width of slot in guide plate). |
| Description_TRA | Check cam manufacturer's specs for compatibility with valve springs. Recommended valve sizes listed. Match with Edelbrock head gasket sets. Use Head Bolt Kits for easy installation. These heads require the use of a 14mm x 3/4" reach, flat gasket spark plug with a heat range appropriate to your application. Deck thickness: 5/8", rocker stud diameter: 7/16", pushrod diameter: 5/16" (width of slot in guide plate). |
| Emission | Non-Emissions |
| Engine Make/Size | Ford 260-302 |
| finish | Cast Aluminum |
| height | 8.75 |
| length | 25.75 |
| LTL | N |
| Preparation | Requires Professional Preparation (Bare) |
| Type | Complete |
| Usage | Racing |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 31.8 |
| width | 11.0 |
