Edelbrock 77069 Engine Cylinder Head
by Edelbrock
SKU ds_BDVJ_77069
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$1,729.95
-
Original price
$1,729.95
Original price
$1,729.95
$1,729.95
-
$1,729.95
Current price
$1,729.95
Availability:
Out of stock
Description

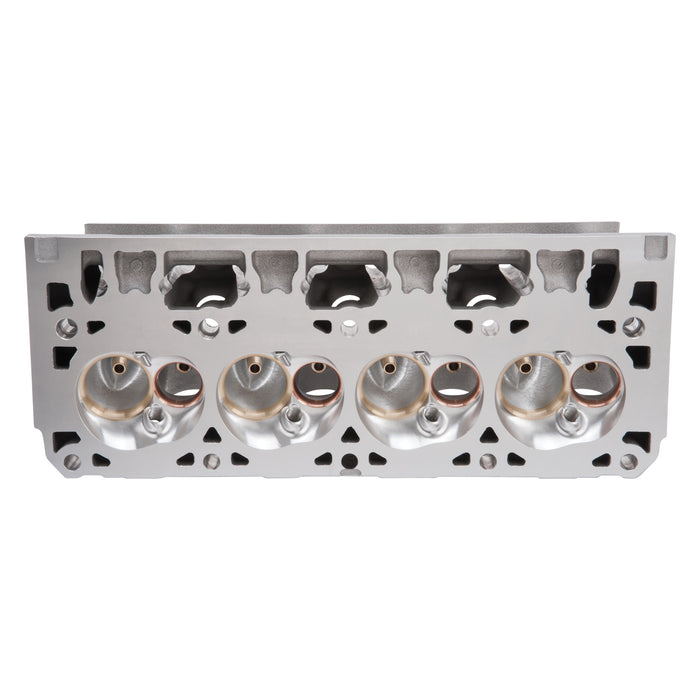

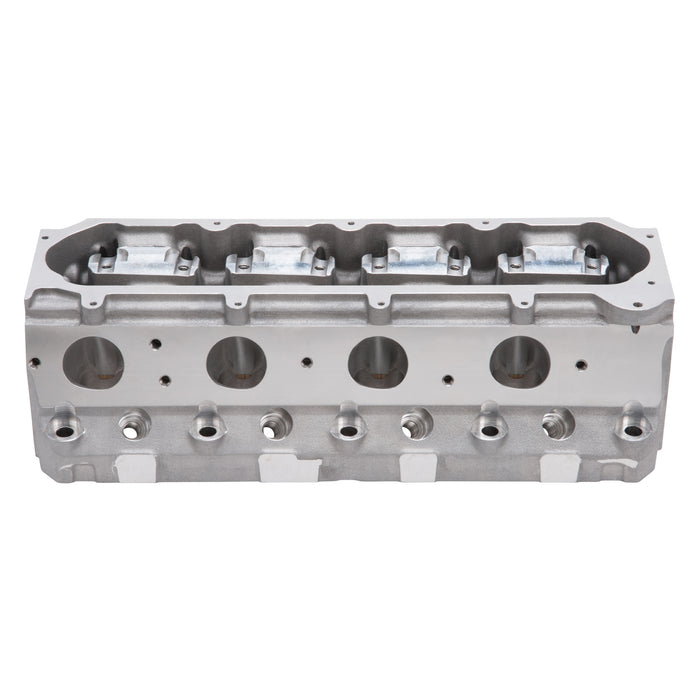

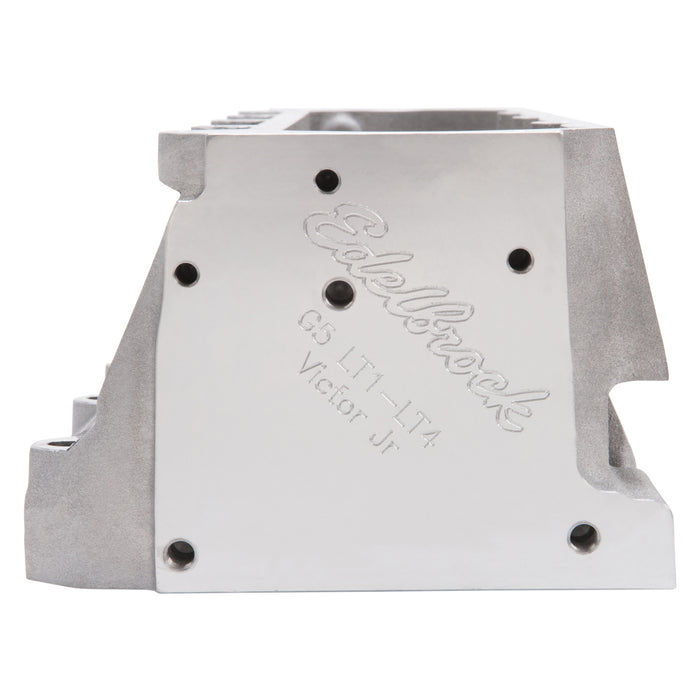

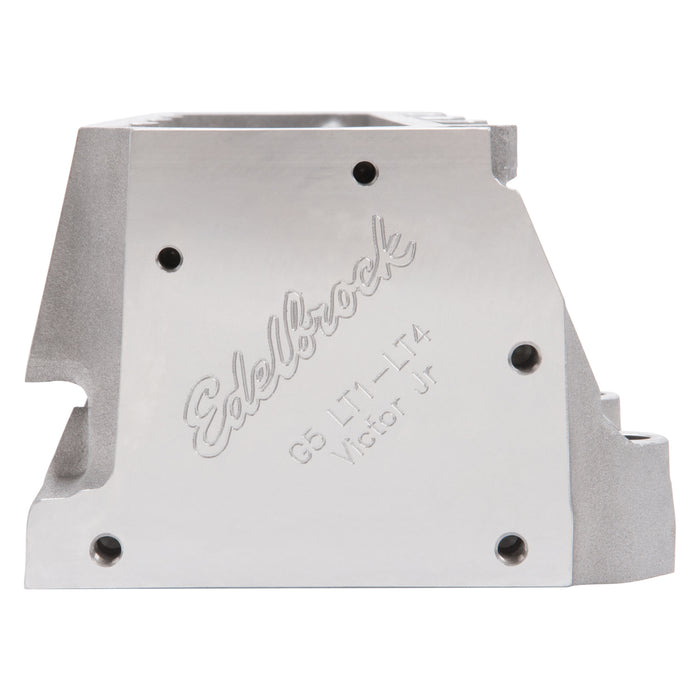

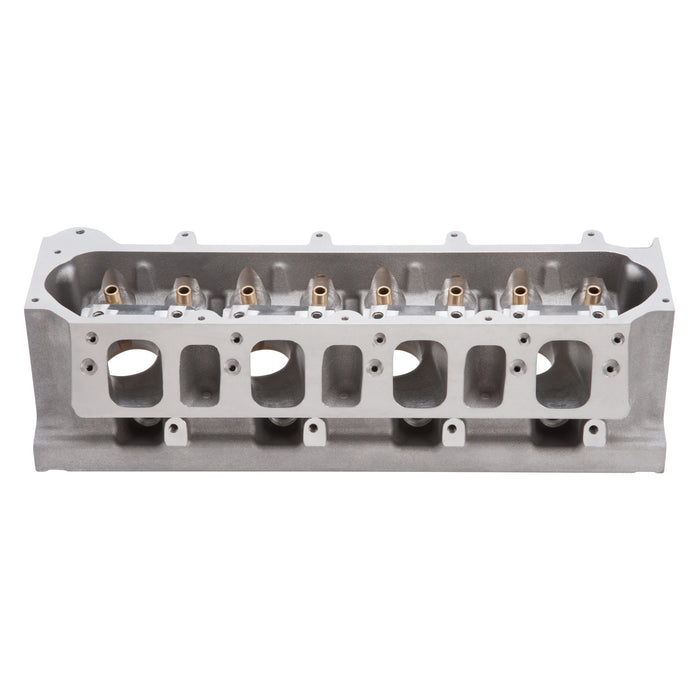

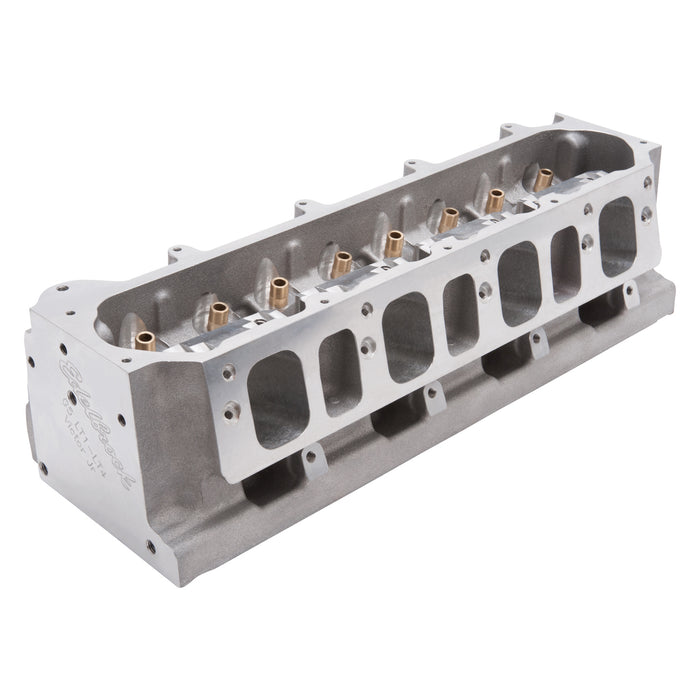

The Edelbrock part #77069 Bare Victor Jr. LT1 (Gen V) cylinder heads are an excellent upgrade for ultra high-performance on GM Gen V LT1 racing engines. The biggest change and advantage of Victor Jr. is the revised exhaust ports, which have been moved 1.5" horizontally to improve air flow. This revision will require the use of custom exhaust manifolds and headers. They have been designed with high flow intake/exhaust ports and back cut intake valves for improved air flow. The valve position has also been revised to accommodate interlocking valve seat rings and larger valves. It's designed with a thicker deck and more material in the intake, exhaust and port walls for improved strength, durability and for additional porting and deck milling. This cylinder head features fully CNC machined intake ports, combustion chambers and exhaust ports for improved performance. The Victor Jr. retains the stock rocker arm, intake port and spark plug tip location for use with factory components. Like all of our other cylinder heads, these have been designed, tested and cast from 356 aluminum and heat treated to T-6 specs in our facilities in Southern California to guarantee you get the best from a name you can trust. Looking for custom LT1 headers? Please contact Kooks Exhaust and Headers at (866) 586-5665 for more details about their LT1 headers for the Edelbrock Victor Jr. cylinder head!
Specifications
| CNC Ported | No |
| Combustion Chamber Volume | 62.0 |
| Deck Thickness | 0.750 |
| Description_ABR | Cyl. Head |
| Description_ASM | Chevrolet:Small-Block Gen V LT1:376 (6.2L) |
| Description_DEF | Engine Cylinder Head |
| Description_EXT | Edelbrock part #77069 Victor Jr. (with Beryllium-Cooper Seats) cylinder heads are a bare version of part #77059 designed for 2014-Later Gen V engine applications. |
| Description_INV | Edelbrock SBC LT1 Cylinder Head |
| Description_LAB | Victor Jr Gen V LT1 Chevy Cylinder Head Beryllium- Cooper Seats Bare |
| Description_MKT | The Edelbrock part #77069 Bare Victor Jr. LT1 (Gen V) cylinder heads are an excellent upgrade for ultra high-performance on GM Gen V LT1 racing engines. The biggest change and advantage of Victor Jr. is the revised exhaust ports, which have been moved 1.5" horizontally to improve air flow. This revision will require the use of custom exhaust manifolds and headers. They have been designed with high flow intake/exhaust ports and back cut intake valves for improved air flow. The valve position has also been revised to accommodate interlocking valve seat rings and larger valves. It's designed with a thicker deck and more material in the intake, exhaust and port walls for improved strength, durability and for additional porting and deck milling. This cylinder head features fully CNC machined intake ports, combustion chambers and exhaust ports for improved performance. The Victor Jr. retains the stock rocker arm, intake port and spark plug tip location for use with factory components. Like all of our other cylinder heads, these have been designed, tested and cast from 356 aluminum and heat treated to T-6 specs in our facilities in Southern California to guarantee you get the best from a name you can trust. Looking for custom LT1 headers? Please contact Kooks Exhaust and Headers at (866) 586-5665 for more details about their LT1 headers for the Edelbrock Victor Jr. cylinder head! |
| Description_TRA | Match with Edelbrock head gasket sets. Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. |
| Grade Type | Performance |
| Guide Plates Included | No |
| Head Casting Number | 7713F |
| height | 5.375 |
| Intake Runner Volume | 320.0 |
| length | 19.875 |
| Material | Aluminum |
| Push Rod Diameter | 0.375 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| weight | 30.1 |
| width | 8.0 |
