Edelbrock 770469 { Sellable : Yes }
by Edelbrock
SKU ds_BDVJ_770469
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$2,535.30
-
Original price
$2,535.30
Original price
$2,535.30
$2,535.30
$2,535.30
-
$2,535.30
Current price
$2,535.30
Availability:
Out of stock
Description

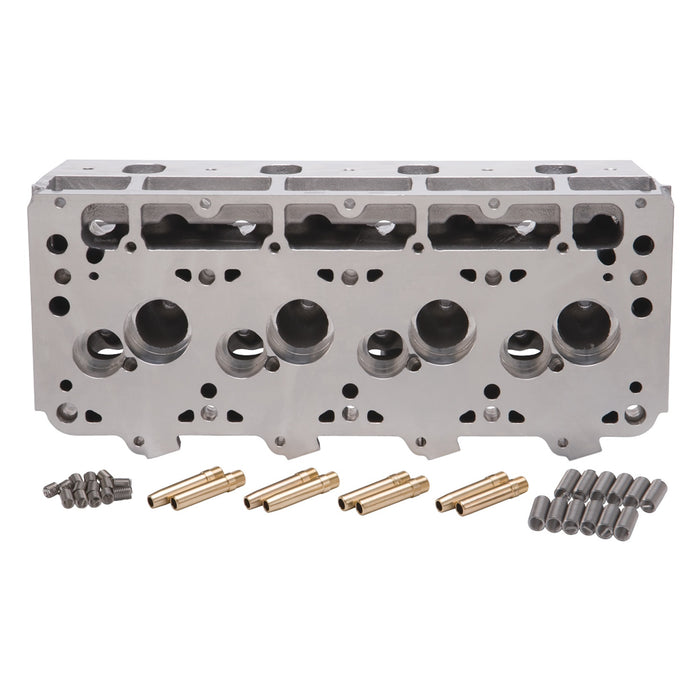

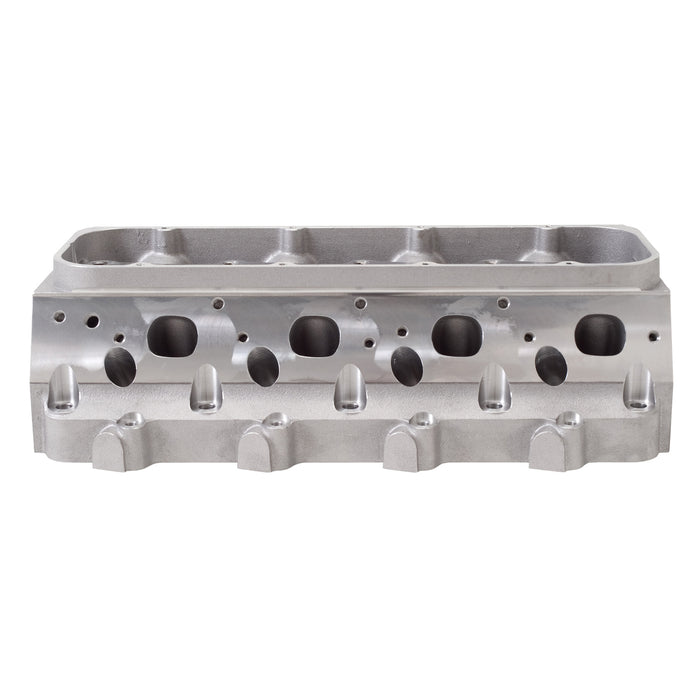

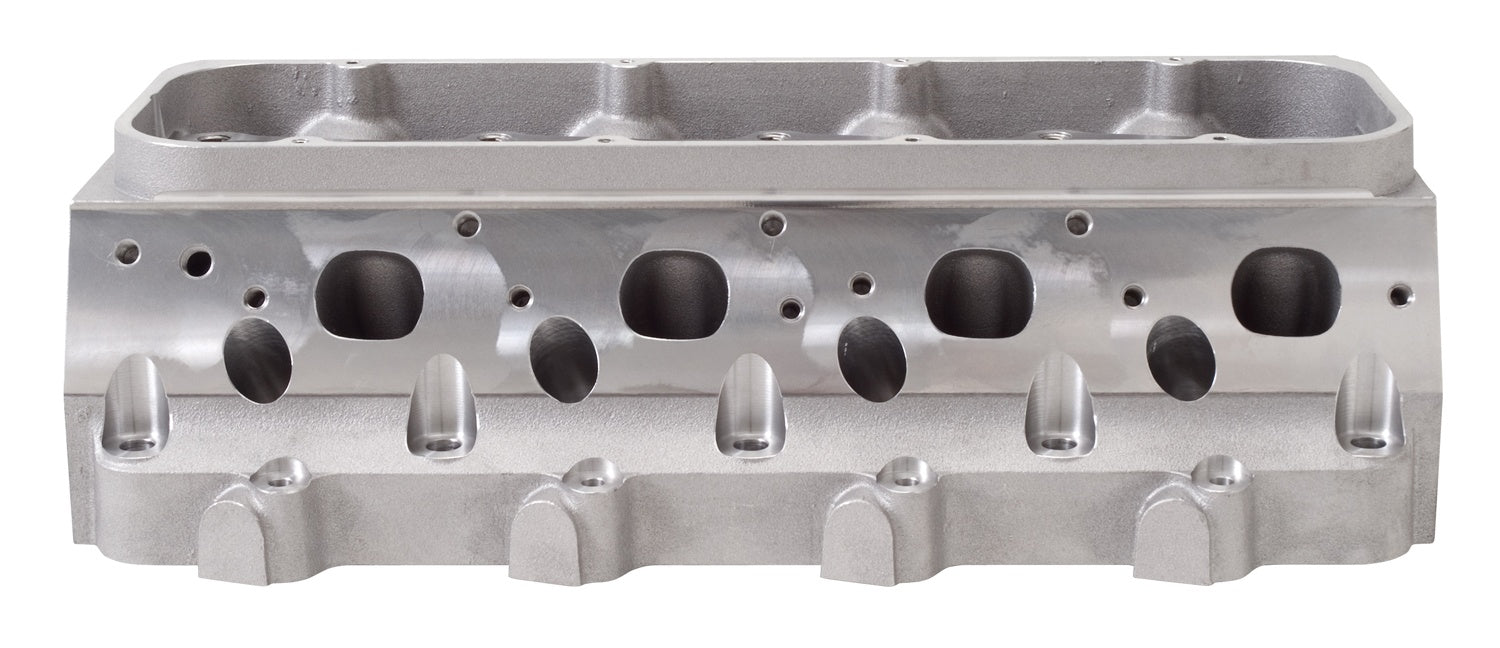

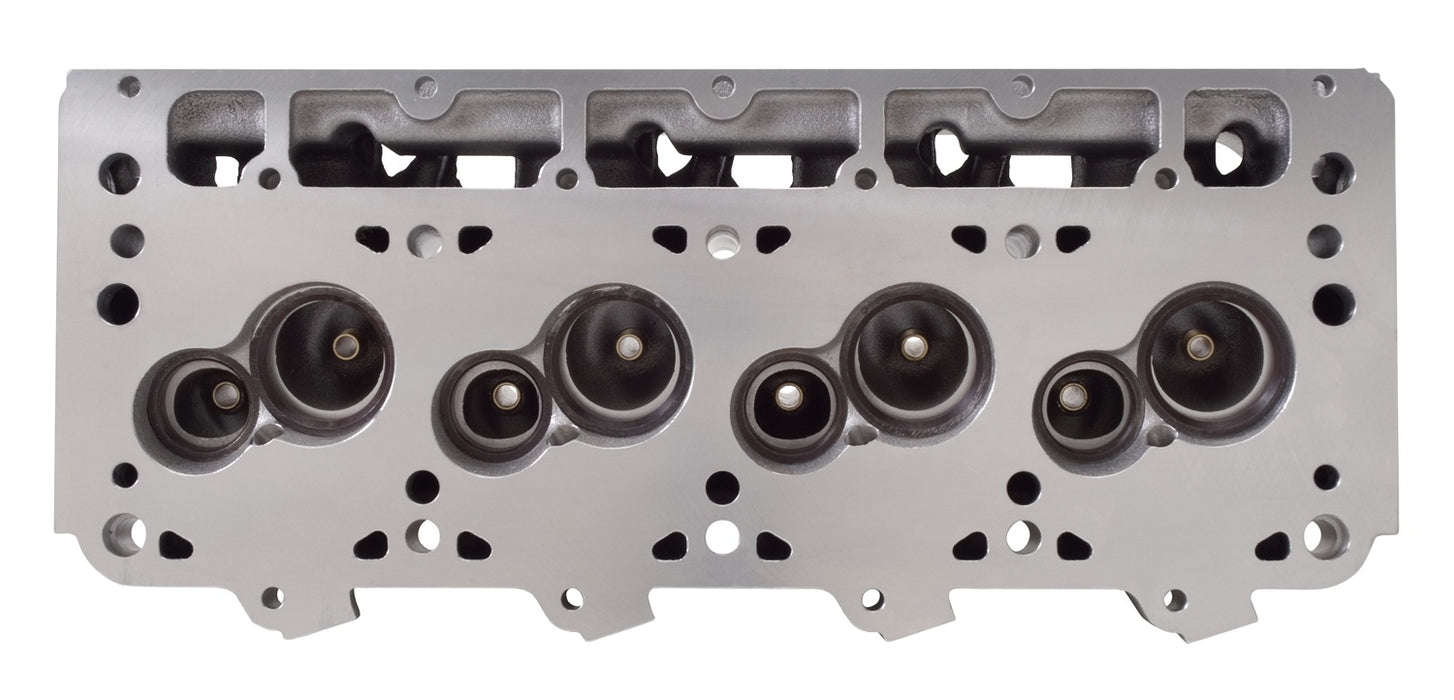

The Edelbrock 770469 Small Block Chevy LSR Pro-Port Cylinder head is designed specifically for the professional cylinder head porter and engine builder. Like the other Edelbrock Cylinder head, The Pro-Port cylinder head is also cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting. In most cases, seats and manganese-bronze valve guides are included, but not installed. Please note: This head can not be used without professional head preparation. Pro-Port RAW Features Include: - Unported versions of Edelbrock race-winning Victor Series CNC head for the professional cylinder head porter and engine builder - The Pro-Port cylinder head is cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting - The only head designed specifically to accommodate almost any CNC port shape, size or location - Offers enough wall thickness for CNC machining to various port dimensions - In most cases seats and manganese-bronze valve guides are included- Some of the Edelbrock Pro-Port Raw Head Feature Our Special Hot Isostatic Pressing or HIP Process.
Specifications
| CNC Ported | No |
| Combustion Chamber Volume | Possible 25 |
| Construction Type | Pro-Port Raw |
| Cylinder Head Type | Standard |
| Deck Thickness | 0.8000 |
| Description_ABR | Cyl. Head |
| Description_ASM | Chevrolet:Gen III LS-R Race:- |
| Description_ASM | Chevrolet:Gen III LS-R Race:-;Chevrolet:Gen IV LS-R Race:- |
| Description_ASM | Chevrolet:Gen IV LS-R Race:- |
| Description_DEF | Engine Cylinder Head |
| Description_DES | CYLINDER HEAD |
| Description_EXT | Edelbrock #770469 Pro Port Cylinder Head for Gen III-IV S/B Chevrolet LS Engines is designed to take advantage of the improvements in this LSX racing block. It is also compatible with all previous versions of the engine. Bare, HIP Treated |
| Description_EXT | Edelbrock #770469 Pro Port Cylinder Head for Gen III-IV S/B Chevrolet LS Engines is designed to take advantage of the improvements in this LSX racing block. It is also compatible with all previous versions of the engine. Bare; HIP Treated |
| Description_FAB | Compatible w/All Previous Versions Of Engine |
| Description_FAB | Designed To Maximize Potential Of GM LSX Block |
| Description_FAB | Offers Utmost In Port Flow/Combustion Efficiency |
| Description_FAB | Requires Professional Preparation |
| Description_FAB | Stock Exhaust Bolt Pattern Is Retained |
| Description_FAB | Uses GM SB2 Valve Cover Footprint |
| Description_INV | Edelbrock SBC LSR Cylinder Head |
| Description_KEY | Edelbrock; SBC; Small Block Chevy; Head; Tempered A356; V8; Cylinder Heads; 770469 |
| Description_LAB | Pro Port Victor GEN III/ Gen IV Chevy LSR Cylinder Head |
| Description_LAB | Pro Port Victor GEN III/Gen IV Chevy LSR Cylinder Head |
| Description_MKT | The Edelbrock 770469 Small Block Chevy LSR Pro-Port Cylinder head is designed specifically for the professional cylinder head porter and engine builder. Like the other Edelbrock Cylinder head, The Pro-Port cylinder head is also cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting. In most cases, seats and manganese-bronze valve guides are included, but not installed. Please note: This head can not be used without professional head preparation. Pro-Port RAW Features Include: - Unported versions of Edelbrock race-winning Victor Series CNC head for the professional cylinder head porter and engine builder - The Pro-Port cylinder head is cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting - The only head designed specifically to accommodate almost any CNC port shape, size or location - Offers enough wall thickness for CNC machining to various port dimensions - In most cases seats and manganese-bronze valve guides are included - Some of the Edelbrock Pro-Port Raw Head Feature Our Special Hot Isostatic Pressing or HIP Process. |
| Description_MKT | The Edelbrock 770469 Small Block Chevy LSR Pro-Port Cylinder head is designed specifically for the professional cylinder head porter and engine builder. Like the other Edelbrock Cylinder head, The Pro-Port cylinder head is also cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting. In most cases, seats and manganese-bronze valve guides are included, but not installed. Please note: This head can not be used without professional head preparation. Pro-Port RAW Features Include: - Unported versions of Edelbrock race-winning Victor Series CNC head for the professional cylinder head porter and engine builder - The Pro-Port cylinder head is cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting - The only head designed specifically to accommodate almost any CNC port shape, size or location - Offers enough wall thickness for CNC machining to various port dimensions - In most cases seats and manganese-bronze valve guides are included- Some of the Edelbrock Pro-Port Raw Head Feature Our Special Hot Isostatic Pressing or HIP Process. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 2in.} |
| Description_TRA | 1.68" diameter possible, 1.58" recommended for 4.00" bore |
| Description_TRA | 2.25" diameter possible, 2.20" recommended for 4.00" bore |
| Description_TRA | Exhaust 7.0 Deg x 2.0 Deg |
| Description_TRA | In most cases seats and manganese-bronze valve guides are included |
| Description_TRA | Intake 8.7 Deg x 3.2 Deg |
| Description_TRA | Not ported versions of Edelbrock race-winning Victor Series CNC heads for professional cylinder head porter and engine builder |
| Description_TRA | Offers enough wall thickness for CNC machining to various port dimensions |
| Description_TRA | Only heads designed specifically to accommodate almost any CNC port shape, size or location |
| Description_TRA | Pro-Port cylinder heads are cast in USA at state-of--art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting |
| Description_TRA | Some Edelbrock Pro-Port Raw Heads Feature Our Special Hot Isostatic Pressing or HIP Process |
| Description_TRA | • Not ported versions of Edelbrock race-winning Victor Series CNC heads for professional cylinder head porter and engine builder • Pro-Port cylinder heads are cast in USA at state-of--art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting • Only heads designed specifically to accommodate almost any CNC port shape; size or location • Offers enough wall thickness for CNC machining to various port dimensions • In most cases seats and manganese-bronze valve guides are included • Some Edelbrock Pro-Port Raw Heads Feature Our Special Hot Isostatic Pressing or HIP Process • Intake 8.7deg. x 3.2deg.; 2.25in. diameter possible; 2.20in. recommended for 4.00in. bore • Exhaust 7.0deg. x 2.0deg.; 1.68in. diameter possible; 1.58in. recommended for 4.00in. bore |
| EGR Port | No |
| Emission | Non-Emissions |
| Engine Make/Size | Chevy Small Block LS1 |
| Exhaust Valve Diameter | (Suggested) 1.68 |
| Family | Victor |
| finish | Cast Aluminum |
| Grade Type | Performance |
| Guide Material | Manganese Bronze |
| Guide Plates Included | No |
| Head Casting Number | N/A |
| height | 8.5 |
| Intake Valve Diameter | (Suggested) 2.25 |
| length | 26.0 |
| LTL | N |
| Material | Aluminum |
| Preparation | Requires Professional Preparation (Bare) |
| Quantity | Sold Individually |
| Retainer Included | No |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Pro-Port |
| Specialty | Hot Isostatic Pressing (HIP) Processing |
| Type | Bare |
| Usage | Racing |
| Valve Angle | Exhaust 7.0 x 2.0 deg/Intake 8.7 x 3.2 |
| Valve Included | No |
| Valve Springs Included | No |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 40.6 |
| width | 11.0 |
