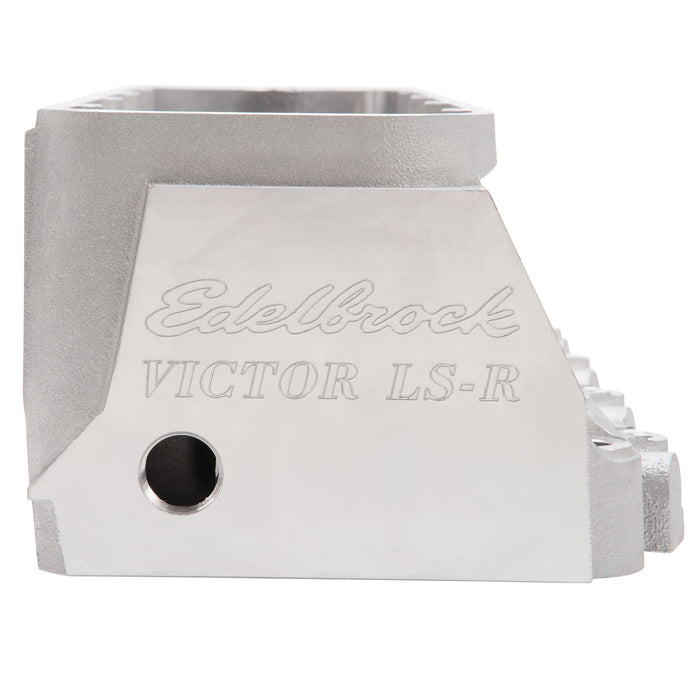

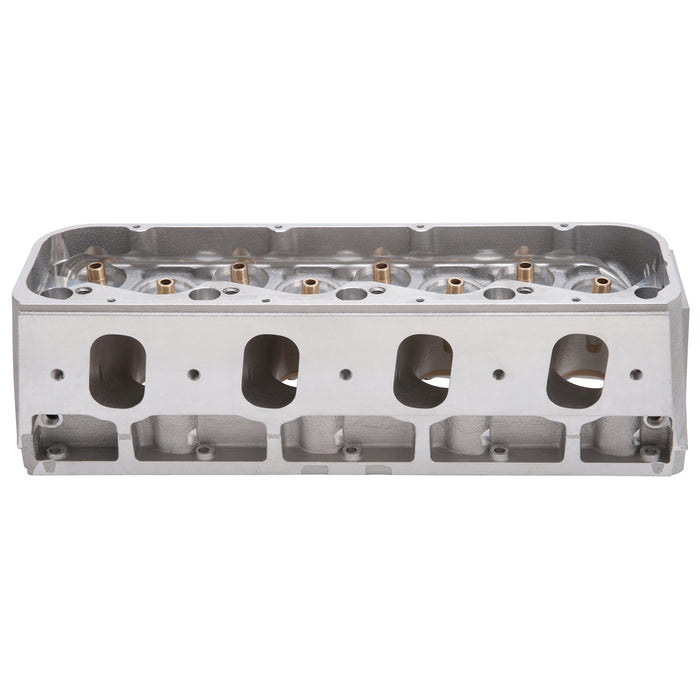

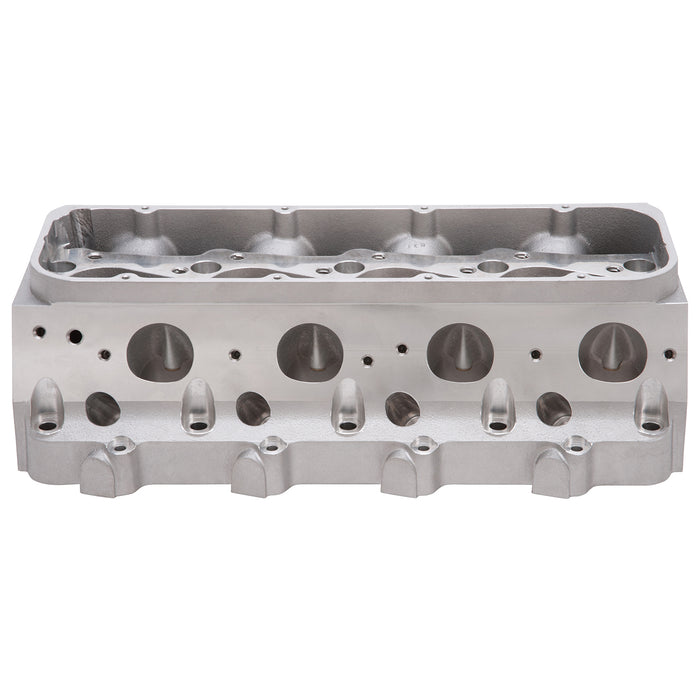

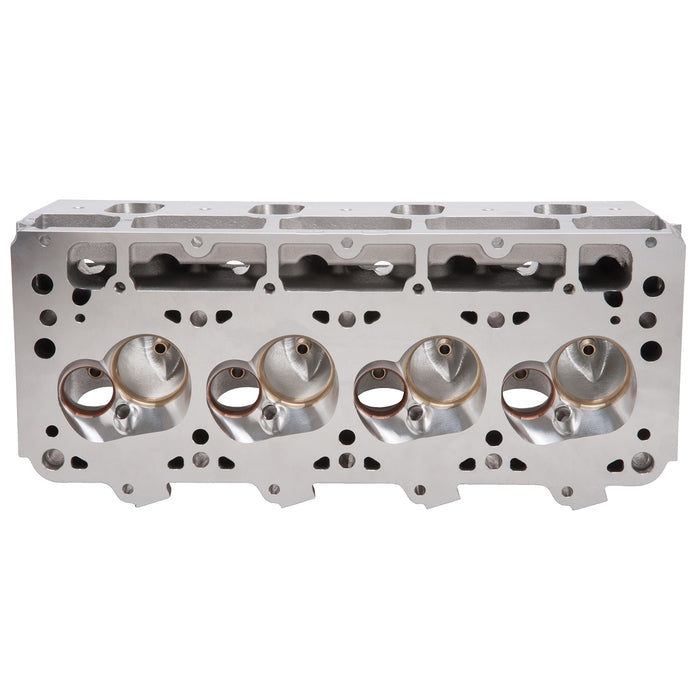

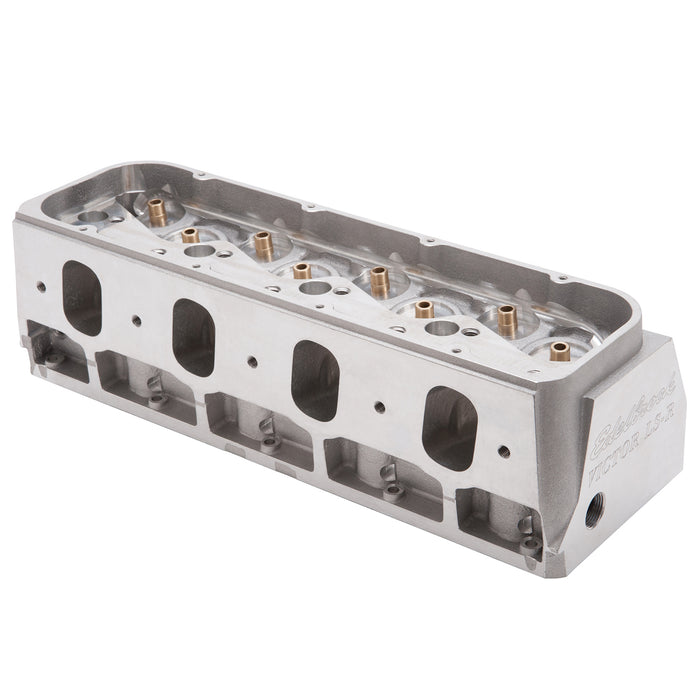

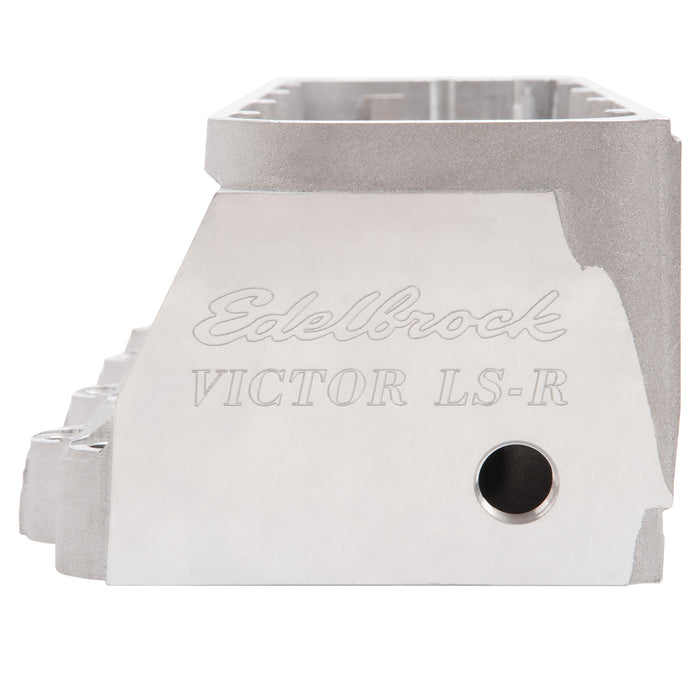

Edelbrock 770468 Engine Cylinder Head
by Edelbrock
SKU ds_BDVJ_770468
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$2,854.14
-
Original price
$2,854.14
Original price
$2,854.14
$2,854.14
$2,854.14
-
$2,854.14
Current price
$2,854.14
Availability:
Out of stock
Description
The Edelbrock 770468 Victor LS-R CNC cylinder head is ideal for use with Chevrolet Performance LSX and similar engine blocks in ultra high performance competition applications. It starts with our Pro-Port Raw casting and is then fully CNC machined to meet the demands of a high output race engine. The casting is made from A-356 aluminum and is Hot Isostatic Pressing processed (HIP) for superior strength, durability, dimensional stability and exceptional finish quality. It also features an exhaust port flange that has been raised 0.875" for improved air flow. It also includes deeper rocker bolt holes for improved support and stability at high rpm. Victor LS-R CNC cylinder head has fully CNC'd intake ports, combustion chambers and exhaust ports. Compatible with GM SB2 valve covers. Will require an aftermarket rocker system. Pro-Port Raw version #770469 is available for custom porting applications.
Specifications
| Description_ABR | Cyl. Head |
| Description_ASM | Chevrolet:Gen III LS-R Race:- |
| Description_ASM | Chevrolet:Gen IV LS-R Race:- |
| Description_DEF | Engine Cylinder Head |
| Description_EXT | Edelbrock #770468 is the E-CNC version of Pro-Port #770469-Cylinder Head. It features Fully CNC'd Combustion Chambers, Intake and Exhaust Ports. Requires the GM SB2 Valve Covers & is Designed Specifically for LSX Racing Blocks. HIP Treated |
| Description_INV | Edelbrock SBC LSR Cylinder Head |
| Description_LAB | Victor GEN III/ Gen IV Chevy LSR Cylinder Head |
| Description_MKT | The Edelbrock 770468 Victor LS-R CNC cylinder head is ideal for use with Chevrolet Performance LSX and similar engine blocks in ultra high performance competition applications. It starts with our Pro-Port Raw casting and is then fully CNC machined to meet the demands of a high output race engine. The casting is made from A-356 aluminum and is Hot Isostatic Pressing processed (HIP) for superior strength, durability, dimensional stability and exceptional finish quality. It also features an exhaust port flange that has been raised 0.875" for improved air flow. It also includes deeper rocker bolt holes for improved support and stability at high rpm. Victor LS-R CNC cylinder head has fully CNC'd intake ports, combustion chambers and exhaust ports. Compatible with GM SB2 valve covers. Will require an aftermarket rocker system. Pro-Port Raw version #770469 is available for custom porting applications. |
| Description_TRA | Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. |
| height | 8.5 |
| length | 26.0 |
| weight | 40.6 |
| width | 11.0 |
