Description

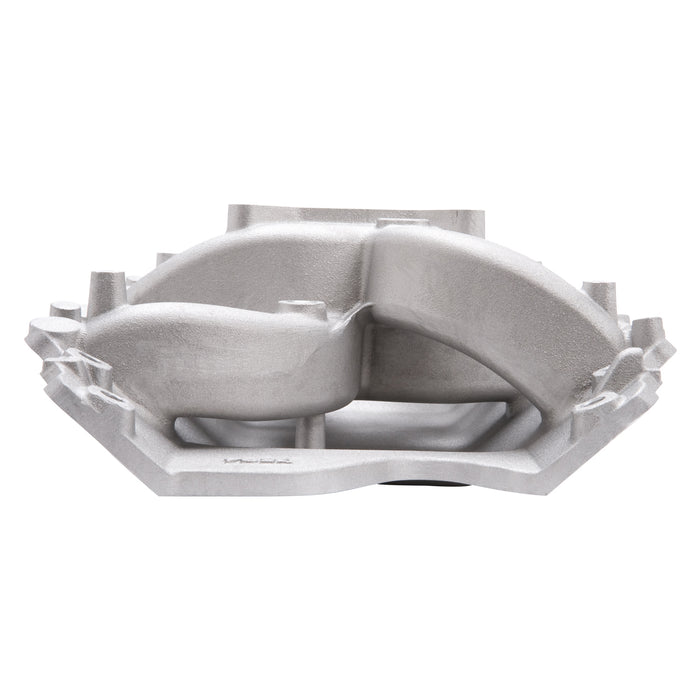

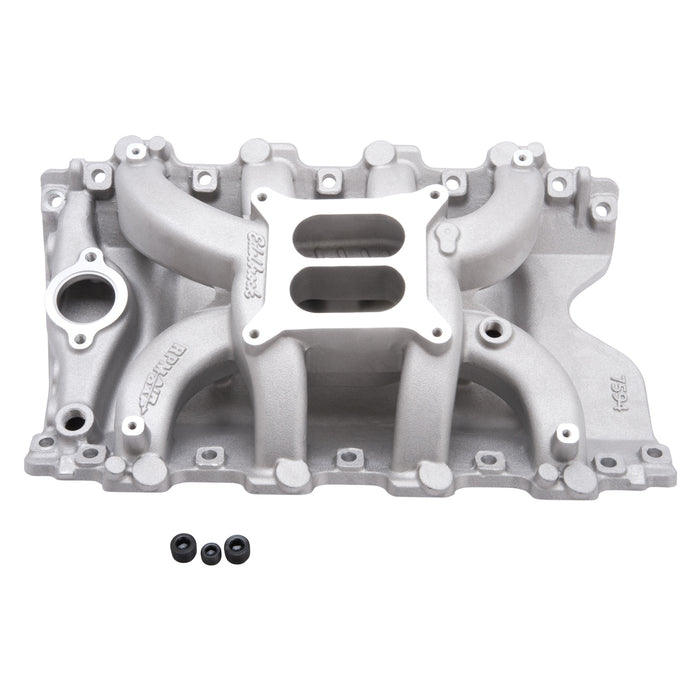

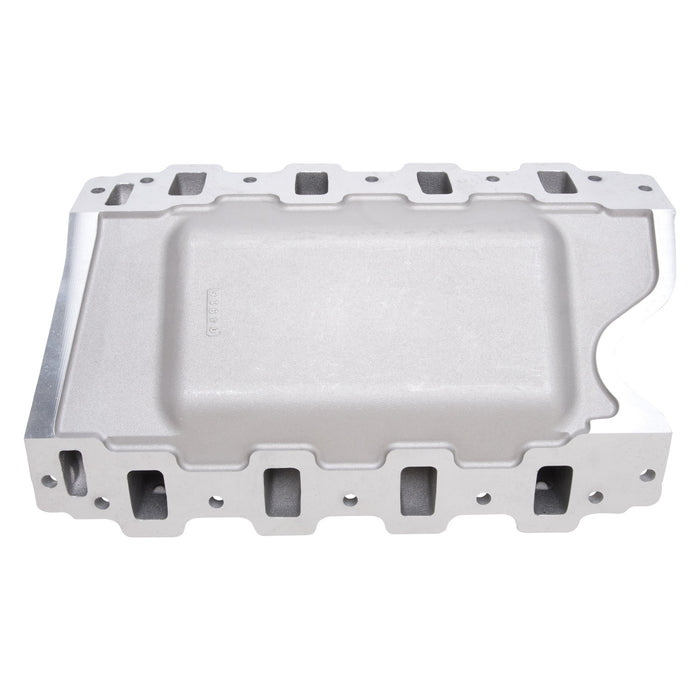

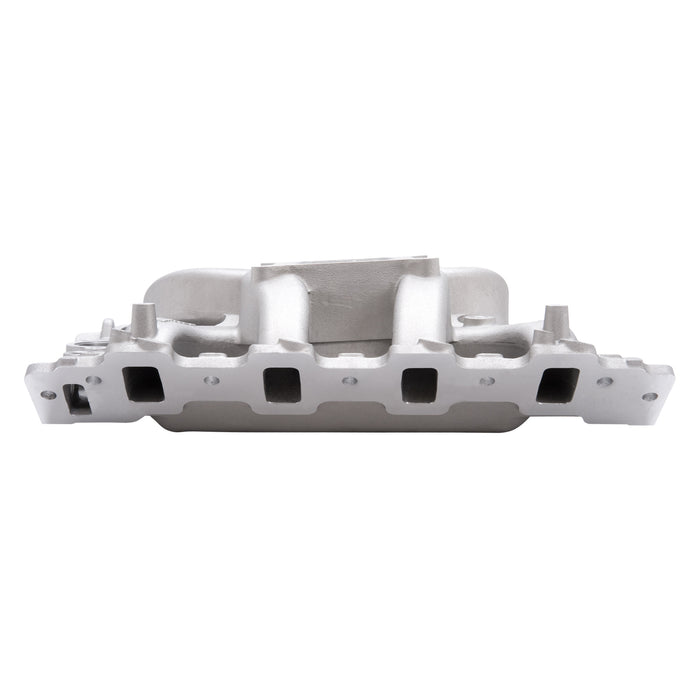

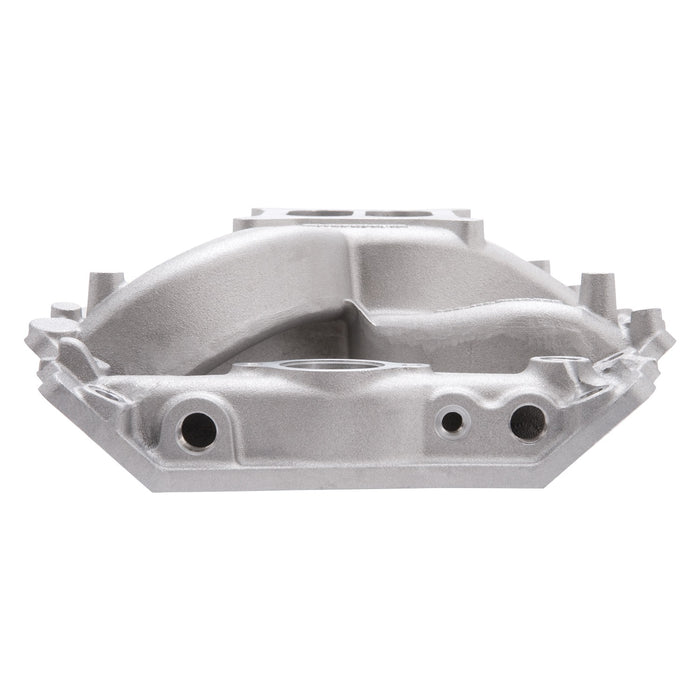

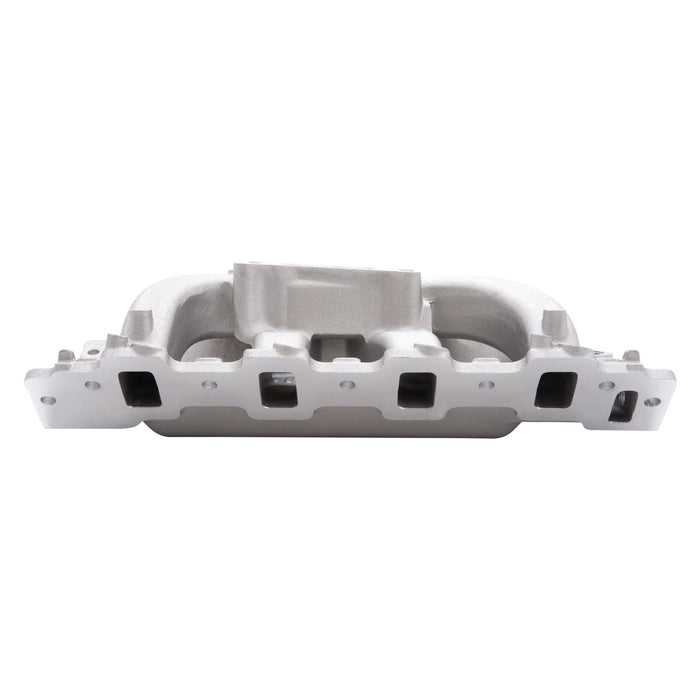

Edelbrock part #7594 RPM Air-Gap intake manifold is designed for street and high performance 308-383 c.i.d. Holden V8 engines that utilize the 1988-98 Holden VN cylinder heads. This RPM Air-Gap manifold is a dual-plane design that is tuned for both excellent throttle response and greater horsepower from 1500 to 6500 rpm. This manifold has been designed to fit both stock 1988-1998 EFI style heads and the Edelbrock Holden VN RPM cylinder heads.
Specifications

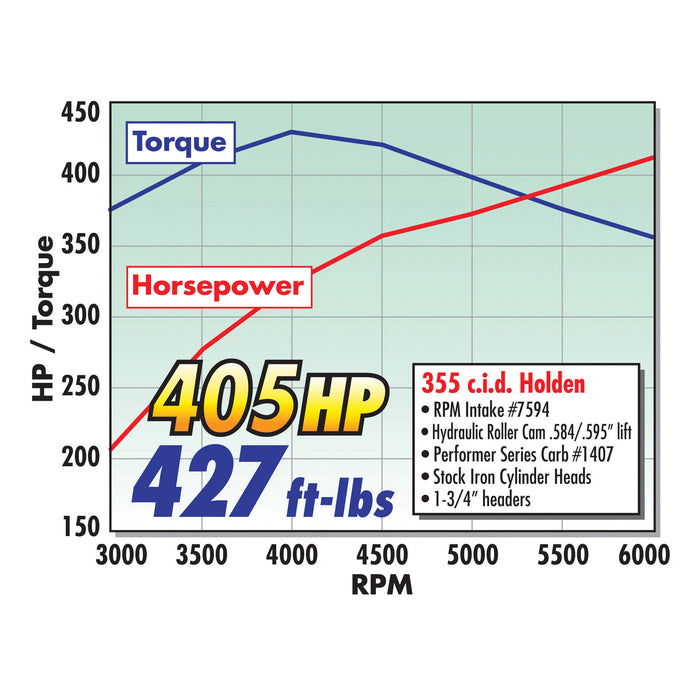

| Basic Operating RPM Range | 1500-6500 |
| Center Maximum Height | 5.310 |
| CNC Ported | No |
| Cylinder Head Type | Standard |
| Description_ABR | Intake Mnfld |
| Description_ASM | Holden:-:308 (5.0L)-383 (6.3L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | MANIFOLD |
| Description_EXT | Edelbrock RPM Air-Gap Holden 1988-98 Intake Manifold |
| Description_FAB | Based On Performer RPM Series With Unique Air Gap |
| Description_FAB | Designed for 1500 to 6500 RPM Performance |
| Description_FAB | Provides The Next Step Up In Performance |
| Description_INV | RPM Air-Gap Holden 1988-98 Intake |
| Description_KEY | 7594; Holden; EFI; Edelbrock; Intake Manifold; Intake; Manifold; Dual-Plane; Performer RPM; Performer RPM AIR-GAP; Satin |
| Description_LAB | RPM Air-Gap Holden 253-304-308 1988-98 Intake Manifold |
| Description_MKT | Edelbrock part #7594 RPM Air-Gap intake manifold is designed for street and high performance 308-383 c.i.d. Holden V8 engines that utilize the 1988-98 Holden VN cylinder heads. This RPM Air-Gap manifold is a dual-plane design that is tuned for both excellent throttle response and greater horsepower from 1500 to 6500 rpm. This manifold has been designed to fit both stock 1988-1998 EFI style heads and the Edelbrock Holden VN RPM cylinder heads. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 5in.} |
| Description_TRA | Carb pad height: 5.31" |
| Description_TRA | Carb recommendations: Edelbrock AVS2 or Performer Series 600-750 cfm. |
| Description_TRA | Do not use high performance or competition type intake gaskets for street application. Due to material deterioration under street driving conditions, internal leakage of both vacuum and oil may occur. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold height: A-4.80", B-5.82" |
| Description_TRA | Port exit dimensions: 1.16" x 2.00" |
| Description_TRA | Recommended intake gasket HA424 |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Recommended intake gasket HA424 • Do not use high performance or competition type intake gaskets for street application. Due to material deterioration under street driving conditions; internal leakage of both vacuum and oil may occur. • Manifold height: A-4.80in.; B-5.82in. • Carb pad height: 5.31in. • Carb recommendations: Edelbrock AVS2 or Performer Series 600-750 cfm. • Port exit dimensions: 1.16in. x 2.00in. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | No |
| Emission | Without EGR |
| Engine Make/Size | Universal Engine |
| finish | Satin |
| Flange Type | 4150 |
| Front Maximum Height | 4.800 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 7.5 |
| length | 23.62 |
| LTL | N |
| Material | Aluminum |
| Number of Carbs | One |
| Position | Upper |
| Rear Maximum Height | 5.820 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range | 1500-6500 |
| Series | RPM Air-Gap |
| Single Or Dual Plane Type | Dual |
| Usage | Street/Hi-Performance |
| Vehicle Model | Holden |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 24.25 |
| width | 14.75 |
