Description

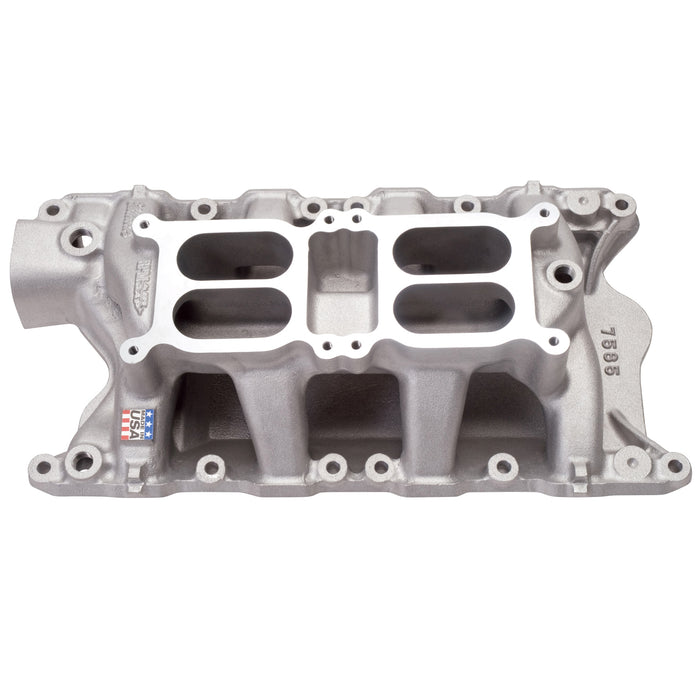

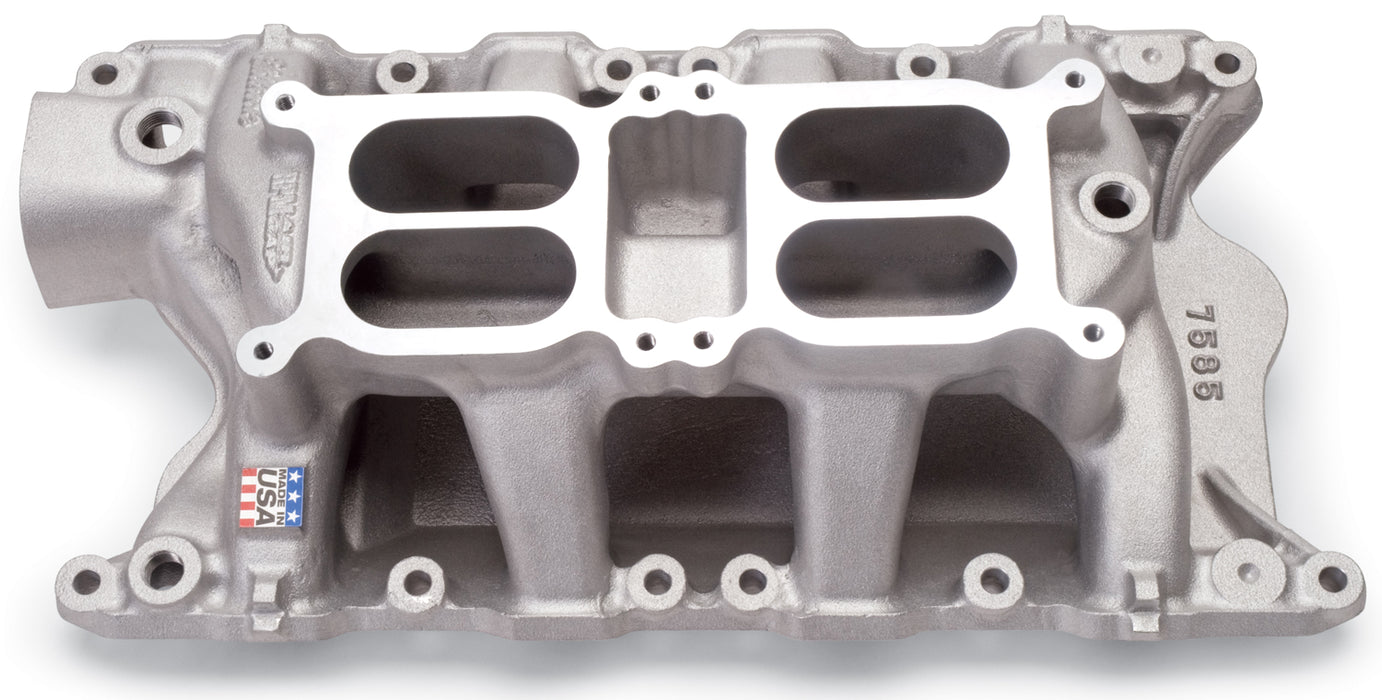

Edelbrock part #7585 RPM Air-Gap Dual-Quad 351W intake manifold is designed for 351W small-block Fords. This intake offers performance improvements in the 1500-6500 rpm range. The large runners feature our unique Air-Gap design that separates the runners from the hot engine valley for a cooler, denser charge and more horsepower. Includes bosses for rear water crossover. Carb center to carb center is 6-7/16".
Specifications
| Basic Operating RPM Range | 1500-6500 |
| Center Maximum Height | 5.370 |
| CNC Ported | No |
| Description_ABR | Intake Mnfld |
| Description_ASM | Ford:Small-Block Windsor:351W (5.8L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Performer RPM Air-Gap Dual-Quad Intake Manifold for 351W Ford Small Block Windsor engines |
| Description_FAB | 1.625 in. Taller Than Low-Profile PN[5425] |
| Description_FAB | Air Gap Causes Cool and Dense Mixture More Power |
| Description_FAB | Also Available As Complete Kit PN[2025/20254] |
| Description_FAB | Also Available In EnduraShine Finish PN[75254] |
| Description_FAB | Based on C26 Low Profile with Unique Air Gap |
| Description_FAB | Best When Matched with Edelbrock 500cfm Carburetor |
| Description_FAB | Use Fuel Line Kit PN[8088/8091] |
| Description_FAB | Use Progressive Throttle Linkage Kit PN[7094] |
| Description_INV | RPM Dual Quad Air-Gap 9.5 Deck Intake |
| Description_KEY | 7585; Ford; Edelbrock; Intake Manifold; Intake; Manifold; Dual-Plane; Performer RPM; Performer RPM AIR-GAP; Dual-Quad; Satin |
| Description_LAB | RPM Air-Gap Dual-Quad Small Block Ford 351W Intake Manifold |
| Description_MKT | Edelbrock part #7585 RPM Air-Gap Dual-Quad 351W intake manifold is designed for 351W small-block Fords. This intake offers performance improvements in the 1500-6500 rpm range. The large runners feature our unique Air-Gap design that separates the runners from the hot engine valley for a cooler, denser charge and more horsepower. Includes bosses for rear water crossover. Carb center to carb center is 6-7/16". |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 5in.} |
| Description_TRA | Carb pad height: 4.32" |
| Description_TRA | Carb recommendations: Edelbrock AVS2 Series #1903 and #1904, 500 cfm. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold height: A-4.93", B-5.56" |
| Description_TRA | Port exit dimensions: 1.05" x 1.89" |
| Description_TRA | Use 12-bolt intake gasket set Edelbrock #7220 recommended. For van installations use OEM Ford "van" intake gasket set |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Use 12-bolt intake gasket set Edelbrock # 7220 recommended. For van installations use OEM Ford van intake gasket set • Manifold height: A-4.93in.; B-5.56in. • Carb pad height: 4.32in. • Carb recommendations: Edelbrock AVS2 Series # 1903 and # 1904; 500 cfm. • Port exit dimensions: 1.05in. x 1.89in. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | No |
| finish | Satin |
| Flange Type | 4150 Dual-Quad (4-Barrel Square Bore) |
| Front Maximum Height | 4.930 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 7.5 |
| length | 23.62 |
| LTL | N |
| Material | Aluminum |
| Rear Maximum Height | 5.560 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | RPM Air-Gap |
| Single Or Dual Plane Type | Dual |
| Vehicle Model | Ford |
| weight | 22.05 |
| width | 14.75 |
