Description

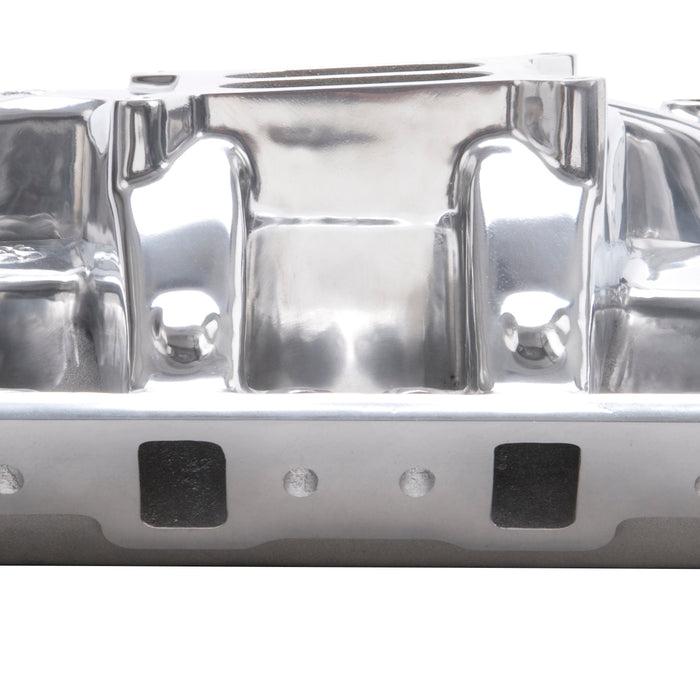

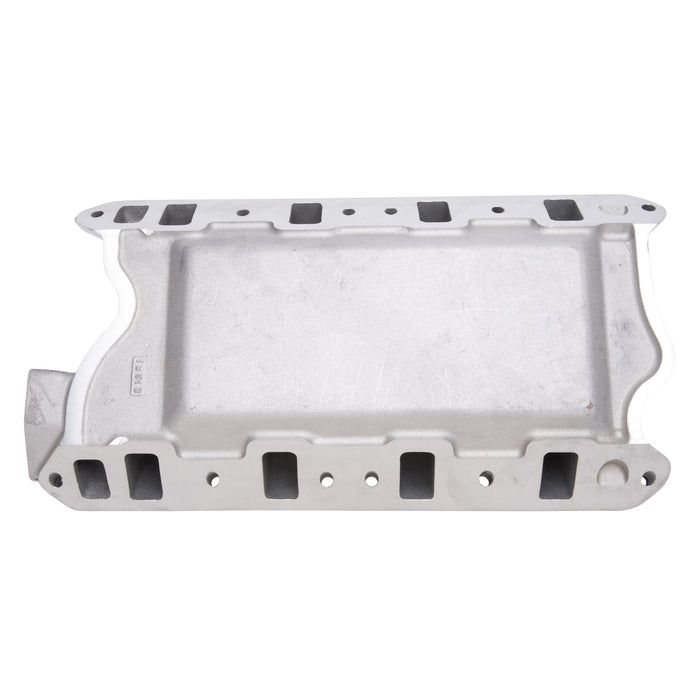

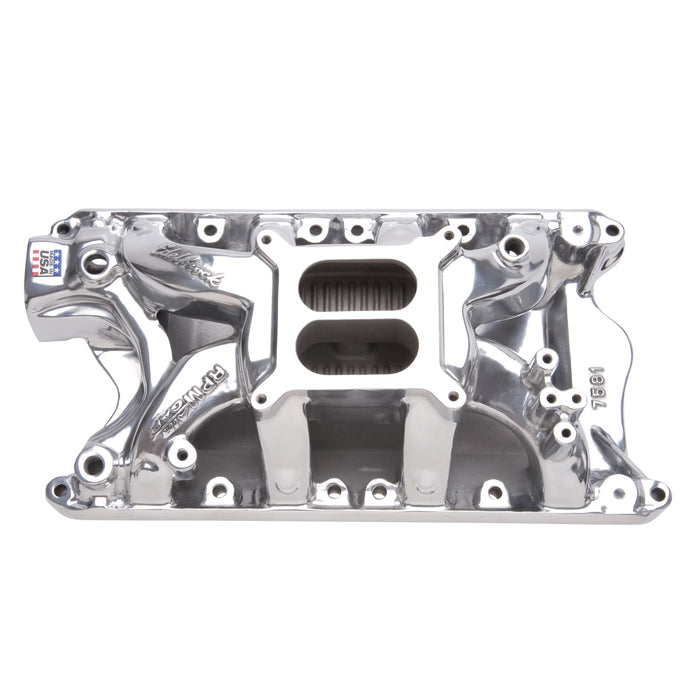

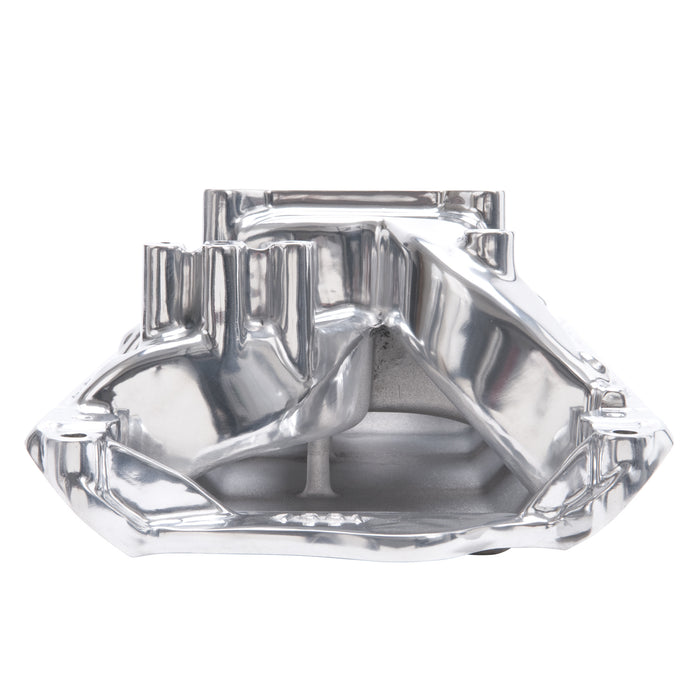

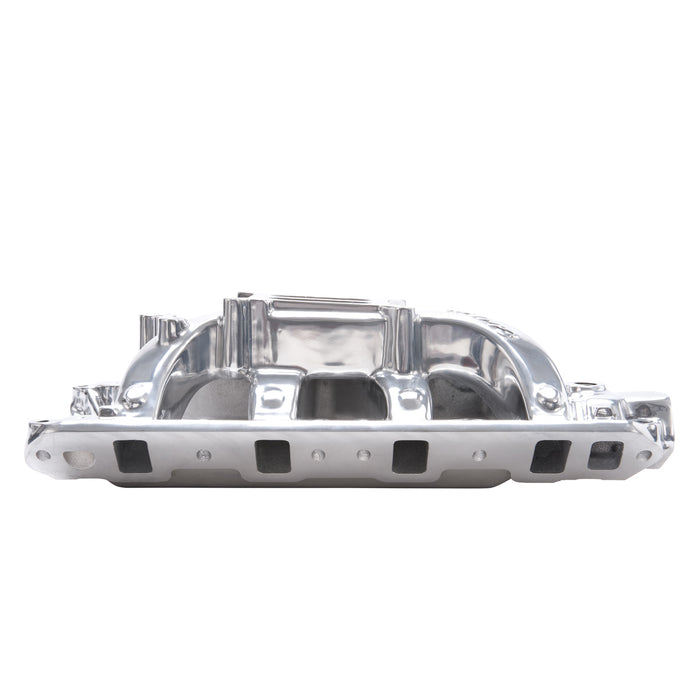

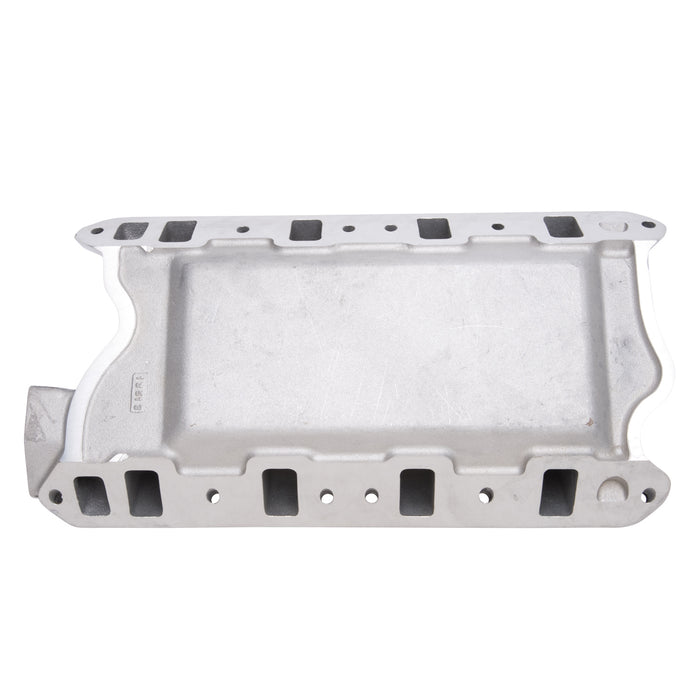

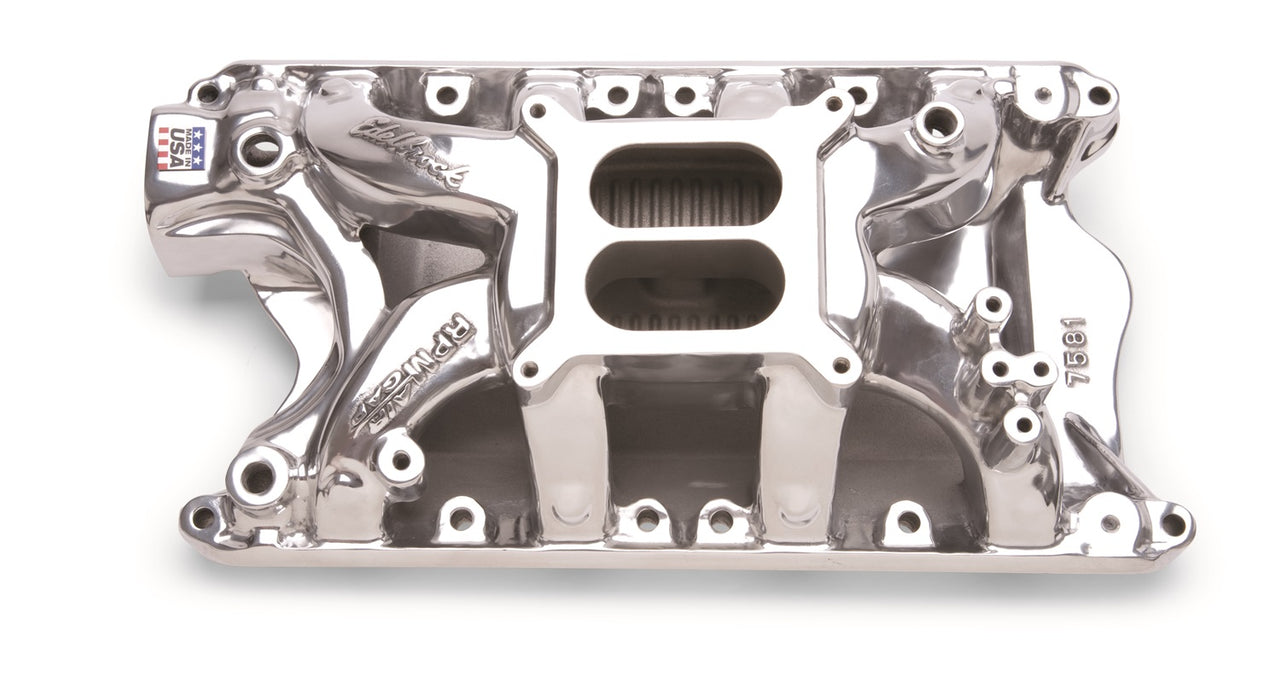

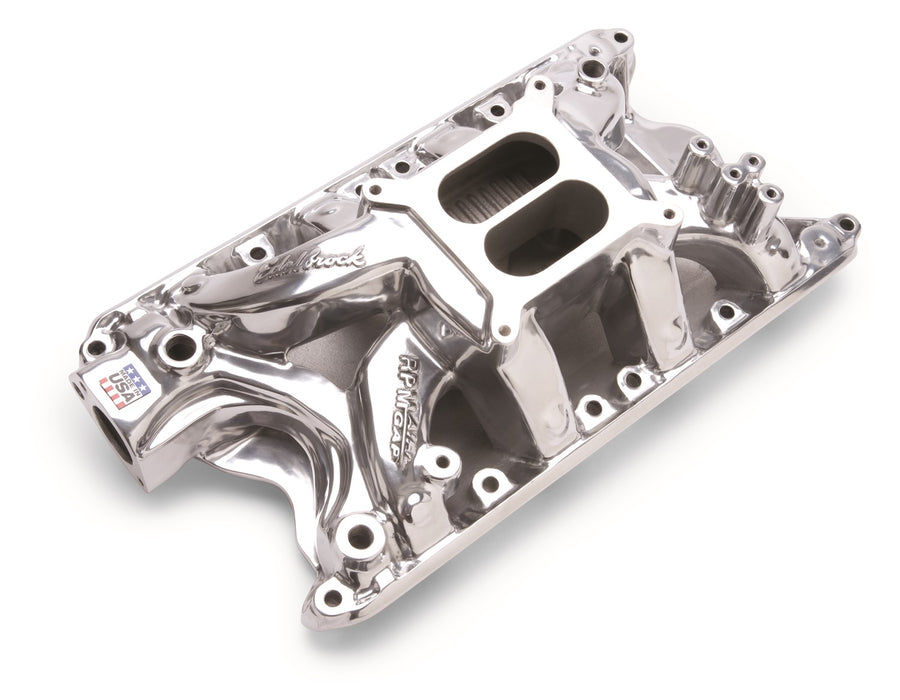

Edelbrock part #75811 RPM Air-Gap 351W intake manifold is designed for street and high performance 351-427 c.i.d. 351W Ford V8's. This RPM Air-Gap incorporates the same race-winning design that's been used on our Victor Series competition intakes for decades. The Air-Gap design features an open air space that separates the runners from the hot engine oil resulting in a cooler, denser charge for more power. Larger cross sectional area and a taller carb flange than #7181 for compatibility with large displacement, stroker 351W based engines. Includes bosses for nitrous and rear water crossover. Edelbrock carbs will work with Ford automatic overdrive trans (AOD) when used with Lokar bracket SRK-4000, for more info call (865) 966-2269 or go to www.lokar.com. This manifold offers a polished finish for a brilliant shine and classic look.
Specifications
| Basic Operating RPM Range | 1500-6500 |
| Center Maximum Height | 4.800 |
| CNC Ported | No |
| Description_ABR | Intake Mnfld |
| Description_ASM | Ford:Small-Block Windsor:351W (5.8L)-427 (7.0L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Performer RPM Air-Gap Intake Manifold for 351W Ford Small Block Windsor engines |
| Description_FAB | Air Gap Causes Cool and Dense Mixture More Power |
| Description_FAB | Based on Performer RPM-Series with Unique Air Gap |
| Description_FAB | Compatibility w/Large Displacement 351W Based Eng. |
| Description_FAB | Designed for 1500 to 6500 RPM Street-Driven Power |
| Description_FAB | Designed For Street And High Performance |
| Description_FAB | Larger Cross-Sectional Area |
| Description_FAB | Taller Carb Flange |
| Description_INV | Polished RPM Air-Gap 9.5 Deck Intake |
| Description_KEY | 75811; Ford; Edelbrock; Intake Manifold; Intake; Manifold; Dual-Plane; Performer RPM; RPM Air-Gap; Polished |
| Description_LAB | RPM Air-Gap Small Block Ford Polished Intake Manifold |
| Description_MKT | Edelbrock part #75811 RPM Air-Gap 351W intake manifold is designed for street and high performance 351-427 c.i.d. 351W Ford V8's. This RPM Air-Gap incorporates the same race-winning design that's been used on our Victor Series competition intakes for decades. The Air-Gap design features an open air space that separates the runners from the hot engine oil resulting in a cooler, denser charge for more power. Larger cross sectional area and a taller carb flange than #7181 for compatibility with large displacement, stroker 351W based engines. Includes bosses for nitrous and rear water crossover. Edelbrock carbs will work with Ford automatic overdrive trans (AOD) when used with Lokar bracket SRK-4000, for more info call (865) 966-2269 or go to www.lokar.com. This manifold offers a polished finish for a brilliant shine and classic look. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 5in.} |
| Description_TRA | Carb pad height: 5.75" |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold height: A-5.31", B-6.19" |
| Description_TRA | Port exit dimensions: 1.07" x 1.88" |
| Description_TRA | Use 12-bolt intake gasket set Edelbrock #7220 recommended |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Use 12-bolt intake gasket set Edelbrock #7220 recommended • Manifold height: A-5.31in.; B-6.19in. • Carb pad height: 5.75in. • Port exit dimensions: 1.07in. x 1.88in. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant #1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | No |
| finish | Polished |
| Flange Type | 4150 |
| Front Maximum Height | 4.300 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 7.5 |
| length | 23.62 |
| LTL | N |
| Material | Aluminum |
| Rear Maximum Height | 5.300 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | RPM Air-Gap |
| Single Or Dual Plane Type | Dual |
| Vehicle Model | Ford |
| weight | 22.9 |
| width | 14.75 |
