Description

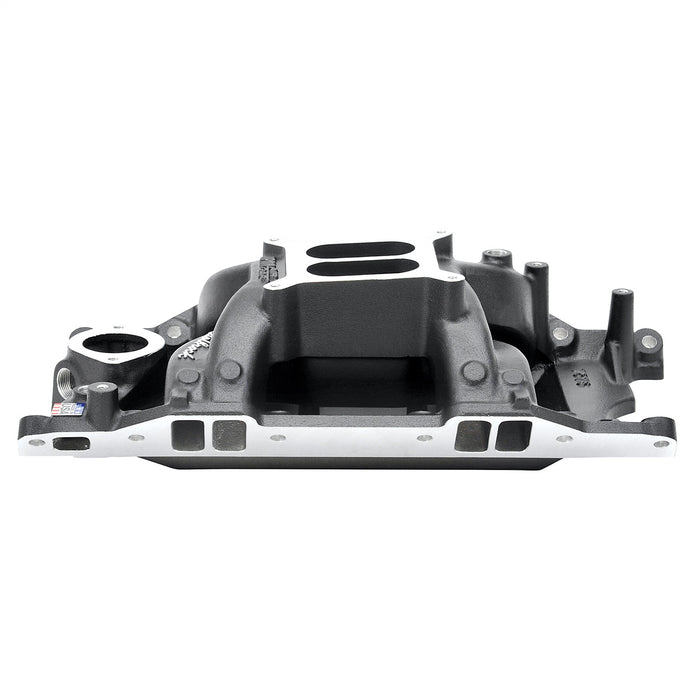

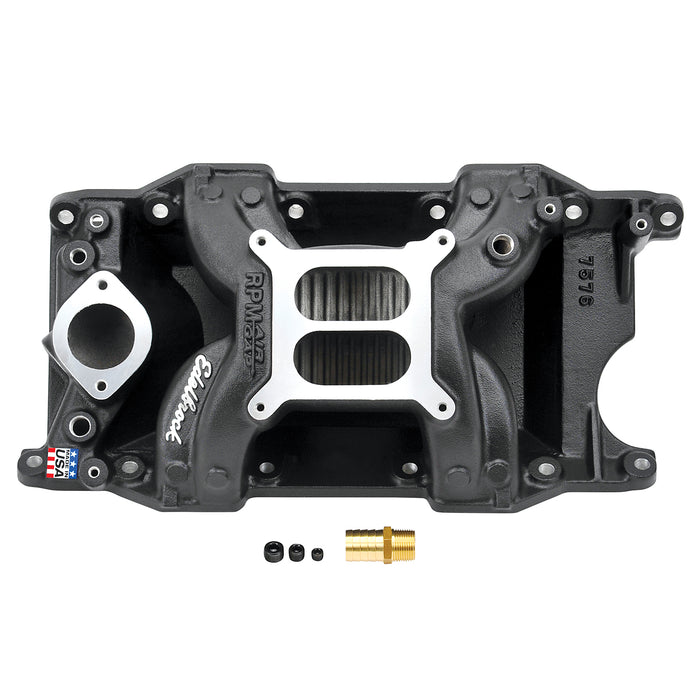

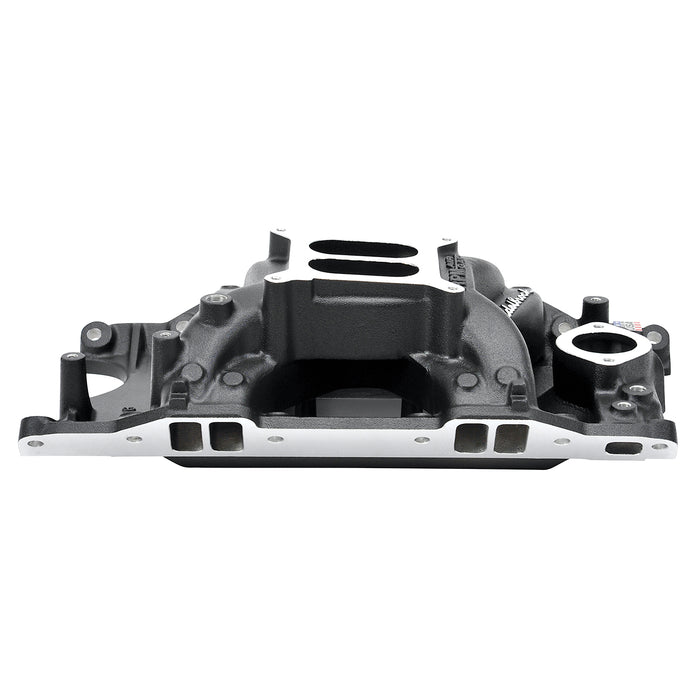

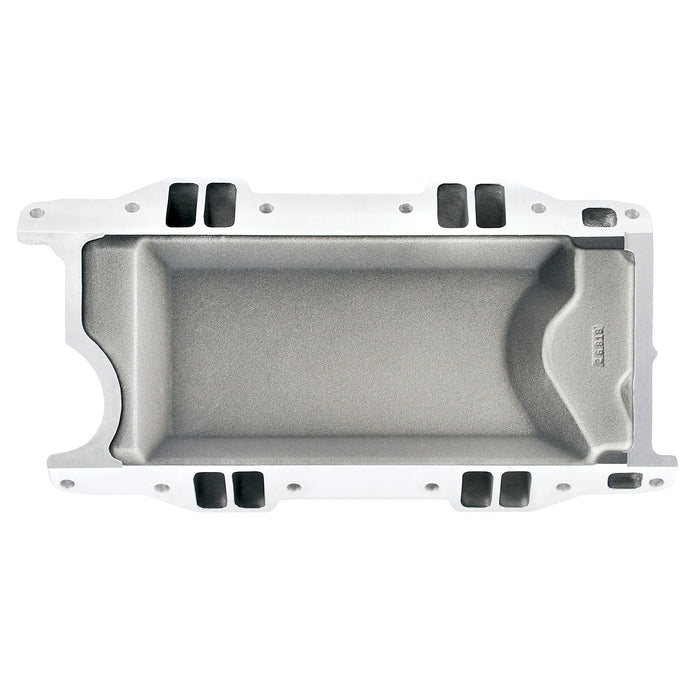

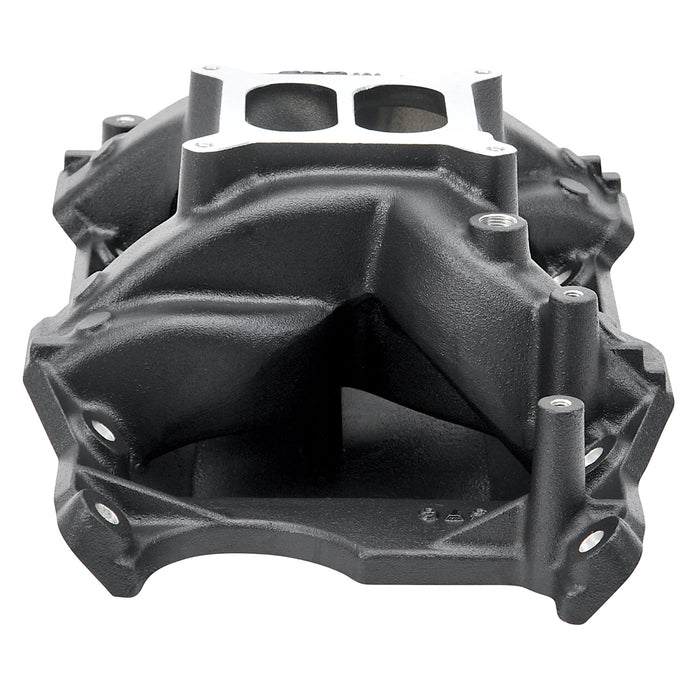

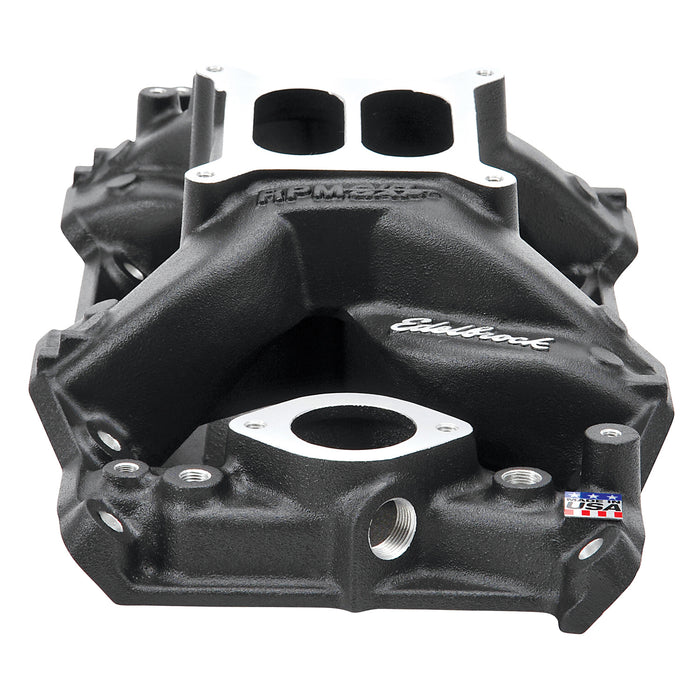

Edelbrock part #75763 RPM Air-Gap intake manifold is designed for 340-360 c.i.d. Chrysler V8's and 318 c.i.d. engines with 340-360 cylinder heads. The RPM Air-Gap incorporates the same race-winning technology that's been used on our Victor Series competition intakes for years. The Air-Gap design features an open air space that separates the runners from the hot engine oil resulting in a cooler, denser charge for more power. Accepts 1975 and earlier waterneck only. No provision for exhaust heated chokes and no exhaust crossover. Will not accept stock Thermo-Quad carburetor. Will not fit 1992 and later Magnum engines. Includes nitrous bosses. This manifold offers a durable black power coated finish for long lasting protection and a distinctive look.
Specifications
| Basic Operating RPM Range | 1500-6500 |
| Center Maximum Height | 5.350 |
| CNC Ported | No |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chrysler:Small-Block LA-Series:340 (5.6L)/360 (5.9L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock RPM Air-Gap Intake Manifold for 318-340-360 Chrysler Small Block LA engines |
| Description_FAB | Air Gap Causes Cool and Dense Mixture More Power |
| Description_FAB | Deliver Superior Performance |
| Description_FAB | Durable And Distinctive Black Powder-Coat Finish |
| Description_FAB | Mopar Small Block 340-360 |
| Description_FAB | Sets You Apart From The Crowd |
| Description_FAB | Special Badging |
| Description_FAB | Special NASCAR Edition To Show Your True Colors |
| Description_INV | Black RPM Air Gap Chrysler Intake |
| Description_KEY | 75763; Chrysler; Edelbrock; Intake Manifold; Intake; Manifold; Dual-Plane; Performer RPM; RPM Air-Gap; Black Powder Coated |
| Description_LAB | RPM Air-Gap Small Block Chrysler Black Intake Manifold |
| Description_MKT | Edelbrock part #75763 RPM Air-Gap intake manifold is designed for 340-360 c.i.d. Chrysler V8's and 318 c.i.d. engines with 340-360 cylinder heads. The RPM Air-Gap incorporates the same race-winning technology that's been used on our Victor Series competition intakes for years. The Air-Gap design features an open air space that separates the runners from the hot engine oil resulting in a cooler, denser charge for more power. Accepts 1975 and earlier waterneck only. No provision for exhaust heated chokes and no exhaust crossover. Will not accept stock Thermo-Quad carburetor. Will not fit 1992 and later Magnum engines. Includes nitrous bosses. This manifold offers a durable black power coated finish for long lasting protection and a distinctive look. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 3in.} |
| Description_TRA | 1979 and later rotary A/C compressor will not clear waterneck |
| Description_TRA | Carb pad height: 5.35" |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold height: A-4.9", B-5.8" |
| Description_TRA | Port exit dimensions: .98" x 2.16" |
| Description_TRA | Recommended intake gasket: Edelbrock #7276, Fel-Pro #1213, Chrysler #4397642 (or equivalent) for 340 and 360 |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Recommended intake gasket: Edelbrock #7276; Fel-Pro #1213; Chrysler #4397642 (or equivalent) for 340 and 360 • Manifold height: A-4.9in.; B-5.8in. • Carb pad height: 5.35in. • Port exit dimensions: .98in. x 2.16in. • 1979 and later rotary A/C compressor will not clear waterneck • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant #1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | No |
| finish | Black Powder Coated |
| Flange Type | 4150 |
| Front Maximum Height | 4.900 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 7.0 |
| length | 23.75 |
| LTL | N |
| Material | Aluminum |
| Rear Maximum Height | 5.800 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | RPM Air-Gap |
| Single Or Dual Plane Type | Dual |
| Vehicle Model | Chrysler |
| weight | 23.0 |
| width | 14.5 |
