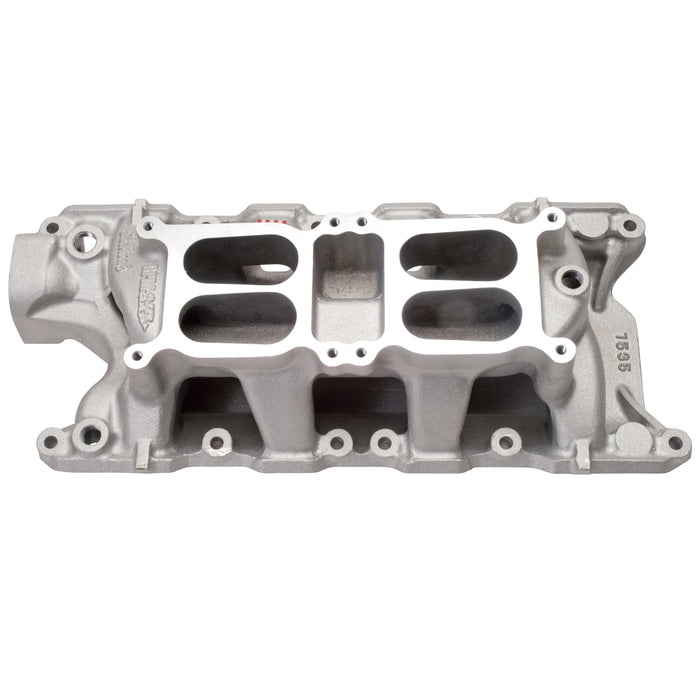

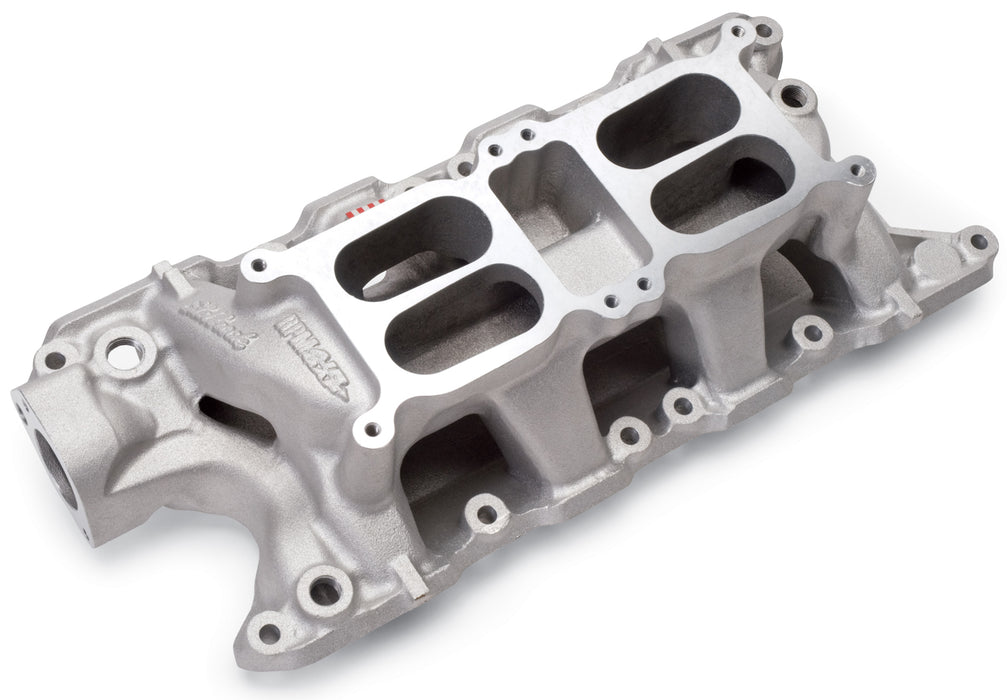

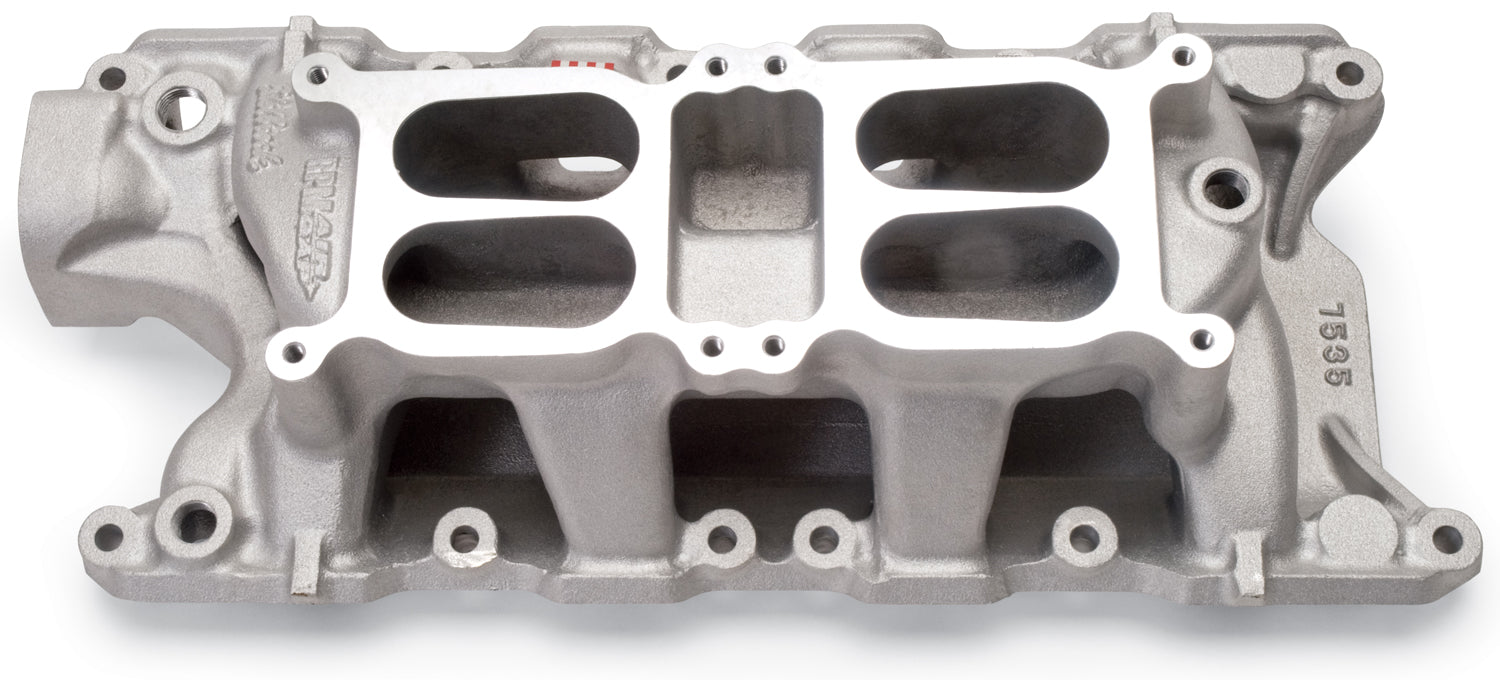

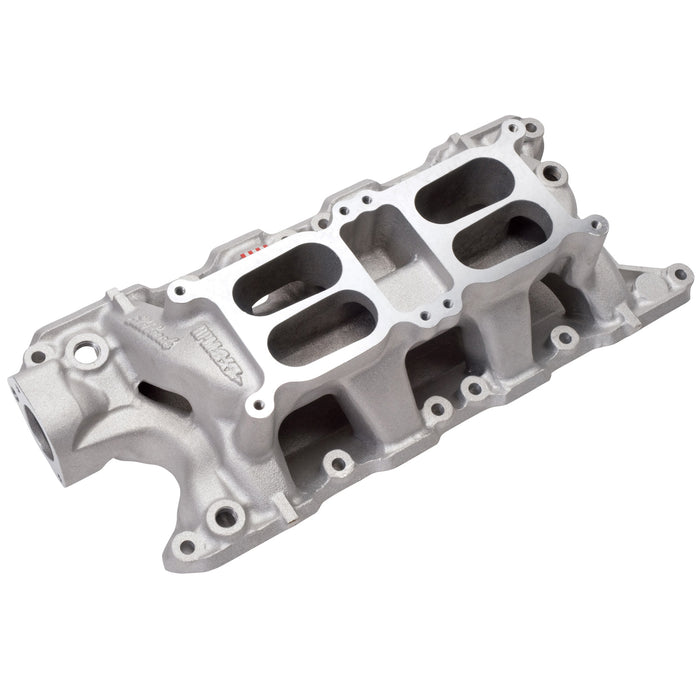

Edelbrock 7535 Edelbrock RPM Air-Gap Dual Quad Intake Manifold for Ford 289-347 Small-Block V8
by Edelbrock
SKU ds_BDVJ_7535
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$807.78
-
Original price
$807.78
Original price
$807.78
$807.78
$807.78
-
$807.78
Current price
$807.78
Availability:
Out of stock
Description
Edelbrock part #7535 RPM Air-Gap Dual-Quad is designed for 289-302-347 c.i.d. small-block Fords. This is a dual plane intake manifold which combines dual four-barrel excitement with a well-mannered street manifold. This intake is taller than the low-profile F-28 intake and offer performance improvements in the 1500-6500 rpm range. The large runners feature our unique Air-Gap design that separates the runners from the hot engine valley for a cooler, denser charge and more horsepower. Carb center to carb center is 6-7/16".
Specifications
| Basic Operating RPM Range | 1500-6500 |
| Center Maximum Height | 5.280 |
| CNC Ported | No |
| Description_ABR | Intake Mnfld |
| Description_ASM | Ford:Small-Block:289 (4.7L)-347 (5.7L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock RPM Air-Gap Dual Quad Intake Manifold for Ford 289-347 Small-Block V8 |
| Description_FAB | Air Gap Causes Cool and Dense Mixture More Power |
| Description_FAB | Based On Performer RPM Series With Unique Air Gap |
| Description_FAB | Dual-Plane Low-Rise Intake w/180 Deg. Firing Order |
| Description_FAB | Excellent Throttle Response and Mid-Range Power |
| Description_FAB | Patented Runner Design Ensures Broad Torque Curve |
| Description_INV | RPM Air-Gap Dual Quad Ford 8.2 Intake |
| Description_KEY | 7535; Ford; Edelbrock; Intake Manifold; Intake; Manifold; Dual-Plane; Performer RPM; Performer RPM AIR-GAP; Dual-Quad; Satin |
| Description_LAB | RPM Air-Gap Dual-Quad Small Block Ford Intake Manifold |
| Description_MKT | Edelbrock part #7535 RPM Air-Gap Dual-Quad is designed for 289-302-347 c.i.d. small-block Fords. This is a dual plane intake manifold which combines dual four-barrel excitement with a well-mannered street manifold. This intake is taller than the low-profile F-28 intake and offer performance improvements in the 1500-6500 rpm range. The large runners feature our unique Air-Gap design that separates the runners from the hot engine valley for a cooler, denser charge and more horsepower. Carb center to carb center is 6-7/16". |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 7in.} |
| Description_TRA | Carb pad height: 5.28" |
| Description_TRA | Carb recommendations: Edelbrock AVS2 #1903 and# 1904 or Performer Series #1403 and #1404, 500 cfm. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold height: A-4.85", B-5.70" |
| Description_TRA | Port exit dimensions: 1.05" x 1.90" |
| Description_TRA | Recommended intake gasket: Edelbrock #7220 |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Recommended intake gasket: Edelbrock # 7220 • Manifold height: A-4.85in.; B-5.70in. • Carb pad height: 5.28in. • Carb recommendations: Edelbrock AVS2 # 1903 and# 1904 or Performer Series # 1403 and # 1404; 500 cfm. • Port exit dimensions: 1.05in. x 1.90in. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | No |
| finish | Satin |
| Flange Type | 4150 Dual-Quad (4-Barrel Square Bore) |
| Front Maximum Height | 4.850 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 6.75 |
| length | 23.75 |
| LTL | N |
| Material | Aluminum |
| Rear Maximum Height | 5.700 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | RPM Air-Gap |
| Single Or Dual Plane Type | Dual |
| Vehicle Model | Ford |
| weight | 20.0 |
| width | 12.25 |
