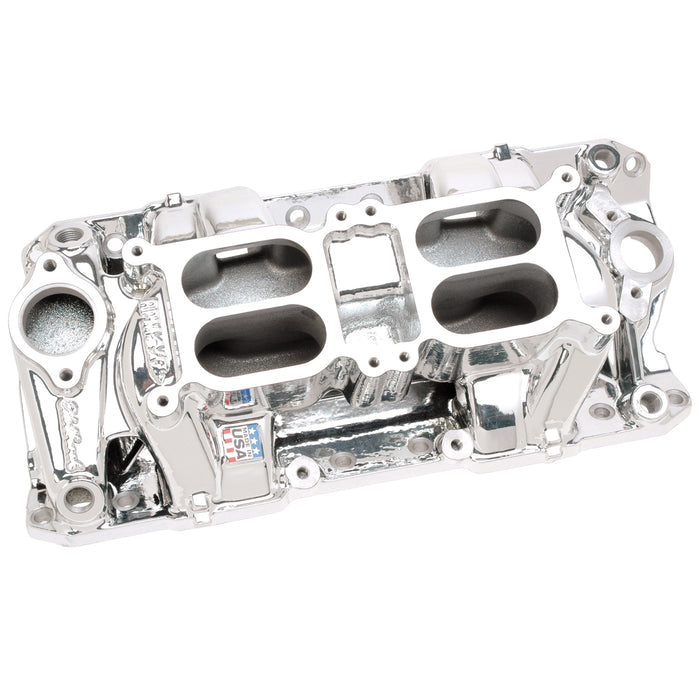

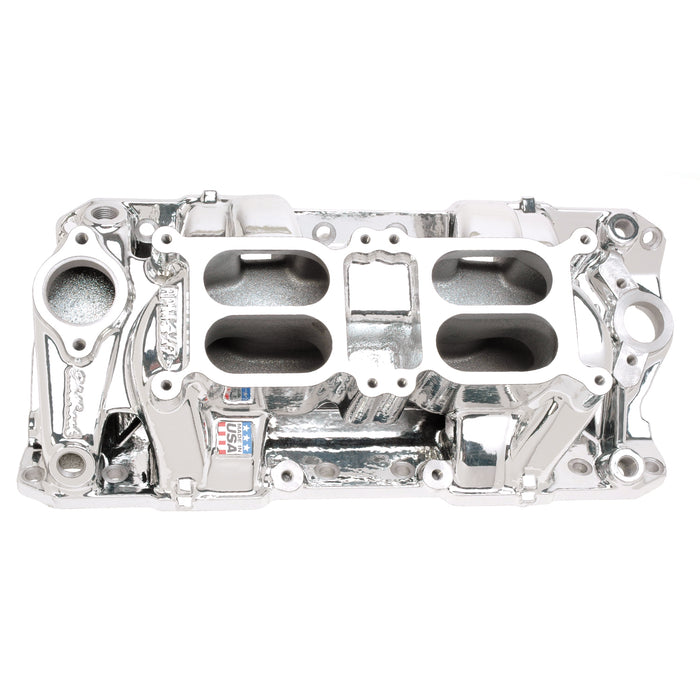

Edelbrock 75254 Engine Intake Manifold
by Edelbrock
SKU ds_BDVJ_75254
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$717.06
-
Original price
$717.06
Original price
$717.06
$717.06
$717.06
-
$717.06
Current price
$717.06
Availability:
Out of stock
Description
Edelbrock part #75254 RPM Air-Gap Dual-Quad #75254 intake manifold is designed for 1955-86 S/B Chevys. This intake stands 1-5/8" taller than the low-profile C-26 intake and offers performance improvements in the 1500-6500 rpm range. The large runners feature our unique Air-Gap design that separates the runners from the hot engine valley for a cooler, denser charge. Also available as a complete carb and manifold kit. Will not fit under stock Corvette hood. This manifold offers our long lasting bright chrome like EnduraShine finish that matches chrome and polished accessories.
Resources
Installation InstructionsSpecifications
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:Small-Block Gen I:262 (4.3L)-400 (6.6L) |
| Description_DEF | Engine Intake Manifold |
| Description_EXT | Edelbrock Performer RPM AIR-GAP Dual-Quad Intake Manifold For Chevrolet 262-400 Small-Block V8 |
| Description_INV | Eshine RPM Air-Gap Dual Quad Intake |
| Description_LAB | RPM AIR-Gap Dual-Quad Small Block Chevy Endurashine Intake Manifold |
| Description_MKT | Edelbrock part #75254 RPM Air-Gap Dual-Quad #75254 intake manifold is designed for 1955-86 S/B Chevys. This intake stands 1-5/8" taller than the low-profile C-26 intake and offers performance improvements in the 1500-6500 rpm range. The large runners feature our unique Air-Gap design that separates the runners from the hot engine valley for a cooler, denser charge. Also available as a complete carb and manifold kit. Will not fit under stock Corvette hood. This manifold offers our long lasting bright chrome like EnduraShine finish that matches chrome and polished accessories. |
| Description_TRA | Carb center-to-center distance: 6-7/16". |
| Description_TRA | Carb pad height: 4.89" |
| Description_TRA | DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread. |
| Description_TRA | H.E.I. will not fit |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold ht: A-4.57", B-5.20" |
| Description_TRA | NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. |
| Description_TRA | Port exit dimensions: 1.16" x 1.92" |
| Description_TRA | Recommended intake gasket: Edelbrock #7201 |
| Description_TRA | Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| height | 7.5 |
| length | 23.625 |
| weight | 20.2 |
| width | 14.75 |
