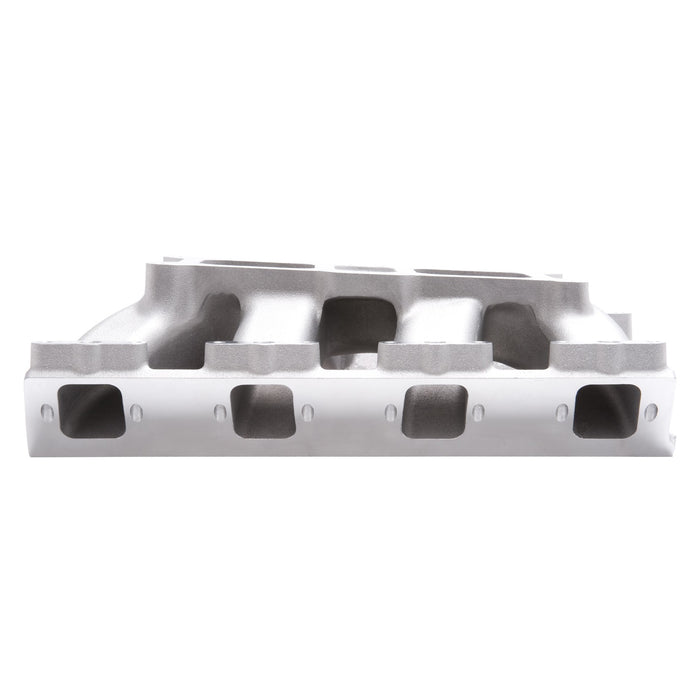

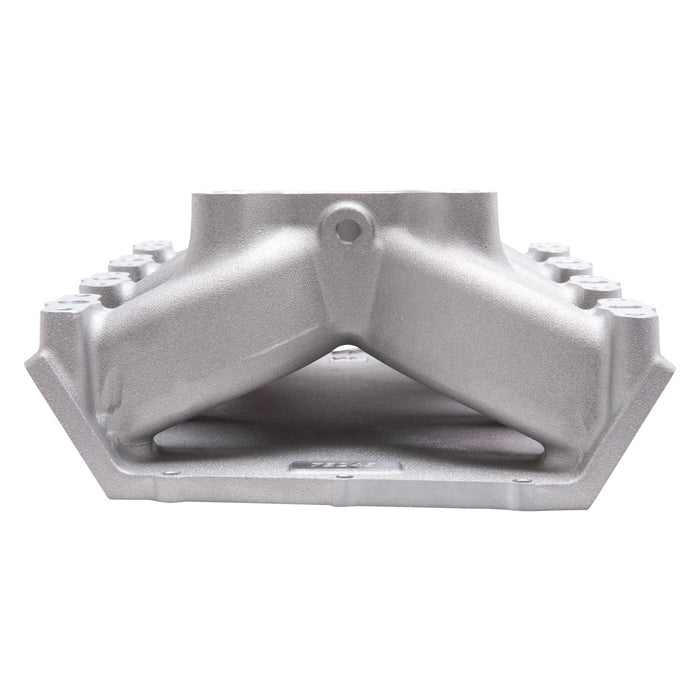

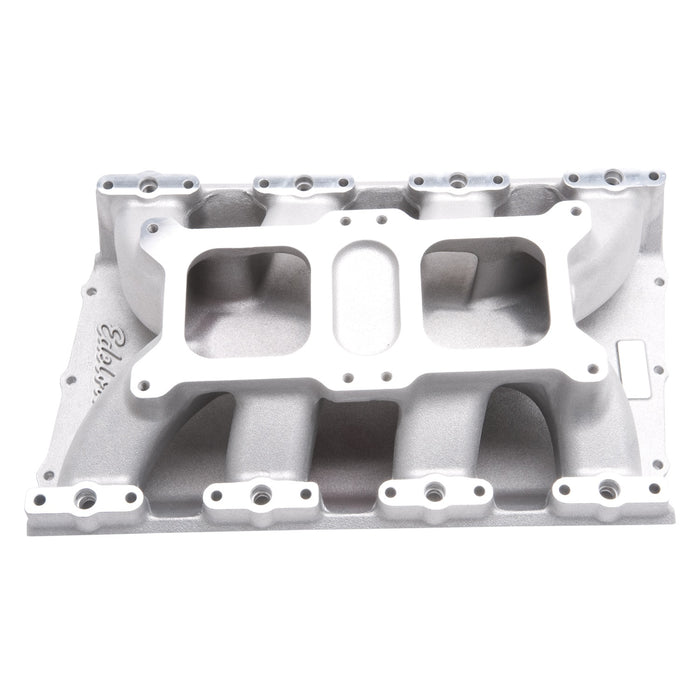

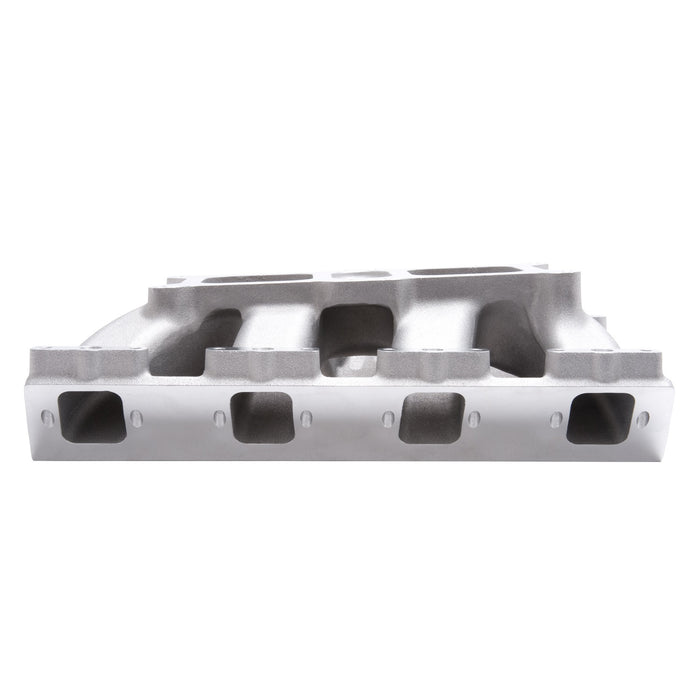

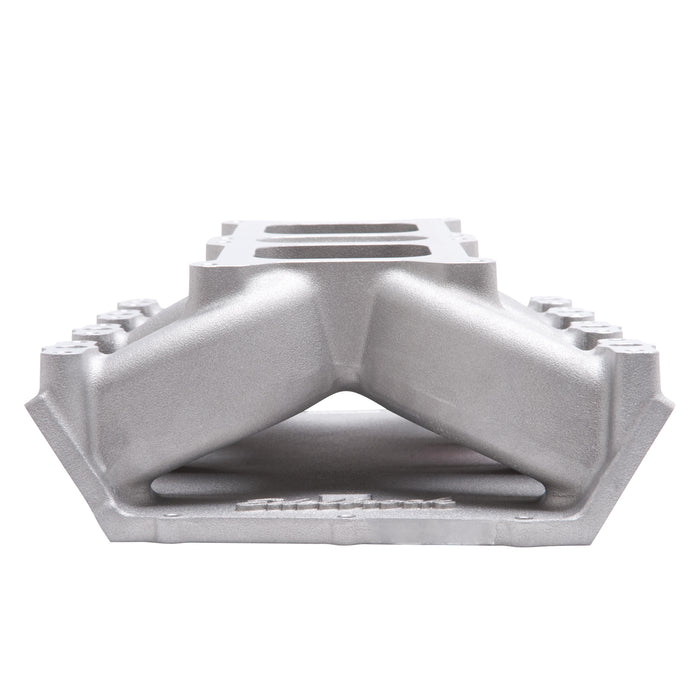

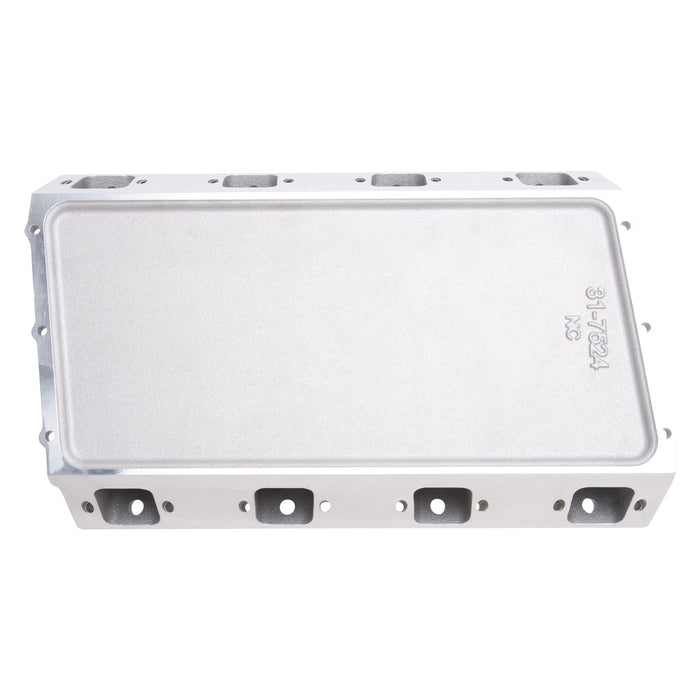

Edelbrock 75245 Edelbrock Dual-Quad Chrysler Gen II 426-572 HEMI EFI Intake Manifold
by Edelbrock
SKU ds_BDVJ_75245
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$1,076.33
Original price
$1,076.33
-
Original price
$1,076.33
Original price
$1,076.33
Current price
$1,062.64
$1,062.64
-
$1,062.64
Current price
$1,062.64
Availability:
Out of stock
Description
Edelbrock part #75245 Dual-Quad HEMI EFI intake manifold is intended for use with Mopar Gen II (1964-71) 426-572 HEMI engines operating in the 2,500 to 6,500+ range. This new intake manifold is a single-plane Air-Gap design with a dual square-bore 4150 style throttle body pad. Throttle body spacing and height are the same as Mopar Performance dual-quad #P5153737, making it a direct bolt-on to all vehicles with a shaker hood. The Dual-Quad HEMI is compatible with factory style cylinder heads, but optimized for use with Edelbrock Victor Jr. HEMI cylinder heads. Requires Edelbrock Coil Bracket #8079 for use with OE style coils.
Specifications
| Description_ABR | Intake Mnfld |
| Description_ASM | Chrysler:Gen II HEMI:426 (7.0L)/572 (9.4L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Dual-Quad Chrysler Gen II 426-572 HEMI EFI Intake Manifold |
| Description_FAB | Compatible With Factory Cylinder Heads |
| Description_FAB | Dual 4150 Style Carb Pads |
| Description_FAB | Single-Plane Air-Gap Design |
| Description_INV | Eshine RPM Dual Quad Gen 3 Hemi Intake |
| Description_KEY | 75245; Chrysler; Edelbrock; Intake Manifold; Intake; Manifold; Dual-Plane; Performer RPM; RPM Air-Gap; RPM Air-Gap Dual-Quad; Satin; HEMI |
| Description_LAB | Dual-Quad Hemi Gen II EFI Intake Manifold |
| Description_MKT | Edelbrock part #75245 Dual-Quad HEMI EFI intake manifold is intended for use with Mopar Gen II (1964-71) 426-572 HEMI engines operating in the 2,500 to 6,500+ range. This new intake manifold is a single-plane Air-Gap design with a dual square-bore 4150 style throttle body pad. Throttle body spacing and height are the same as Mopar Performance dual-quad #P5153737, making it a direct bolt-on to all vehicles with a shaker hood. The Dual-Quad HEMI is compatible with factory style cylinder heads, but optimized for use with Edelbrock Victor Jr. HEMI cylinder heads. Requires Edelbrock Coil Bracket #8079 for use with OE style coils. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 7in.} |
| Description_TRA | Carb pad height: 5.10" |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold height: A-4.68", B-5.51" |
| Description_TRA | Port exit dimensions: 1.80" x 1.98" |
| Description_TRA | Recommended intake gasket: Edelbrock #7278 |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Recommended intake gasket: Edelbrock #7278 • Manifold height: A-4.68in.; B-5.51in. • Carb pad height: 5.10in. • Port exit dimensions: 1.80in. x 1.98in. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant #1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| height | 7.0 |
| length | 23.9 |
| LTL | N |
| weight | 26.5 |
| width | 15.0 |
