Edelbrock 75204 Engine Intake Manifold
by Edelbrock
SKU ds_BDVJ_75204
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$572.95
-
Original price
$572.95
Original price
$572.95
$572.95
-
$572.95
Current price
$572.95
Availability:
Out of stock
Description

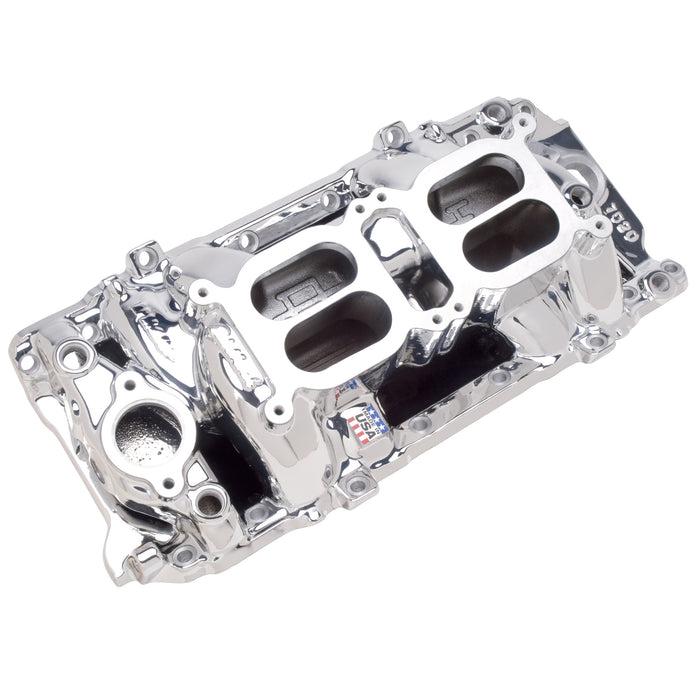

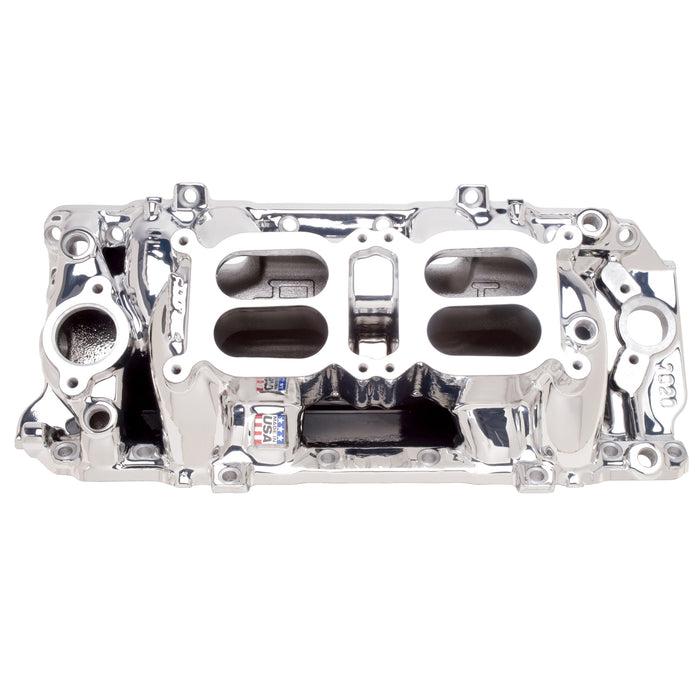

Edelbrock part #75204 RPM Air-Gap Dual-Quad-O intake manifold is designed for street 396-502 c.i.d. Chevy V8's with 1975 & earlier oval port heads. This intake stand 7/8" taller than the low-profile C-66-O dual-quad intake and offer performance improvements in the 1500-6500 rpm range. The large runners feature our unique Air-Gap design that separates the runners from the hot engine valley for a cooler, denser charge. This manifold offers our long lasting bright chrome like EnduraShine finish that matches chrome and polished accessories.
Specifications
| Center Maximum Height | 5.190 |
| CNC Ported | No |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:Big-Block:396 (6.5L)-502 (8.2L) |
| Description_DEF | Engine Intake Manifold |
| Description_EXT | Edelbrock RPM Air-Gap Dual Quad Manifold for Chevrolet 396-502 Big-Block V8 with large Oval Port Heads |
| Description_INV | Eshine RPM Dual BBC Oval Port Intake |
| Description_LAB | RPM Air-Gap Dual Quad Big Block Chevy Endurashine Intake Manifold |
| Description_MKT | Edelbrock part #75204 RPM Air-Gap Dual-Quad-O intake manifold is designed for street 396-502 c.i.d. Chevy V8's with 1975 & earlier oval port heads. This intake stand 7/8" taller than the low-profile C-66-O dual-quad intake and offer performance improvements in the 1500-6500 rpm range. The large runners feature our unique Air-Gap design that separates the runners from the hot engine valley for a cooler, denser charge. This manifold offers our long lasting bright chrome like EnduraShine finish that matches chrome and polished accessories. |
| Description_TRA | Carb pad height: 5.19" |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold height: A-4.81", B-5.56" |
| Description_TRA | Neither H.E.I. or mechanical tach drive distributors will fit |
| Description_TRA | Port exit dimensions: 1.60" x 1.93" |
| Description_TRA | Recommended intake gasket: Edelbrock #7203. |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| finish | EnduraShine |
| Front Maximum Height | 4.810 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 7.5 |
| length | 23.625 |
| Material | Aluminum |
| Rear Maximum Height | 5.560 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Single Or Dual Plane Type | Dual Plane |
| weight | 24.8 |
| width | 14.75 |
