Edelbrock 7520 { Sellable : Yes }
by Edelbrock
SKU ds_BDVJ_7520
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$911.96
-
Original price
$911.96
Original price
$911.96
$911.96
$911.96
-
$911.96
Current price
$911.96
Availability:
Only 2 left!
Description

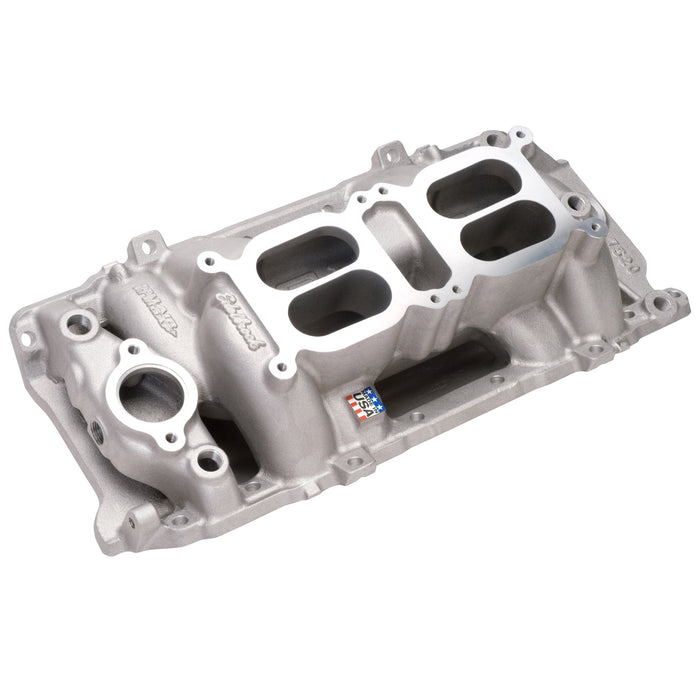

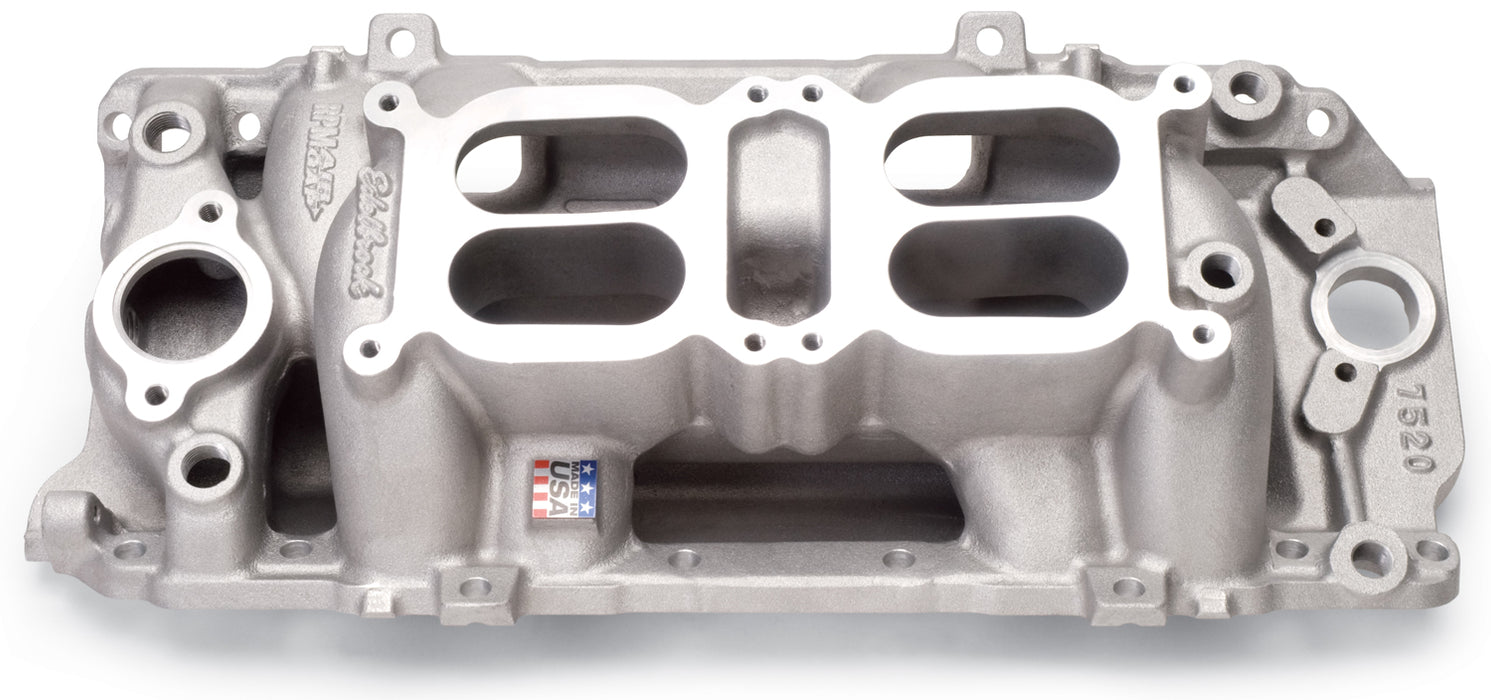

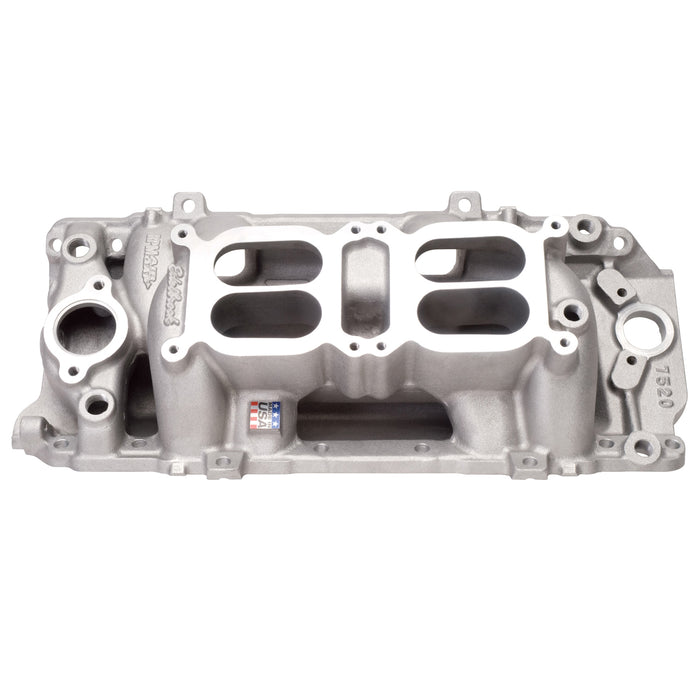

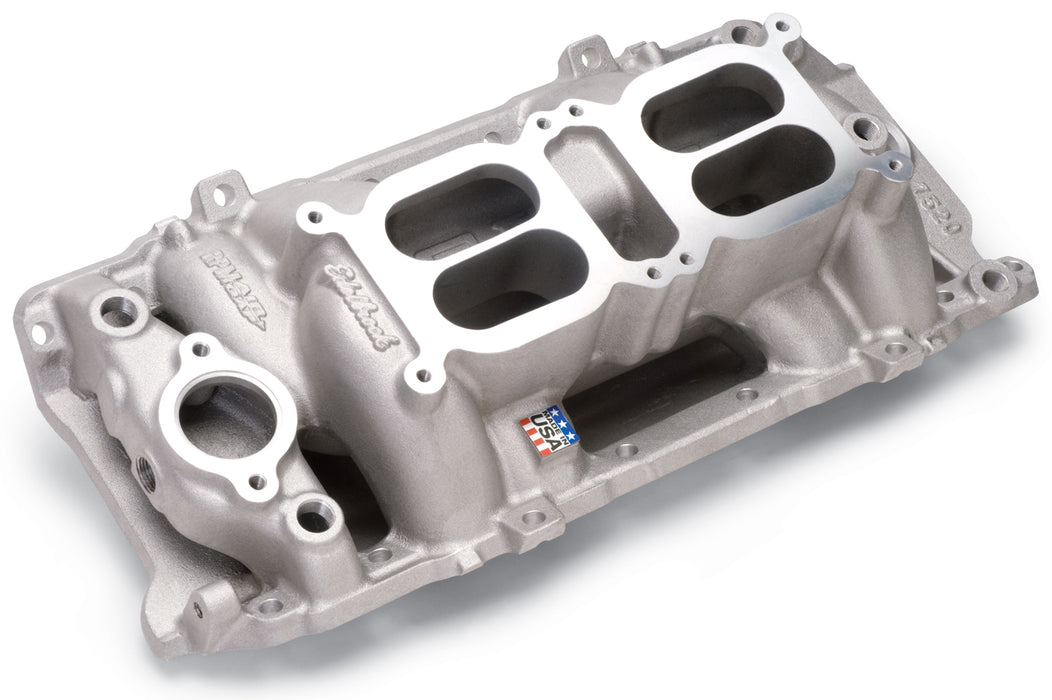

Edelbrock part #7520 Air-Gap Dual-Quad-O intake manifold is designed for street 396-502 c.i.d. Chevy V8's with 1975 & earlier oval port heads. This intake stands 7/8" taller than the low-profile C-66-O dual-quad intake and offer performance improvements in the 1500-6500 rpm range. The large runners feature our unique Air-Gap design that separates the runners from the hot engine valley for a cooler, denser charge.
Specifications
| Cylinder Head Type | Oval Port- Large |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:Big-Block:396 (6.5L)-502 (8.2L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock RPM Air-Gap Dual Quad Manifold for Chevrolet 396-502 Big-Block V8 with large Oval Port Heads |
| Description_FAB | 1.625 in. Taller Than Low-Profile PN[5425] |
| Description_FAB | Also Available As Complete Kit PN[2025/20254] |
| Description_FAB | Also Available In EnduraShine Finish PN[75254] |
| Description_FAB | Based on C26 Low Profile with Unique Air Gap |
| Description_FAB | Best When Matched with Edelbrock 500cfm Carburetor |
| Description_FAB | Offers Performance Improvements |
| Description_FAB | Use Fuel Line Kit PN[8088/8091] |
| Description_FAB | Use Progressive Throttle Linkage Kit PN[7094] |
| Description_INV | RPM Dual Quad BBC Oval Port Intake |
| Description_KEY | 7520; Chevy; Chevrolet; Edelbrock; Intake Manifold; Intake; Manifold; Dual-Plane; Performer RPM; Performer RPM AIR-GAP; Dual-Quad; Satin |
| Description_LAB | RPM Air-Gap Dual Quad Big Block Chevy Intake Manifold |
| Description_MKT | Edelbrock part #7520 Air-Gap Dual-Quad-O intake manifold is designed for street 396-502 c.i.d. Chevy V8's with 1975 & earlier oval port heads. This intake stands 7/8" taller than the low-profile C-66-O dual-quad intake and offer performance improvements in the 1500-6500 rpm range. The large runners feature our unique Air-Gap design that separates the runners from the hot engine valley for a cooler, denser charge. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 7in.} |
| Description_TRA | Carb pad height: 5.19" |
| Description_TRA | Carb recommendations: Edelbrock AVS2 Series #1903 and #1904, 500 cfm. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold height: A-4.81", B-5.56" |
| Description_TRA | Neither H.E.I. or mechanical tach drive distributors will fit |
| Description_TRA | Port exit dimensions: 1.60" x 1.93" |
| Description_TRA | Recommended intake gasket: Edelbrock #7203. |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Neither H.E.I. or mechanical tach drive distributors will fit • Recommended intake gasket: Edelbrock # 7203. • Manifold height: A-4.81in.; B-5.56in. • Carb pad height: 5.19in. • Carb recommendations: Edelbrock AVS2 Series # 1903 and # 1904; 500 cfm. • Port exit dimensions: 1.60in. x 1.93in. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Emission | Without EGR |
| Engine Make/Size | Chevy Big Block (396-502) |
| height | 6.75 |
| length | 23.75 |
| LTL | N |
| Number of Carbs | Two |
| Position | N/A |
| RPM Range | 1500-6000 |
| Usage | Street/Hi-Performance |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 23.85 |
| width | 12.25 |
