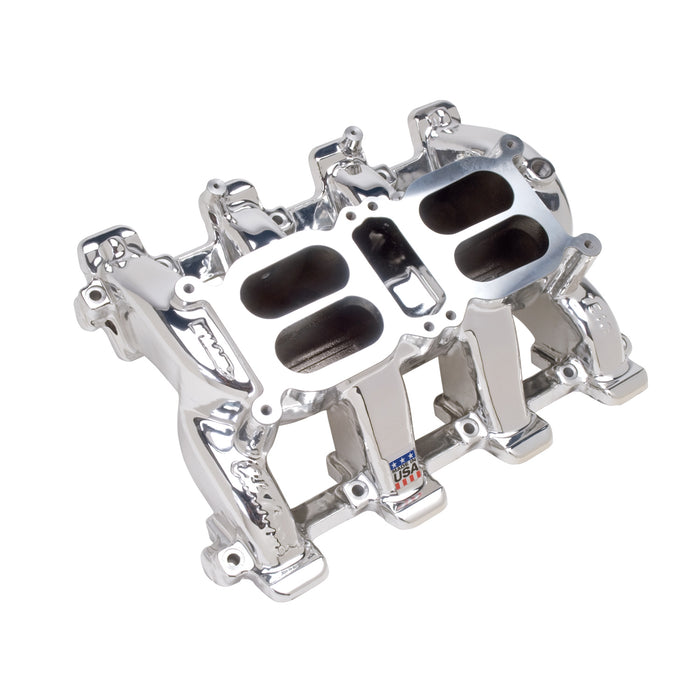

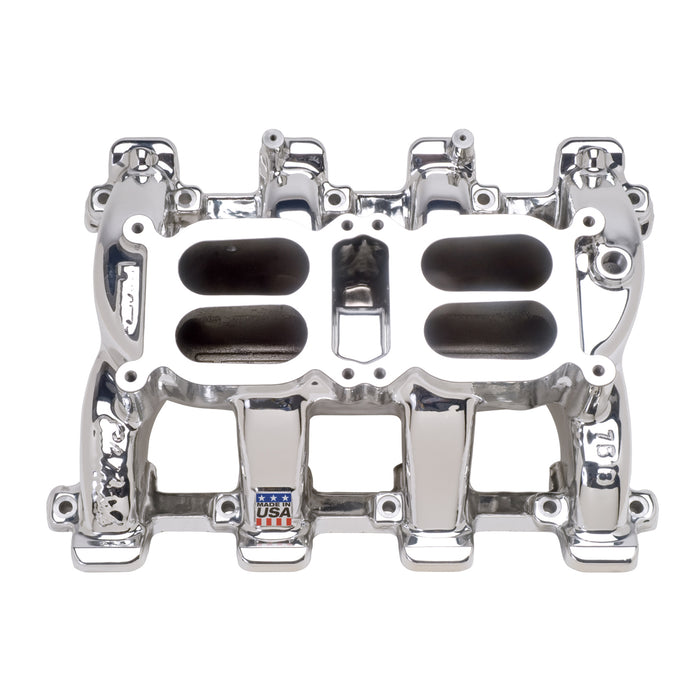

Edelbrock 75184 Engine Intake Manifold
by Edelbrock
SKU ds_BDVJ_75184
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$1,108.52
-
Original price
$1,108.52
Original price
$1,108.52
$1,108.52
-
$1,108.52
Current price
$1,108.52
Availability:
Out of stock
Description
Get late-model muscle of the popular Gen III and the classic look of dual-quad carbs. The Edelbrock RPM Air-Gap Dual-Quad LS1 #75184 intake manifold designed for LS1, LS6, LM7 (5.3L), LR4 (4.8L), and LQ4 (6.0L) engines, the RPM Air-Gap LS1 Dual-Quad delivers outstanding performance from 1500 to 6500 rpm. Included with the Edelbrock RPM Air-Gap Dual-Quad LS1 #75184 is an electronic timing module that picks up MAP, crank position, and cam position in order to drive the stock LS1 Coil-on-Plug ignition system. The #75187 (manifold only) can be used on LS2 applications when matched with MSD's #6012 LS2 ignition controller (available through MSD Performance).
Specifications
| Description_ASM | Chevrolet:Gen III LM7:323 (5.3L) |
| Description_ASM | Chevrolet:Gen III LQ4:364 (6.0L) |
| Description_ASM | Chevrolet:Gen III LR4:293 (4.8L) |
| Description_ASM | Chevrolet:Gen III LS1:346 (5.7L) |
| Description_ASM | Chevrolet:Gen III LS6:346 (5.7L) |
| Description_DEF | Engine Intake Manifold |
| Description_MKT | Get late-model muscle of the popular Gen III and the classic look of dual-quad carbs. The Edelbrock RPM Air-Gap Dual-Quad LS1 #75184 intake manifold designed for LS1, LS6, LM7 (5.3L), LR4 (4.8L), and LQ4 (6.0L) engines, the RPM Air-Gap LS1 Dual-Quad delivers outstanding performance from 1500 to 6500 rpm. Included with the Edelbrock RPM Air-Gap Dual-Quad LS1 #75184 is an electronic timing module that picks up MAP, crank position, and cam position in order to drive the stock LS1 Coil-on-Plug ignition system. The #75187 (manifold only) can be used on LS2 applications when matched with MSD's #6012 LS2 ignition controller (available through MSD Performance). |
| Description_TRA | Carb Flange height: 5.35" |
| Description_TRA | Carburetor size (CFM) should be selected based on your specific engine combination. |
| Description_TRA | Crankshaft sleeve #HP3795 and Flexplate #HP4004 is recommended when using a TH350, TH400 or 700R4 on a LS1 |
| Description_TRA | DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread. |
| Description_TRA | Edelbrock LS1 Timing Control Module #91238 works on LS1 24x reluctor wheel (crank trigger) applications only |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | LS1 (24x) applications can be recognized by the rear mounted cam position sensor which is black in color, while LS2 (58x) cam sensor is mounted in the timing cover and is gray in color. |
| Description_TRA | LS2 applications with 58x reluctor (crank trigger) requires MSD #6012 ignition controller. Please contact MSD tech for details (915) 857-5200 or www.msdperformance.com. LS1 (24x) applications can be recognized by the rear mounted cam (A) LS1 Timing Control Module #91238 works on LS1 24x reluctor wheel (crank trigger) applications only |
| Description_TRA | Manifold Height: A-5.05"x B-5.64" |
| Description_TRA | NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. |
| Description_TRA | Port exit dimensions: .98"x 2.72" |
| Description_TRA | Recommended intake gasket: LS1/LS6 style individual port o-ring seals or Edelbrock #7386 |
| Description_TRA | Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. |
| Description_TRA | these items are available through Hughes Performance retailers or you can call Hughes at 800-274-RACE |
| Description_TRA | To ensure maximum performance and a proper seal, Edelbrock gaskets which are specifically designed and manufactured for use with Edelbrock parts must be used. |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| height | 7.5 |
| length | 23.625 |
| weight | 22.0 |
| width | 14.75 |
