Edelbrock 72925 Engine Intake Manifold
by Edelbrock
SKU ds_BDVJ_72925
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$2,159.95
-
Original price
$2,159.95
Original price
$2,159.95
$2,159.95
-
$2,159.95
Current price
$2,159.95
Availability:
Out of stock
Description

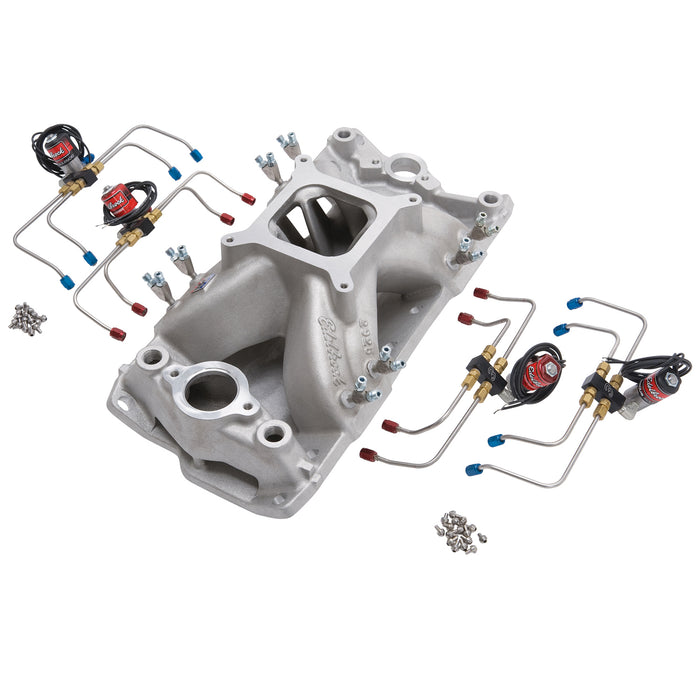

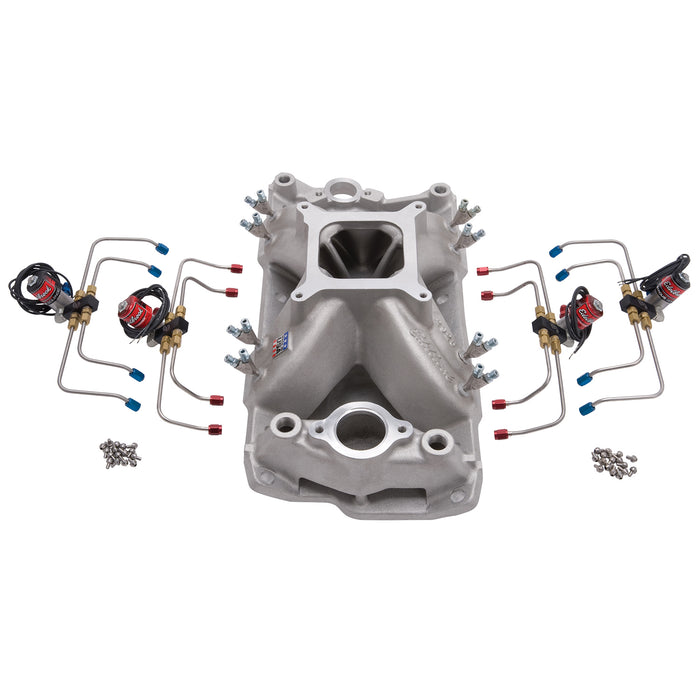

Edelbrock part #72925 Victor Jr. intake manifold for small-block Chevy with Pre-Assembled Direct Port Nitrous System is excellent for high Performance's street and racing applications. Designed for heads with a standard port location, the runners match "flat floor" entry 23 degree heads. Carb pad height is 5-1/2" (from end seals) and overall, the #2925 is about one-inch taller than our Victor Jr. The #72925 features a pre-assembled ready to bolt-on direct port nitrous system out-of-the-box. This system is compatible with any 4150 flange carburetor. The kit includes a Super Victor manifold, Performer Series fuel and nitrous solenoids, distribution blocks and high flow lines with E2 Series nozzles. This system is capable of up to 300 additional horsepower, and is supplied with jetting for 100 & 150 horsepower. The Edelbrock Victor Jr. intake manifold also features a natural aluminum finish for a classic look. For the ultimate "Made in USA" quality, every Edelbrock intake manifold is cast and machined in the USA.
Resources
Installation InstructionsSpecifications
| Center Maximum Height | 5.500 |
| CNC Ported | No |
| Color | Satin |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:Small-Block Gen I:262 (4.3L)-400 (6.6L) |
| Description_DEF | Engine Intake Manifold |
| Description_EXT | Edelbrock Super Victor 23 Degree Intake Manifold with Pre-Assembled Direct Port Nitrous System For Chevrolet 262-400 Small-Block V8 |
| Description_INV | Super Victor SBC Direct Port Nitrous |
| Description_LAB | Super Victor 23 Deg SBC Intake Manifold W/ Pre-Assembled Direct Port Nitrous Kit |
| Description_MKT | Edelbrock part #72925 Victor Jr. intake manifold for small-block Chevy with Pre-Assembled Direct Port Nitrous System is excellent for high Performance's street and racing applications. Designed for heads with a standard port location, the runners match "flat floor" entry 23 degree heads. Carb pad height is 5-1/2" (from end seals) and overall, the #2925 is about one-inch taller than our Victor Jr. The #72925 features a pre-assembled ready to bolt-on direct port nitrous system out-of-the-box. This system is compatible with any 4150 flange carburetor. The kit includes a Super Victor manifold, Performer Series fuel and nitrous solenoids, distribution blocks and high flow lines with E2 Series nozzles. This system is capable of up to 300 additional horsepower, and is supplied with jetting for 100 & 150 horsepower. The Edelbrock Victor Jr. intake manifold also features a natural aluminum finish for a classic look. For the ultimate "Made in USA" quality, every Edelbrock intake manifold is cast and machined in the USA. |
| Description_TRA | All the supply hard lines have been plumbed to deliver optimal nitrous and fuel flow on various applications. |
| Description_TRA | Bottle and supply lines not included. |
| Description_TRA | Compatible with any 4150 flange carburetor. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Includes a Super Victor manifold, Performer Series fuel and nitrous solenoids, distribution blocks and high flow lines with E2 Series nozzles. |
| Description_TRA | Recommended intake gasket: Edelbrock #7201 or Fel-Pro 1206 |
| Description_TRA | Super Victor manifold with a direct port nitrous system pre-assembled and ready to install right out of the box. |
| Description_TRA | This system is capable of up to 300 additional horsepower, and is supplied with jetting for 100 & 150 horsepower. |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Front Maximum Height | 5.500 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 7.0 |
| length | 23.625 |
| Material | Aluminum |
| Rear Maximum Height | 5.500 |
| RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Single Or Dual Plane Type | Single Plane |
| weight | 21.85 |
| width | 14.5 |
