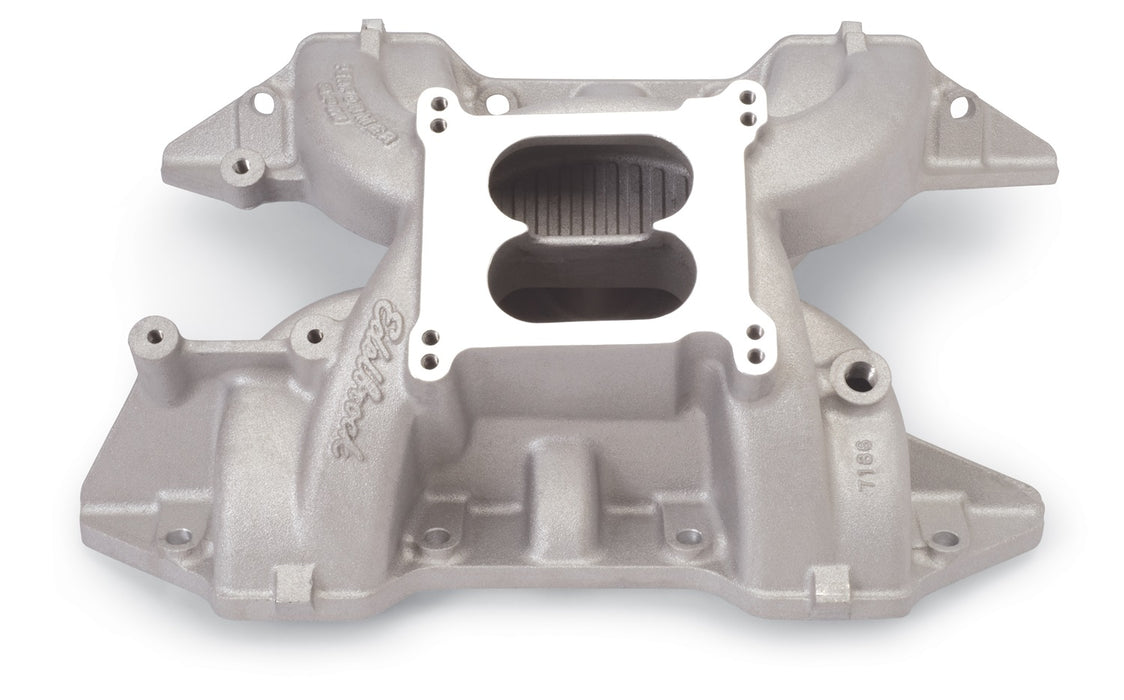

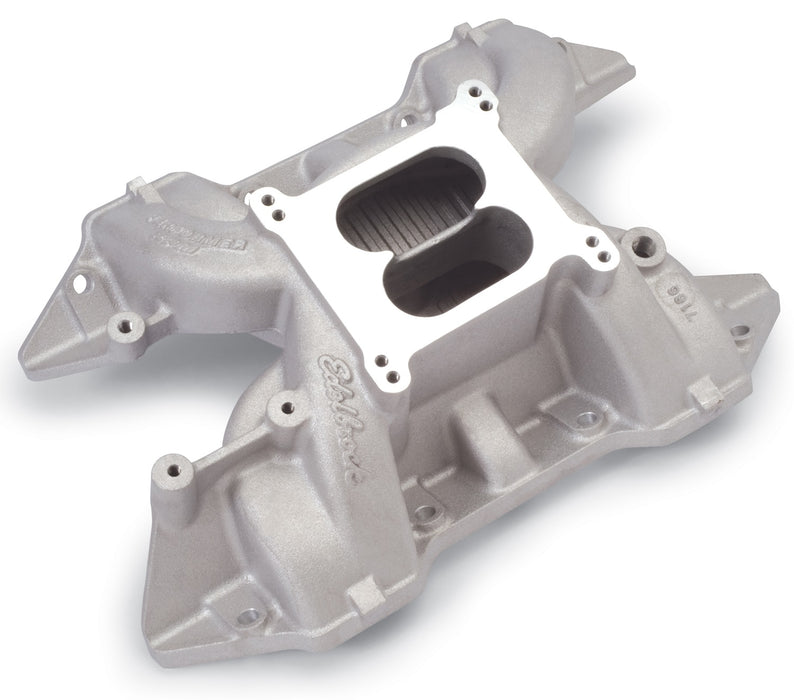

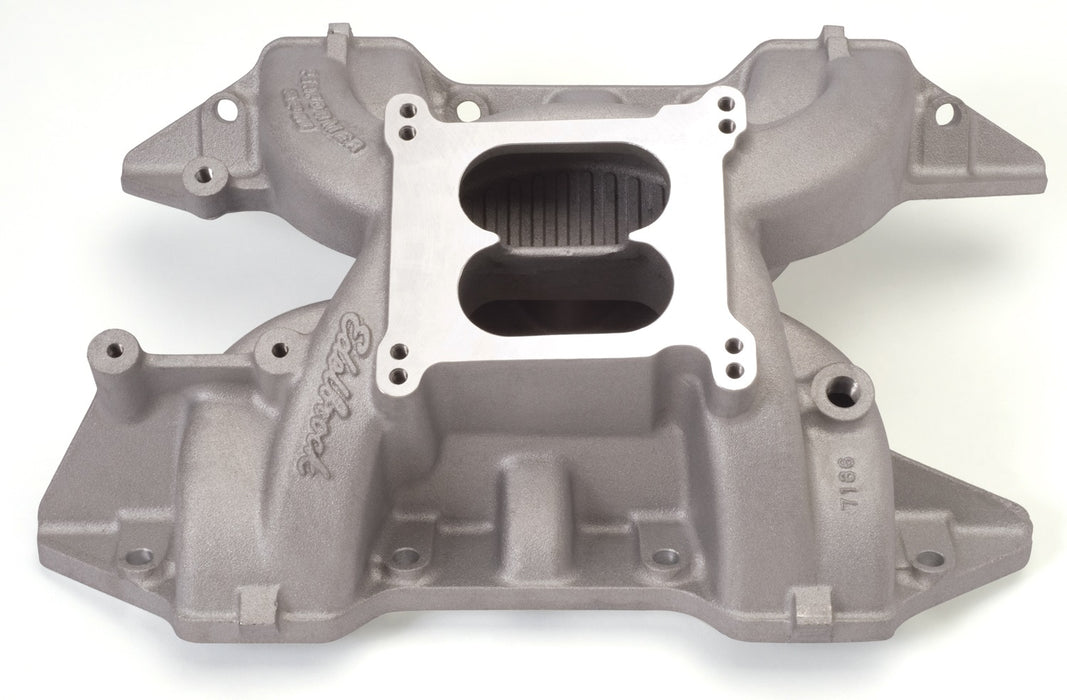

Edelbrock 7186 Edelbrock Performer RPM Intake Manifold for Chrysler 361-383-400 Big-Block V8
by Edelbrock
SKU ds_BDVJ_7186
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$705.55
-
Original price
$705.55
Original price
$705.55
$705.55
$705.55
-
$705.55
Current price
$705.55
Availability:
4+ in stock
Description
Edelbrock part #7186 Performer RPM 383 intake manifold is designed for 361-383-400 c.i.d. Chryslers. The dual-plane design results in excellent low-end torque and high rpm power. High flow runner design will handle the popular stroker combinations. For high-performance'street/strip applications. Will not fit 1962-64 Max Wedge heads.
Specifications
| Basic Operating RPM Range | 1500-6500 |
| Center Maximum Height | 5.350 |
| CNC Ported | No |
| Description_ABR | Intake Mnfld |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Performer RPM Intake Manifold for Chrysler 361-383-400 Big-Block V8 |
| Description_FAB | Best for the Ultimate in Street High-Performance |
| Description_FAB | Cast Finish |
| Description_FAB | Designed for 1500 to 6500 RPM Street-Driven Power |
| Description_FAB | Dual-Plane High-Rise Intake w/180 Deg. Firing Order |
| Description_FAB | Edelbrock Total Power Package Maximizes Gains |
| Description_FAB | Larger Plenum and Runners Maximizes Other Upgrades |
| Description_FAB | Produces Incredible Top-End Horsepower |
| Description_FAB | Retains Good Throttle Response and Acceleration |
| Description_INV | Performer RPM 383 Chrysler Intake |
| Description_KEY | 7186; Chrysler; Edelbrock; Intake Manifold; Intake; Manifold; Dual-Plane; Performer RPM; Satin |
| Description_LAB | Performer RPM Big Block Chrysler B Intake Manifold |
| Description_MKT | Edelbrock part #7186 Performer RPM 383 intake manifold is designed for 361-383-400 c.i.d. Chryslers. The dual-plane design results in excellent low-end torque and high rpm power. High flow runner design will handle the popular stroker combinations. For high-performance street/strip applications. Will not fit 1962-64 Max Wedge heads. |
| Description_MKT | Edelbrock part #7186 Performer RPM 383 intake manifold is designed for 361-383-400 c.i.d. Chryslers. The dual-plane design results in excellent low-end torque and high rpm power. High flow runner design will handle the popular stroker combinations. For high-performance'street/strip applications. Will not fit 1962-64 Max Wedge heads. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 5in.} |
| Description_TRA | Carb pad height: 5.35" |
| Description_TRA | Carb recommendations: Edelbrock AVS2 or Performer Series 650-800 cfm. Use #1481 or #1843 throttle/transmission lever kit. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold height.: A-4.90", B-5.80" |
| Description_TRA | Port exit dimensions: 1.13" x 2.13" |
| Description_TRA | Recommended intake gasket: Edelbrock #7225 |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Recommended intake gasket: Edelbrock # 7225 • Manifold height.: A-4.90in.; B-5.80in. • Carb pad height: 5.35in. • Carb recommendations: Edelbrock AVS2 or Performer Series 650-800 cfm. Use # 1481 or # 1843 throttle/transmission lever kit. • Port exit dimensions: 1.13in. x 2.13in. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | No |
| finish | Satin |
| Flange Type | 4150 |
| Front Maximum Height | 4.900 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 7.0 |
| length | 23.75 |
| LTL | N |
| Material | Aluminum |
| Rear Maximum Height | 5.800 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Performer RPM |
| Single Or Dual Plane Type | Dual |
| Vehicle Model | Chrysler |
| weight | 20.2 |
| width | 14.5 |
