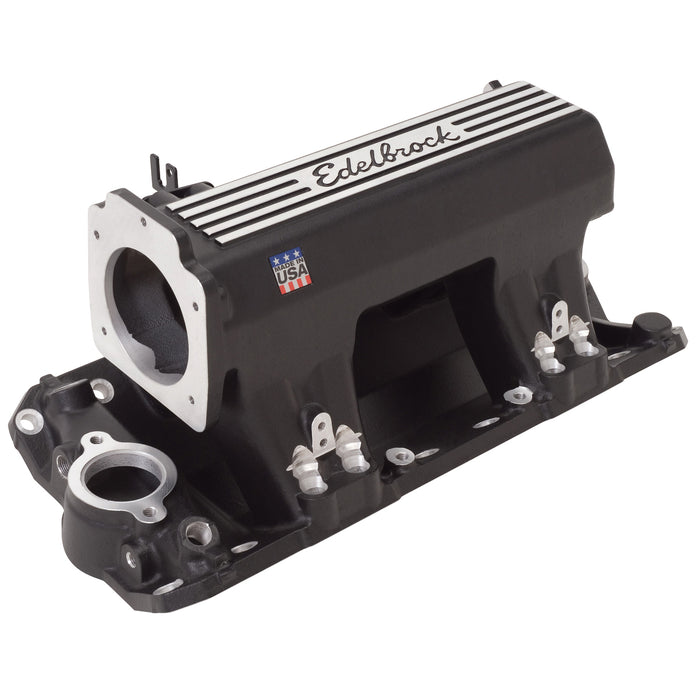

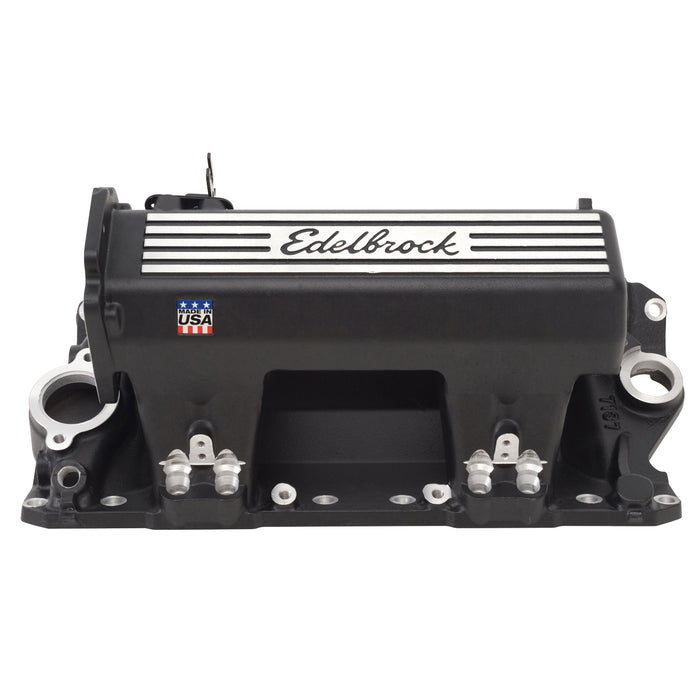

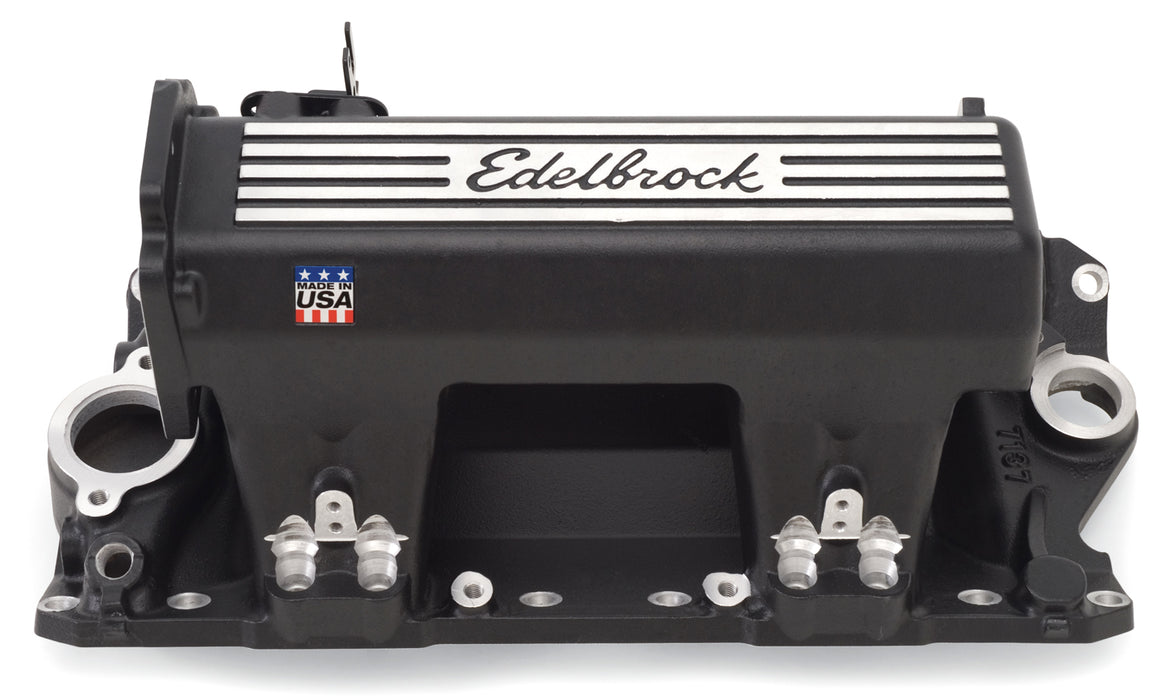

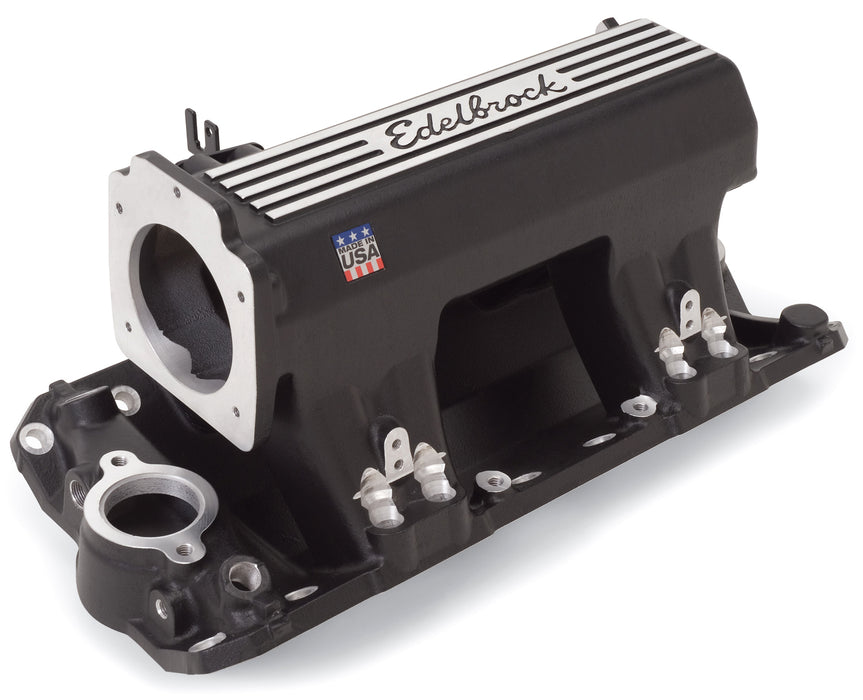

Edelbrock 71373 Edelbrock Pro-Flo XT EFI Intake Manifold For Chevrolet 302-400 Small-Block V8
by Edelbrock
SKU ds_BDVJ_71373
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$1,153.27
-
Original price
$1,153.27
Original price
$1,153.27
$1,153.27
$1,153.27
-
$1,153.27
Current price
$1,153.27
Availability:
Out of stock
Description
Edelbrock part #71373 Pro-Flo XT intake manifold is designed for 1957-86 small-block Chevy V8 applications. The Pro-Flo XT intakes are engineered with a large plenum and long tapered runners to deliver maximum horsepower and broad torque throughout the rpm range (1500-7000 rpm). Pro-Flo XT EFI intakes accept Edelbrock Pro-Flo XT Throttle Bodies and Fuel Rails. This manifold offers a durable black power coated finish for long lasting protection and a distinctive look.
Specifications
| Basic Operating RPM Range | 1500-7000 |
| Center Maximum Height | 9.000 |
| CNC Ported | No |
| Cylinder Head Type | Standard |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Pro-Flo XT EFI Intake Manifold For Chevrolet 302-400 Small-Block V8 |
| Description_FAB | Black Powder-Coat Finish |
| Description_FAB | Designed For 1500 To 7000 RPM Performance |
| Description_FAB | Large Plenum |
| Description_FAB | Long-Tapered Runners |
| Description_INV | Black Pro Flo XT SBC Intake Manifold |
| Description_KEY | 71373; Chevy; Chevrolet; Edelbrock; Intake Manifold; Intake; Manifold; Single-Plane; Pro-Flo XT; Black Powder Coated |
| Description_LAB | Pro-Flo XT Small Block Chevy EFI Black Intake Manifold |
| Description_MKT | Edelbrock part #71373 Pro-Flo XT intake manifold is designed for 1957-86 small-block Chevy V8 applications. The Pro-Flo XT intakes are engineered with a large plenum and long tapered runners to deliver maximum horsepower and broad torque throughout the rpm range (1500-7000 rpm). Pro-Flo XT EFI intakes accept Edelbrock Pro-Flo XT Throttle Bodies and Fuel Rails. This manifold offers a durable black power coated finish for long lasting protection and a distinctive look. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 8in.} |
| Description_TRA | Compatible with Edelbrock #38693 90mm Pro-Flo XT Throttle body. |
| Description_TRA | Fits late model low profile water neck (such as TransDapt 9929 or GM 12342024 chrome thermostat housing) |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Machined for a Edelbrock #36019 LS1 style MAP sensor, which mounts directly on the manifold. |
| Description_TRA | Manifold Dimensions: A-9.00", B-8.20", C-14.80" |
| Description_TRA | No provisions for exhaust heated chokes or EGR. |
| Description_TRA | NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. |
| Description_TRA | Recommended gasket: Edelbrock #7201, |
| Description_TRA | Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. |
| Description_TRA | The Edelbrock #3627 Fuel rail kit including provisions for either Pico or standard height injectors is available separately. |
| Description_TRA | The throttle body centerline is located 2.5" behind and 6.07" above the front edge of the front end seal surface. |
| Description_TRA | To ensure maximum performance and a proper seal, Edelbrock gaskets which are specifically designed and manufactured for use with Edelbrock parts must be used. |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Recommended gasket: Edelbrock # 7201; • Manifold Dimensions: A-9.00in.; B-8.20in.; C-14.80in. • Compatible with Edelbrock # 38693 90mm Pro-Flo XT Throttle body. • Machined for a Edelbrock # 36019 LS1 style MAP sensor; which mounts directly on the manifold. • The Edelbrock # 3627 Fuel rail kit including provisions for either Pico or standard height injectors is available separately. • The throttle body centerline is located 2.5in. behind and 6.07in. above the front edge of the front end seal surface. • Fits late model low profile water neck (such as TransDapt 9929 or GM 12342024 chrome thermostat housing) • No provisions for exhaust heated chokes or EGR. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. • Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. • NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. • To ensure maximum performance and a proper seal; Edelbrock gaskets which are specifically designed and manufactured for use with Edelbrock parts must be used. |
| EGR Port | No |
| Emission | Without EGR |
| Engine Make/Size | Chevy Small Block (262-400) |
| finish | Black Powder Coated |
| Flange Type | Throttle Body XT |
| Front Maximum Height | 9.000 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 6.87 |
| length | 22.68 |
| LTL | N |
| Material | Aluminum |
| Number of Carbs | None; For Fuel Injection |
| Position | N/A |
| Rear Maximum Height | 8.200 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range | 1500-6500 |
| Series | Pro-Flo XT |
| Single Or Dual Plane Type | Single |
| Usage | Street/Hi-Performance |
| Vehicle Model | Chevrolet |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 21.05 |
| width | 14.18 |
