Edelbrock 71363 { Sellable : Yes }
by Edelbrock
SKU ds_BDVJ_71363
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$1,533.56
-
Original price
$1,533.56
Original price
$1,533.56
$1,533.56
$1,533.56
-
$1,533.56
Current price
$1,533.56
Availability:
Out of stock
Description

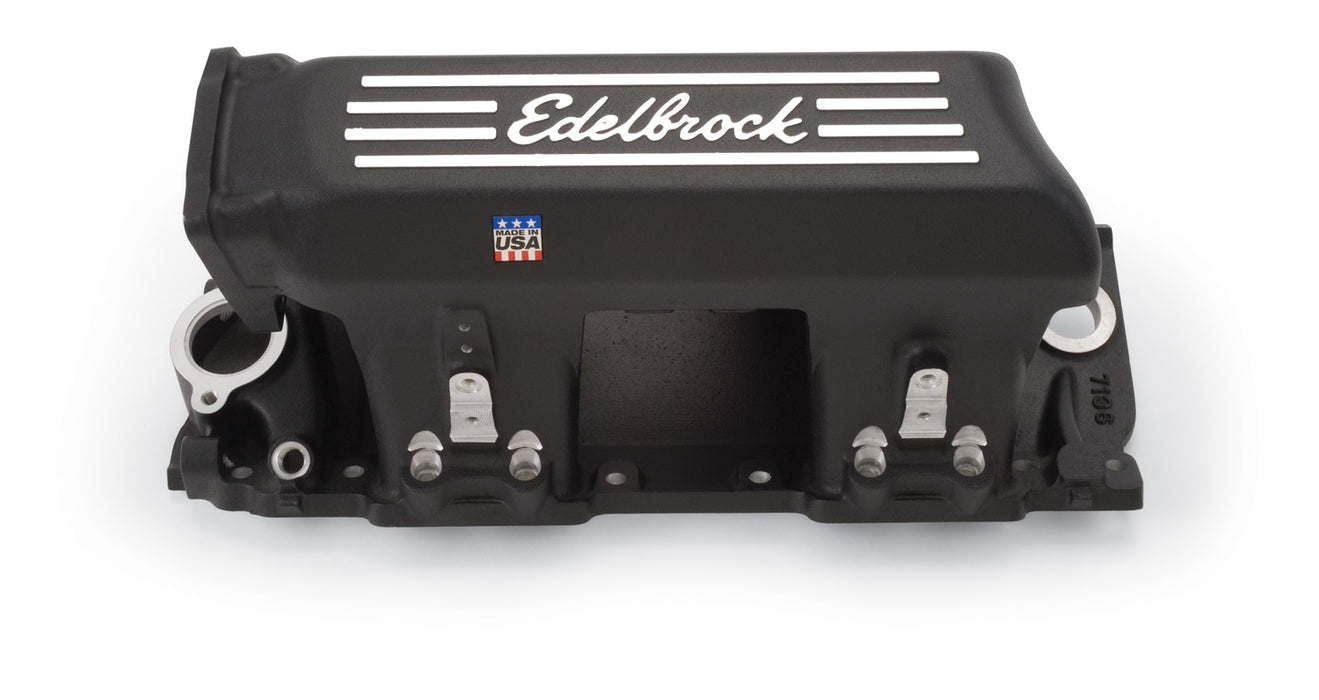

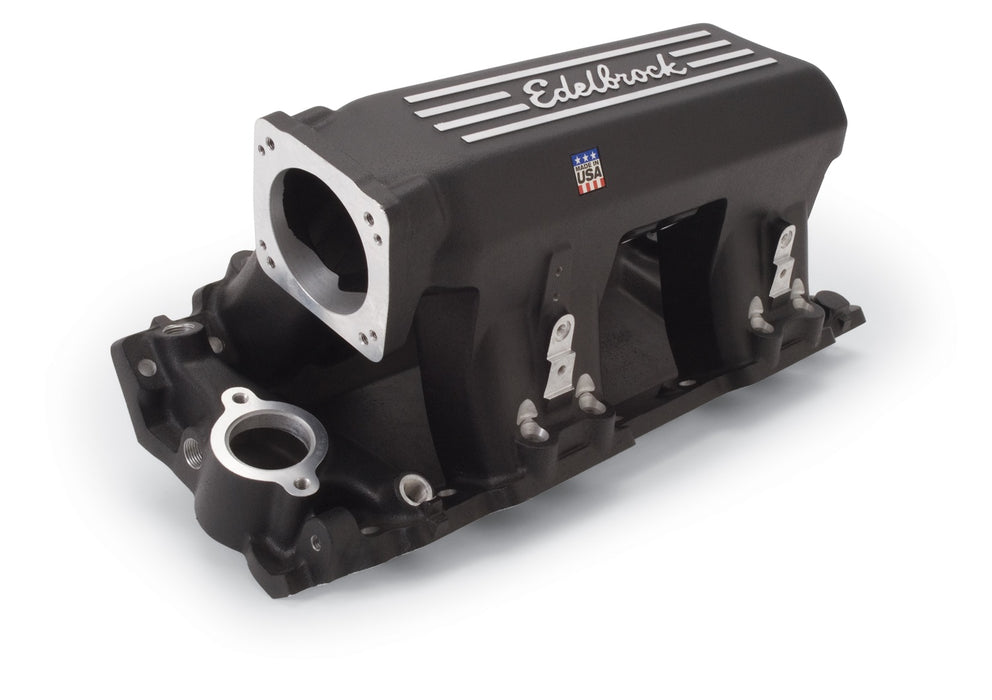

Edelbrock part #71363 Pro-Flo XT EFI intake manifold is engineered for high performance 396-502 c.i.d. Chevy V8's with rectangular-port cylinder heads. A large plenum and tapered runners deliver maximum horsepower and broad torque throughout the rpm range (1500-6500 rpm). It features a 90mm throttle body opening for maximum performance. This manifold offers a durable black power coated finish for long lasting protection and a distinctive look.
Specifications
| Basic Operating RPM Range | 1500-6500 |
| Center Maximum Height | 10.000 |
| CNC Ported | No |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Pro-Flo XT EFI Intake Manifold For Chevrolet Rectangular Port 396-502 Big Block-Block V8 |
| Description_FAB | 90mm Throttle Body Opening |
| Description_FAB | Black Powder-Coat Finish |
| Description_FAB | Designed for 1500 to 6500 RPM Performance |
| Description_FAB | Large Plenum |
| Description_FAB | Long-Tapered Runners |
| Description_INV | Bk Pro Flo XT BBC Rectangular Intake |
| Description_KEY | 71363; Chevy; Chevrolet; Edelbrock; Intake Manifold; Intake; Manifold; Single-Plane; Pro-Flo XT; Black Powder Coated |
| Description_LAB | Pro-Flo XT Big Block Chevy EFI Black Intake Manifold |
| Description_MKT | Edelbrock part #71363 Pro-Flo XT EFI intake manifold is engineered for high performance 396-502 c.i.d. Chevy V8's with rectangular-port cylinder heads. A large plenum and tapered runners deliver maximum horsepower and broad torque throughout the rpm range (1500-6500 rpm). It features a 90mm throttle body opening for maximum performance. This manifold offers a durable black power coated finish for long lasting protection and a distinctive look. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 2in.} |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold Dimensions: A-9.80", B-10.00", C-17.80", D-0.00", E-10 Deg |
| Description_TRA | Port exit dimensions: 1.67"x2.34" |
| Description_TRA | Recommended gasket: Edelbrock #7202 |
| Description_TRA | Throttle body recommendations: Edelbrock #3869, #38693. |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Recommended gasket: Edelbrock # 7202 • Throttle body recommendations: Edelbrock # 3869; # 38693. • Manifold Dimensions: A-9.80in.; B-10.00in.; C-17.80in.; D-0.00in.; E-10deg. • Port exit dimensions: 1.67in.x2.34in. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | No - For Rectangular Port |
| finish | Black Powder Coated |
| Flange Type | Throttle Body XT |
| Front Maximum Height | 9.800 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 14.0 |
| length | 24.25 |
| LTL | N |
| Material | Aluminum |
| Rear Maximum Height | 10.000 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Pro-Flo XT |
| Single Or Dual Plane Type | Single |
| Vehicle Model | Chevrolet |
| weight | 25.4 |
| width | 12.25 |
