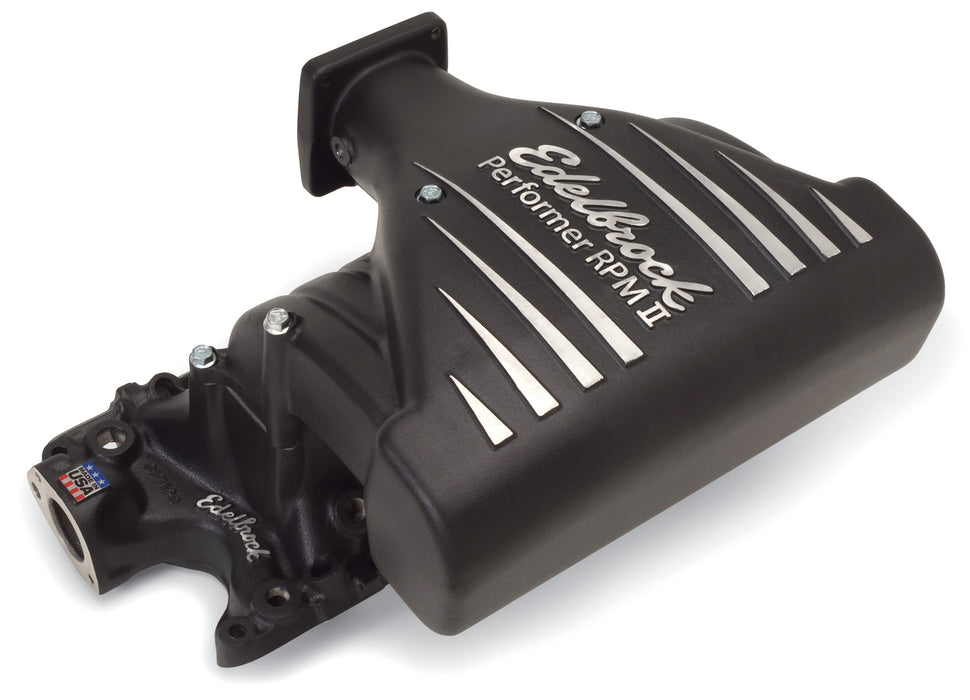

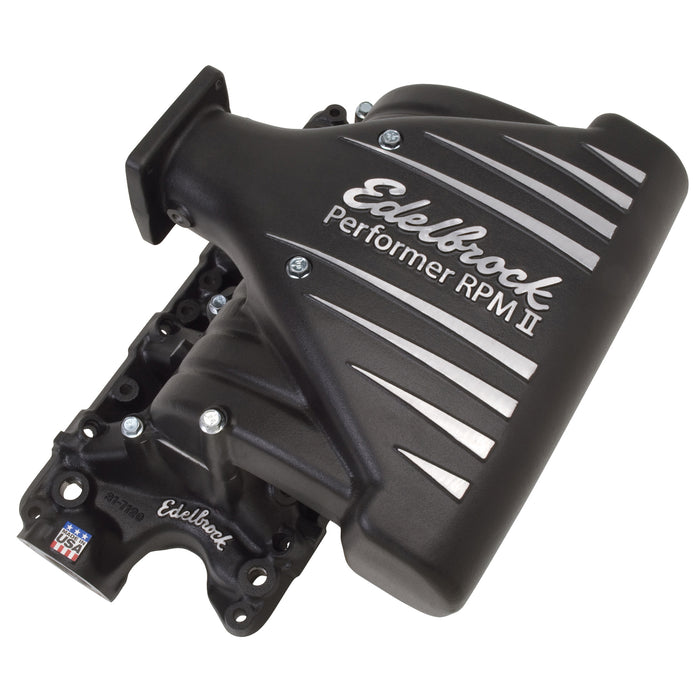

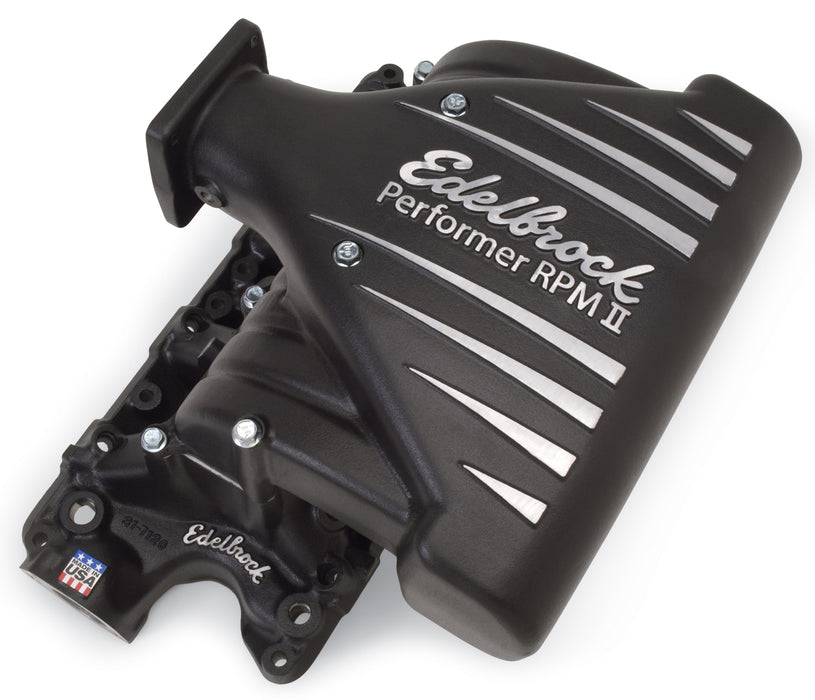

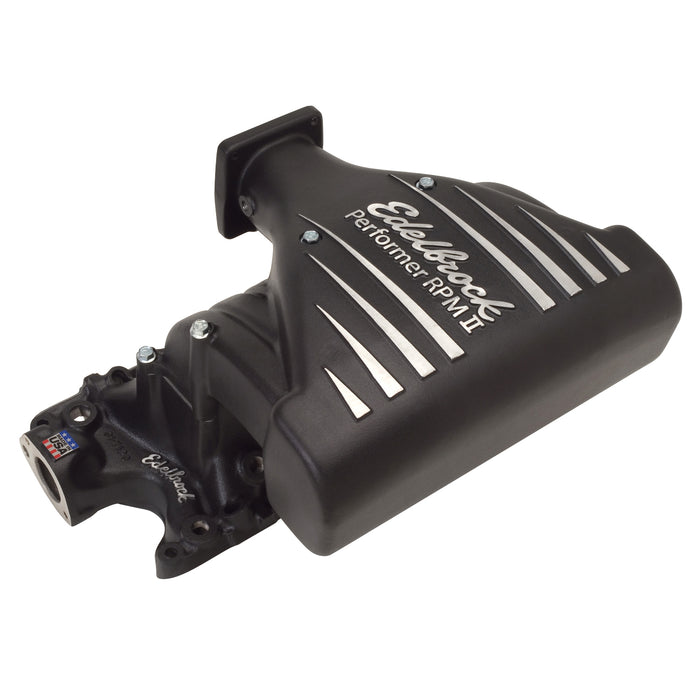

Edelbrock 71233 Edelbrock Performer 5.0 RPM II Intake Manifold for Ford 5.0 Small-Block V8
by Edelbrock
SKU ds_BDVJ_71233
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$1,649.88
-
Original price
$1,649.88
Original price
$1,649.88
$1,649.88
$1,649.88
-
$1,649.88
Current price
$1,649.88
Description
Edelbrock part #71233 Performer 5.0 RPM II intake manifold for 1986-95 5.0L Mustang engines has shown significant gains in horsepower over existing designs in the 1500 to 6500 rpm range, and is ideally suited for street and strip applications. This manifold consists of a V-shaped crossover with an increasing cross-sectional area, which passes over to eight large tapered runners. Our 70mm throttle body is recommended (75mm will require port matching). 1994-95 Mustang engines require Throttle Body Adapter #38353 and Adapter Kit #8025. May not fit with stock hood of 1994-95 Mustangs, aftermarket hood recommended. This manifold offers a durable black power coated finish for long lasting protection and a distinctive look.
Specifications
| Basic Operating RPM Range | 1500-6500 |
| Center Maximum Height | 11.130 |
| CNC Ported | No |
| Description_ABR | Intake Mnfld |
| Description_ASM | Ford:Small-Block Windsor:302 (5.0L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Performer 5.0 RPM II Intake Manifold for Ford 5.0 Small-Block V8 |
| Description_FAB | 50-State Street Legal For 1986 To 95 5.0L Engines |
| Description_FAB | Base Manifold is CNC Matched to Upper Manifold |
| Description_FAB | Black Powder-Coat Finish |
| Description_FAB | For 1994-95 Mustangs Adapter; Strut Brace Required |
| Description_FAB | Made For 1500 To 6500 RPM Street/Strip Power |
| Description_FAB | Produces Exceptional Horsepower |
| Description_FAB | Removable Plenum Cover for Runner Access |
| Description_FAB | Upper Manifold; Cover Powder-Coated Titanium Gray |
| Description_INV | Black Performer RPM 5.0L EFI Intake |
| Description_KEY | 71233; Ford; Edelbrock; Intake Manifold; Intake; Manifold; Performer RPM 2; Black Powder Coated |
| Description_LAB | Performer 5.0 RPM II Small Block Ford Black Intake Manifold |
| Description_LAB | Performer RPM II Intake Manifold #71233 For 5.0L Small-Block Ford, Black Finish |
| Description_MKT | Edelbrock part #71233 Performer 5.0 RPM II intake manifold for 1986-95 5.0L Mustang engines has shown significant gains in horsepower over existing designs in the 1500 to 6500 rpm range, and is ideally suited for street and strip applications. This manifold consists of a V-shaped crossover with an increasing cross-sectional area, which passes over to eight large tapered runners. Our 70mm throttle body is recommended (75mm will require port matching). 1994-95 Mustang engines require Throttle Body Adapter #38353 and Adapter Kit #8025. May not fit with stock hood of 1994-95 Mustangs, aftermarket hood recommended. This manifold offers a durable black power coated finish for long lasting protection and a distinctive look. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 6in.} |
| Description_TRA | Air valve location is 0.30" higher and 0.50" forward from stock |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Overall height: 11.13" |
| Description_TRA | Port exit dimensions: 1.16" x 2.0" |
| Description_TRA | Recommended cams: Ford SVO X-303 or Z-303. |
| Description_TRA | Recommended intake gasket: Edelbrock #7220 |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Recommended intake gasket: Edelbrock # 7220 • Air valve location is 0.30in. higher and 0.50in. forward from stock • Port exit dimensions: 1.16in. x 2.0in. • Recommended cams: Ford SVO X-303 or Z-303. • Overall height: 11.13in. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | No |
| finish | Black Powder Coated |
| Flange Type | Throttle Body |
| Front Maximum Height | 11.130 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 7.5 |
| length | 23.62 |
| LTL | N |
| Material | Aluminum |
| Rear Maximum Height | 11.130 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Performer RPM |
| Single Or Dual Plane Type | Dual |
| Vehicle Model | Ford |
| weight | 45.35 |
| width | 14.75 |
