Description

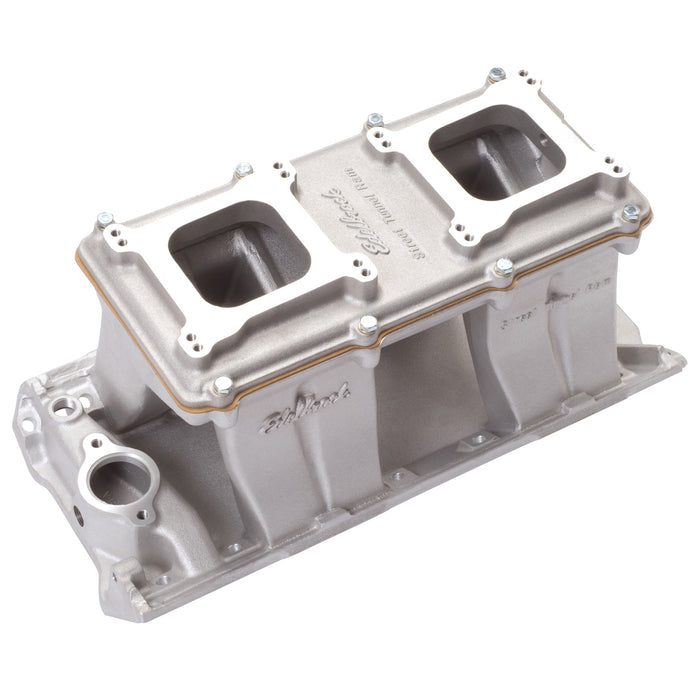

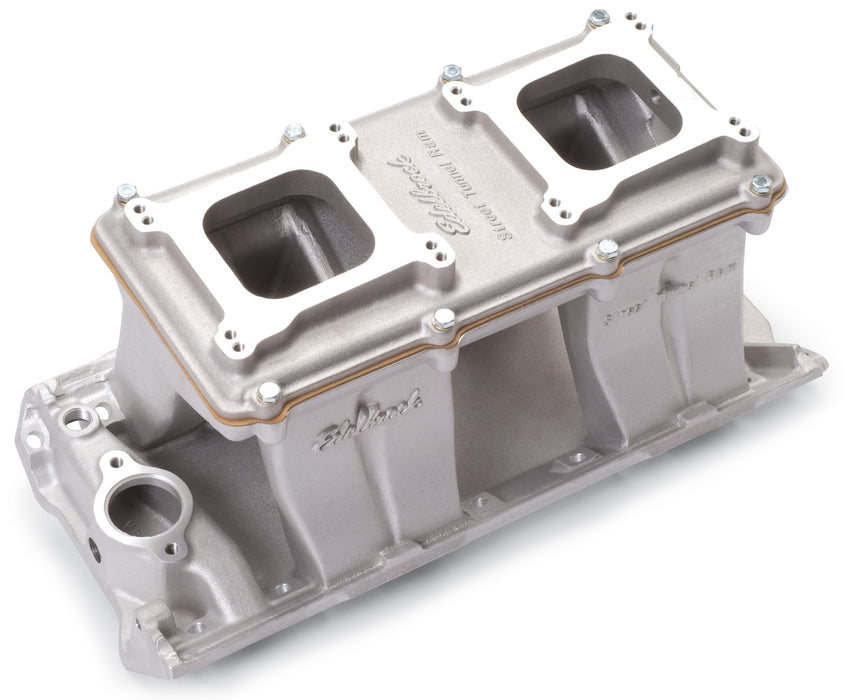

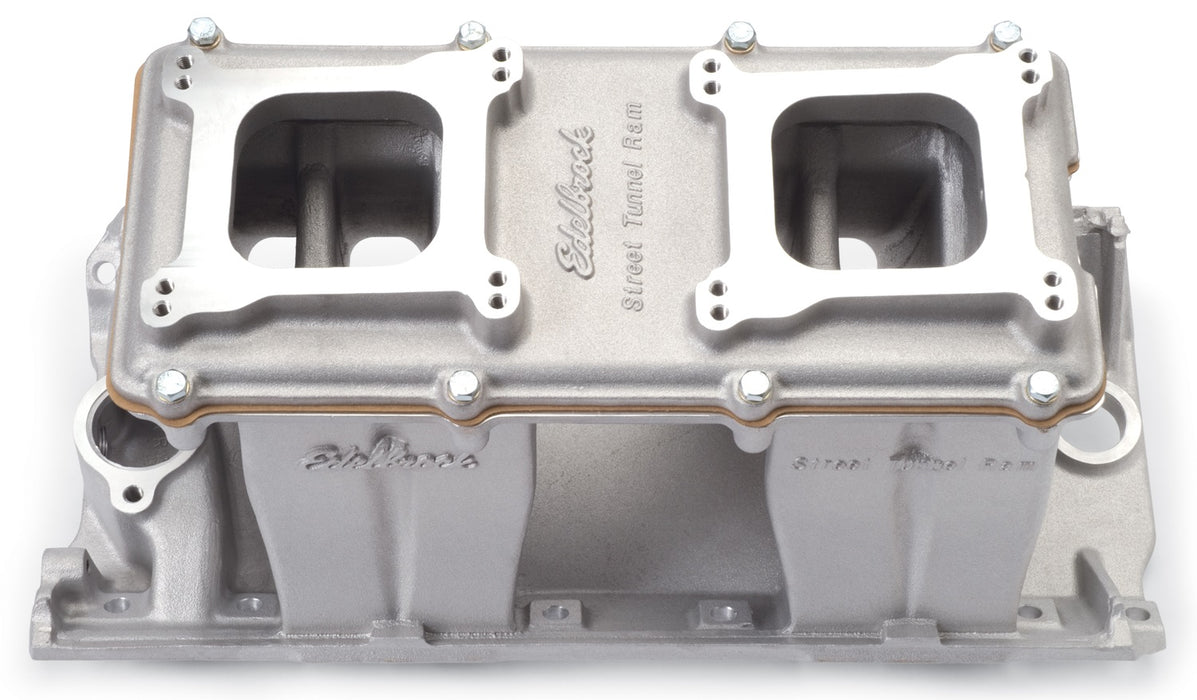

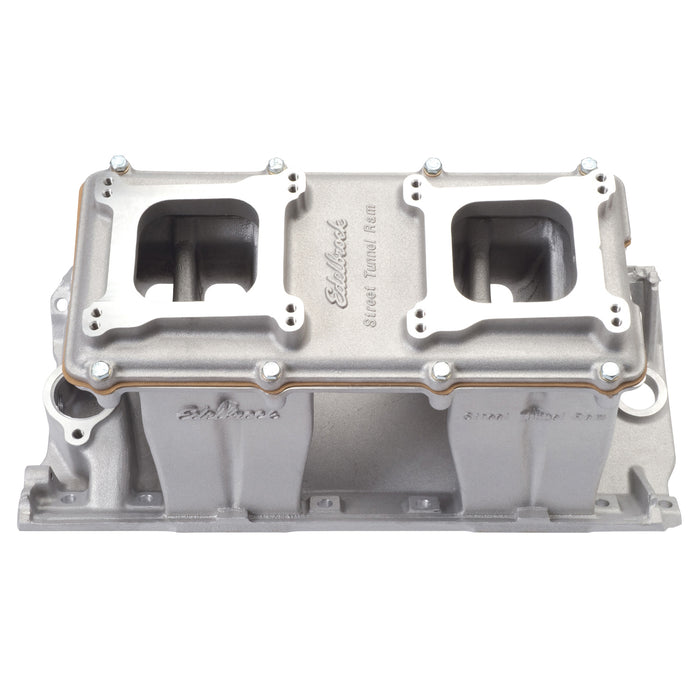

Edelbrock part #7115 Street Tunnel Ram 2-O intake manifold is designed for use on 396-502 c.i.d. big-block Chevy V8's with large oval-port heads (1975 and earlier). Ideal for applications such as pro-street or marine where low-end torque is not a prime factor. Use with Performer RPM cam/kit #7162 for maximum top-end power.
Specifications
| Basic Operating RPM Range | 1500-6500 |
| Center Maximum Height | 10.630 |
| CNC Ported | No |
| Cylinder Head Type | Oval Port- Large |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Street Tunnel Ram 2-O Intake Manifold For Chevrolet 302-400 Small-Block V8 with Large Oval Port Heads |
| Description_FAB | Carburetor Center-To-Center Dimensions = 9.38 in. |
| Description_FAB | For 3500 to 7500 RPM High-Performance Engines |
| Description_FAB | For Pre-Pollution Controlled Vehicles Or Racing Use |
| Description_FAB | For Street Machine/Street Rods/Pro-Street/Marine |
| Description_FAB | Great For Engines w/Slightly Modified Heads |
| Description_FAB | HEI Ignition Will Not Clear Manifold |
| Description_FAB | Top Has Vacuum Outlet for Power Brakes |
| Description_FAB | Will Accept Forward and Sideways Mounted Carbs |
| Description_INV | Tunnel Ram BBC Oval Port Intake Manifld |
| Description_KEY | 7115; Chevy; Chevrolet; Edelbrock; Intake Manifold; Intake; Manifold; Single-Plane; Tunnel-Ram; Satin |
| Description_LAB | Street Tunnel Ram Big Block Chevy 2-O Intake Manifold |
| Description_MKT | Edelbrock part #7115 Street Tunnel Ram 2-O intake manifold is designed for use on 396-502 c.i.d. big-block Chevy V8's with large oval-port heads (1975 and earlier). Ideal for applications such as pro-street or marine where low-end torque is not a prime factor. Use with Performer RPM cam/kit #7162 for maximum top-end power. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 7in.} |
| Description_TRA | Carb recommendations: Edelbrock Performer #1405 600 cfm or Edelbrock AVS2 Series #1905 650 cfm. |
| Description_TRA | Distance from carb center to carb center: 9.38". |
| Description_TRA | H.E.I. ignition will not clear manifold |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold top with bottom height: 10.63" |
| Description_TRA | Manifold will accept forward mounted carbs. |
| Description_TRA | Port exit dimensions: 1.56" x 1.89" |
| Description_TRA | Recommended intake gasket: Edelbrock #7203 |
| Description_TRA | Top has vacuum outlet for power brakes. |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Top has vacuum outlet for power brakes. • Manifold will accept forward mounted carbs. • Distance from carb center to carb center: 9.38in. • Carb recommendations: Edelbrock Performer # 1405 600 cfm or Edelbrock AVS2 Series # 1905 650 cfm. • H.E.I. ignition will not clear manifold • Recommended intake gasket: Edelbrock # 7203 • Manifold top with bottom height: 10.63in. • Port exit dimensions: 1.56in. x 1.89in. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| EGR Port | No |
| Emission | Without EGR |
| Engine Make/Size | Chevy Big Block (396-502) |
| finish | Satin |
| Flange Type | 4150 Dual-Quad |
| Front Maximum Height | 10.630 |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| height | 10.88 |
| length | 22.38 |
| Material | Aluminum |
| Number of Carbs | Two |
| Position | N/A |
| Rear Maximum Height | 10.630 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range | 3500-7500 |
| Series | Street Tunnel Ram |
| Single Or Dual Plane Type | Single |
| Usage | Street/Hi-Performance |
| Vehicle Model | Chevrolet |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 34.2 |
| width | 11.13 |
