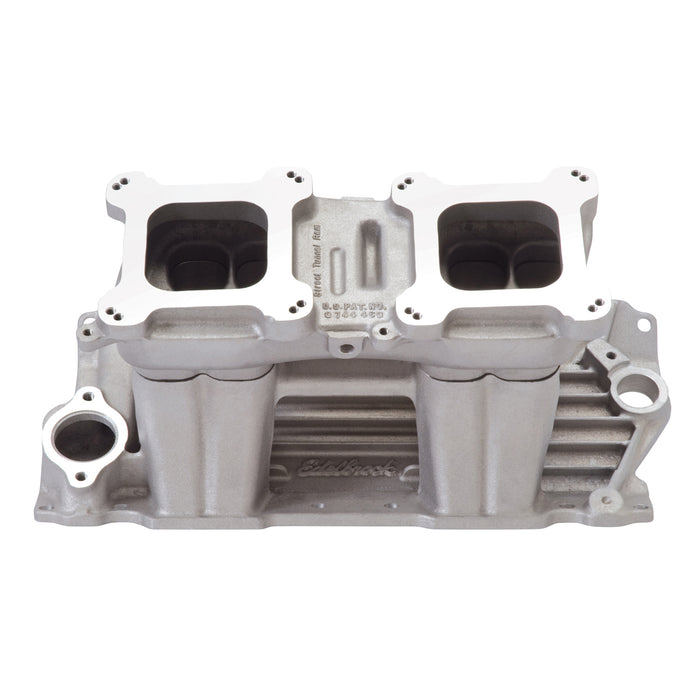

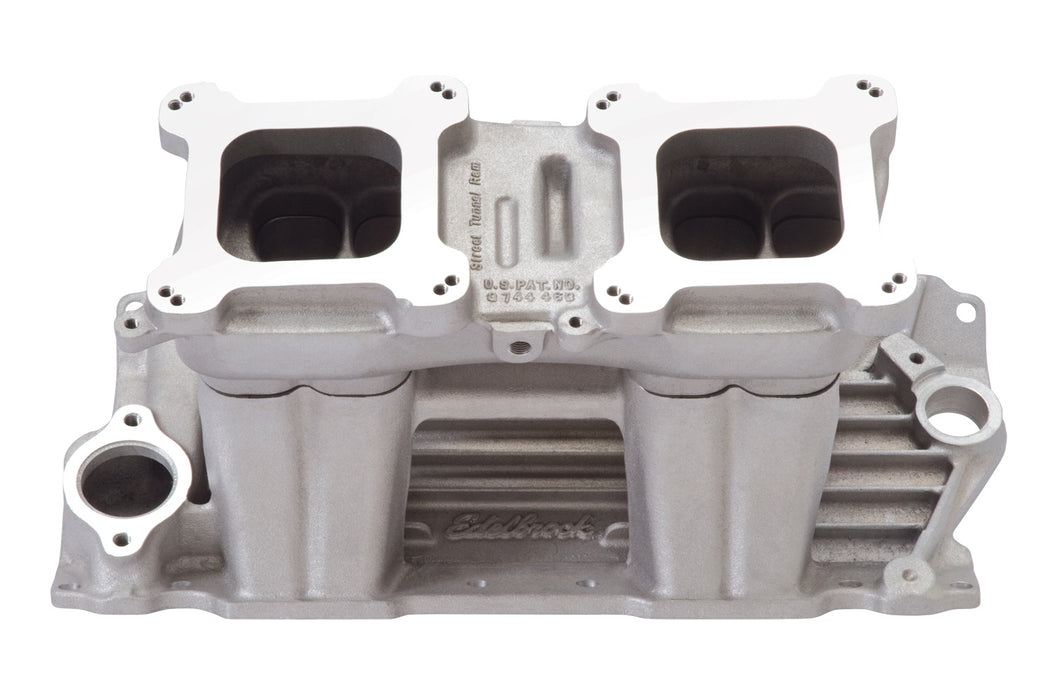

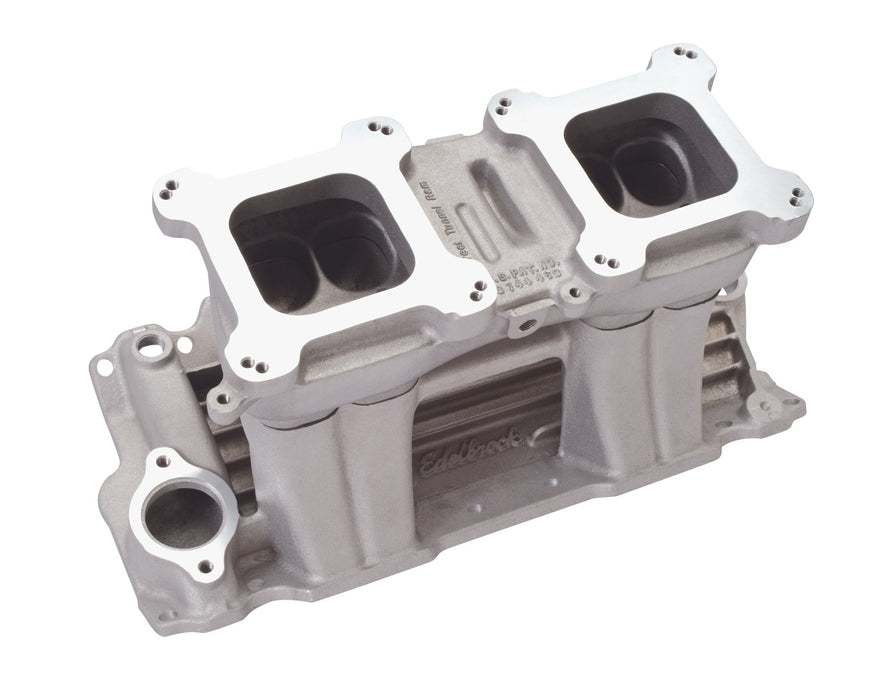

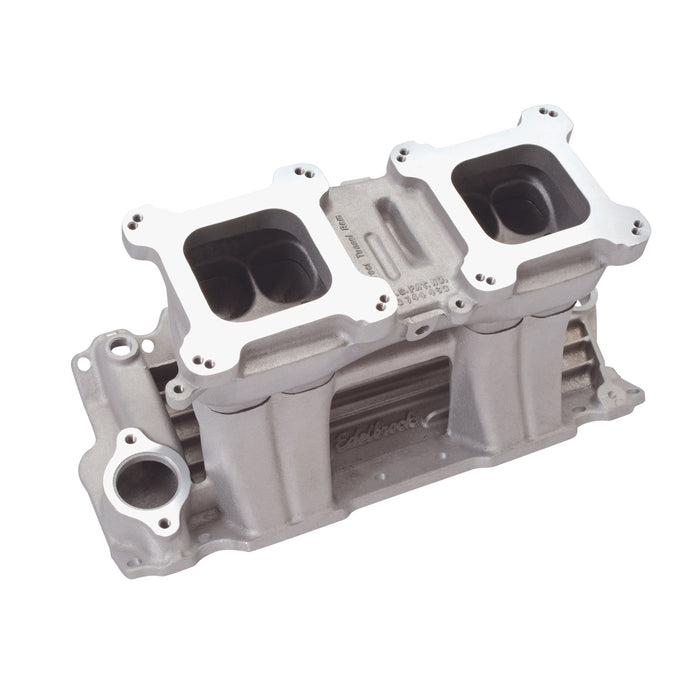

Edelbrock 7110 Edelbrock Street Tunnel Ram Intake Manifold For Chevrolet 302-400 Small-Block V8
by Edelbrock
SKU ds_BDVJ_7110
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$970.33
-
Original price
$970.33
Original price
$970.33
$970.33
$970.33
-
$970.33
Current price
$970.33
Description
Edelbrock part #7110 Street Tunnel Ram intake manifold is designed for 302-327-350-400 c.i.d. small-block Chevy V8's operating below 7500 rpm where low-end torque is not a prime factor. Great for engines with slightly modified heads. Will not fit 1987 and later cast iron heads. Use with cam kit #5002 for low-end torque or cam kit #7102 for top-end power.
Specifications
| Cylinder Head Type | Standard |
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
| Description_DEF | Engine Intake Manifold |
| Description_DES | INTAKE MANIFOLD |
| Description_EXT | Edelbrock Street Tunnel Ram Intake Manifold For Chevrolet 302-400 Small-Block V8 |
| Description_FAB | Carburetor Center-To-Center Dimensions = 8.875 in. |
| Description_FAB | For 3500 to 7500 RPM High-Performance Engines |
| Description_FAB | For Street Machine/Street Rods/Pro-Street/Marine |
| Description_FAB | Great For Engines w/Slightly Modified Heads |
| Description_FAB | HEI Ignition Will Not Clear Manifold |
| Description_FAB | Top Has Vacuum Outlet for Power Brakes |
| Description_FAB | Use Where Low-End Torque is Not a Prime Factor |
| Description_FAB | Will Accept Forward and Sideways Mounted Carbs |
| Description_INV | Street Tunnel Ram SBC Intake Manifold |
| Description_KEY | 7110; Chevy; Chevrolet; Edelbrock; Intake Manifold; Intake; Manifold; Single-Plane; Tunnel-Ram; Satin |
| Description_LAB | Street Tunnel Ram Small Block Chevy Intake Manifold |
| Description_MKT | Edelbrock part #7110 Street Tunnel Ram intake manifold is designed for 302-327-350-400 c.i.d. small-block Chevy V8's operating below 7500 rpm where low-end torque is not a prime factor. Great for engines with slightly modified heads. Will not fit 1987 and later cast iron heads. Use with cam kit #5002 for low-end torque or cam kit #7102 for top-end power. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 8in.} |
| Description_TRA | Carb pad height: 9.30" |
| Description_TRA | Carb recommendations: Edelbrock Performer Series #1404 500 cfm, Edelbrock AVS2 Series #1902 500 cfm for Forward mount ONLY. Holley #0-9776 450 cfm for sideways mount ONLY. |
| Description_TRA | Carburetor size (CFM) should be selected based on your specific engine combination. |
| Description_TRA | Distance from carb center to carb center: 8.875" |
| Description_TRA | DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread. |
| Description_TRA | H.E.I. ignition will not clear manifold. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold height (top with bottom): A-9.00", B-9.60" |
| Description_TRA | Manifold will accept forward and sideways mounted carbs |
| Description_TRA | NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. |
| Description_TRA | Port exit dimensions: 1.12" x 2.12" |
| Description_TRA | Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage. |
| Description_TRA | Recommended intake gasket: Edelbrock #7201. |
| Description_TRA | Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. |
| Description_TRA | To ensure maximum performance and a proper seal, Edelbrock gaskets which are specifically designed and manufactured for use with Edelbrock parts must be used. |
| Description_TRA | Top has vacuum outlet for power brakes |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | • Top has vacuum outlet for power brakes • Manifold will accept forward and sideways mounted carbs • Carb recommendations: Edelbrock Performer Series # 1404 500 cfm; Edelbrock AVS2 Series # 1902 500 cfm for Forward mount ONLY. Holley # 0-9776 450 cfm for sideways mount ONLY. • Distance from carb center to carb center: 8.875in. • H.E.I. ignition will not clear manifold. • Recommended intake gasket: Edelbrock # 7201. • Manifold height (top with bottom): A-9.00in.; B-9.60in.; Carb pad height: 9.30in. • Port exit dimensions: 1.12in. x 2.12in. • Use RTV sealant to properly seal end seals; such as Edelbrock High Temp Silicone sealant # 1076; DO NOT USE END SEALS GASKETS. • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. • Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. • NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. • DO NOT OVERTIGHTEN NPT/Pipe fittings; this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread. • Carburetor size (CFM) should be selected based on your specific engine combination. • To ensure maximum performance and a proper seal; Edelbrock gaskets which are specifically designed and manufactured for use with Edelbrock parts must be used. • Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage. |
| Emission | With EGR |
| Engine Make/Size | Chevy Small Block (262-400) |
| height | 14.0 |
| length | 24.25 |
| LTL | N |
| Number of Carbs | Two |
| Position | N/A |
| RPM Range | 3500-7500 |
| Usage | Street/Hi-Performance |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 25.85 |
| width | 12.25 |
