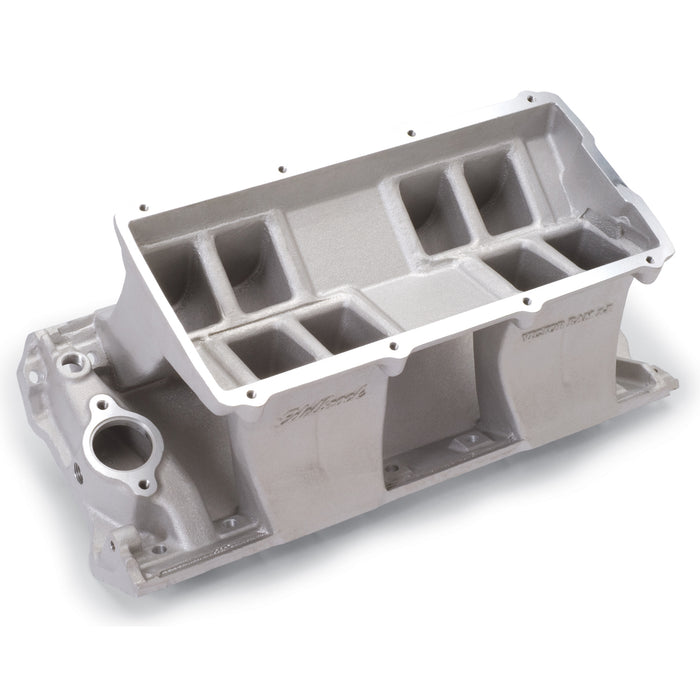

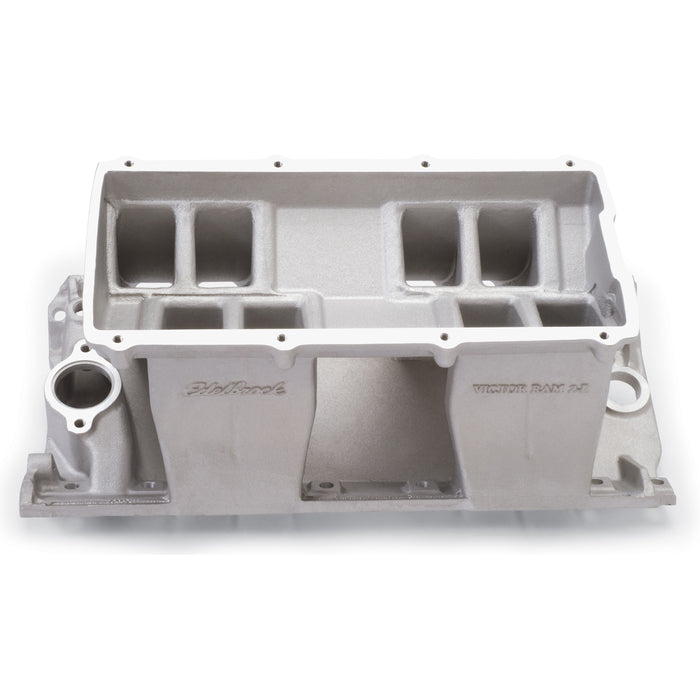

Edelbrock 7075 Edelbrock Victor Ram 2-R Intake Manifold Base for 468 - 582 Big-Block Chevy
by Edelbrock
SKU ds_BDVJ_7075
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$559.95
-
Original price
$559.95
Original price
$559.95
$559.95
-
$559.95
Current price
$559.95
Availability:
Out of stock
Description
Edelbrock part #7075 Victor Ram 2-R is a tunnel ram base designed for 396-502 C.I.D. Chevrolet V8 engines in racing applications using high performance rectangular-port cylinder heads. Suitable for boat and drag racing. Operates from 4000-7000 rpm with the standard-flange top and above 7000 rpm with the dual 4500 top. Will fit Edelbrock Victor series race heads #77409, #77459 and #77609. Two tops are available, PN 7078 for two in-line, standard-flange carburetors, and PN 7079 for two sideways mounted, 4500 series carburetors.
Specifications
| Description_ABR | Intake Mnfld |
| Description_ASM | Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L) |
| Description_DEF | Engine Intake Manifold |
| Description_EXT | Edelbrock Victor Ram 2-R Intake Manifold Base for 468 - 582 Big-Block Chevy |
| Description_INV | Victor Ram 2R Bottom Intake Manifold |
| Description_LAB | Victor Ram 2-R Big Block Chevy Intake Manifold Base |
| Description_MKT | Edelbrock part #7075 Victor Ram 2-R is a tunnel ram base designed for 396-502 C.I.D. Chevrolet V8 engines in racing applications using high performance rectangular-port cylinder heads. Suitable for boat and drag racing. Operates from 4000-7000 rpm with the standard-flange top and above 7000 rpm with the dual 4500 top. Will fit Edelbrock Victor series race heads #77409, #77459 and #77609. Two tops are available, PN 7078 for two in-line, standard-flange carburetors, and PN 7079 for two sideways mounted, 4500 series carburetors. |
| Description_TRA | Base ONLY |
| Description_TRA | Edelbrock adaptor #2694 requires #7077 throttle linkage |
| Description_TRA | GM H.E.I. ignition will not clear manifold |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Manifold top with base height: 10.40" |
| Description_TRA | Port exit dimensions: 1.70" x 2.34". |
| Description_TRA | Recommended Edelbrock Victor Ram Top #7078 (4150 series), distance from carb center to carb center: 9.38" |
| Description_TRA | Recommended Edelbrock Victor Ram Top #7079 (4500 series), distance from carb center to carb center: 9.40" |
| Description_TRA | Recommended intake gasket: Edelbrock #7208, Fel-Pro #1275 |
| Description_TRA | Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. |
| height | 14.0 |
| length | 24.0 |
| weight | 28.8 |
| width | 12.5 |
