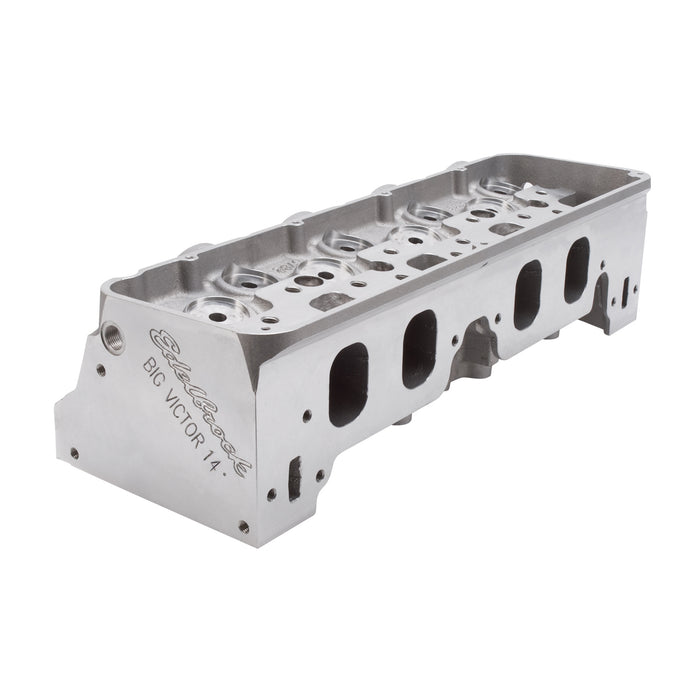

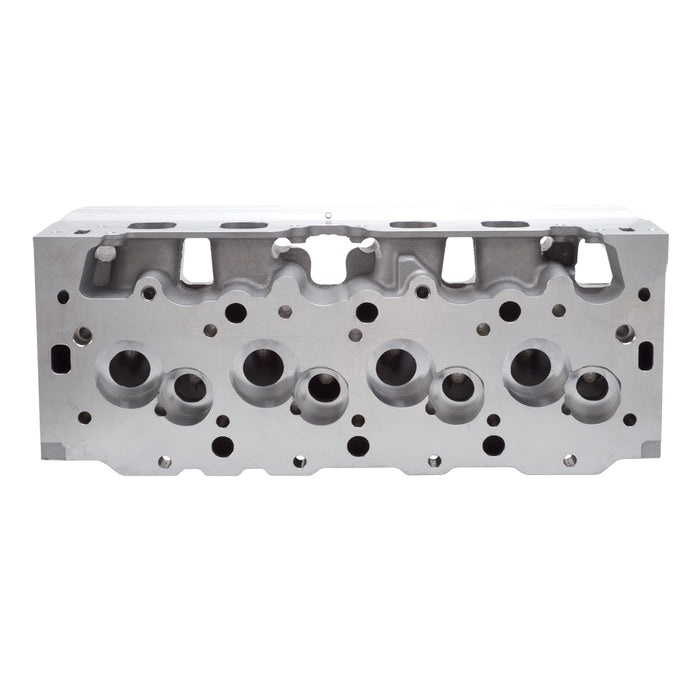

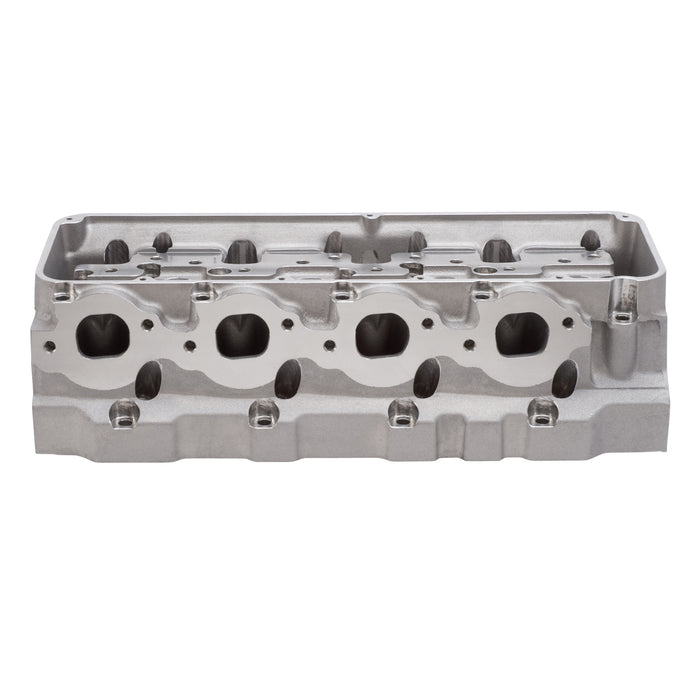

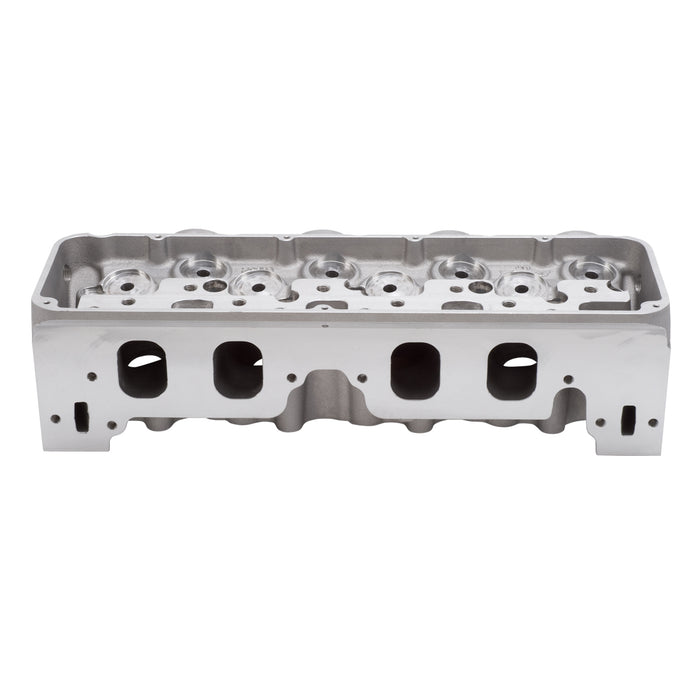

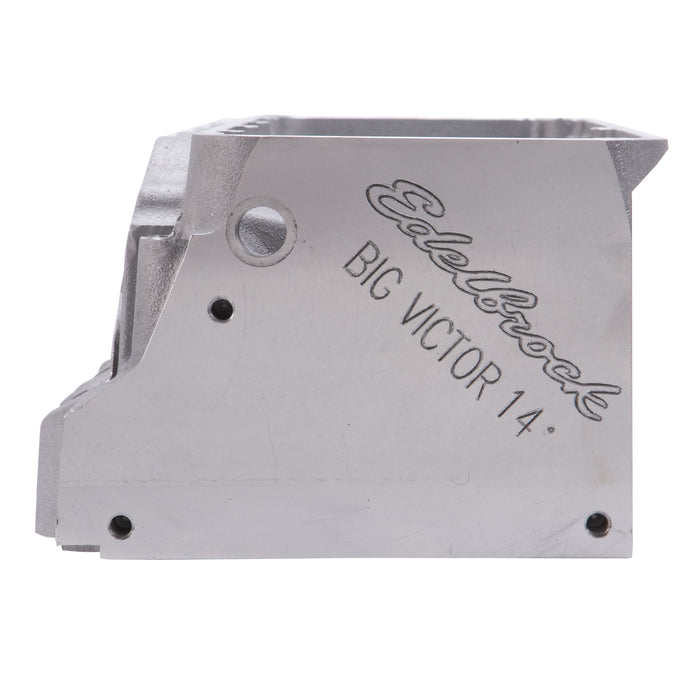

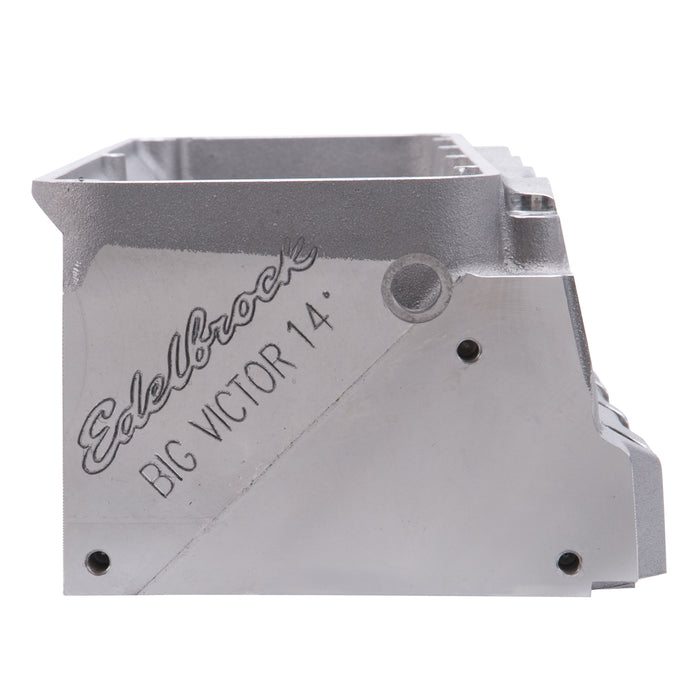

Edelbrock 618369 14-deg. Intake Valve
by Edelbrock
SKU ds_BDVJ_618369
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$3,505.94
-
Original price
$3,505.94
Original price
$3,505.94
$3,505.94
$3,505.94
-
$3,505.94
Current price
$3,505.94
Availability:
Out of stock
Description
the exhaust features a 2.000" long fulcrum and available in 1.60:1 - 2.00:1 rocker ratios. Requires Edelbrock valve covers #4259. Match with Edelbrock Victor CNC Series manifolds #28003 and #28005. Pro-Port version available for custom porting.
Specifications
| CNC Ported | No |
| Construction Type | Pro-Port Raw |
| Description_DEF | Engine Cylinder Head |
| Description_DES | CYLINDER HEAD |
| Description_EXT | 14-deg. Intake Valve |
| Description_EXT | Big Block (Pro Port) |
| Description_EXT | Big Victor |
| Description_EXT | Chevrolet |
| Description_EXT | Cylinder Head |
| Description_EXT | HIP d |
| Description_FAB | 4.84 in. Bore Spacing/Unmachined Combustion Chambers |
| Description_FAB | Bare Head |
| Description_FAB | For Big Block Chevy |
| Description_FAB | High Isostatic Pressing Design |
| Description_FAB | Requires Edelbrock Valve covers PN 4259 |
| Description_LAB | BIG VICTOR PRO-PORT 14 DEGREE RAW CYLINDER HEAD |
| Description_MKT | 9deg x 3.9deg exhaust |
| Description_MKT | Cylinder Head Specifications: Combustion chamber volume: 92cc |
| Description_MKT | Deck thickness: N/A |
| Description_MKT | Exhaust port location: N/A |
| Description_MKT | Exhaust runner volume: 189cc |
| Description_MKT | Exhaust valve diameter: 1.85" (Valves Not Included) |
| Description_MKT | Guideplate: N/A |
| Description_MKT | Intake runner volume: 442 (lh) / 451 (rh) |
| Description_MKT | Intake valve diameter: 2.45" (Valves Not Included) |
| Description_MKT | Pushrod diameter: N/A |
| Description_MKT | Rocker stud: Use Jesel KPS-381754 shaft-mount |
| Description_MKT | Spark plug fitment: 14mm x 3/4 reach, gasket seat. Intended for high output, large cubic inch racing engines with 4.84" bore spacing, this head is an improvement over existing 18deg designs, such as the Big Chief & Big Duke. The casting is made from A-356 aluminum and is Hot Isostatic Pressing processed (HIP) for superior strength, durability, dimensional stability and exceptional finish quality. These cylinder head features CNC ported intake ports and a raised exhaust runner design for improved flow efficiency. Chambers are fully CNC ported and extra material is included in the deck to allow fine tuning of the combustion chamber design, if desired. Edelbrock and Pat Musi worked with Jesel to improve the valvetrain geometry, delivering Pro-Stock level technology on engines up to 10,000 rpm. Jesel's shaft-mounted system, #KPS-387154, is made from lightweight 7000 series aluminum and features a one-piece stand design that pairs the intake and exhaust stands for improved valvetrain stability. The intake features a 1.820" long fulcrum and is available in 1.60:1 - 1.95:1 rocker ratios |
| Description_MKT | the exhaust features a 2.000" long fulcrum and available in 1.60:1 - 2.00:1 rocker ratios. Requires Edelbrock valve covers #4259. Match with Edelbrock Victor CNC Series manifolds #28003 and #28005. Pro-Port version available for custom porting. |
| Description_MKT | Valve angle: 18deg x 4.0deg intake |
| Description_MKT | Valve guides: Manganese bronze |
| Description_MKT | Valve spring diameter: Pocket diameter 1.76" (springs not included) |
| Description_MKT | Valve spring maximum lift: N/A |
| Description_MKT | Valve stem diameter: N/A |
| EGR Port | No |
| Exhaust Valve Diameter | (Suggested) 1.85 |
| Family | Big Victor |
| Grade Type | Performance |
| Guide Material | Manganese Bronze |
| Guide Plates Included | No |
| Head Casting Number | N/A |
| height | 9.5 |
| Intake Valve Diameter | (Suggested) 2.45 |
| length | 26.0 |
| Material | Aluminum |
| Quantity | Sold Individually |
| Retainer Included | No |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Pro-Port |
| Specialty | Hot Isostatic Pressing (HIP) Processing |
| Valve Angle | 14 |
| Valve Included | No |
| Valve Springs Included | No |
| weight | 43.4 |
| width | 11.0 |
