Edelbrock 618268 Engine Cylinder Head
by Edelbrock
SKU ds_BDVJ_618268
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$2,920.24
-
Original price
$2,920.24
Original price
$2,920.24
$2,920.24
$2,920.24
-
$2,920.24
Current price
$2,920.24
Availability:
Out of stock
Description

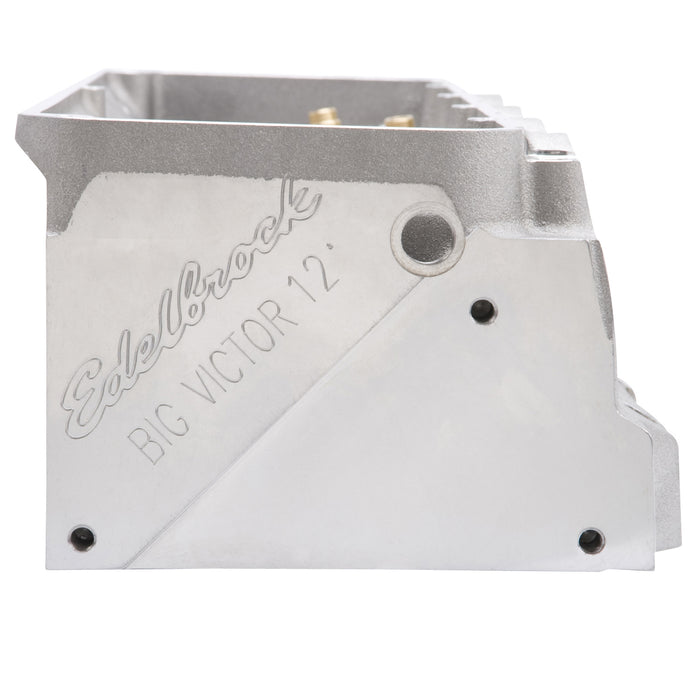

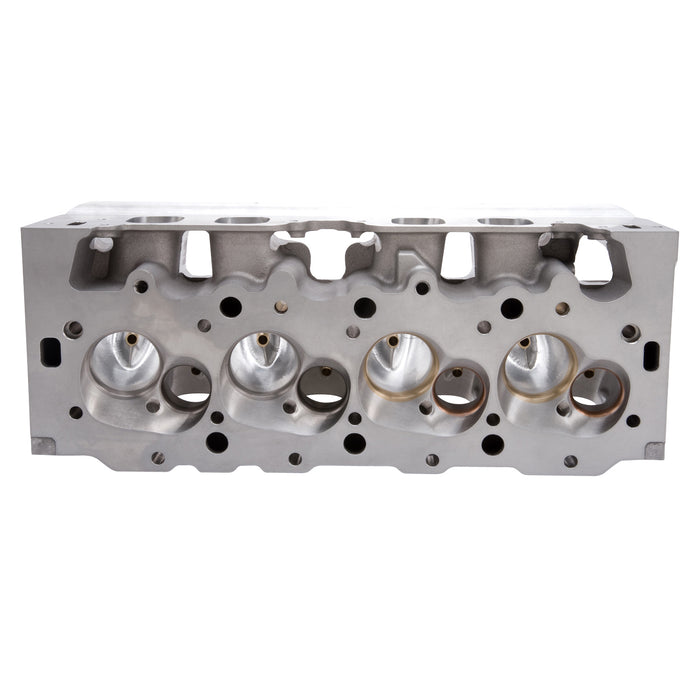

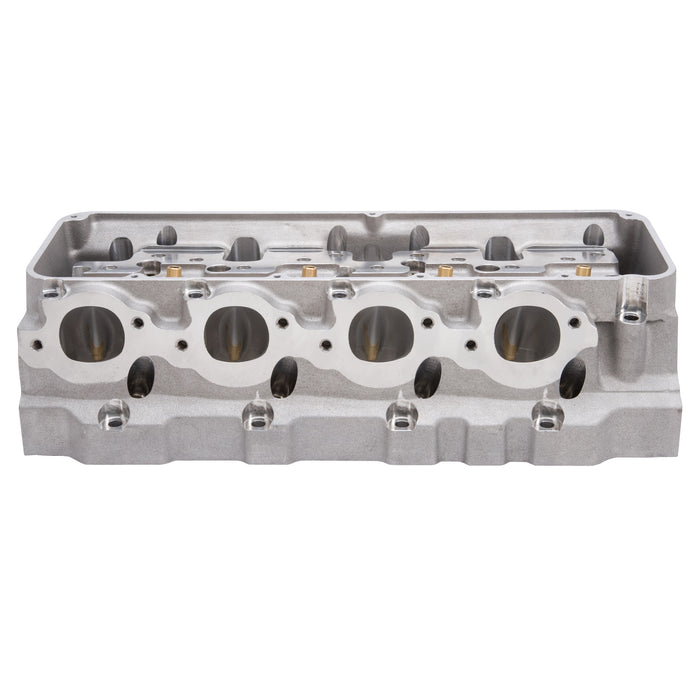

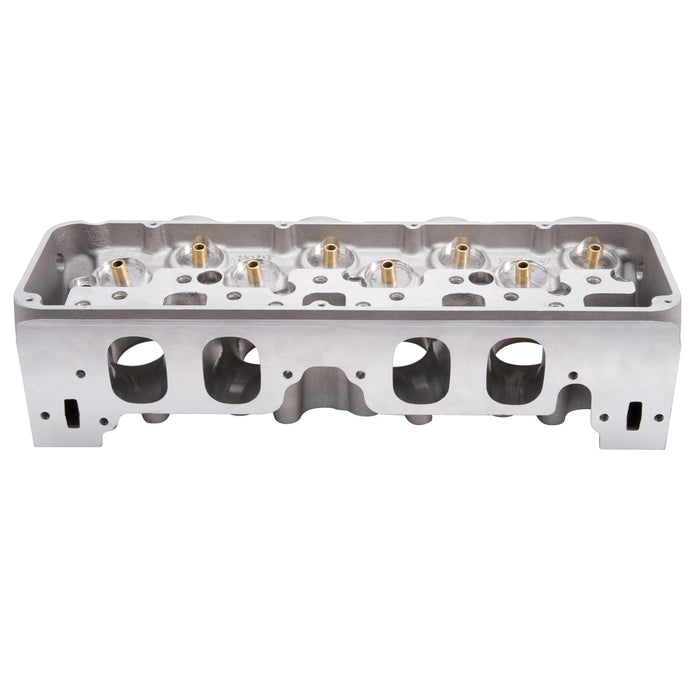

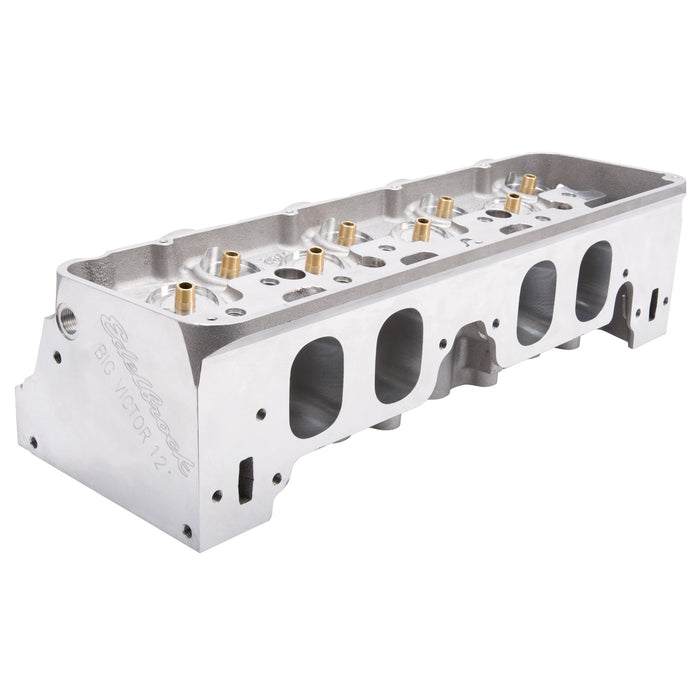

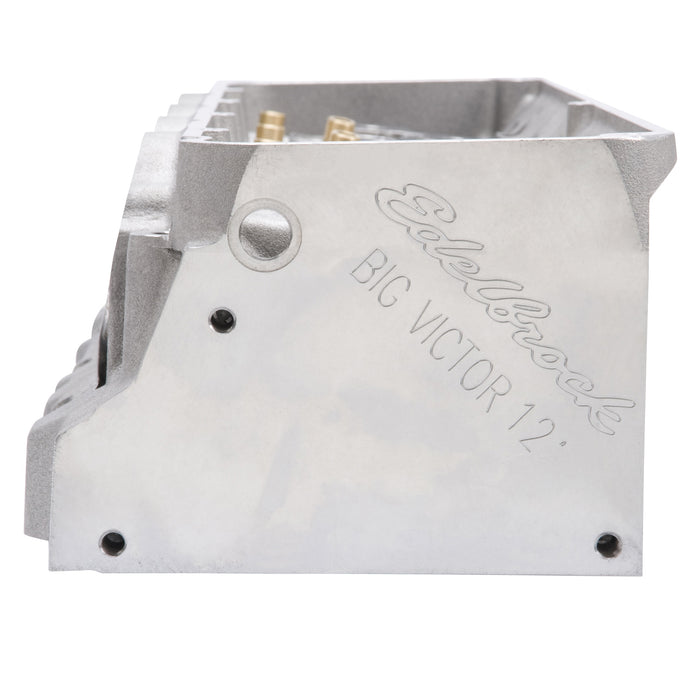

Edelbrock #618268 is a Fully CNC Ported Version of the Pro Port #618269 Head. Features a 12 Deg Intake Valve, 4.84" Bore Spacing, & Spread Port Layout. HIP Treated. Requires Special Valve Train and Sheet Metal Valve Covers.
Specifications
| Description_ABR | Cyl. Head |
| Description_ASM | Chevrolet:Big-Block Race |
| Description_DEF | Engine Cylinder Head |
| Description_EXT | Edelbrock #618268 is a Fully CNC Ported Version of the Pro Port #618269 Head. Features a 12 Deg Intake Valve, 4.84" Bore Spacing, & Spread Port Layout. HIP Treated. Requires Special Valve Train and Sheet Metal Valve Covers. |
| Description_INV | Edelbrock BBC Cylinder Head |
| Description_LAB | Big Victor Big-Block Chevy 12 Degree Cylinder Head CNC Ported |
| Description_MKT | The Edelbrock 618268 Big Block Chevy 14 Deg Big Victor cylinder head is intended for high output, large cubic inch racing engines with 4.84" bore spacing. This head is an improvement over existing 18 Deg designs, such as the Big Chief & Big Duke. The casting is made from A-356 aluminum and is Hot Isostatic Pressing processed (HIP) for superior strength, durability, dimensional stability and exceptional finish quality. These cylinder heads feature CNC ported intake ports and a raised exhaust runner design for improved flow efficiency. Chambers are fully CNC ported and extra material is included in the deck to allow fine tuning of the combustion chamber design, if desired. Edelbrock and Pat Musi worked with Jesel to improve the valvetrain geometry, delivering Pro-Stock level technology on engines up to 10,000 rpm. Jesel's shaft-mounted system, #KPS-387154, is made from lightweight 7000 series aluminum and features a one-piece stand design that pairs the intake and exhaust stands for improved valvetrain stability. The intake features a 1.820" long fulcrum and is available in 1.60:1 - 1.95:1 rocker ratios |
| Description_MKT | the exhaust features a 2.000" long fulcrum and available in 1.60:1 - 2.00:1 rocker ratios. Requires Edelbrock valve covers #4259. |
| Description_TRA | For use in Racing applications only |
| height | 9.5 |
| length | 26.0 |
| weight | 43.4 |
| width | 11.0 |
