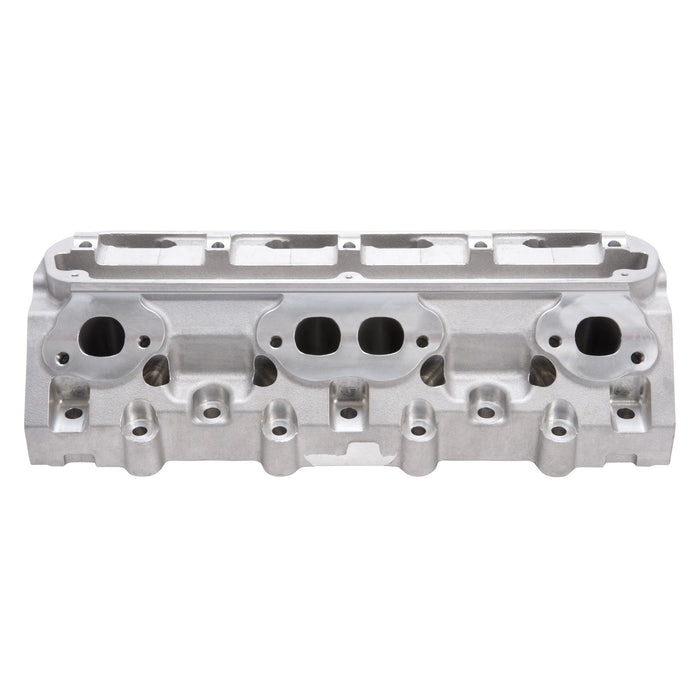

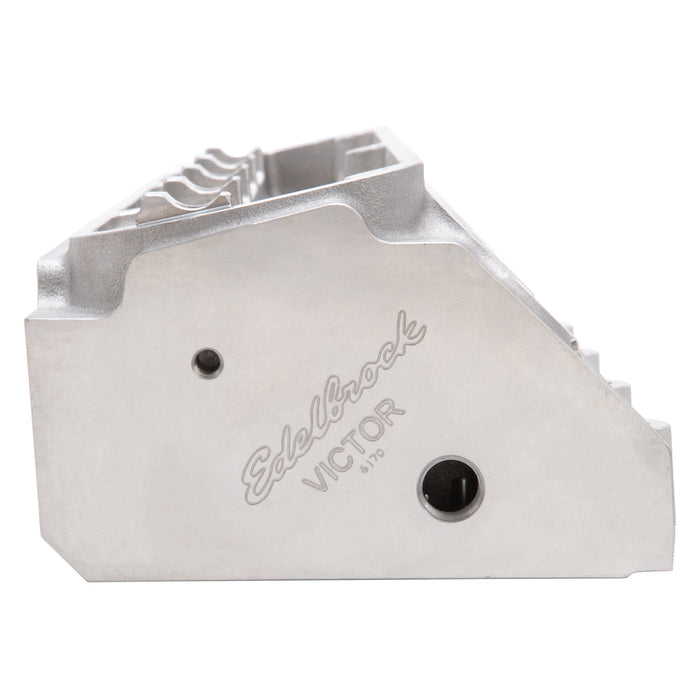

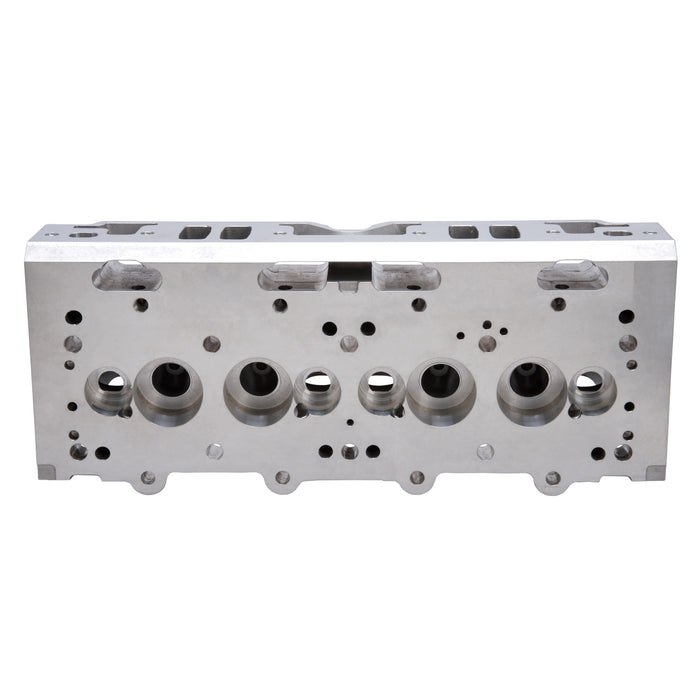

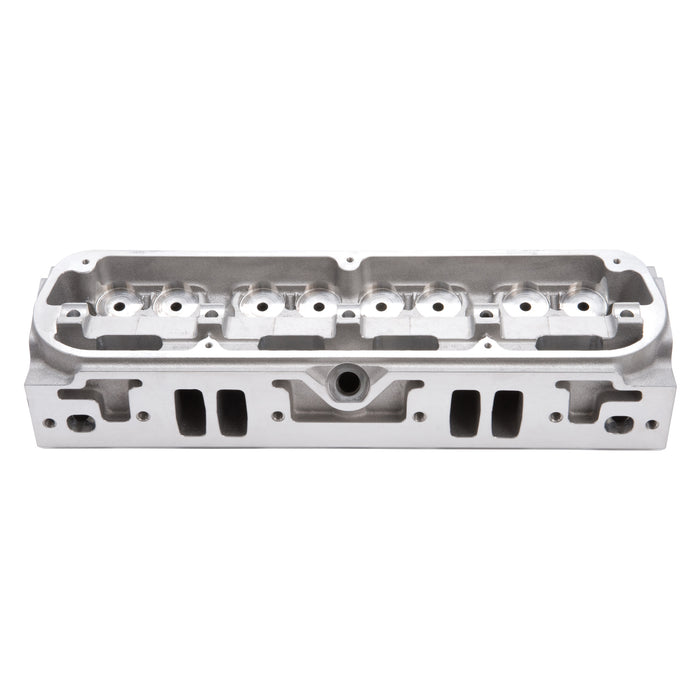

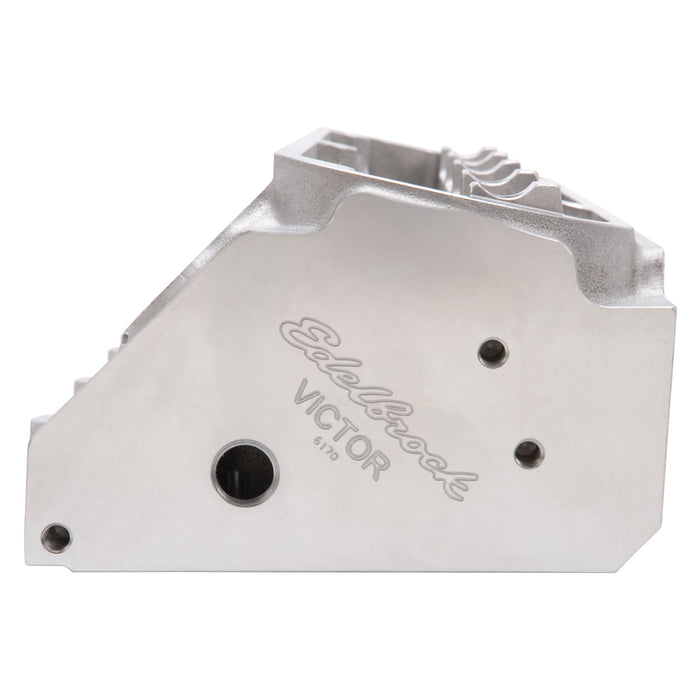

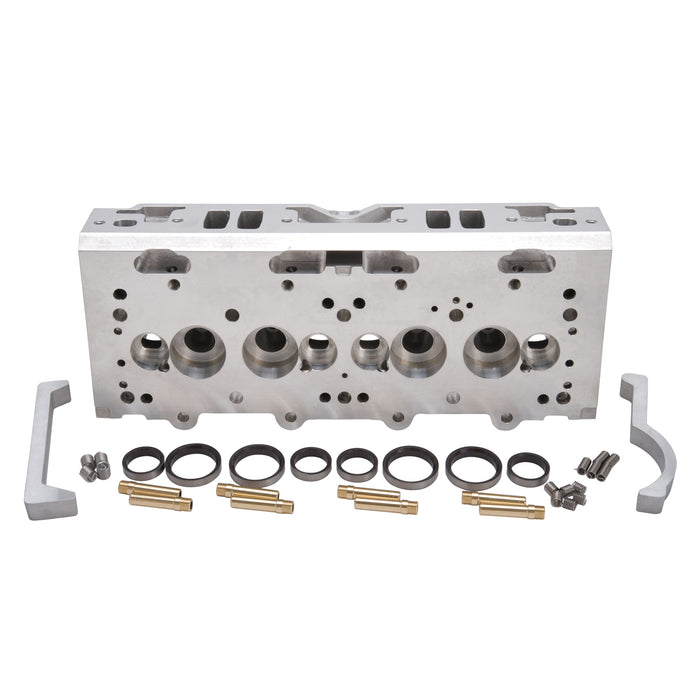

Edelbrock 61749 Engine Cylinder Head
by Edelbrock
SKU ds_BDVJ_61749
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$1,460.17
-
Original price
$1,460.17
Original price
$1,460.17
$1,460.17
$1,460.17
-
$1,460.17
Current price
$1,460.17
Availability:
Out of stock
Description
The Edelbrock 61749 Small Block Chrysler 16 Deg Pro-Port Cylinder head is designed specifically for the professional cylinder head porter and engine builder. Like all other Edelbrock Cylinder heads, Pro-Port cylinder heads are also cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting. In most cases, seats and manganese-bronze valve guides are included, but not installed. Please note: These heads can not be used without professional head preparation. Pro-Port RAW Features Include: - Unported versions of Edelbrock race-winning Victor Series CNC heads for the professional cylinder head porter and engine builder - Pro-Port cylinder heads are cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting - The only heads designed specifically to accommodate almost any CNC port shape, size or location - Offers enough wall thickness for CNC machining to various port dimensions - In most cases seats and manganese-bronze valve guides are included - Some Edelbrock Pro-Port Raw Heads Feature Our Special Hot Isostatic Pressing or HIP Process.
Specifications
| CNC Ported | No |
| Description_ABR | Cyl. Head |
| Description_ASM | Chrysler:Small-Block:273 (4.5L)/318 (5.2L)/340 (5.6L)/360 (5.9L) |
| Description_DEF | Engine Cylinder Head |
| Description_EXT | Edelbrock part #61749 Small Block Chrysler 16 Deg Pro-Port Cylinder head is designed specifically for the professional cylinder head porter and engine builder. |
| Description_INV | Edelbrock SB Chrysler Cylinder Head |
| Description_LAB | Victor Small-Block Chrysler Cylinder Head Bare |
| Description_MKT | The Edelbrock 61749 Small Block Chrysler 16 Deg Pro-Port Cylinder head is designed specifically for the professional cylinder head porter and engine builder. Like all other Edelbrock Cylinder heads, Pro-Port cylinder heads are also cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting. In most cases, seats and manganese-bronze valve guides are included, but not installed. Please note: These heads can not be used without professional head preparation. Pro-Port RAW Features Include: - Unported versions of Edelbrock race-winning Victor Series CNC heads for the professional cylinder head porter and engine builder - Pro-Port cylinder heads are cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting - The only heads designed specifically to accommodate almost any CNC port shape, size or location - Offers enough wall thickness for CNC machining to various port dimensions - In most cases seats and manganese-bronze valve guides are included - Some Edelbrock Pro-Port Raw Heads Feature Our Special Hot Isostatic Pressing or HIP Process. |
| Description_TRA | In most cases seats and manganese-bronze valve guides are included |
| Description_TRA | Not ported versions of Edelbrock race-winning Victor Series CNC heads for the professional cylinder head porter and engine builder |
| Description_TRA | Offers enough wall thickness for CNC machining to various port dimensions |
| Description_TRA | The only heads designed specifically to accommodate almost any CNC port shape, size or location |
| Grade Type | Performance |
| Guide Plates Included | No |
| Head Casting Number | 6170F |
| height | 7.188 |
| length | 22.188 |
| Material | Aluminum |
| Push Rod Diameter | 0.312 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Valve Angle | 16 |
| weight | 50.0 |
| width | 10.125 |
