Edelbrock 61709 Engine Cylinder Head
by Edelbrock
SKU ds_BDVJ_61709
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$2,001.31
-
Original price
$2,001.31
Original price
$2,001.31
$2,001.31
$2,001.31
-
$2,001.31
Current price
$2,001.31
Availability:
Out of stock
Description

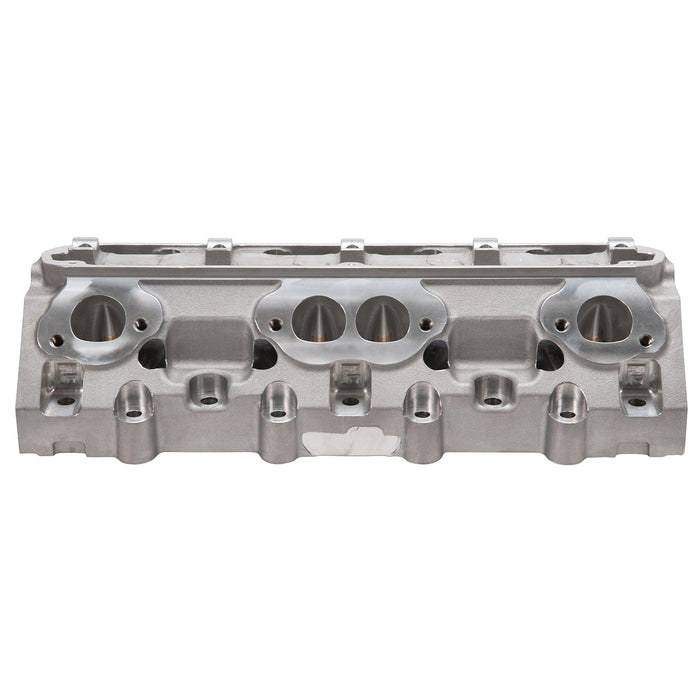

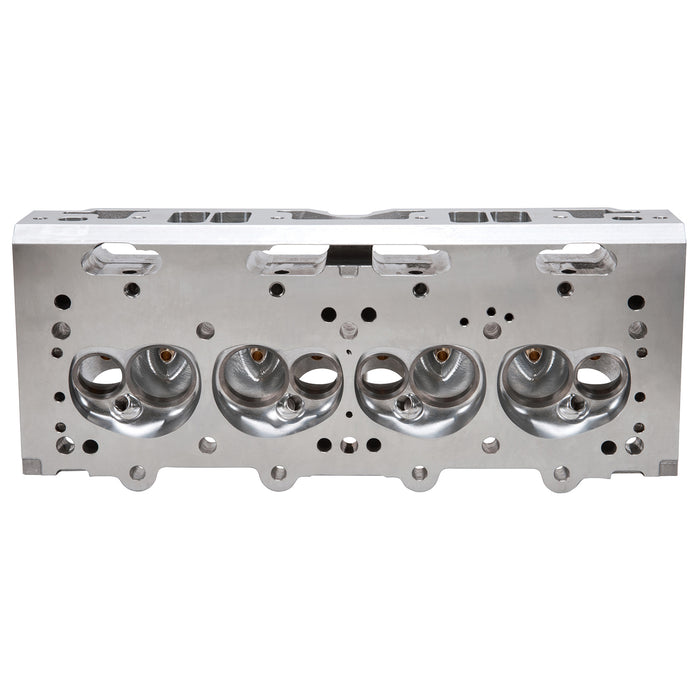

Edelbrock part #61709 Victor Series Bare cylinder heads are for use on 1967-1991, 318-360 c.i.d. Chrysler LA engines. They feature fully CNC ported 58cc combustion chambers and have an intake port volume of 225cc.
Specifications
| Description_ABR | Cyl. Head |
| Description_ASM | Chrysler:Small-Block:273 (4.5L)/318 (5.2L)/340 (5.6L)/360 (5.9L) |
| Description_DEF | Engine Cylinder Head |
| Description_EXT | Edelbrock part #61709 Victor Series Bare cylinder heads are for use on 1967-1991, 318-360 c.i.d. Chrysler LA engines. They feature fully CNC ported 58cc combustion chambers and have an intake port volume of 225cc. |
| Description_INV | Edelbrock SB Chrysler Cylinder Head |
| Description_LAB | Victor Small-Block Chrysler Cylinder Head |

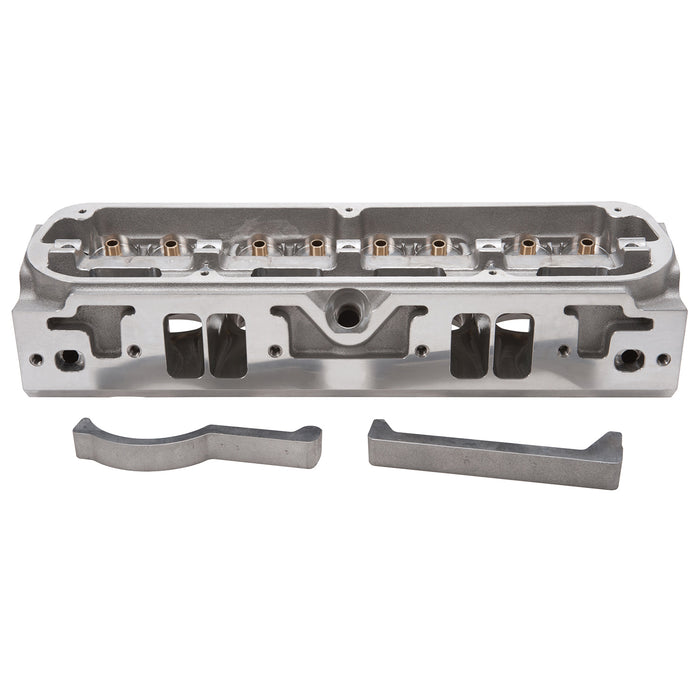

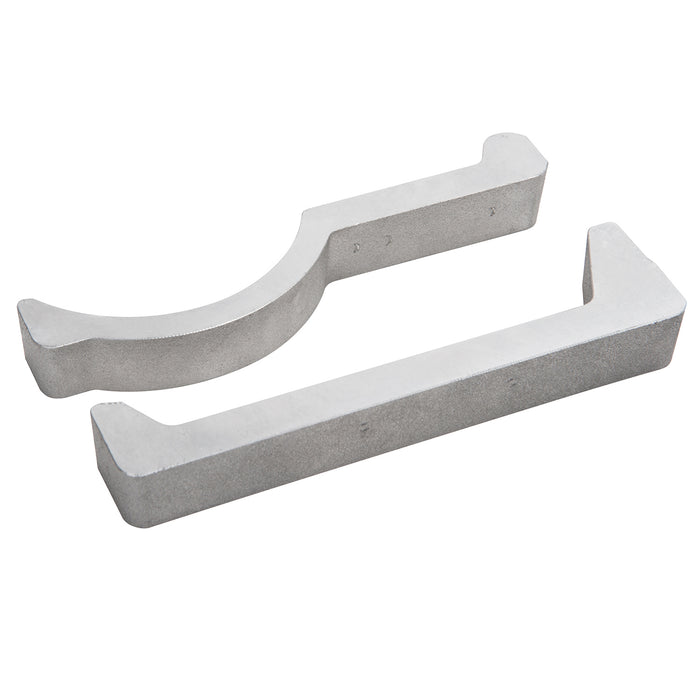

| Description_MKT | bare, bare with valves, complete (for hydraulic/flat tappet cams and solid roller cams) and Pro Port Raw. End-seal spacers are provided. |
| Description_MKT | The Edelbrock #61719 Victor Series Bare cylinder heads are for use on 1967-1991, 318-360 c.i.d. Chrysler LA engines. They feature fully CNC ported 58cc combustion chambers and have an intake port volume of 225cc. These cylinder heads are an in-line valve design incorporating a 16 Deg valve angle (stock is 18 Deg ) for improved air flow and increased power levels over heavily ported stock versions. They also feature the Chrysler W5 bolt pattern and have raised exhaust ports. The intake port has also been raised approximately 3/4" and the flange has also been extended to accommodate a stock (race) intake manifold such as our Super Victor #2815. Finally, a 5.56" overall length valve (+0.600" from stock) and raised rocker cover permit larger port cross-sections than in the stock head. Four versions are available |
| Description_TRA | Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. |
| Description_TRA | These heads are designed to accommodate stock Big Block Mopar Wedge Rocker arm assemblies (.150" minimum intake offset). |
| height | 8.185 |
| length | 24.75 |
| weight | 50.0 |
| width | 10.438 |
