Edelbrock 61657 Engine Cylinder Head
by Edelbrock
SKU ds_BDVJ_61657
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$1,260.13
-
Original price
$1,260.13
Original price
$1,260.13
$1,260.13
$1,260.13
-
$1,260.13
Current price
$1,260.13
Availability:
Out of stock
Description

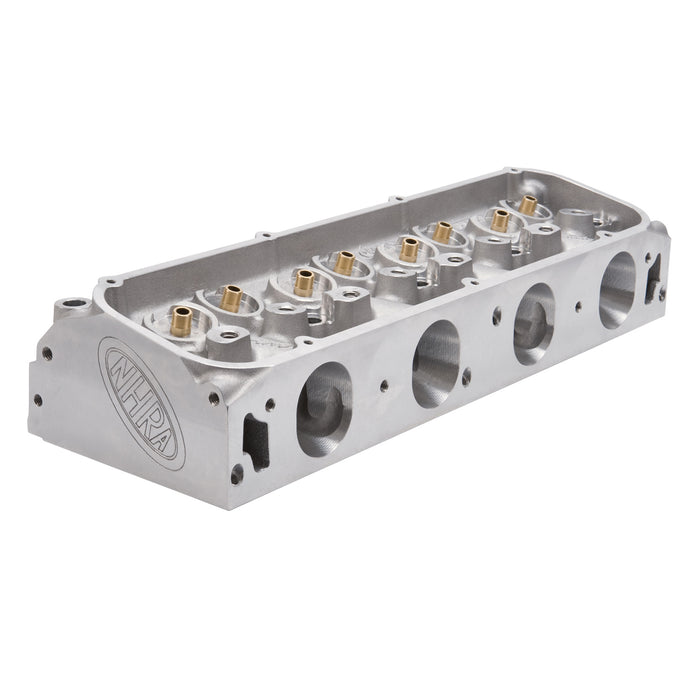

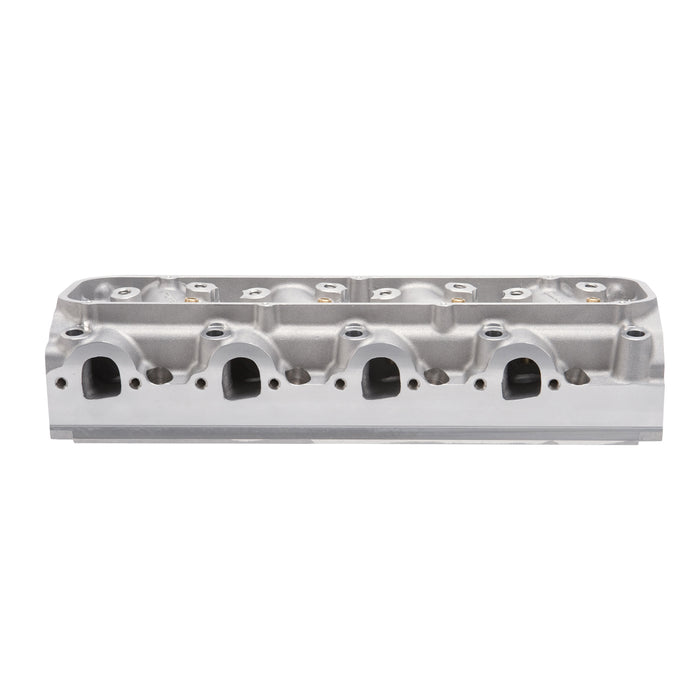

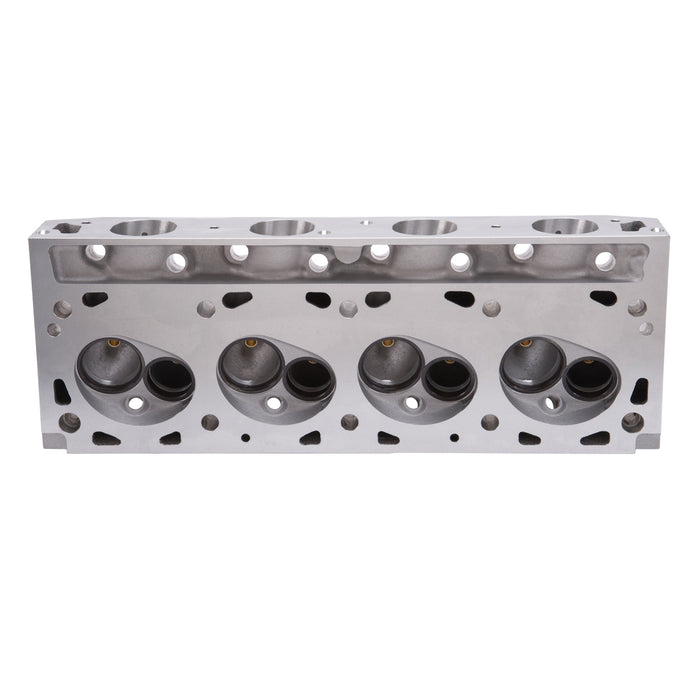

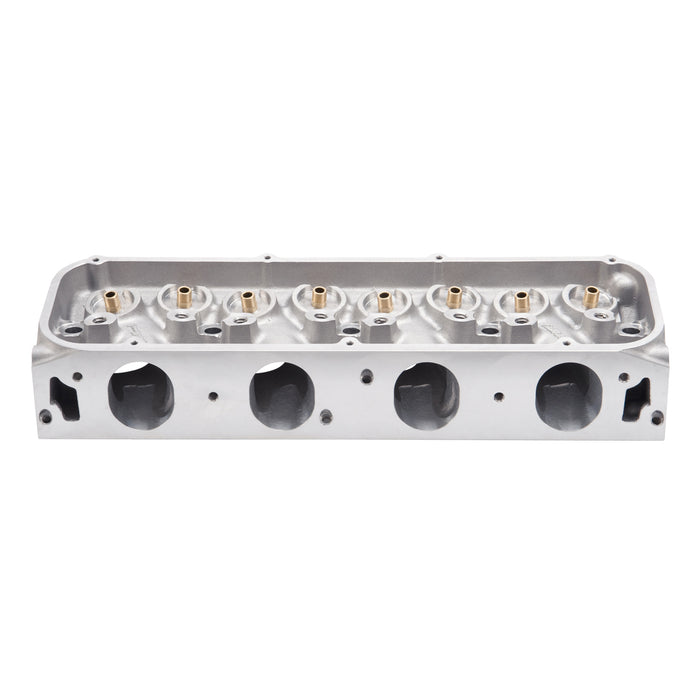

The Edelbrock #61657 Performer RPM CJ Bare NHRA Stock/Super Stock cylinder heads are designed for use with 1968-87 429/460 Fords and SVO 514 engine applications. The Edelbrock #61657 Performer RPM heads are perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. These cylinder heads deliver great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.
Specifications
| CNC Ported | No |
| Combustion Chamber Volume | 75.0 |
| Deck Thickness | 0.625 |
| Description_ABR | Cyl. Head |
| Description_ASM | Ford:Big-Block:429 (7.0L )/460 (7.5L) |
| Description_DEF | Engine Cylinder Head |
| Description_EXT | Edelbrock part #61657 Performer RPM CJ Bare NHRA Stock/Super Stock cylinder heads are designed for use with 1968-87 429/460 Fords and SVO 514 engine applications. |
| Description_INV | Edelbrock BB Ford Cylinder Head |
| Description_LAB | RPM Big-Block Ford 460 Cylinder Head 460 CJ NHRA |
| Description_MKT | The Edelbrock #61657 Performer RPM CJ Bare NHRA Stock/Super Stock cylinder heads are designed for use with 1968-87 429/460 Fords and SVO 514 engine applications. The Edelbrock #61657 Performer RPM heads are perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. These cylinder heads deliver great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only. |
| Description_TRA | Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. |
| Description_TRA | Deck thickness: 5/8" |
| Description_TRA | Machined profile Cobra Jet-style intake port entries |
| Description_TRA | Match with Edelbrock head gasket sets. |
| Description_TRA | Pushrod diameter: 3/8" (width of slot in guide plate). |
| Description_TRA | Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. |
| Description_TRA | Rocker stud diameter: 7/16" |
| Grade Type | Performance |
| Guide Plates Included | No |
| Head Casting Number | 31-6067 |
| height | 8.5 |
| Intake Runner Volume | 310.0 |
| length | 26.0 |
| Material | Aluminum |
| Push Rod Diameter | 0.375 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| weight | 31.65 |
| width | 11.0 |
