Edelbrock 61609 Engine Cylinder Head
by Edelbrock
SKU ds_BDVJ_61609
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$858.50
-
Original price
$858.50
Original price
$858.50
$858.50
-
$858.50
Current price
$858.50
Availability:
Out of stock
Description

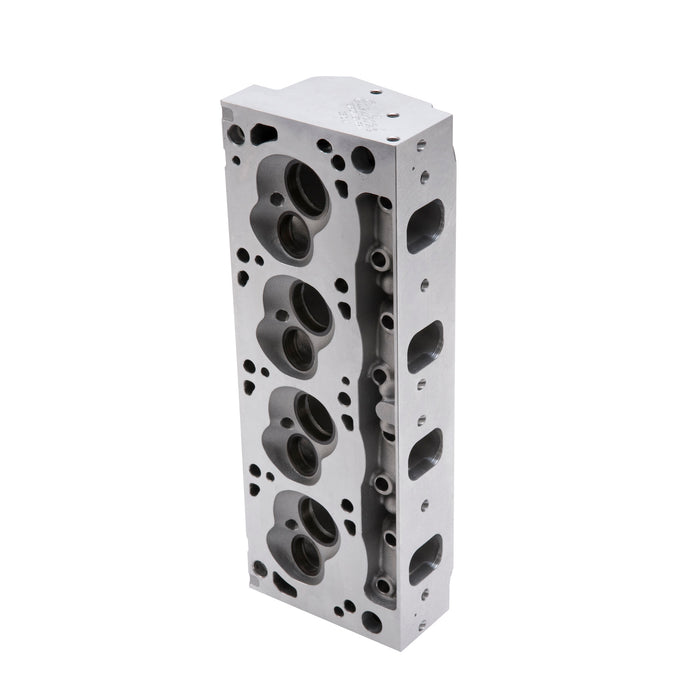

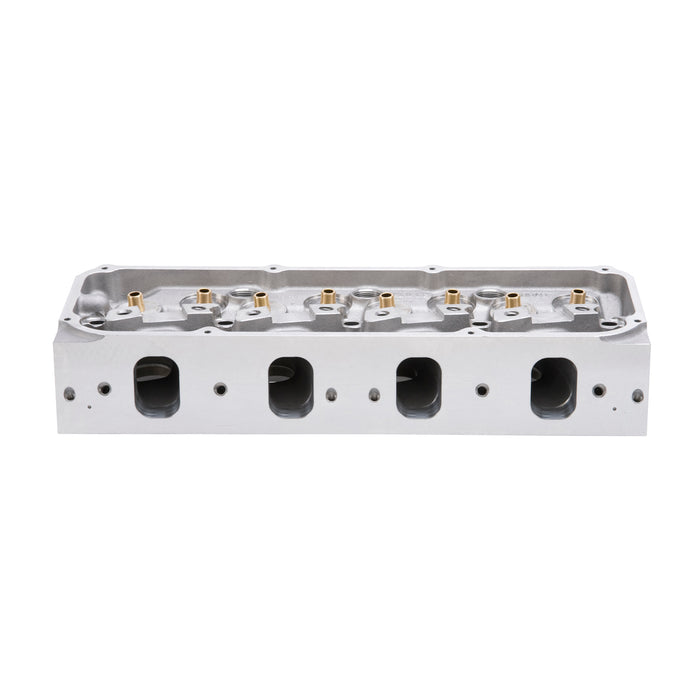

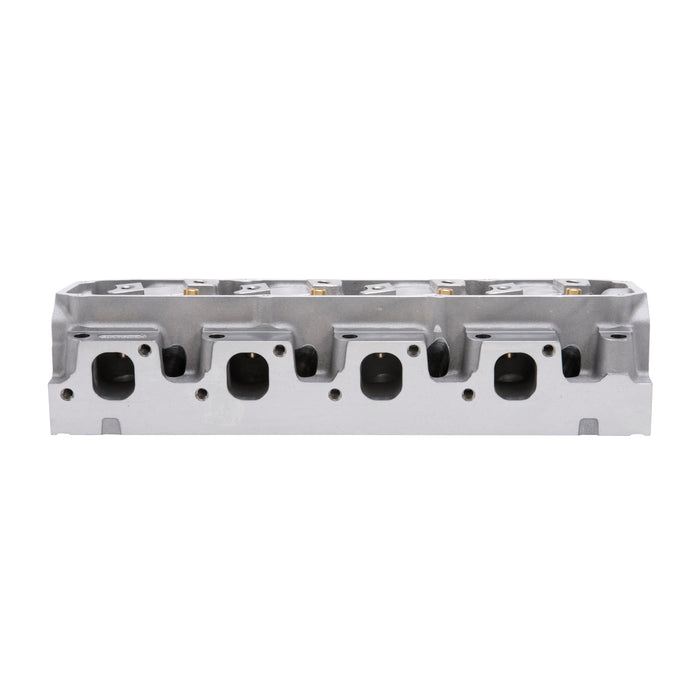

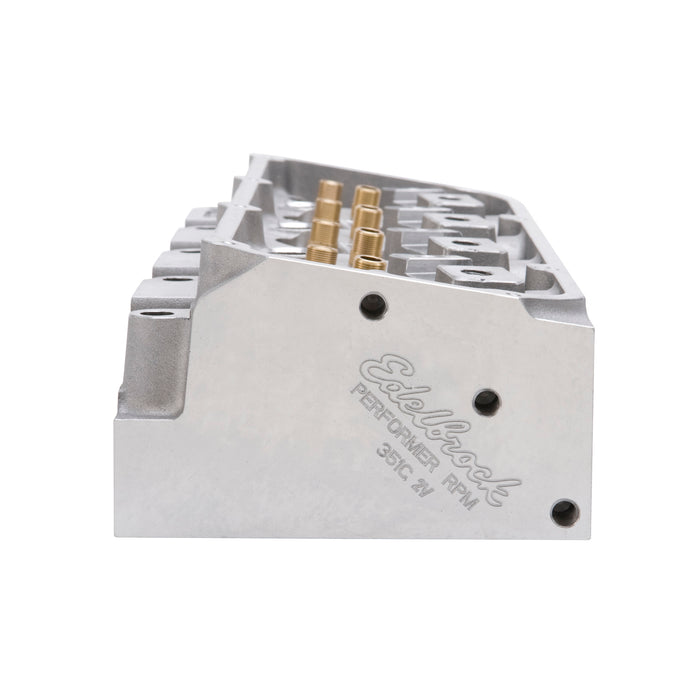

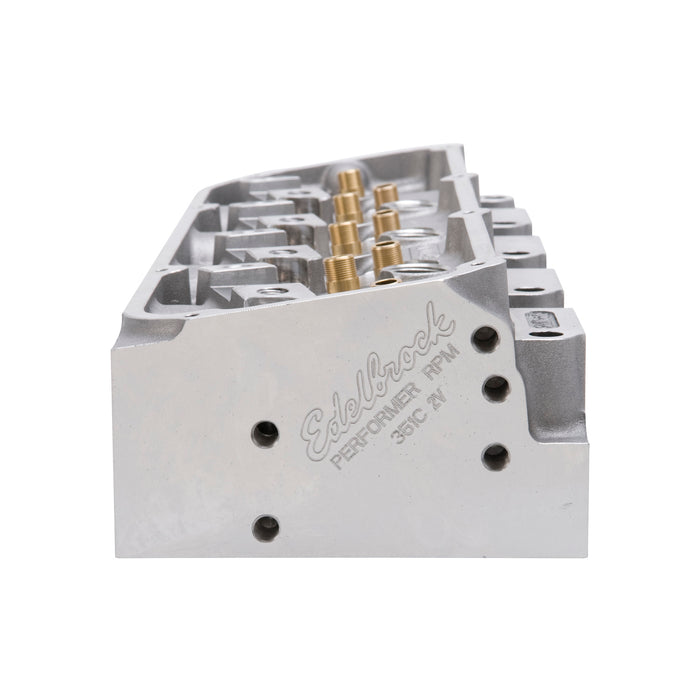

The Edelbrock #61609 Performer RPM Bare cylinder head is designed for use with 351C, 351M & 400M Ford engine applications. The Edelbrock #61609 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. For use on pre-pollution controlled vehicles only.
Specifications
| CNC Ported | No |
| Combustion Chamber Volume | 60 |
| Construction Type | Bare |
| Deck Thickness | 0.625 |
| Description_ABR | Cyl. Head |
| Description_ASM | Ford:Small-Block Cleveland:351 (5.8L) |
| Description_DEF | Engine Cylinder Head |
| Description_EXT | Edelbrock part #61609 Performer RPM bare cylinder heads are designed for use with 351C, 351M & 400M Ford engine applications. |
| Description_INV | Edelbrock SBF Cleveland Cylinder Head |
| Description_LAB | RPM Small-Block Ford 351 Cleveland Cylinder Head Bare |
| Description_MKT | The Edelbrock #61609 Performer RPM Bare cylinder head is designed for use with 351C, 351M & 400M Ford engine applications. The Edelbrock #61609 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. For use on pre-pollution controlled vehicles only. |

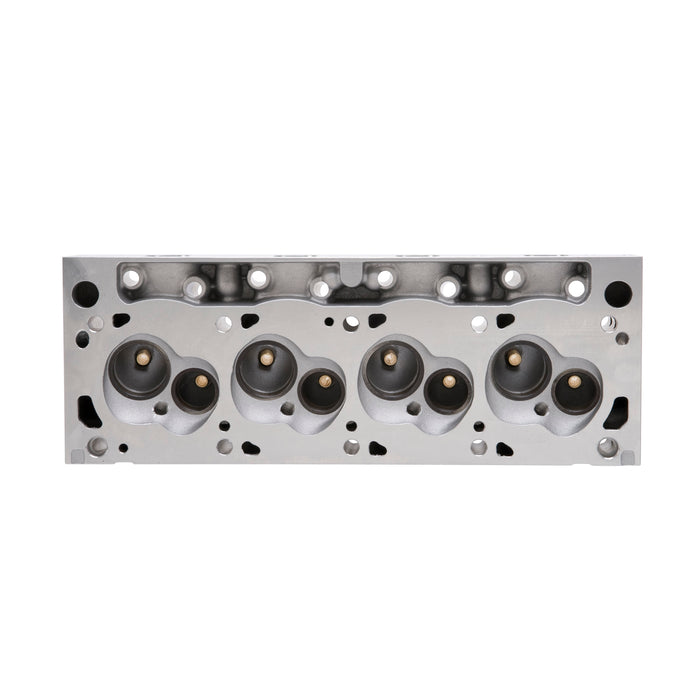

| Description_TRA | "Compact charge" kidney shape combustion chamber design |
| Description_TRA | Bare heads will have valve guides & seats installed, but will require final sizing & a valve job to match the valves you will be using. |
| Description_TRA | Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. |
| Description_TRA | Deck thickness: 5/8" |
| Description_TRA | Intake and exhaust ports based on 2V design |
| Description_TRA | Match with Edelbrock head gasket sets. |
| Description_TRA | Match with Edelbrock RPM Air-Gap manifold #7564 |
| Description_TRA | Optimized spark plug location provides improved header clearance |
| Description_TRA | Pushrod diameter: 5/16" (width of slot in guide plate). |
| Description_TRA | Recommended spark plugs 14mm x 3/4" reach with flat gasket seat (Champion RC12YC). |
| Description_TRA | Rocker stud diameter: 7/16" |
| Description_TRA | Valve sizes are recommended, not maximum. |
| Description_TRA | Very streetable 190cc intake runners |
| Exhaust Port Location | Standard |
| Exhaust Runner Volume | 90 |
| Family | Performer RPM |
| Grade Type | Performance |
| Guide Material | Manganese Bronze |
| Guide Plates Included | No |
| Head Casting Number | N/A |
| height | 8.6 |
| Intake Runner Volume | 190 |
| length | 25.9 |
| Material | Aluminum |
| Quantity | Sold Individually |
| Retainer Included | No |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Seat Angle | Exhaust 45 deg/Intake 45 |
| Seat Material | Ductile Iron |
| Series | Performer RPM |
| Valve Included | No |
| Valve Springs Included | No |
| weight | 29.6 |
| width | 11.1 |
