Edelbrock 614369 Engine Cylinder Head
by Edelbrock
SKU ds_BDVJ_614369
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$1,652.05
-
Original price
$1,652.05
Original price
$1,652.05
$1,652.05
$1,652.05
-
$1,652.05
Current price
$1,652.05
Availability:
Out of stock
Description

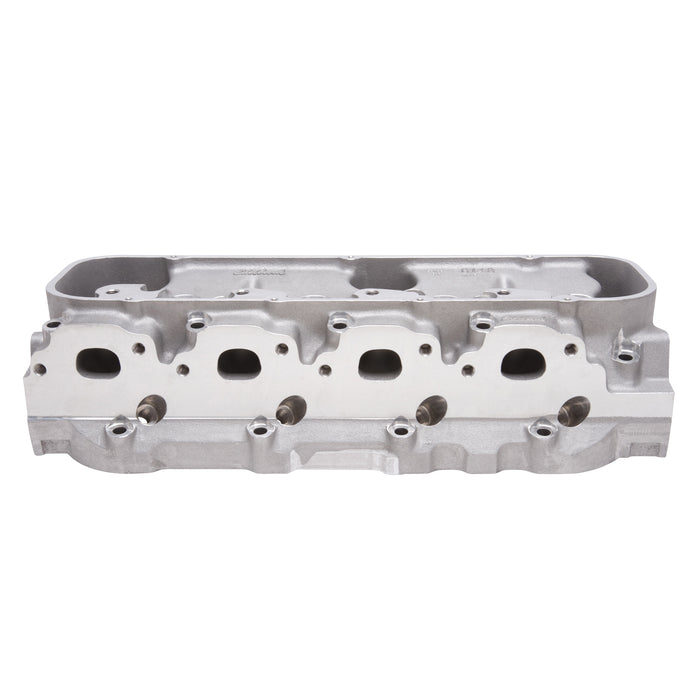

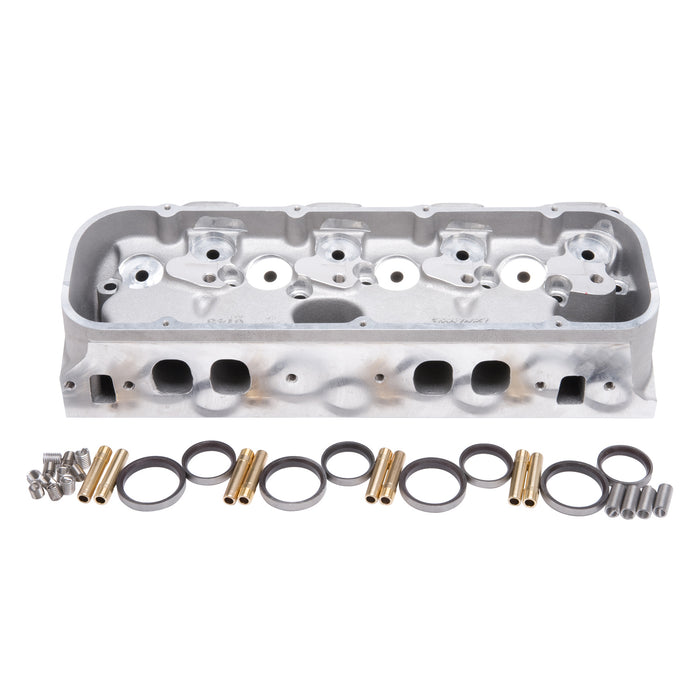

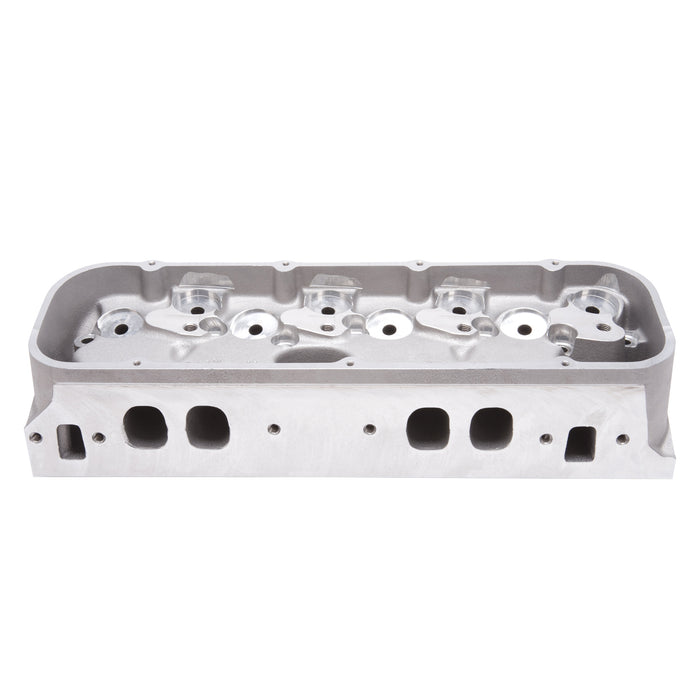

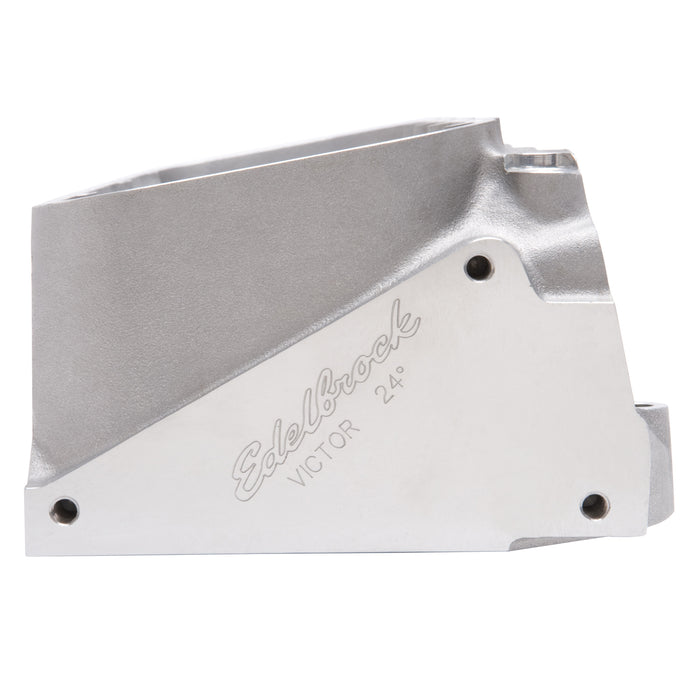

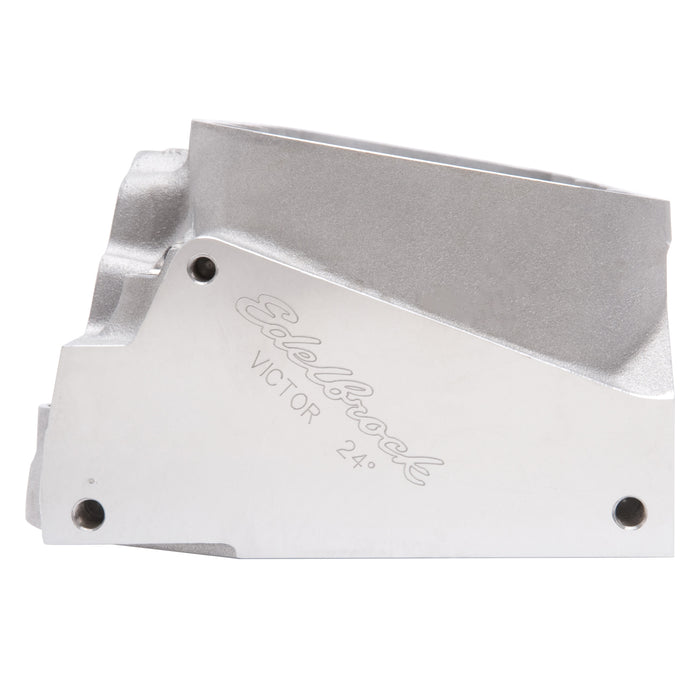

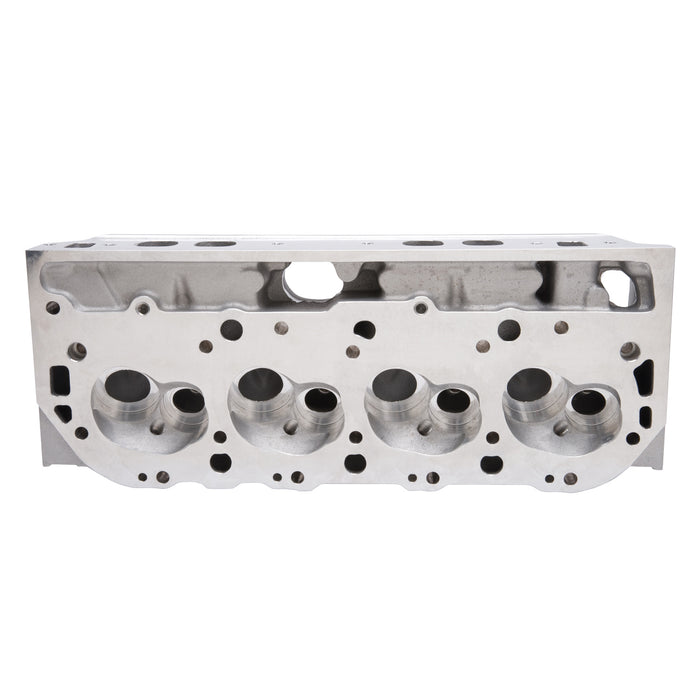

The Edelbrock 614369 Big Block Chevy 24 Deg Gen II Pro-Port Cylinder head is designed specifically for the professional cylinder head porter and engine builder. Like all other Edelbrock Cylinder heads, Pro-Port cylinder heads are also cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting. In most cases, seats and manganese-bronze valve guides are included, but not installed. Please note: These heads can not be used without professional head preparation. Pro-Port RAW Features Include: - Unported versions of Edelbrock race-winning Victor Series CNC heads for the professional cylinder head porter and engine builder - Pro-Port cylinder heads are cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting - The only heads designed specifically to accommodate almost any CNC port shape, size or location - Offers enough wall thickness for CNC machining to various port dimensions - In most cases seats and manganese-bronze valve guides are included - Some Edelbrock Pro-Port Raw Heads Feature Our Special Hot Isostatic Pressing or HIP Process.
Specifications
| Description_ABR | Cyl. Head |
| Description_ASM | Chevrolet:Big-Block Race |
| Description_DEF | Engine Cylinder Head |
| Description_EXT | Edelbrock #614369 is a 24 Deg Big-Block Chevy Cylinder Head, Identical to the #61429 Pro-Port Cylinder Head Except the Pushrod and Intake Rocker Stud Machining is Omitted to Allow a Variety of Potential End Applications. HIP Treated Casting |
| Description_INV | Edelbrock BBC Cylinder Head |
| Description_LAB | Pro Port Victor Big-Block Chevy Cylinder Head HIP |
| Description_MKT | The Edelbrock 614369 Big Block Chevy 24 Deg Gen II Pro-Port Cylinder head is designed specifically for the professional cylinder head porter and engine builder. Like all other Edelbrock Cylinder heads, Pro-Port cylinder heads are also cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting. In most cases, seats and manganese-bronze valve guides are included, but not installed. Please note: These heads can not be used without professional head preparation. Pro-Port RAW Features Include: - Unported versions of Edelbrock race-winning Victor Series CNC heads for the professional cylinder head porter and engine builder - Pro-Port cylinder heads are cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting - The only heads designed specifically to accommodate almost any CNC port shape, size or location - Offers enough wall thickness for CNC machining to various port dimensions - In most cases seats and manganese-bronze valve guides are included - Some Edelbrock Pro-Port Raw Heads Feature Our Special Hot Isostatic Pressing or HIP Process. |
| Description_TRA | In most cases seats and manganese-bronze valve guides are included |
| Description_TRA | Not ported versions of Edelbrock race-winning Victor Series CNC heads for professional cylinder head porter and engine builder |
| Description_TRA | Offers enough wall thickness for CNC machining to various port dimensions |
| Description_TRA | Only heads designed specifically to accommodate almost any CNC port shape, size or location |
| Description_TRA | Pro-Port cylinder heads are cast in USA at state-of--art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting |
| Description_TRA | Some Edelbrock Pro-Port Raw Heads Feature Our Special Hot Isostatic Pressing or HIP Process. |
| height | 8.5 |
| length | 26.0 |
| weight | 48.5 |
| width | 11.0 |
