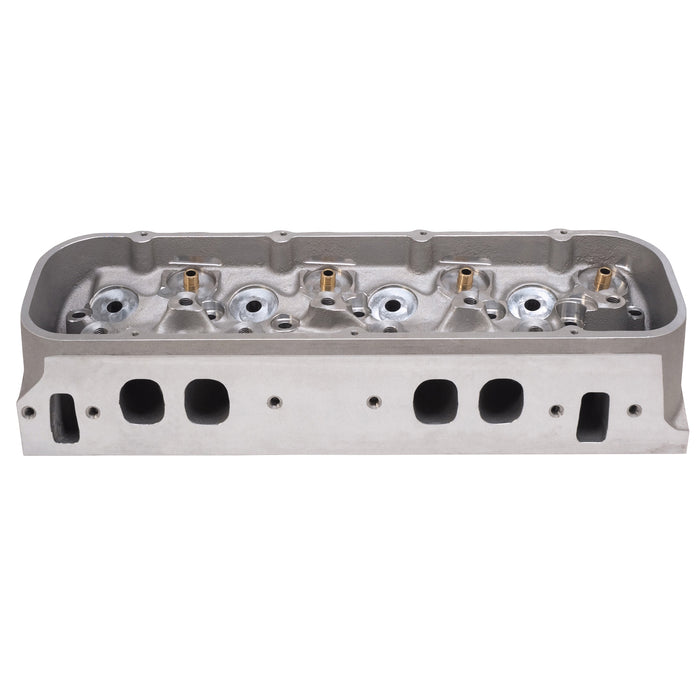

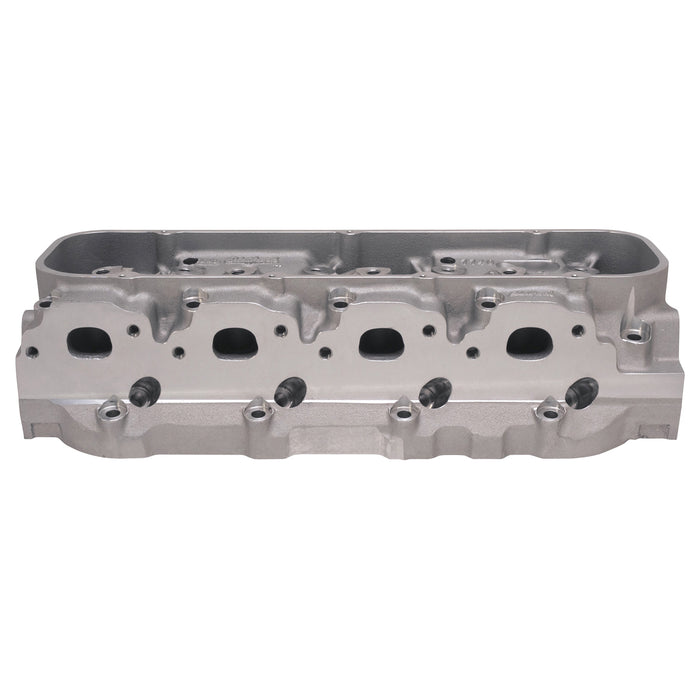

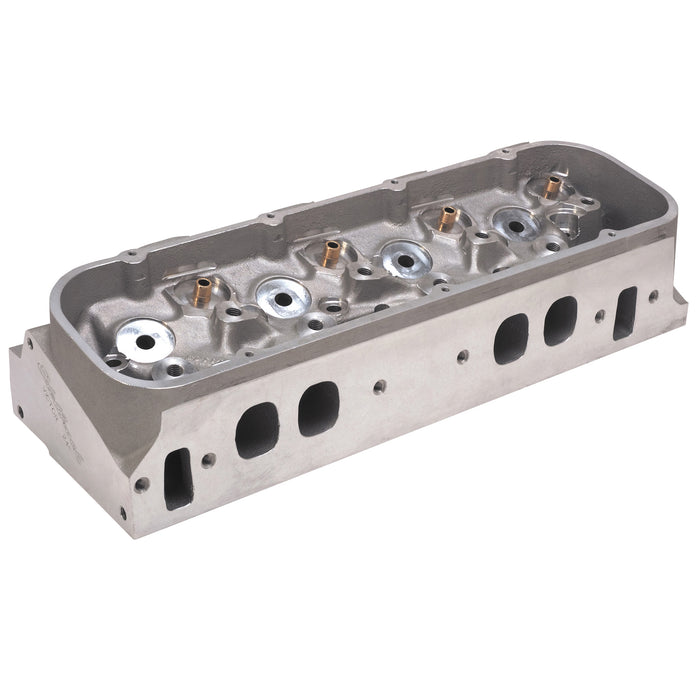

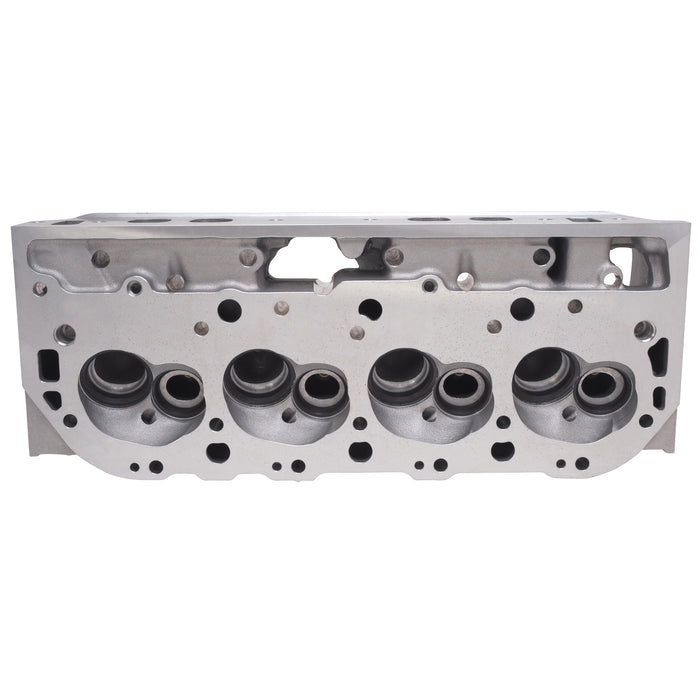

Edelbrock 61429 Engine Cylinder Head
by Edelbrock
SKU ds_BDVJ_61429
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$796.95
-
Original price
$796.95
Original price
$796.95
$796.95
-
$796.95
Current price
$796.95
Availability:
Out of stock
Description
The Edelbrock 61429 Big Block Chevy 24deg Pro-Port Cylinder head is designed specifically for the professional cylinder head porter and engine builder. Like the other Edelbrock Cylinder head, The Pro-Port cylinder head is also cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting. In most cases, seats and manganese-bronze valve guides are included, but not installed. Please note: This head can not be used without professional head preparation. Pro-Port RAW Features Include: - Unported versions of Edelbrock race-winning Victor Series CNC head for the professional cylinder head porter and engine builder - The Pro-Port cylinder head is cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting - The only head designed specifically to accommodate almost any CNC port shape, size or location - Offers enough wall thickness for CNC machining to various port dimensions - In most cases seats and manganese-bronze valve guides are included - Some of the Edelbrock Pro-Port Raw Head Feature Our Special Hot Isostatic Pressing or HIP Process.
Specifications
| Bore Diameter | Minimum 4.47 |
| CNC Ported | No |
| Combustion Chamber Volume | Possible 38 |
| Construction Type | Pro-Port Raw |
| Deck Thickness | 0.562 |
| Description_ABR | Cyl. Head |
| Description_ASM | Chevrolet:Big-Block Race |
| Description_DEF | Engine Cylinder Head |
| Description_EXT | Edelbrock part #61429 Big Block Chevy 24 Deg Pro-Port Cylinder head is designed specifically for the professional cylinder head porter and engine builder. |
| Description_INV | Edelbrock BBC Cylinder Head |
| Description_LAB | Victor Musi Big-Block Chevy CNC Cylinder Head Pro Port |
| Description_MKT | The Edelbrock 61429 Big Block Chevy 24deg Pro-Port Cylinder head is designed specifically for the professional cylinder head porter and engine builder. Like the other Edelbrock Cylinder head, The Pro-Port cylinder head is also cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting. In most cases, seats and manganese-bronze valve guides are included, but not installed. Please note: This head can not be used without professional head preparation. Pro-Port RAW Features Include: - Unported versions of Edelbrock race-winning Victor Series CNC head for the professional cylinder head porter and engine builder - The Pro-Port cylinder head is cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting - The only head designed specifically to accommodate almost any CNC port shape, size or location - Offers enough wall thickness for CNC machining to various port dimensions - In most cases seats and manganese-bronze valve guides are included - Some of the Edelbrock Pro-Port Raw Head Feature Our Special Hot Isostatic Pressing or HIP Process. |
| Description_TRA | In most cases seats and manganese-bronze valve guides are included |
| Description_TRA | Not ported versions of Edelbrock race-winning Victor Series CNC heads for the professional cylinder head porter and engine builder |
| Description_TRA | Offers enough wall thickness for CNC machining to various port dimensions |
| Description_TRA | The only heads designed specifically to accommodate almost any CNC port shape, size or location |
| EGR Port | No |
| Exhaust Valve Diameter | (Suggested) 1.96 |
| Family | Victor |
| Grade Type | Performance |
| Guide Material | Manganese Bronze |
| Guide Plates Included | No |
| Head Casting Number | N/A |
| height | 8.8 |
| Intake Valve Diameter | (Suggested) 2.45 |
| length | 26.0 |
| Material | Aluminum |
| Quantity | Sold Individually |
| Retainer Included | No |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Seat Angle | Exhaust 45 deg/Intake 45 |
| Seat Material | Ductile Iron |
| Series | Pro-Port |
| Valve Angle | 24 |
| Valve Included | No |
| Valve Springs Included | No |
| weight | 43.4 |
| width | 11.2 |
