Description

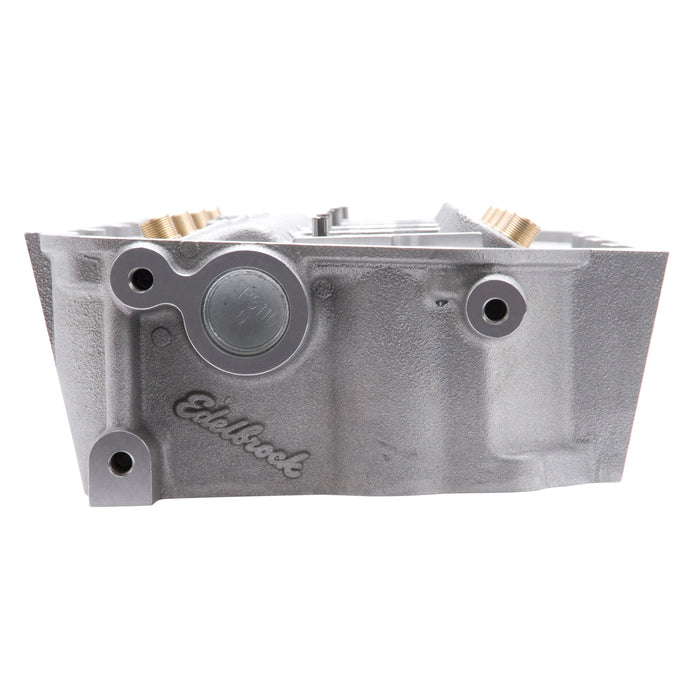

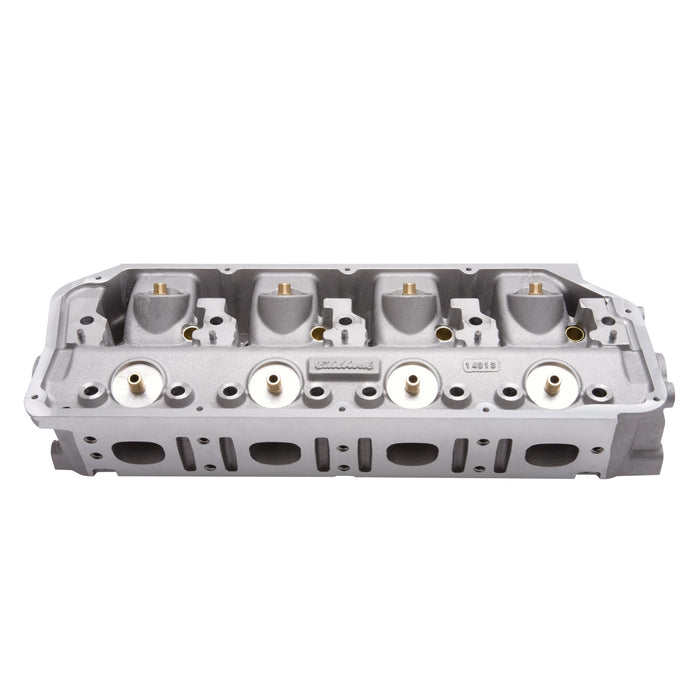

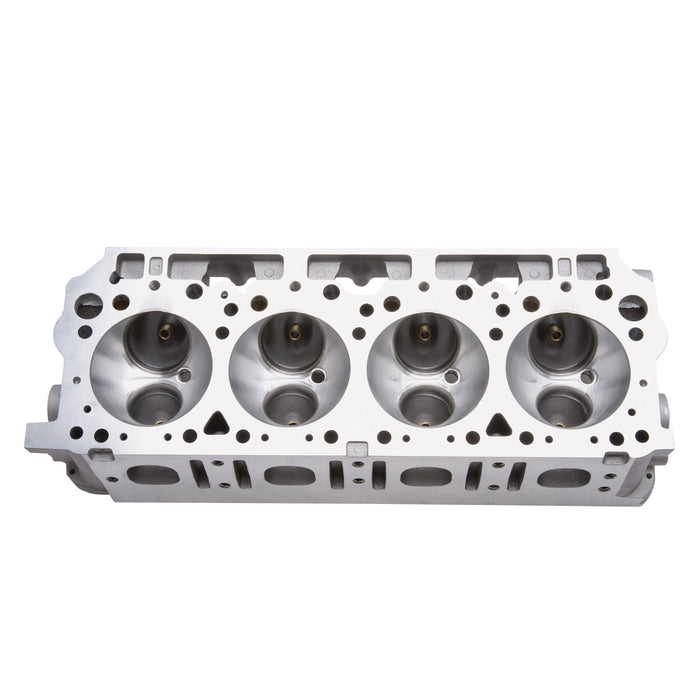

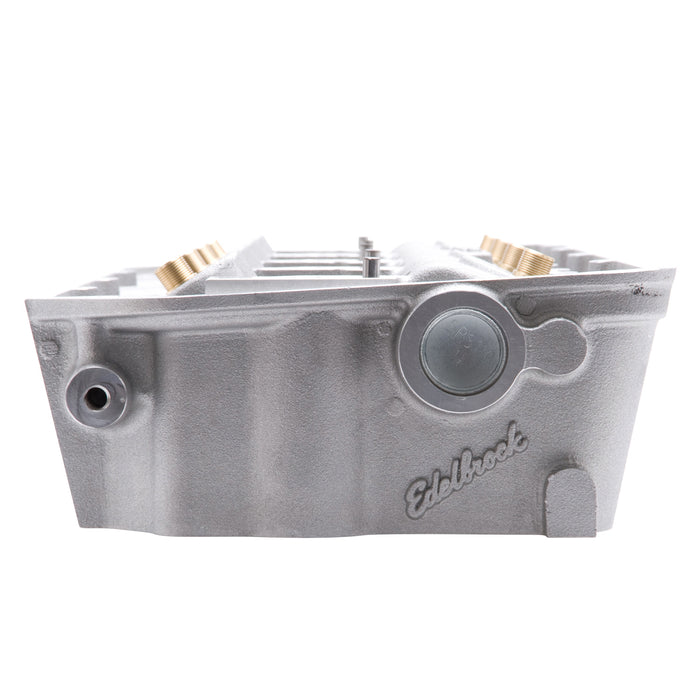

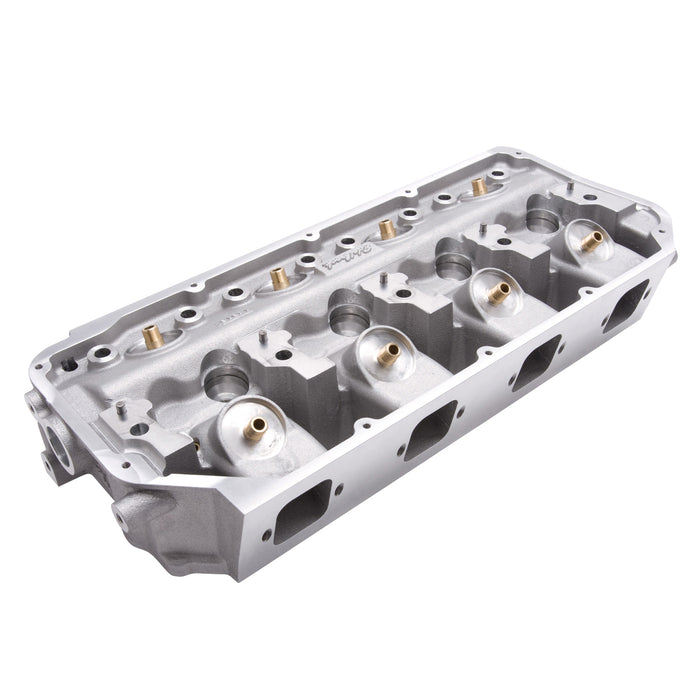

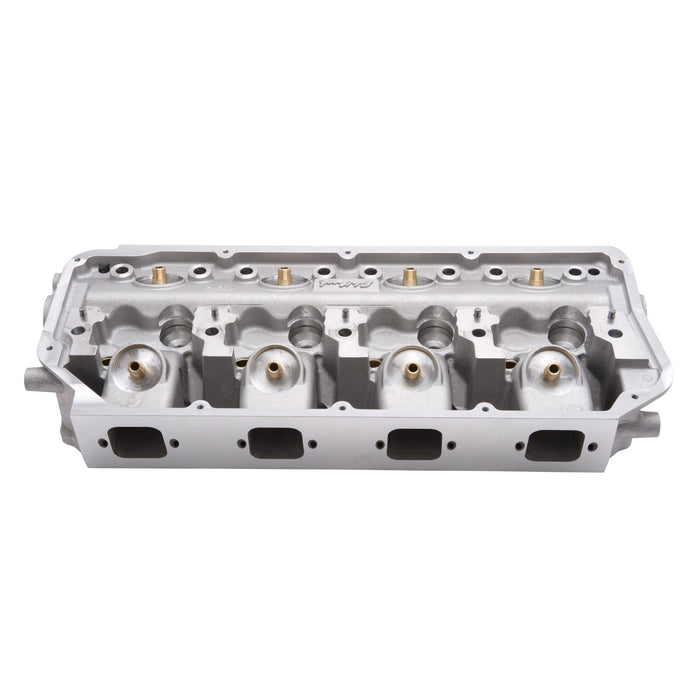

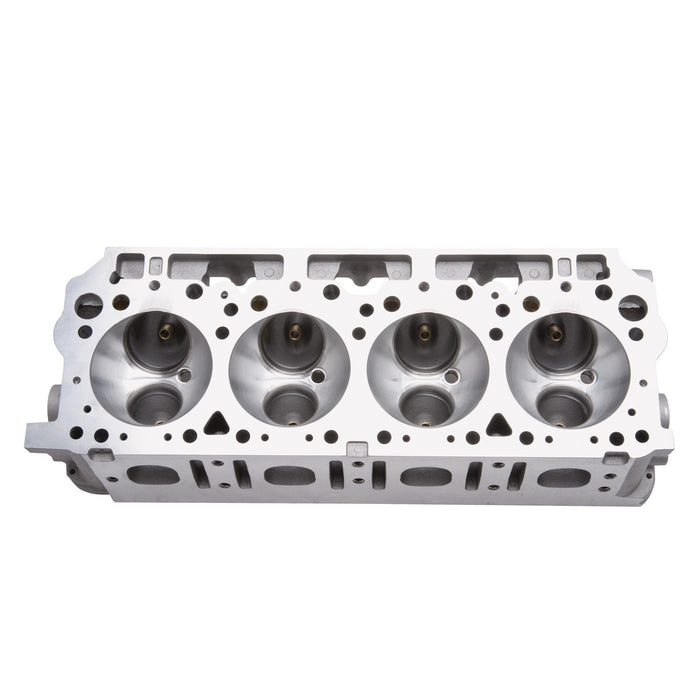

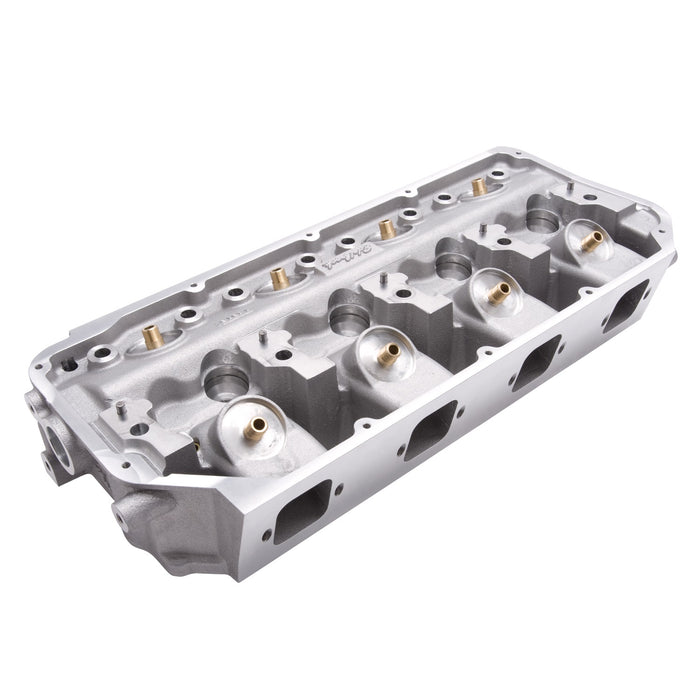

Our new Edelbrock #61169 Victor Jr. cylinder head is designed for high output 650+ hp Chrysler 426-572 HEMI engines. They feature fully CNC'd combustion chambers and CNC blended seats for optimal air flow performance. This cylinder head also feature a revised exhaust valve angle to accommodate larger intake valves. They also feature brass tubes installed in exhaust pushrod holes to allow maximum clearance with minimal port intrusion.
Specifications
| CNC Ported | Yes |
| Combustion Chamber Volume | 170 |
| Construction Type | Bare |
| Cylinder Head Type | Rectangular Port |
| Deck Thickness | 0.625 |
| Description_ABR | Cyl. Head |
| Description_ASM | Chrysler:Big-Block Gen II HEMI:426 (7.0L) |
| Description_DEF | Engine Cylinder Head |
| Description_DES | CYLINDER HEAD |
| Description_EXT | Our new Edelbrock #61169 Victor Jr. Cylinder Heads are designed for high output 650+ hp Chrysler 426-572 HEMI engines. Fully CNC'd combustion chambers and CNC blended seats for optimal air flow performance. |
| Description_EXT | Our new Edelbrock #61169 Victor Jr. Cylinder Heads are designed for high output 650+hp Chrysler 426-572 HEMI engines. Fully CNC d combustion chambers and CNC blended seats for optimal air flow performance. |
| Description_FAB | CNC Blended Valve Seats |
| Description_FAB | CNC Chambers |
| Description_FAB | Revised Exhaust Valve Angle |
| Description_INV | Edelbrock HEMI GEN II Cylinder Head |
| Description_KEY | Edelbrock; HEMI; V8; Cylinder Head; 61169; Chrysler; Flat Tappet; 426 |
| Description_LAB | Victor Jr Gen II HEMI Chrysler Cylinder Head Bare |
| Description_MKT | Our new Edelbrock #61169 Victor Jr. cylinder head is designed for high output 650+ hp Chrysler 426-572 HEMI engines. They feature fully CNC'd combustion chambers and CNC blended seats for optimal air flow performance. This cylinder head also feature a revised exhaust valve angle to accommodate larger intake valves. They also feature brass tubes installed in exhaust pushrod holes to allow maximum clearance with minimal port intrusion. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 2in.} |
| Description_TRA | Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. |
| Description_TRA | Victor Jr. CNC cylinder heads #61169 are bare and supplied with reamed and semi-finished valve stem guides. They will require finishing on the valve stem guides and a valve job before installation. |
| Description_TRA | • Victor Jr. CNC cylinder heads #61169 are bare and supplied with reamed and semi-finished valve stem guides. They will require finishing on the valve stem guides and a valve job before installation. • Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4in. reach with flat gasket seat. |
| EGR Port | No |
| Emission | Non-Emissions |
| Engine Make/Size | Mopar 426-572 Hemi |
| Exhaust Port Location | Standard |
| Exhaust Runner Volume | 105 |
| Family | Victor Jr. |
| finish | Cast Aluminum |
| Grade Type | Performance |
| Guide Material | Manganese Bronze |
| Guide Plates Included | No |
| Head Casting Number | N/A |
| height | 8.5 |
| Intake Runner Volume | 245 |
| length | 25.88 |
| LTL | N |
| Material | Aluminum |
| Preparation | Requires Professional Preparation (Bare) |
| Quantity | Sold Individually |
| Retainer Included | No |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Seat Angle | Exhaust 45 deg/Intake 45 |
| Seat Material | Ductile Iron |
| Series | Victor Jr. |
| Type | Bare |
| Usage | Racing |
| Valve Angle | Exhaust (Tipped) 1.5-21.5 deg/Intake Stock |
| Valve Included | No |
| Valve Springs Included | No |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 29.15 |
| width | 10.75 |
