Edelbrock 60975 { Sellable : Yes }
by Edelbrock
SKU ds_BDVJ_60975
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$1,995.11
-
Original price
$1,995.11
Original price
$1,995.11
$1,995.11
$1,995.11
-
$1,995.11
Current price
$1,995.11
Availability:
Only 2 left!
Description

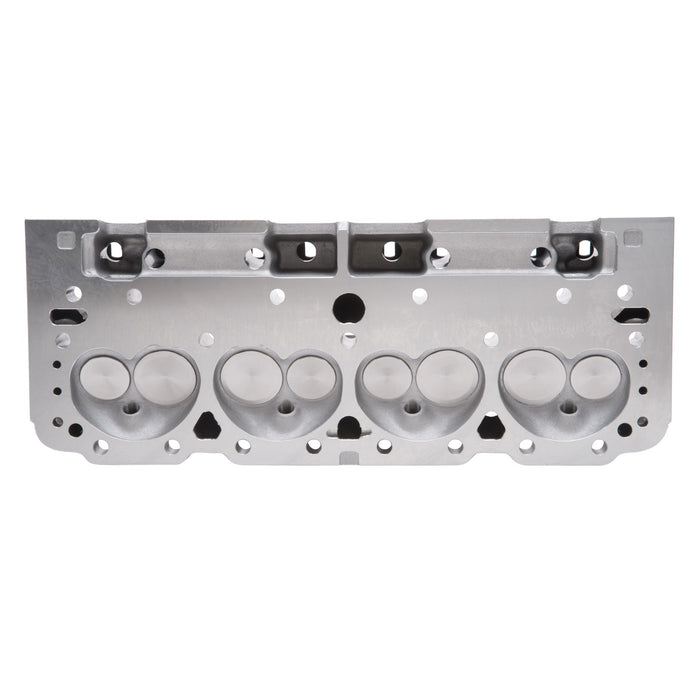

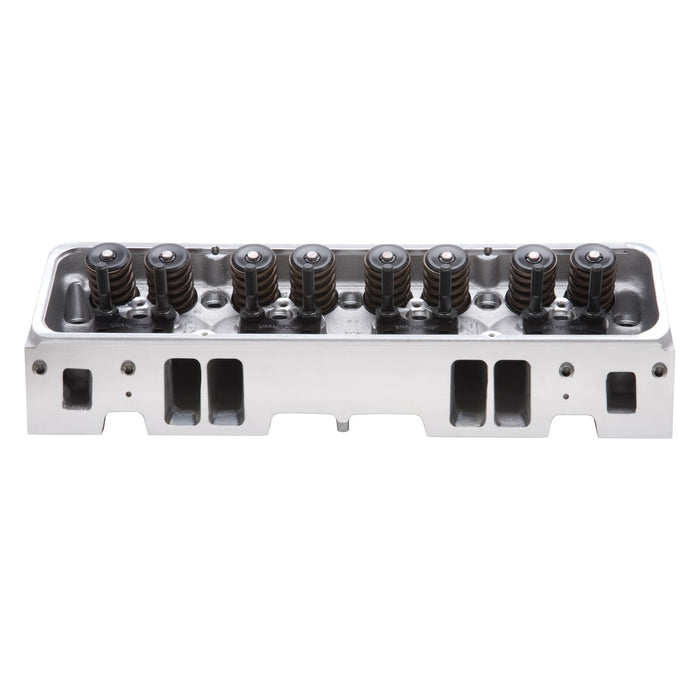

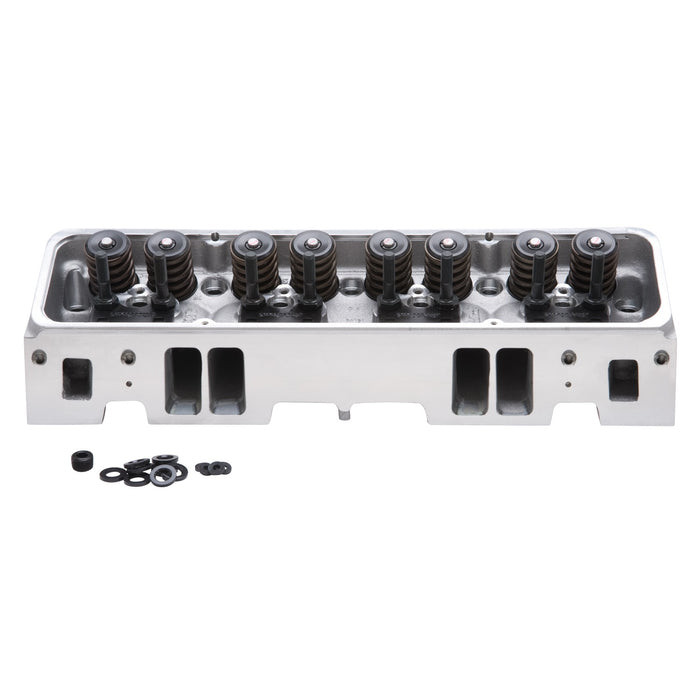

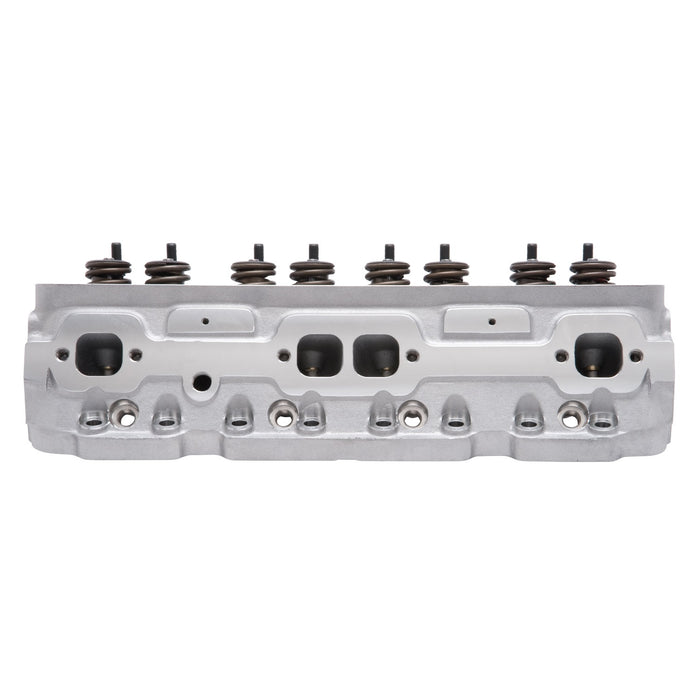

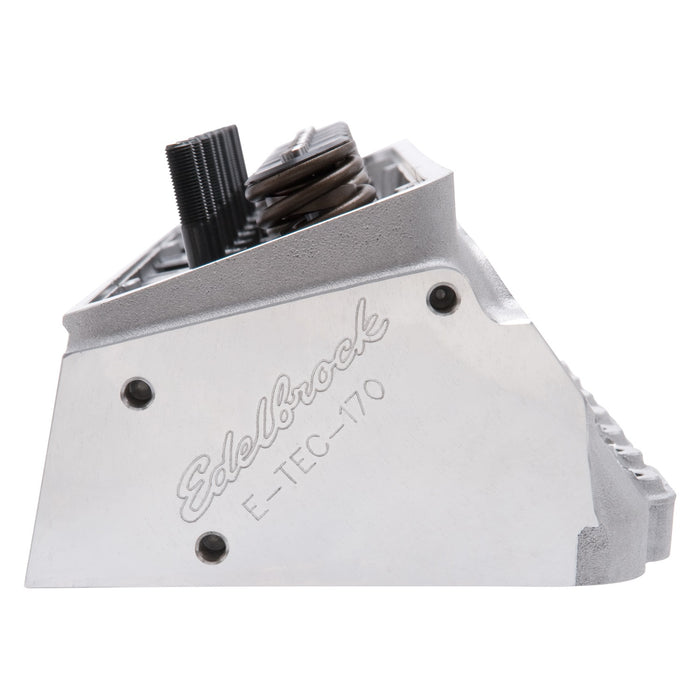

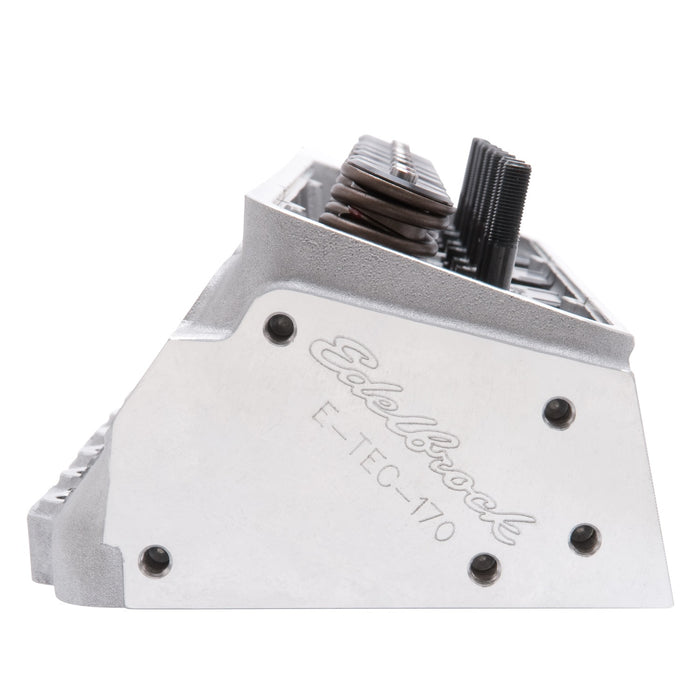

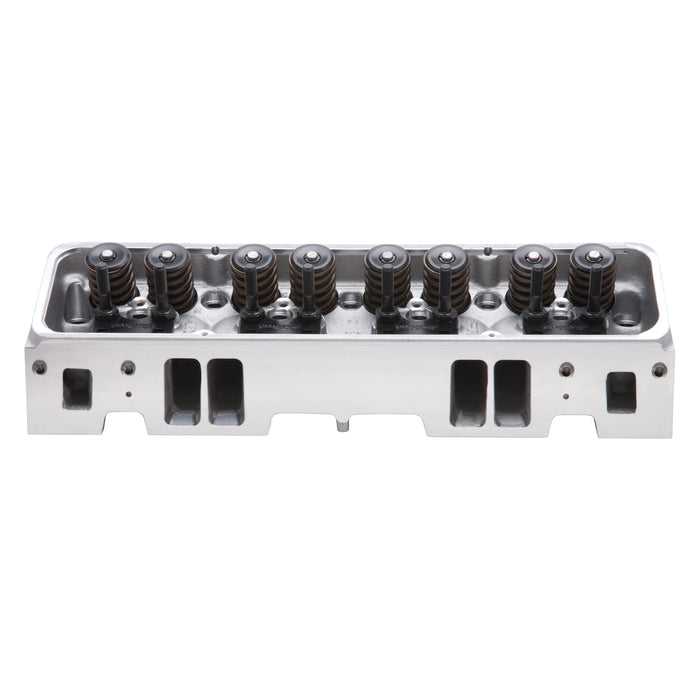

The Edelbrock #60975 E-Tec cylinder head is replacements for 302, 327, 350 & 400 c.i.d. S/B Chevy engines with "Vortec-style" manifolds. They feature an LT1-style raised runner intake port design for increased air-flow and ultimate performance. A unique combustion chamber design positions the spark plug closer to the center of the cylinder, promoting a more efficient combustion resulting in more power. This cylinder head includes an adjustable rocker stud and guide plate set-up for use with adjustable rockers or washers to properly position the stud height to accommodate factory style self-aligning rocker arms. They have 20% more exhaust flow than a cast iron Vortec head, great performance up to 6000 rpm and can produce 9.5:1 compression with stock pistons in 350 cubic-inch engines. RPM E-Tec head is dual-drilled and will accept 1987-95 center bolt and/or 1986 & prior perimeter flange mount valve covers and most stock exhaust manifolds. E-Tec 170 head is 50-state street legal.
Specifications
| Cylinder Head Type | Standard |
| Description_ABR | Cyl. Head |
| Description_ASM | Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
| Description_DEF | Engine Cylinder Head |
| Description_DES | CYLINDER HEAD |
| Description_EXT | The Edelbrock #60975 E-Tec Cylinder Heads are replacements for 302, 327, 350 & 400 SB Chevy engines with Vortec-style manifolds. They feature an LT1-style raised runner intake port design for increased air-flow and ultimate performance. |
| Description_EXT | The Edelbrock #60975 E-Tec Cylinder Heads are replacements for 302; 327; 350 400 SB Chevy engines with Vortec-style manifolds. They feature an LT1-style raised runner intake port design for increased air-flow and ultimate performance. |
| Description_FAB | CNC-Matched Intake/Exhaust Ports in Std Location |
| Description_FAB | Out-of-the-Box Bolt-On Performance |
| Description_FAB | Thicker Deck Surfaces Than Other Brands |
| Description_FAB | With Straight Plugs |
| Description_INV | Edelbrock SBC Cylinder Head |
| Description_KEY | Edelbrock; SBC; E-Tec-170; Small Block Chevy; Cylinder Head; Hydraulic Roller Camshaft; V8; Cylinder Heads; 60975; Early Model |
| Description_LAB | E-Tec-170 Small-Block Chevy Cylinder Head Hydraulic Roller Camshaft |
| Description_MKT | The Edelbrock #60975 E-Tec cylinder head is replacements for 302, 327, 350 & 400 c.i.d. S/B Chevy engines with "Vortec-style" manifolds. They feature an LT1-style raised runner intake port design for increased air-flow and ultimate performance. A unique combustion chamber design positions the spark plug closer to the center of the cylinder, promoting a more efficient combustion resulting in more power. This cylinder head includes an adjustable rocker stud and guide plate set-up for use with adjustable rockers or washers to properly position the stud height to accommodate factory style self-aligning rocker arms. They have 20% more exhaust flow than a cast iron Vortec head, great performance up to 6000 rpm and can produce 9.5:1 compression with stock pistons in 350 cubic-inch engines. RPM E-Tec head is dual-drilled and will accept 1987-95 center bolt and/or 1986 & prior perimeter flange mount valve covers and most stock exhaust manifolds. E-Tec 170 head is 50-state street legal. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 1in.; eo_carb_number : D-215-94in.; eo_carb_link : https:/ww3.arb.ca.gov/msprog/aftermkt/devices/eo/d-215-94.pdf } |
| Description_TRA | EQUIPPED WITH SPRINGS FOR USE IN MECHANICAL FLAT TAPPET AND HYDRAULIC ROLLER CAMSHAFT APPLICATIONS |
| Description_TRA | Match with Edelbrock head gasket sets. |
| Description_TRA | Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. |
| Description_TRA | To use stock rockers on S/B Chevy heads, .100" longer than stock pushrods are required. Edelbrock pushrods #9629 are recommended. |
| Description_TRA | Use Head Bolt Kits for easy installation. S/B Chevy heads may not be used on engines with less than 4" bore (262, 265, 283, 305, 307 c.i.d.) except with cams having less than .450" valve lift. |
| Description_TRA | • EQUIPPED WITH SPRINGS FOR USE IN MECHANICAL FLAT TAPPET AND HYDRAULIC ROLLER CAMSHAFT APPLICATIONS • Match with Edelbrock head gasket sets. • Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4in. reach with flat gasket seat. • To use stock rockers on S/B Chevy heads; .100in. longer than stock pushrods are required. Edelbrock pushrods #9629 are recommended. • Use Head Bolt Kits for easy installation. S/B Chevy heads may not be used on engines with less than 4in. bore (262; 265; 283; 305; 307 c.i.d.) except with cams having less than .450in. valve lift. |
| Emission | 50 State Legal |
| Engine Make/Size | Chevy Small Block (262-400) |
| finish | Satin |
| height | 8.25 |
| length | 24.75 |
| LTL | N |
| Preparation | Bolt On (Not Required) |
| Type | Complete |
| Usage | Street/Performance |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 32.7 |
| width | 10.5 |
