Edelbrock 608119 Engine Cylinder Head
by Edelbrock
SKU ds_BDVJ_608119
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$2,040.22
-
Original price
$2,040.22
Original price
$2,040.22
$2,040.22
$2,040.22
-
$2,040.22
Current price
$2,040.22
Availability:
Out of stock
Description

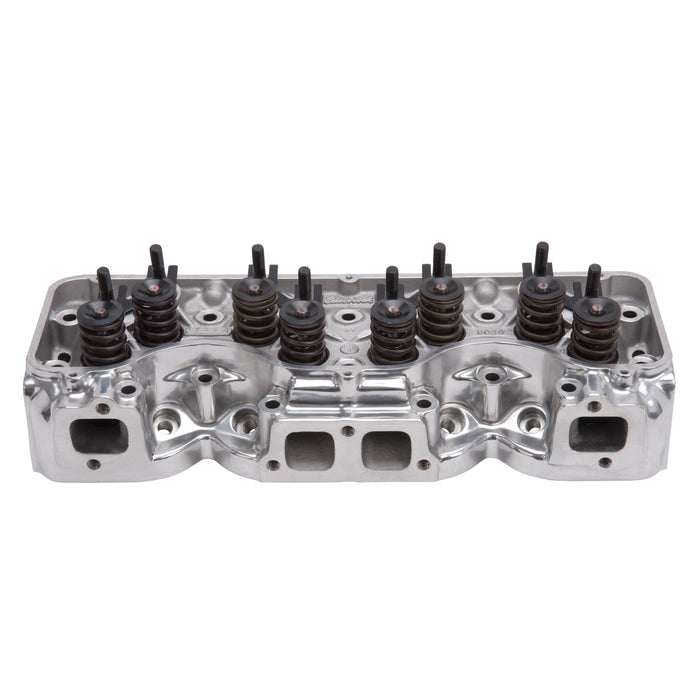

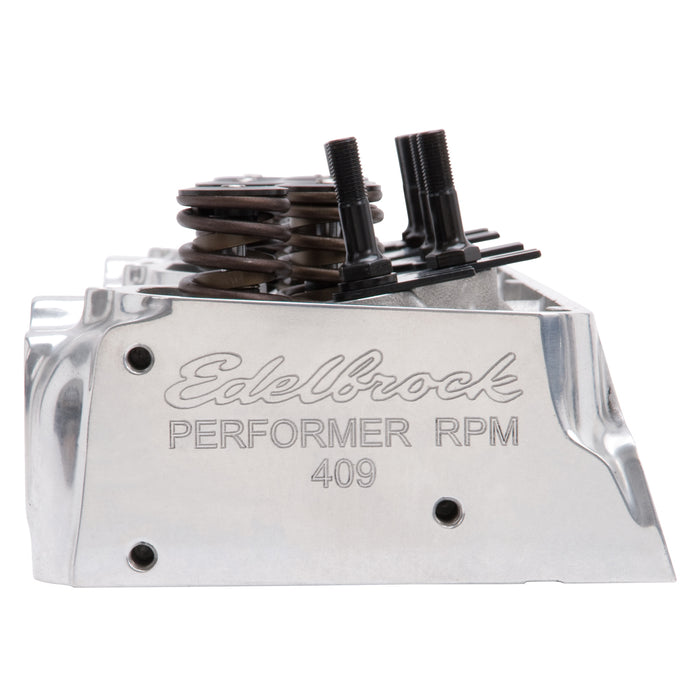

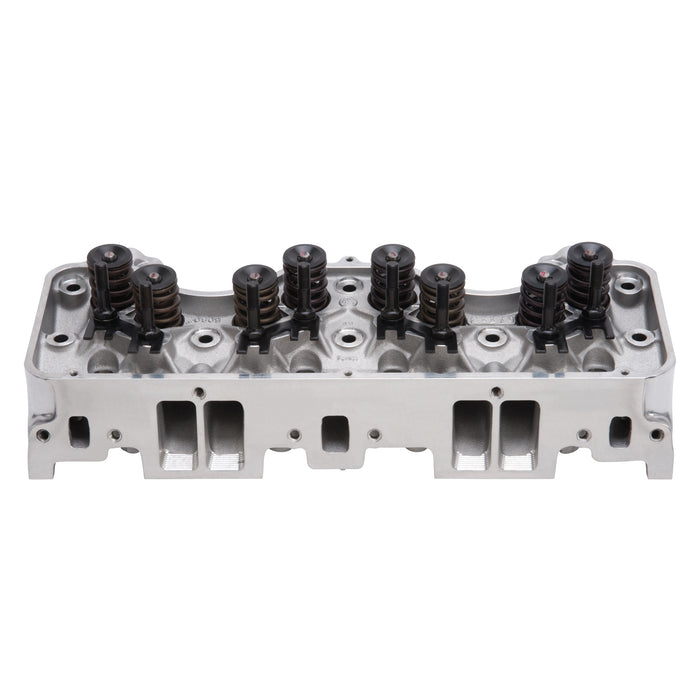

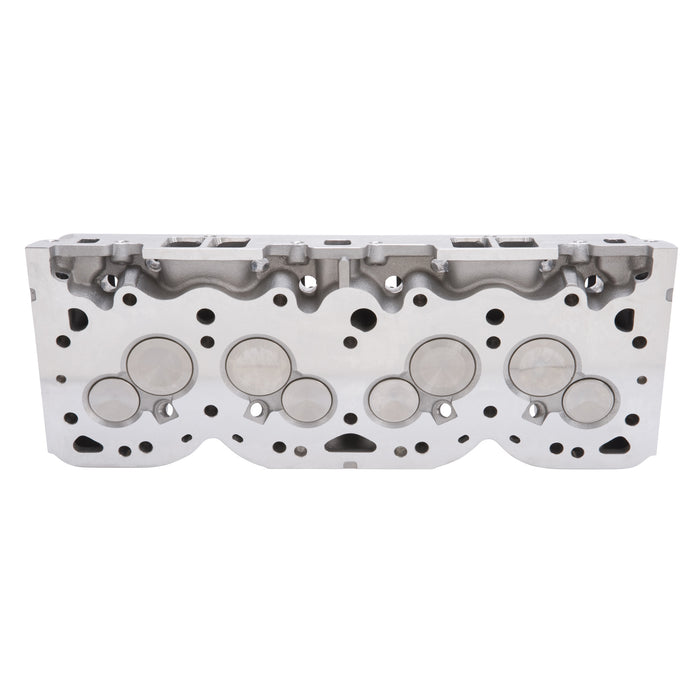

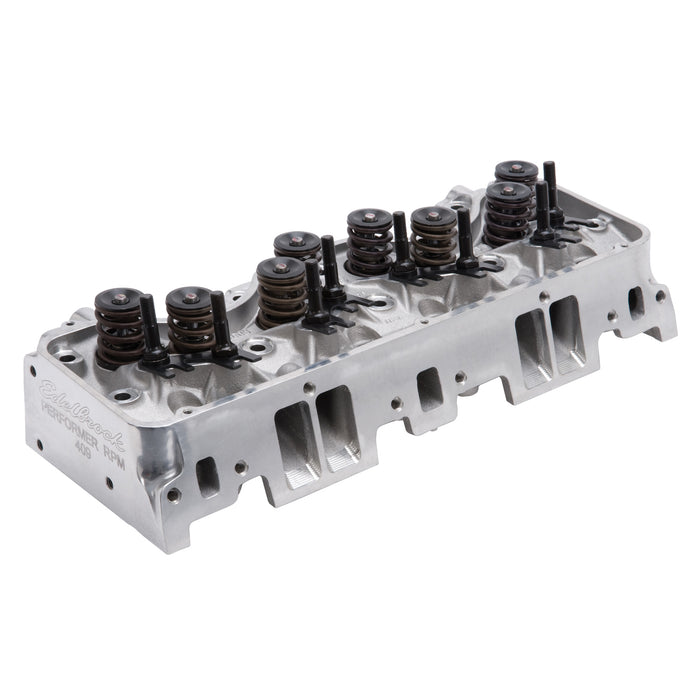

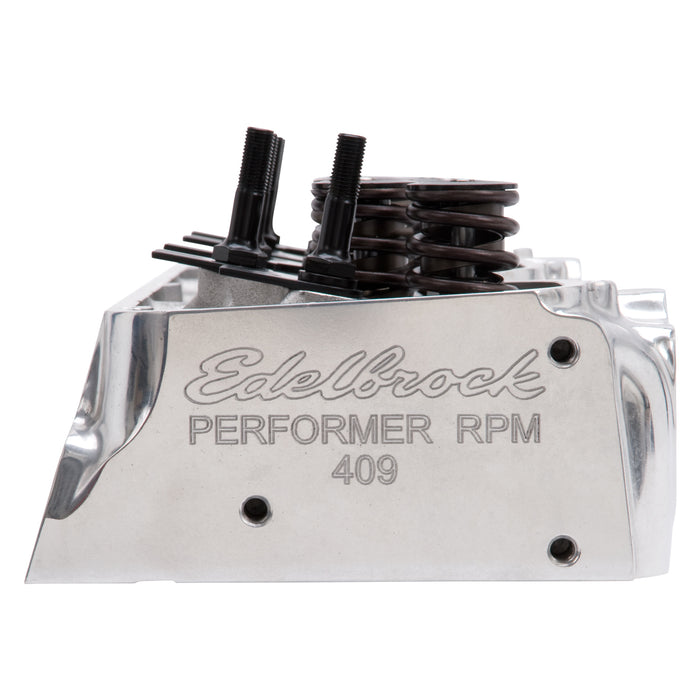

The Edelbrock #608119 Performer RPM cylinder heads are designed for 1958-1965 Chevrolet "W" Series 348/409 big-block applications. The Edelbrock #608119 Performer RPM heads are perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. These cylinder heads deliver great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.
Specifications
| CNC Ported | No |
| Combustion Chamber Volume | 16.0 |
| Deck Thickness | 0.562 |
| Description_ABR | Cyl. Head |
| Description_ASM | Chevrolet:W Big-Block:348 (5.7L)/409 (6.7L) |
| Description_DEF | Engine Cylinder Head |
| Description_EXT | Edelbrock #608119 Performer RPM Cylinder Head for 1958-65 BBC 348/409 "W"-Series Engines. Complete with Valve Springs for Hydraulic Flat Tappet Cam, Polished (348 "W" Engines Must Use Edelbrock #5409 or Stock Large-Port 409 Intake Manifold) |
| Description_INV | Edelbrock W-Series Cylinder Head |
| Description_LAB | RPM 348/409 Chevy Cylinder Head Hydraulic Flat Tappet Cam Polished |
| Description_MKT | The Edelbrock #608119 Performer RPM cylinder heads are designed for 1958-1965 Chevrolet "W" Series 348/409 big-block applications. The Edelbrock #608119 Performer RPM heads are perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. These cylinder heads deliver great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only. |
| Description_TRA | 1958 348 c.i.d. applications will require modifications to cylinder head (contact Edelbrock tech department for detailed information) |
| Description_TRA | CNC port matched 220cc intake and 115cc exhaust ports for optimum flow and power |
| Description_TRA | Deck thickness: 9/16" |
| Description_TRA | EQUIPPED WITH SPRINGS FOR USE IN HYDRAULIC FLAT TAPPET CAMSHAFT APPLICATIONS |
| Description_TRA | Hardened spring cups, screw-in rocker studs and hardened guide plates |
| Description_TRA | Improved port design for more performance |
| Description_TRA | May be used on 348 engines with valve lifts up to .550" only. |
| Description_TRA | Original port locations and valve angles for bolt-on convenience |
| Description_TRA | Proper cylinder wall notching must be checked to ensure exhaust valve to cylinder clearance. |
| Description_TRA | Pushrod diameter: 3/8" (width of slot in guide plate). |
| Description_TRA | Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. |
| Description_TRA | Rocker stud diameter: 7/16" |
| Description_TRA | These heads will only fit 1958-65 348 c.i.d. "W" engines if an Edelbrock #5409, #7159 or stock large port 409 c.i.d. manifold is used. |
| Description_TRA | Use Edelbrock head gasket sets. |
| Exhaust Valve Diameter | 1.720 |
| Grade Type | Performance |
| Guide Plate Material | Hardened Steel |
| Guide Plates Included | Yes |
| Head Casting Number | 31-6080 |
| height | 8.5 |
| Intake Runner Volume | 220.0 |
| Intake Valve Diameter | 2.190 |
| length | 26.25 |
| Material | Aluminum |
| Push Rod Diameter | 0.375 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Valve Spring Diameter | 1.550 |
| Valve Spring Maximum Lift | 0.600 |
| Valve Stem Diameter | 0.341 |
| weight | 36.4 |
| width | 36.4 |
