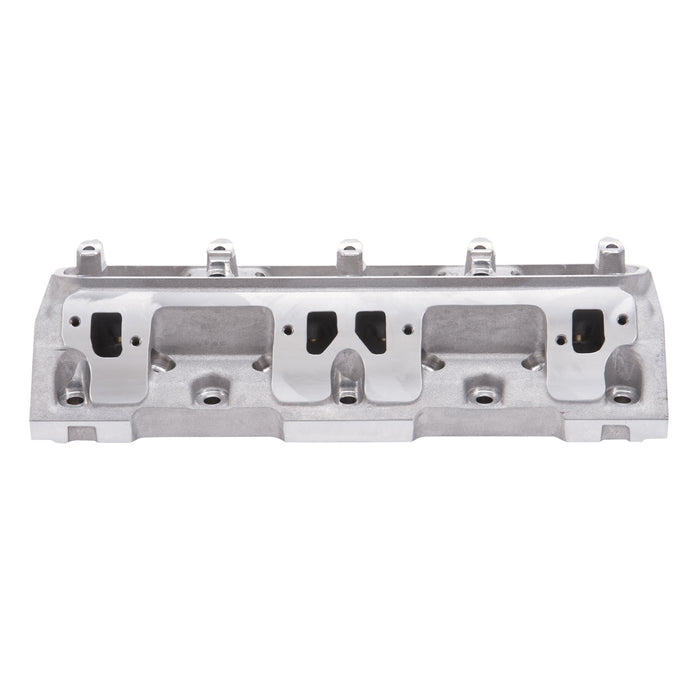

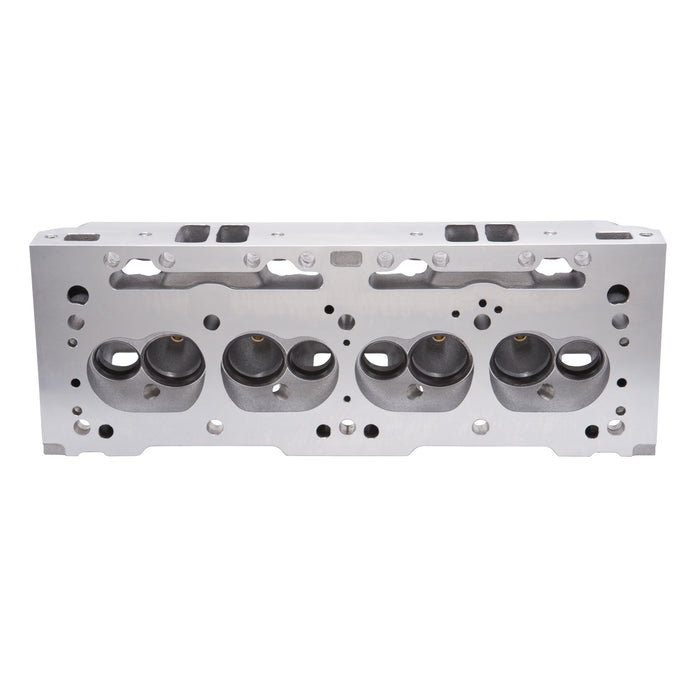

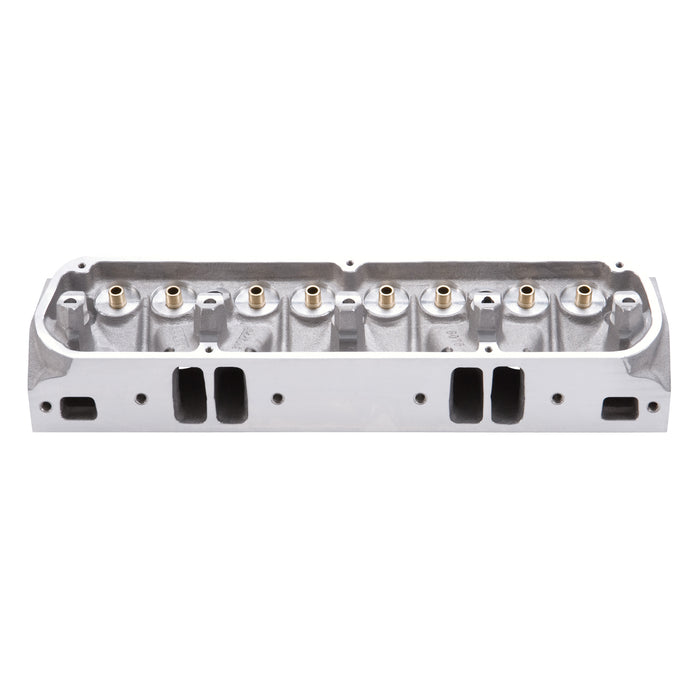

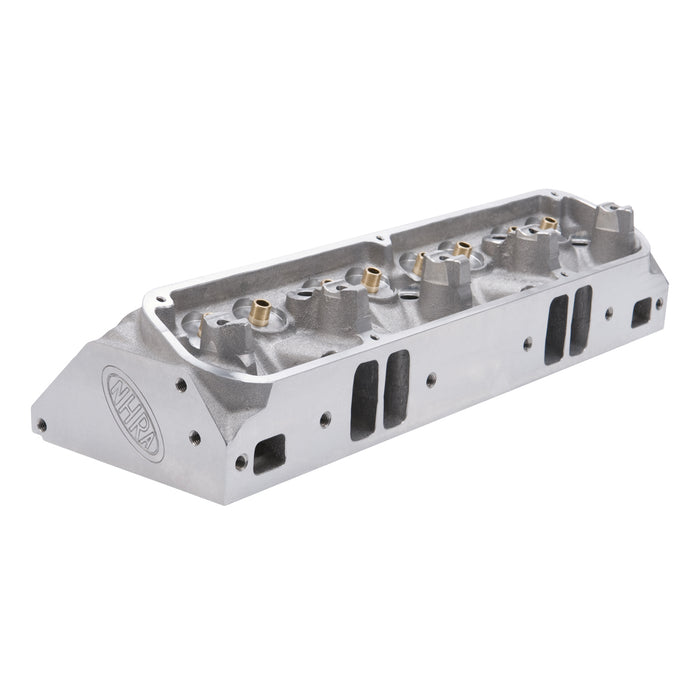

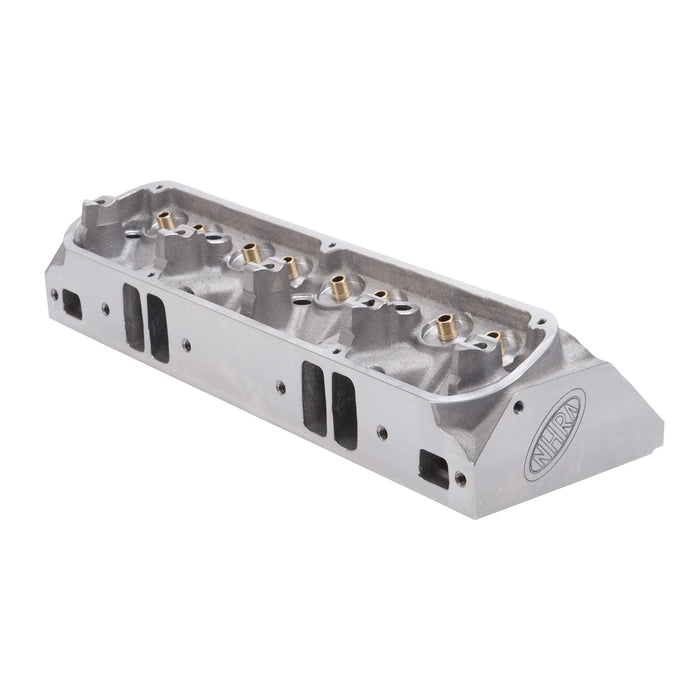

Edelbrock 60767 Engine Cylinder Head
by Edelbrock
SKU ds_BDVJ_60767
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$1,077.43
-
Original price
$1,077.43
Original price
$1,077.43
$1,077.43
$1,077.43
-
$1,077.43
Current price
$1,077.43
Availability:
Out of stock
Description
The Edelbrock #60767 Performer RPM NHRA Stock/Super Stock Bare cylinder heads are designed for use with non-emission 1968-91 Chrysler 318-340-360 c.i.d. engine applications. These cylinder heads deliver great throttle response and power from 1500 to 6500 rpm. Cast and heat treated at the Edelbrock Foundry and machined at Edelbrock's manufacturing facility in the USA, Edelbrock heads are the best in quality and performance. All Edelbrock Cylinder Heads are designed from scratch using the latest in computer technology by our own highly skilled engineer's. Using highly efficient ports and state-of-the-art combustion chamber shapes, Edelbrock cylinder heads offer improved performance throughout the rpm range for great throttle response and top-end horsepower. Top-quality features include threaded inserts in rocker stud and exhaust bolt holes for superior strength and durability, and manganese-bronze valve guides with ductile iron valve seats. These are features that some other companies don't include!
Specifications
| CNC Ported | No |
| Combustion Chamber Volume | 63.0 |
| Deck Thickness | 0.562 |
| Description_ABR | Cyl. Head |
| Description_ASM | Chrysler:Small-Block:273 (4.5L)/318 (5.2L)/340 (5.6L)/360 (5.9L) |
| Description_DEF | Engine Cylinder Head |
| Description_EXT | The Edelbrock #60767 Performer RPM NHRA Stock/Super Stock Bare cylinder heads are designed for use with non-emission 1968-91 Chrysler 318-340-360 engines. These cylinder heads deliver great throttle response and power from 1500 to 6500 rpm. |
| Description_INV | Edelbrock SB Chrysler Cylinder Head |
| Description_LAB | NHRA Small-Block Chrysler LA Cylinder Head Bare |
| Description_MKT | The Edelbrock #60767 Performer RPM NHRA Stock/Super Stock Bare cylinder heads are designed for use with non-emission 1968-91 Chrysler 318-340-360 c.i.d. engine applications. These cylinder heads deliver great throttle response and power from 1500 to 6500 rpm. Cast and heat treated at the Edelbrock Foundry and machined at Edelbrock's manufacturing facility in the USA, Edelbrock heads are the best in quality and performance. All Edelbrock Cylinder Heads are designed from scratch using the latest in computer technology by our own highly skilled engineer's. Using highly efficient ports and state-of-the-art combustion chamber shapes, Edelbrock cylinder heads offer improved performance throughout the rpm range for great throttle response and top-end horsepower. Top-quality features include threaded inserts in rocker stud and exhaust bolt holes for superior strength and durability, and manganese-bronze valve guides with ductile iron valve seats. These are features that some other companies don't include! |
| Description_TRA | Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. |
| Description_TRA | Deck thickness: 5/8" |
| Description_TRA | Delivers outstanding performance in non-emission 1967-91 Chrysler 318-340-360 c.i.d. engines |
| Description_TRA | Make 417 horsepower and 397 ft-lbs. of torque on pump gas with an Edelbrock Performer RPM intake manifold and matching camshaft |
| Description_TRA | Pushrod diameter: 5/16" |
| Description_TRA | Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. |
| Description_TRA | The special valvetrain in the 1970 340 T/A is not compatible with these cylinder heads. Match with Edelbrock head gasket sets. |
| Grade Type | Performance |
| Guide Plates Included | No |
| Head Casting Number | 31-6076 |
| height | 7.188 |
| Intake Runner Volume | 171.0 |
| length | 22.188 |
| Material | Aluminum |
| Push Rod Diameter | 0.312 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Valve Angle | 18 |
| weight | 27.45 |
| width | 10.125 |
