Description

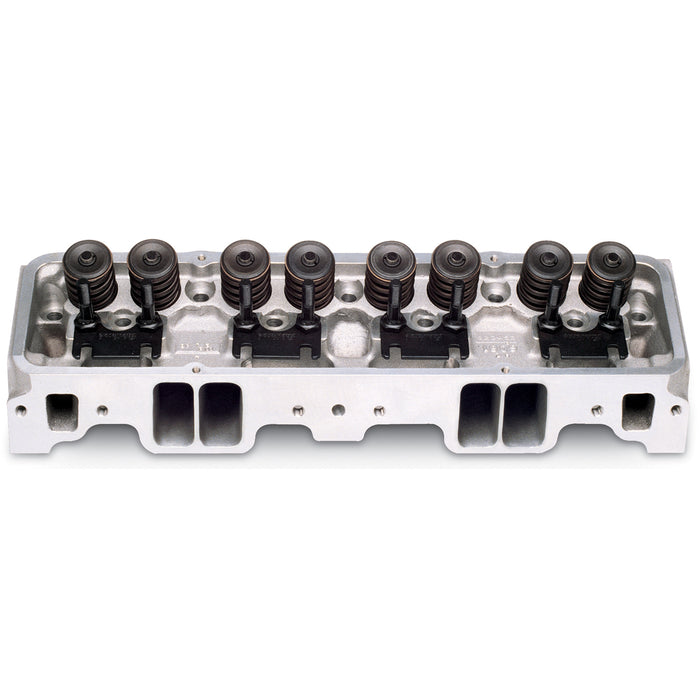

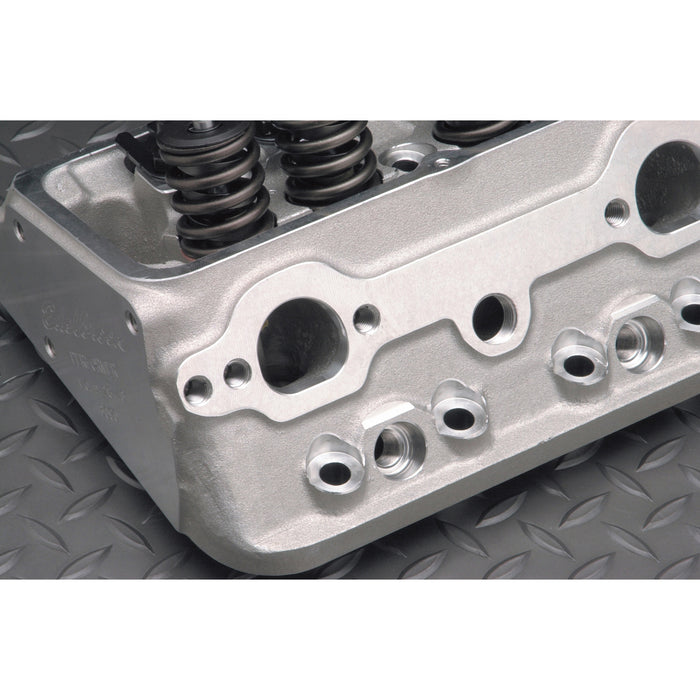

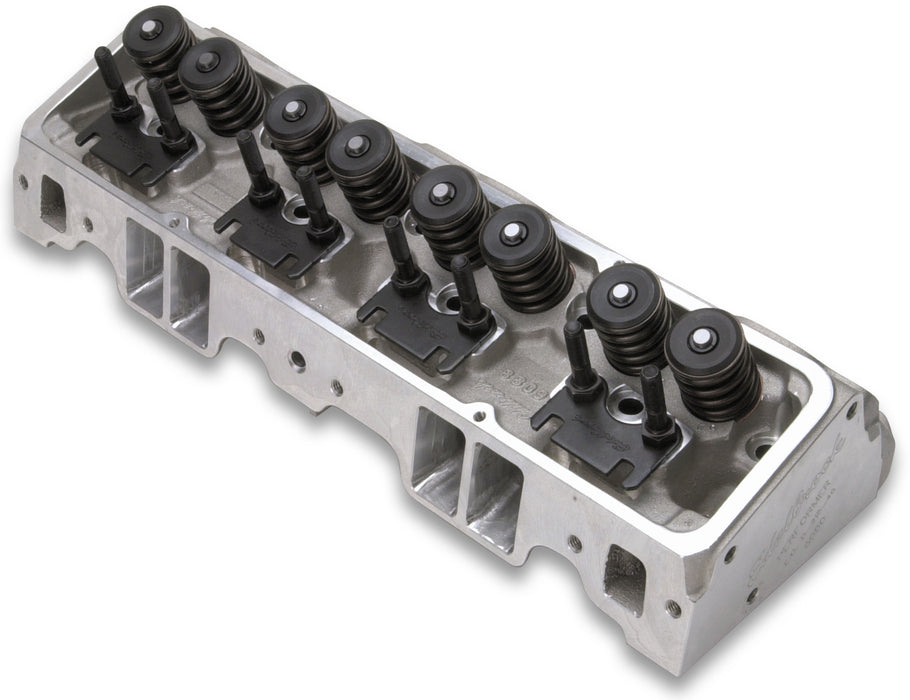

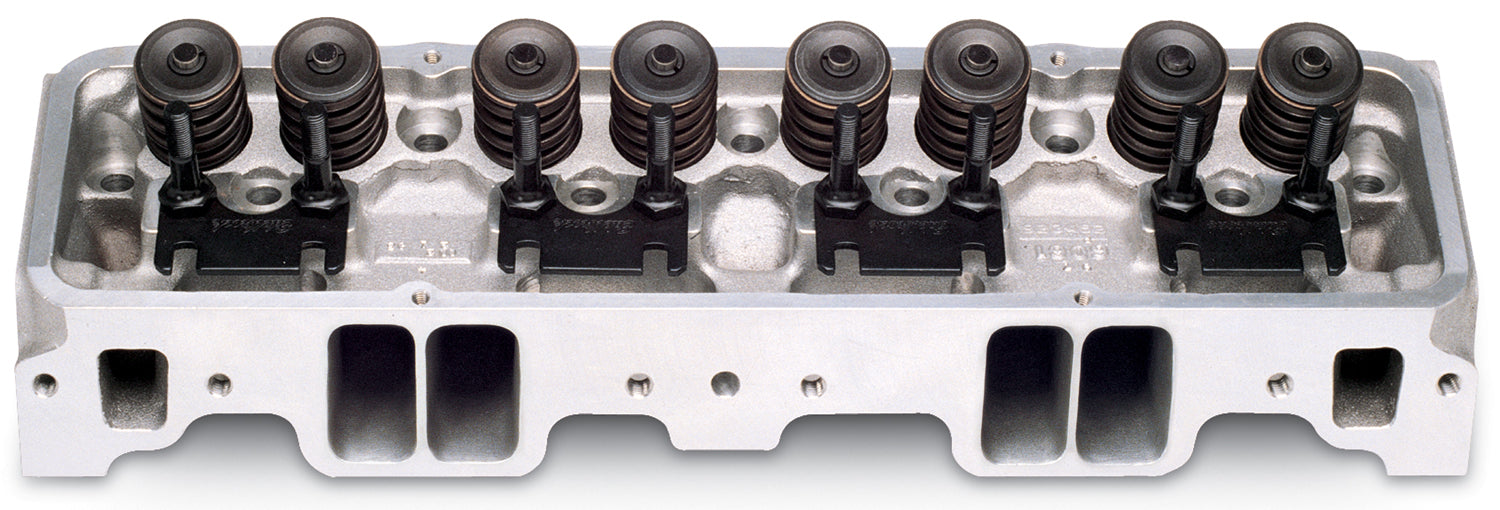

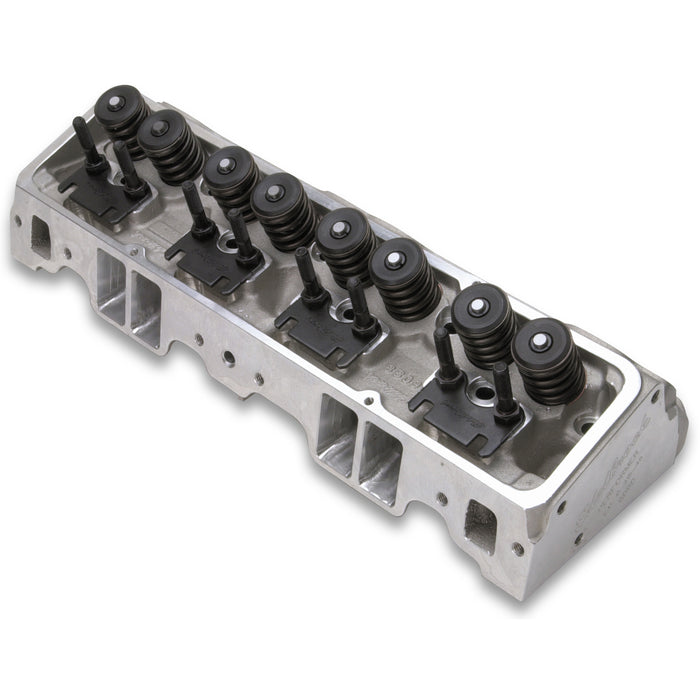

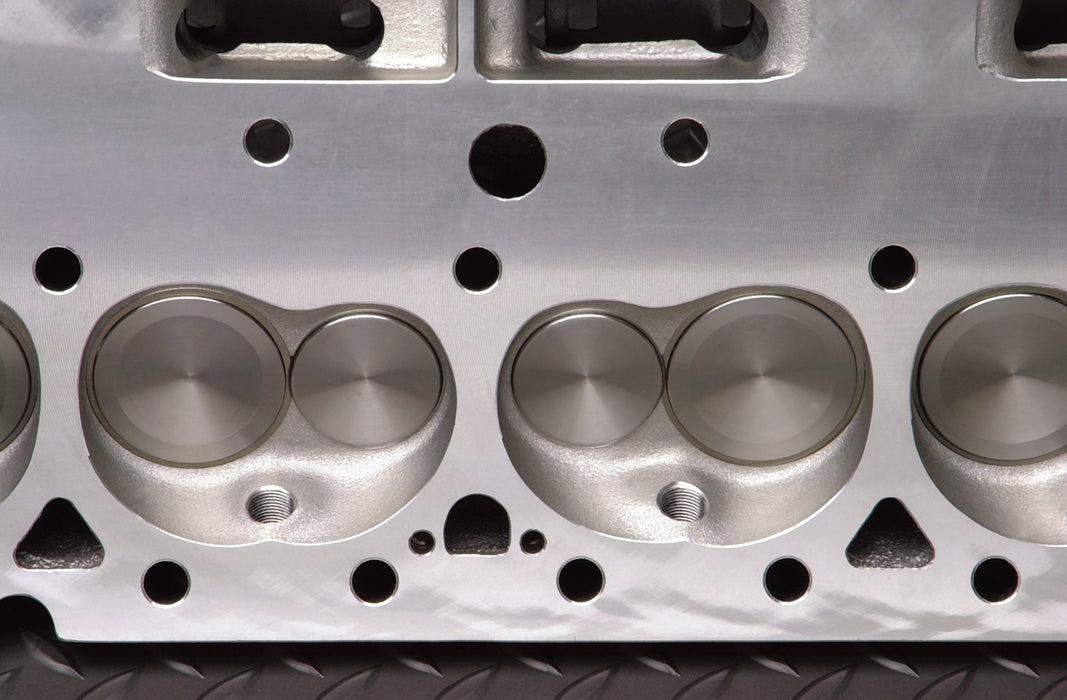

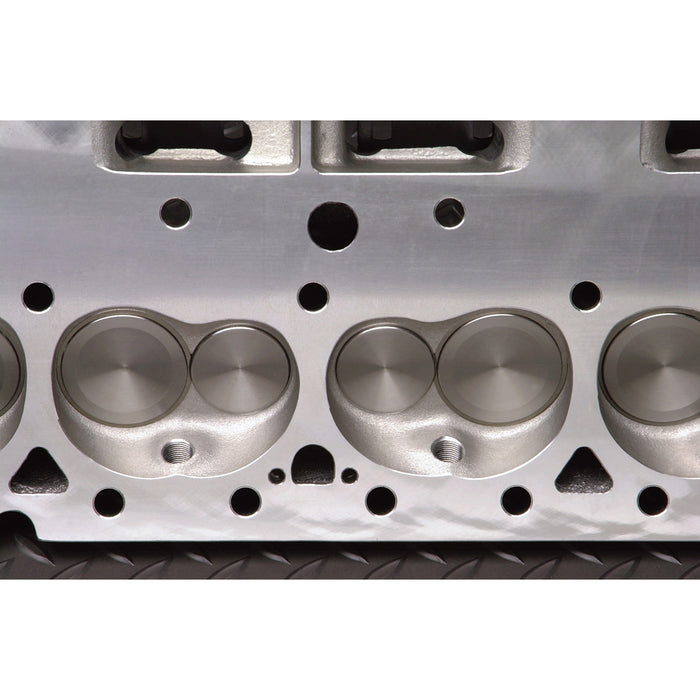

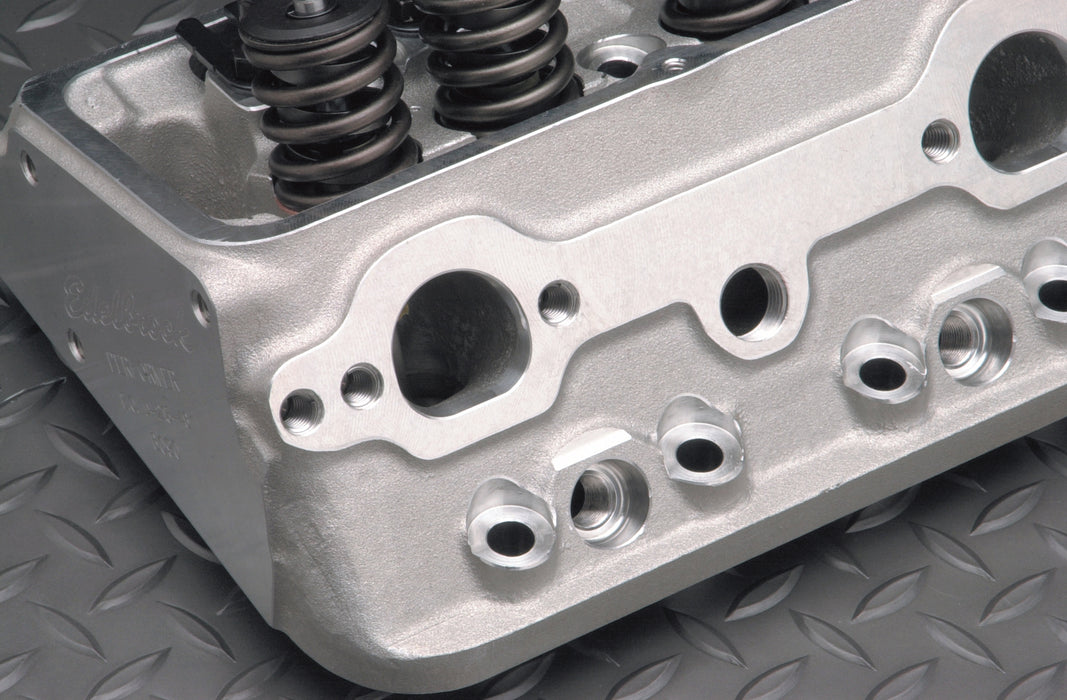

The Edelbrock #60759 Performer cylinder head is designed for 302, 327, 350 and 400 cid small-block Chevy engines up to 1986. This cylinder head includes your choice of 64cc (In order to retain stock compression ratio on 1970 and earlier small-blocks) or 70cc combustion chambers and high flow intake and exhaust ports. A Complete head includes larger-than-stock 1.46" valve springs to handle most high-lift cams. This head retains the stock intake port location for compatibility with standard manifolds and headers. Heat crossover is machined for 50-state emissions legal performance.
Specifications
| Camshaft Type | Flat Tappet |
| CNC Ported | No |
| Combustion Chamber Volume | 70 |
| Construction Type | Complete |
| Deck Thickness | 0.5625 |
| Description_ABR | Cyl. Head |
| Description_ASM | Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
| Description_DEF | Engine Cylinder Head |
| Description_DES | CYLINDER HEAD |
| Description_EXT | The Edelbrock #60759 Performer Cylinder Heads are designed for 302, 327, 350 and 400 cid small-block Chevy engines up to 1986. These heads retain the stock intake port location for compatibility with standard manifolds and headers. |
| Description_EXT | The Edelbrock #60759 Performer Cylinder Heads are designed for 302; 327; 350 and 400 cid small-block Chevy engines up to 1986. These heads retain the stock intake port location for compatibility with standard manifolds and headers. |
| Description_FAB | 50-State Street Legal Aluminum Cylinder Head |
| Description_FAB | 70cc Combustion Chambers Improve Performance |
| Description_FAB | Out-of-the-Box Bolt-On Performance |
| Description_FAB | Retain Stock Compression Ratio |
| Description_INV | Edelbrock SBC Cylinder Head |
| Description_KEY | Edelbrock; SBC Head; 70cc Hydraulic Flat Tappet Cam Made In The USA; V8; Cylinder Heads; 60759; Small Block |
| Description_LAB | RPM Small-Block Chevy Cylinder Head SBC 70cc Hydraulic Flat Tappet Cam |
| Description_MKT | The Edelbrock #60759 Performer cylinder head is designed for 302, 327, 350 and 400 cid small-block Chevy engines up to 1986. This cylinder head includes your choice of 64cc (In order to retain stock compression ratio on 1970 and earlier small-blocks) or 70cc combustion chambers and high flow intake and exhaust ports. A Complete head includes larger-than-stock 1.46" valve springs to handle most high-lift cams. This head retains the stock intake port location for compatibility with standard manifolds and headers. Heat crossover is machined for 50-state emissions legal performance. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 1in.; eo_carb_number : D-215-94in.; eo_carb_link : https:/ww3.arb.ca.gov/msprog/aftermkt/devices/eo/d-215-94.pdf } |
| Description_TRA | EQUIPPED WITH SPRINGS FOR USE IN HYDRAULIC FLAT TAPPET CAMSHAFT APPLICATIONS |
| Description_TRA | Match with Edelbrock head gasket |
| Description_TRA | Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. |
| Description_TRA | When using hot air choke Q-Jet carbs and Performer manifold with above heads, choke kit #1932 is required. |
| Description_TRA | • EQUIPPED WITH SPRINGS FOR USE IN HYDRAULIC FLAT TAPPET CAMSHAFT APPLICATIONS • Match with Edelbrock head gasket • When using hot air choke Q-Jet carbs and Performer manifold with above heads; choke kit #1932 is required. • Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4in. reach with flat gasket seat. |
| EGR Port | Yes |
| Exhaust Port Location | Standard |
| Exhaust Runner Volume | 65 |
| Exhaust Valve Diameter | 1.60 |
| Family | Performer |
| Grade Type | Performance |
| Guide Material | Manganese Bronze |
| Guide Plate Material | Hardened Steel |
| Guide Plates Included | Yes |
| Head Casting Number | N/A |
| height | 8.5 |
| Horsepower | 300-450 |
| Intake Runner Volume | 185 |
| Intake Valve Diameter | 2.02 |
| length | 26.0 |
| LTL | N |
| Material | Aluminum |
| Push Rod Diameter | (Suggested) 0.3125 |
| Quantity | Sold Individually |
| Retainer Included | Yes |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Rotor Center Bore Inside Diameter | Straight |
| Seat Angle | Exhaust 45 deg/Intake 45 |
| Seat Material | Ductile Iron |
| Series | Performer |
| Valve Angle | 23 |
| Valve Included | Yes |
| Valve Spring Diameter | 1.46 |
| Valve Spring Maximum Lift | 0.575 |
| Valve Springs Included | Yes |
| Valve Stem Diameter | 0.3438 |
| weight | 30.2 |
| width | 11.0 |
