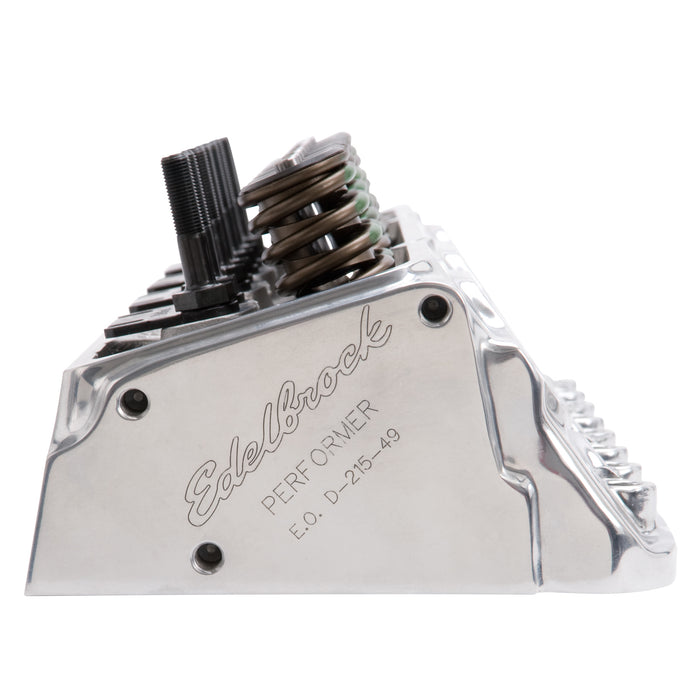

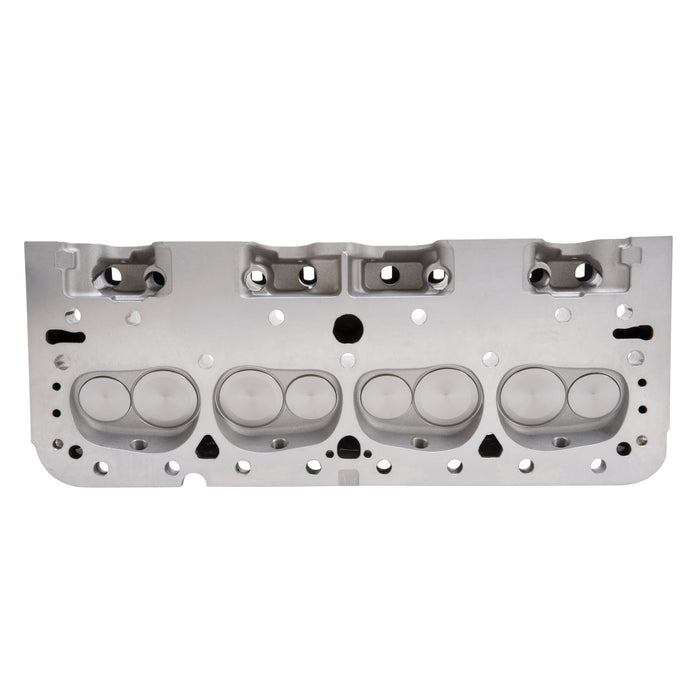

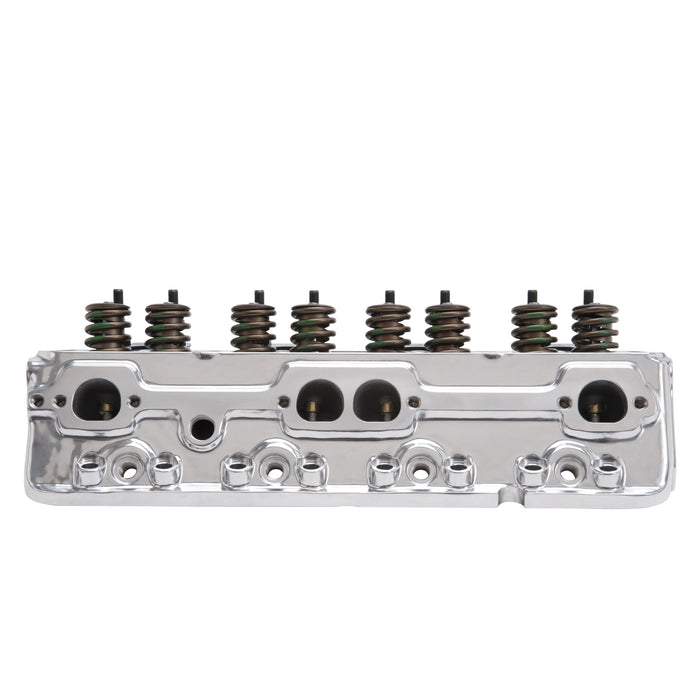

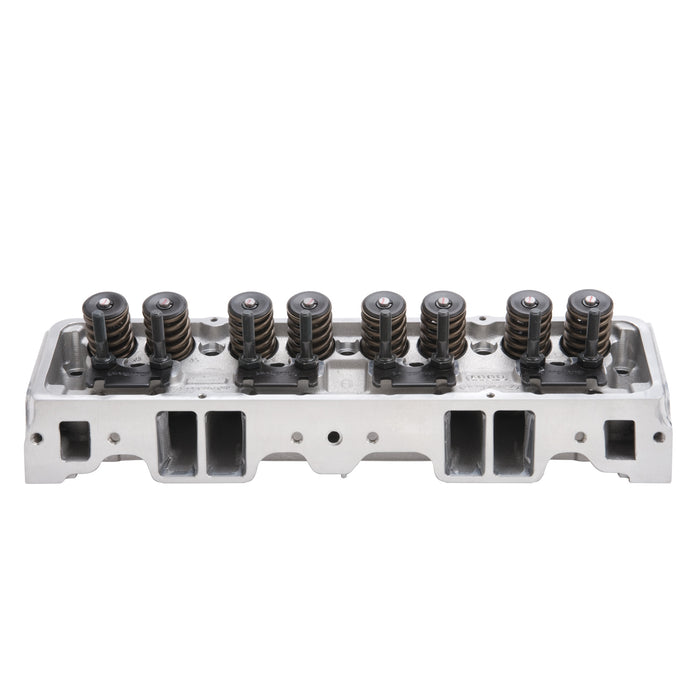

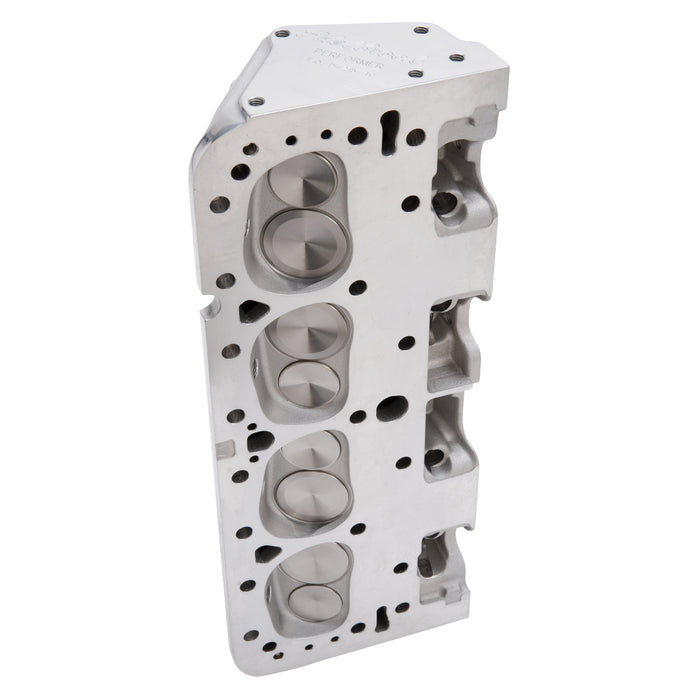

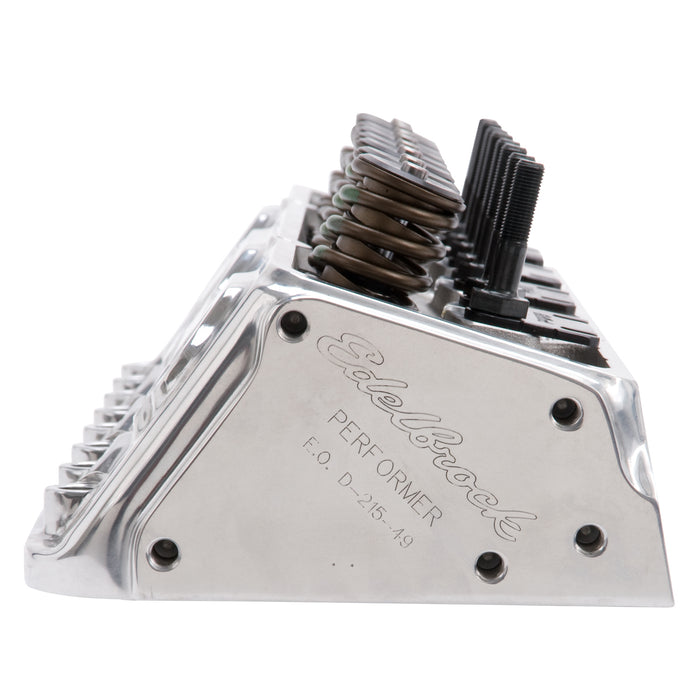

Edelbrock 607519 Engine Cylinder Head
by Edelbrock
SKU ds_BDVJ_607519
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$958.50
-
Original price
$958.50
Original price
$958.50
$958.50
-
$958.50
Current price
$958.50
Availability:
Out of stock
Description
The Edelbrock #607519 Performer cylinder head is designed for 302, 327, 350 and 400 cid small-block Chevy engines up to 1986. This cylinder head includes your choice of 64cc (In order to retain stock compression ratio on 1970 and earlier small-blocks) or 70cc combustion chambers and high flow intake and exhaust ports. A Complete head includes larger-than-stock 1.46" valve springs to handle most high-lift cams. This head retains the stock intake port location for compatibility with standard manifolds and headers. Heat crossover is machined for 50-state emissions legal performance.
Specifications
| Camshaft Type | Flat Tappet |
| CNC Ported | No |
| Combustion Chamber Volume | 70 |
| Construction Type | Complete |
| Deck Thickness | 0.5625 |
| Description_ABR | Cyl. Head |
| Description_ASM | Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
| Description_DEF | Engine Cylinder Head |
| Description_EXT | Edelbrock part #607519 Performer Cylinder Heads are designed for 302, 327, 350 and 400 c.i.d. small-block Chevy engines up to 1986. |
| Description_INV | Edelbrock SBC Cylinder Head |
| Description_LAB | RPM Small-Block Chevy Cylinder Head SBC 70cc Flat Tappet Cam Polished |
| Description_MKT | The Edelbrock #607519 Performer cylinder head is designed for 302, 327, 350 and 400 cid small-block Chevy engines up to 1986. This cylinder head includes your choice of 64cc (In order to retain stock compression ratio on 1970 and earlier small-blocks) or 70cc combustion chambers and high flow intake and exhaust ports. A Complete head includes larger-than-stock 1.46" valve springs to handle most high-lift cams. This head retains the stock intake port location for compatibility with standard manifolds and headers. Heat crossover is machined for 50-state emissions legal performance. |
| Description_TRA | EQUIPPED WITH SPRINGS FOR USE IN HYDRAULIC FLAT TAPPET CAMSHAFT APPLICATIONS |
| Description_TRA | Match with Edelbrock head gasket |
| Description_TRA | Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. |
| Description_TRA | When using hot air choke Q-Jet carbs and Performer manifold with above heads, choke kit #1932 is required. |
| EGR Port | Yes |
| Exhaust Port Location | Standard |
| Exhaust Runner Volume | 65 |
| Exhaust Valve Diameter | 1.60 |
| Family | Performer |
| finish | Polished |
| Grade Type | Performance |
| Guide Material | Manganese Bronze |
| Guide Plate Material | Hardened Steel |
| Guide Plates Included | Yes |
| Head Casting Number | N/A |
| height | 7.188 |
| Horsepower | 300-450 |
| Intake Runner Volume | 185 |
| Intake Valve Diameter | 2.02 |
| length | 22.188 |
| Material | Aluminum |
| Push Rod Diameter | (Suggested) 0.3125 |
| Quantity | Sold Individually |
| Retainer Included | Yes |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Rotor Center Bore Inside Diameter | Straight |
| Seat Angle | Exhaust 45 deg/Intake 45 |
| Seat Material | Ductile Iron |
| Series | Performer |
| Valve Angle | 23 |
| Valve Included | Yes |
| Valve Spring Diameter | 1.46 |
| Valve Spring Maximum Lift | 0.575 |
| Valve Springs Included | Yes |
| Valve Stem Diameter | 0.3438 |
| weight | 29.9 |
| width | 10.125 |
