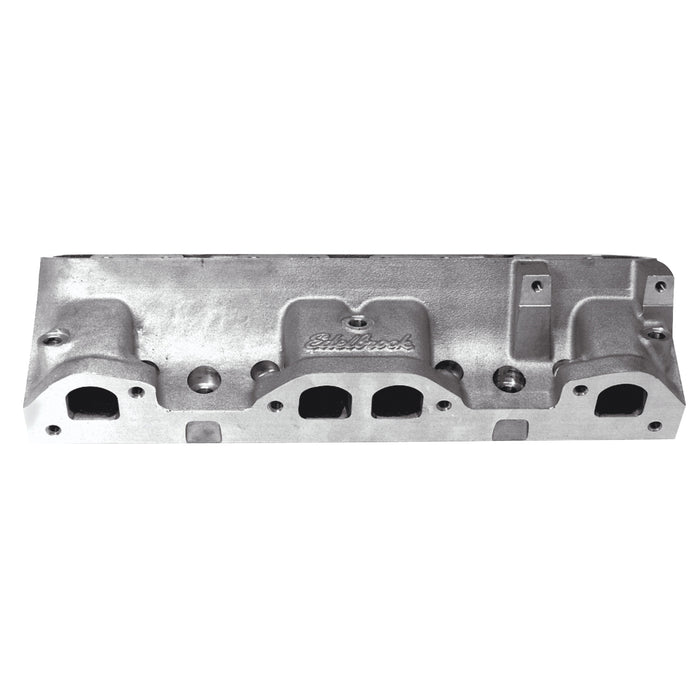

Edelbrock 60569 Engine Cylinder Head
by Edelbrock
SKU ds_BDVJ_60569
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$1,114.50
-
Original price
$1,114.50
Original price
$1,114.50
$1,114.50
-
$1,114.50
Current price
$1,114.50
Availability:
Out of stock
Description
The Edelbrock #60569 Performer cylinder head is designed for outstanding performance gains in 1962-79 389-455 c.i.d. Pontiac engines. They feature 87cc combustion chambers designed to maximize performance while using less expensive, low-octane fuel with a streetable 9.5:1 compression ratio. They are patterned after the 1969-70 Ram Air IV Pontiac cylinder head.
Specifications
| CNC Ported | No |
| Combustion Chamber Volume | 87 |
| Construction Type | Bare |
| Deck Thickness | 0.625 |
| Description_ABR | Cyl. Head |
| Description_ASM | Pontiac:-:326 (5.3L)/350 (5.7L)/389 (6.4L)/400 (6.6L)/421 (6.9L)/428 (7.0L)/455 (7.4) |
| Description_DEF | Engine Cylinder Head |
| Description_EXT | The Edelbrock #60569 Performer cylinder heads are designed for outstanding performance gains in 1962-79 389-455 c.i.d. Pontiac engines. They are patterned after the 1969-70 Ram Air IV Pontiac cylinder head. |
| Description_INV | Edelbrock Pontiac Cylinder Head |
| Description_LAB | Performer Pontiac Cylinder Head 87cc Hydraulic Flat Tapped Camshaft |
| Description_MKT | The Edelbrock #60569 Performer cylinder head is designed for outstanding performance gains in 1962-79 389-455 c.i.d. Pontiac engines. They feature 87cc combustion chambers designed to maximize performance while using less expensive, low-octane fuel with a streetable 9.5:1 compression ratio. They are patterned after the 1969-70 Ram Air IV Pontiac cylinder head. |
| Description_TRA | Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. |
| Description_TRA | Deck thickness: 5/8" |
| Description_TRA | Edelbrock head bolt kit #8549 |
| Description_TRA | Pushrod diameter: 5/16" (width of slot in guide plate). |
| Description_TRA | These heads require Ram Air IV (round port) style exhaust manifolds or headers |
| EGR Port | Yes |
| Exhaust Port Location | Standard |
| Exhaust Runner Volume | 175 |
| Family | Performer |
| Grade Type | Performance |
| Guide Material | Manganese Bronze |
| Guide Plate Material | Hardened Steel |
| Guide Plates Included | Yes |
| Head Casting Number | N/A |
| height | 8.5 |
| Horsepower | 400-500 |
| Intake Runner Volume | 215 |
| length | 26.0 |
| Material | Aluminum |
| Quantity | Sold Individually |
| Retainer Included | No |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Seat Angle | Exhaust 45 deg/Intake 45 |
| Seat Material | Ductile Iron |
| Series | Performer |
| Valve Angle | 14 |
| Valve Included | No |
| Valve Springs Included | No |
| weight | 31.4 |
| width | 11.0 |
